1. Product Overview

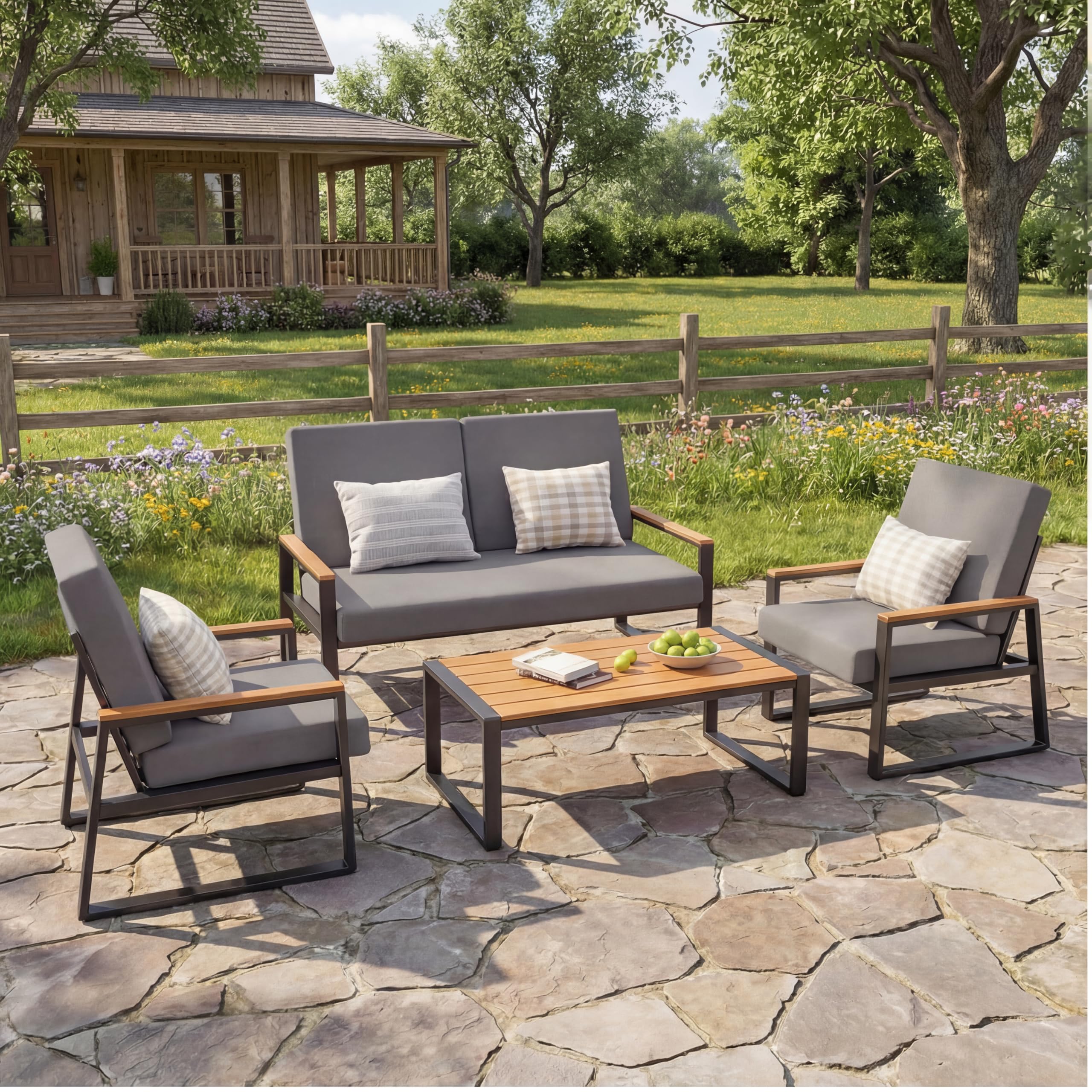

Figure 1.1: Gizoon WR510 4-Piece Outdoor Patio Furniture Set.
This manual provides detailed instructions for the assembly, operation, and maintenance of your Gizoon 4-Piece Outdoor Patio Furniture Set, Model WR510. Please read all instructions carefully before assembly and use to ensure safe and proper functioning of the product.
Key Features:
- Durable Metal Frame and WPC Tabletop: Features a sturdy powder-coated iron frame. The two-seater sofa supports up to 660 lbs, and each single chair supports 330 lbs. The coffee table includes a Wood Plastic Composite (WPC) tabletop designed for outdoor durability.
- Thick High-Resilience Sponge Cushions: Ergonomically designed with thick, breathable sponge layers for optimal hip and back support.
- Easy to Clean: Cushion covers are made with PU-coated fabric and are removable for convenient cleaning.
- Modern and Stylish Design: Contemporary metal frame with heat-treated wood-grain coated armrests, enhancing outdoor spaces.
- Easy Assembly: Comes with high-quality hardware and a detailed, easy-to-follow instruction manual. Each part is numbered for straightforward assembly.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in injury or damage to the product.
- Do not exceed the weight limit of 660 lbs (299 kg) for the loveseat.
- Do not exceed the weight limit of 330 lbs (150 kg) for each single chair.
- Ensure all cushions are securely attached to prevent detachment.
- Always assemble and use the furniture according to the provided instructions to maintain stability and safety.
- Keep small parts away from children during assembly to prevent choking hazards.
- Wear gloves during assembly to prevent injury.
3. Setup and Assembly
The Gizoon WR510 patio furniture set is designed for easy assembly. It is recommended that 2-3 people assist with assembly, which typically takes 3-4 hours, though time may vary based on experience. An electric screwdriver (not included) can improve efficiency.
Before You Begin:
- Ensure you have adequate workspace.
- The set ships in two boxes, which may arrive separately. Please check both boxes to ensure all parts are received before starting assembly.
- Take inventory of all components against the parts list in your included manual.
- A screwdriver is included.
Figure 3.1: Product Dimensions. Single chair: 26.5 in width, 24.4 in height. Loveseat: 50.1 in width, 24.4 in height. Coffee table: 43.3 in length, 23.6 in width, 15.9 in height.
Figure 3.2: Assembly Overview. Recommended 2-3 people, average time 3-4 hours. Requires a screwdriver (included). An electric screwdriver can be used for efficiency. Check both boxes for all parts. Wear gloves to prevent injury.
Assembly Video:
Video 3.1: Official Gizoon 4-Piece Outdoor Patio Furniture Set Assembly Guide. This video demonstrates the step-by-step assembly process for the furniture set.
4. Operating Instructions
Once assembled, your Gizoon patio furniture set is ready for use. Arrange the pieces according to your preference to create a comfortable outdoor living space.
Usage Guidelines:
- Place the furniture on a flat, stable surface to prevent tipping.
- Ensure all connections are tight before each use.
- Distribute weight evenly on seating surfaces.
- Avoid standing on the furniture.
- The adjustable feet on the furniture allow for minor leveling adjustments on uneven surfaces.
Figure 4.1: Adjustable Foot. Rotate to adjust height and level the furniture.
Figure 4.2: Example Furniture Arrangements. Choose a layout that best suits your outdoor space.
5. Maintenance
Regular maintenance will extend the life and appearance of your patio furniture set.
Cleaning Instructions:
- Frame: Wipe with a dry cloth. For stubborn dirt, use a mild soap solution and a soft cloth, then rinse thoroughly and dry immediately.
- Cushions: The cushion covers are removable and made with PU-coated, water-repellent fabric. Remove covers and hand wash with mild soap and cold water, or machine wash on a gentle cycle. Air dry only; do not tumble dry. Ensure cushions are completely dry before reattaching.
- WPC Tabletop: Wipe with a damp cloth. Avoid abrasive cleaners or harsh chemicals.
Figure 5.1: Removable Cushion Cover. The zipper allows for easy removal and cleaning.
Figure 5.2: Water-Repellent Fabric. Cushions resist moisture, spills, and light rain.
Figure 5.3: WPC Tabletop. Durable and easy to clean.
Storage:
During harsh weather conditions or prolonged periods of non-use, it is recommended to store cushions indoors and cover the furniture with a protective cover to prolong its lifespan.
6. Troubleshooting
If you encounter any issues with your Gizoon patio furniture set, please refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Furniture is wobbly. | Uneven surface or loose connections. | Adjust the leveling feet on the bottom of the furniture. Tighten all bolts and screws. |
| Cushions slide off. | Cushions not properly secured. | Ensure cushions are placed correctly and any anti-slip features are engaged. |
| Difficulty with assembly. | Incorrect part orientation or missing hardware. | Review the assembly instructions carefully. Verify all parts are present and oriented correctly. Contact customer support if parts are missing or damaged. |
For issues not listed here, please contact Gizoon customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Gizoon |
| Model Number | WR510 |
| Color | Grey |
| Material Type | Metal (Frame), WPC (Tabletop) |
| Item Weight | 96.25 Pounds (approx. 43.66 kg) |
| Loveseat Weight Capacity | 660 lbs (299 kg) |
| Single Chair Weight Capacity | 330 lbs (150 kg) per chair |
| Item Dimensions (Overall) | Varies by arrangement. Individual pieces: Loveseat (50.1" W x 24.4" H), Single Chair (26.5" W x 24.4" H), Coffee Table (43.3" L x 23.6" W x 15.9" H) |
| Required Assembly | Yes |
| Additional Features | Removable Washable Cushion Covers, Sturdy Construction |
8. Warranty and Support
For warranty information or to contact customer support regarding your Gizoon WR510 4-Piece Outdoor Patio Furniture Set, please refer to the contact details provided with your purchase or visit the official Gizoon website.
Gizoon is committed to providing quality products and customer satisfaction. If you have any questions or require assistance, please do not hesitate to reach out.
Contact Information:
- For assembly questions, refer to the contact information in your product packaging.
- Online support may be available through the Gizoon Store on Amazon.
