Grainfather G30³ 110V Professional Electric Homebrewing System User Manual

Introduction

The Grainfather G30³ is an all-in-one electric homebrewing system designed for brewing professional quality craft beer from grain. This compact and user-friendly system features superior design, innovative features, and the latest technology to provide an intuitive brewing experience for both experienced and beginner all-grain brewers. Constructed from high-quality 304-grade stainless steel, it has an 8 US Gallon capacity, suitable for producing up to 6 US Gallons of beer per brew.

Image: The complete Grainfather G30³ 110V system, showcasing its sleek stainless steel design and integrated control panel.

Key Features

• Compact Design: The G30³ measures 8 US Gallons, making it suitable for indoor home use while ensuring high quality and durability with its stainless steel finish.
• All-in-One System: Features integrated components for comprehensive brewing, ideal for crafting beers and supporting professional brewing development for all skill levels. This is the US 110V model.
• Auto Reset Switch: Equipped with an automatic system reset, eliminating the need for manual intervention and ensuring a hassle-free brewing process.
• Quality Material: Constructed from 304-grade stainless steel for longevity and consistent performance, perfect for craft beer enthusiasts and home brewers seeking professional quality.
• Innovative Grain Basket: Features a newly redesigned perforated grain basket that improves wort flow and prevents stuck mashes, simplifying the brewing process.
• Rolled Edge Mash Plate: The new mash plate design includes rolled edges, eliminating the need for silicone seals and making installation, removal, and cleaning significantly easier.

What's Included

The Grainfather G30³ 110V system comes with the following components:

• Grainfather G30³ Brewing System
• Bluetooth controller
• Perforated grain basket
• Grain plate
• Lifting bar
• Glass lid
• Recirculation pipe
• Filter
• Hose fittings
• Built-in pump

Note: The Counter Flow Wort Chiller is sold separately.

Image: An overview diagram detailing the features and listing the components included with the Grainfather G30³ system.

Setup Instructions

Follow these steps to set up your Grainfather G30³ for brewing:

1. Unpack Components: Carefully remove all parts from the packaging. Refer to the "Anatomy Diagram & Parts List" to identify each component.
2. Assemble Main Unit: Place the main brewing vessel on a stable, level surface. Ensure the power cord is accessible for connection.
3. Install Grain Basket: Insert the perforated grain basket into the main vessel. The new design with rolled edges means no silicone seals are required.
4. Place Mash Plate: Position the rolled edge mash plate at the bottom of the grain basket. This filters the wort efficiently.
5. Connect Recirculation Pipe: Attach the recirculation pipe to the designated outlet on the system. This pipe is crucial for maintaining mash temperature and clarity.
6. Connect Controller: Plug the Bluetooth controller into the system. Ensure all connections are secure.
7. Power Connection: Connect the system to a 110V power outlet.

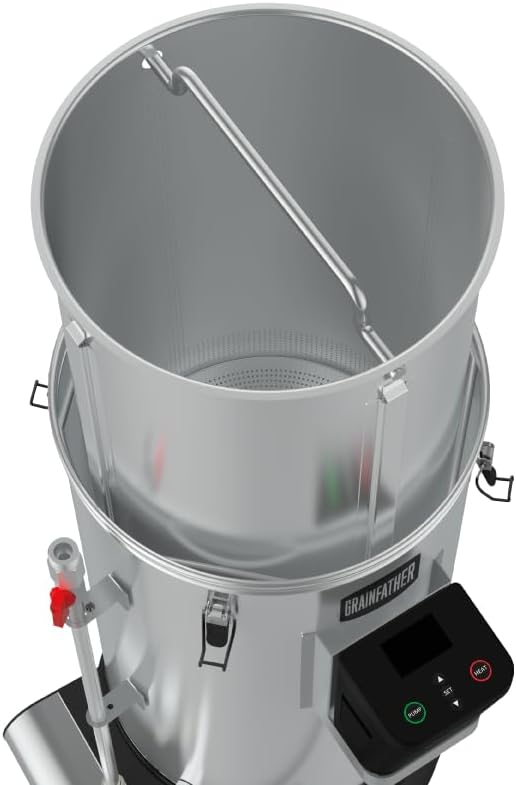

Image: Top-down view of the Grainfather G30³ showing the grain basket properly installed within the main vessel.

Image: Close-up of the newly designed perforated grain basket, highlighting its improved wort flow capabilities.

Image: The new rolled edge mash plate, designed for efficient wort filtering without warping and easier handling.

Operating Instructions

Operating the Grainfather G30³ involves several stages of the brewing process. Here's a general overview:

1. Water Heating: Fill the system with the required volume of water. Use the Bluetooth controller to set and monitor the water temperature for mashing.
2. Mashing: Add your crushed grains to the grain basket. The system will maintain the mash temperature, and the built-in pump will recirculate the wort for optimal extraction.
3. Sparging: After mashing, lift the grain basket and allow the wort to drain into the main vessel. You can then sparge the grains with hot water to rinse out remaining sugars.
4. Boiling: Remove the grain basket. Bring the wort to a rolling boil. Add hops according to your recipe. The system's heating element provides efficient boiling.
5. Cooling: Once the boil is complete, cool the wort rapidly. While the Counter Flow Wort Chiller is sold separately, it is highly recommended for efficient cooling to pitching temperature.
6. Transfer to Fermenter: Transfer the cooled wort to your fermenter, ensuring proper sanitation throughout the process.

For detailed brewing recipes and advanced control, utilize the Grainfather App via the Bluetooth controller. This allows for remote management and precise temperature control.

Maintenance and Cleaning

Proper maintenance and cleaning are essential for the longevity and performance of your Grainfather G30³ system. Always clean the system immediately after use.

1. Initial Rinse: After transferring wort, rinse the main vessel, grain basket, and all pipes with warm water to remove large debris.
2. Deep Cleaning: Use a suitable brewing cleaner (e.g., PBW or similar alkaline cleaner) mixed with hot water. Circulate the cleaning solution through the pump and pipes for 15-20 minutes.
3. Brush Cleaning: Use a soft brush to scrub the inside of the vessel, grain basket, and mash plate. Pay attention to any areas where wort or grain residue might accumulate.
4. Rinsing: Thoroughly rinse all components with clean water until no cleaning solution remains.
5. Drying and Storage: Allow all parts to air dry completely before reassembling or storing the system. Store in a clean, dry place.

The new rolled edges of the mash plate and the design of the grain basket make cleaning easier as there are no silicone seals to remove and clean separately.

Troubleshooting

This section addresses common issues you might encounter with your Grainfather G30³.

If you encounter issues not listed here, please refer to the official Grainfather support resources or contact customer service.

Specifications

Image: Detailed anatomy diagram of the Grainfather G30³ system, labeling all major components and parts for easy identification.

Important Safety Information

Please read this information carefully before operating the Grainfather G30³.

The use and possession of stills and other distilling equipment is heavily regulated by foreign, federal, state, and/or local laws. Distillation of alcohol for consumption or other use in the United States (and various other jurisdictions) without required federal and, where applicable, state licenses or permits is illegal and could result in jail time, fines, forfeiture of property, or other penalties. If you purchase any still or distilling equipment, you expressly represent and warrant that you will comply with all laws applicable to the possession, use and operation of such equipment; and all instructions for the use and operation of such equipment.

• Always operate the system on a stable, heat-resistant surface.
• Exercise extreme caution when handling hot liquids and components. Wear appropriate protective gear.
• Ensure the system is unplugged before cleaning or performing any maintenance.
• Do not immerse the control panel or electrical connections in water.
• Keep out of reach of children and pets.

Warranty and Support

The Grainfather G30³ is backed by a 3-year warranty, ensuring quality and reliability. For warranty claims, technical support, or further assistance, please contact Grainfather customer service or visit their official website.

For additional resources, tips, and community forums, visit the official Grainfather website: www.grainfather.com
