1. Introduction
This manual provides instructions for the assembly, operation, and maintenance of the vidaXL Chicken Cage, Model 3106461. This galvanized steel enclosure is designed to provide a secure and spacious habitat for poultry and small animals, measuring 157.5 inches in length, 35.8 inches in width, and 39.4 inches in height. It features a durable construction and a convenient access gate.
Image 1.1: Assembled vidaXL Chicken Cage with poultry.
2. Safety Information
- Always wear appropriate personal protective equipment (PPE) such as gloves and eye protection during assembly to prevent injury.
- Ensure all components are securely fastened before placing animals inside the cage. Loose parts can pose a hazard.
- Position the cage on a level, stable surface to prevent tipping or collapse.
- Regularly inspect the cage for any damage, sharp edges, or loose connections that could harm animals or handlers.
- Keep children and unauthorized individuals away from the assembly area.
- This product is intended for animal enclosure only. Do not use for purposes other than its design.
3. Setup and Assembly
Assembly requires at least two people. Follow the steps carefully to ensure proper construction and stability.
3.1 Unpacking and Component Check
- Carefully unpack all components from the packaging.
- Verify that all parts listed in the included parts list are present and undamaged. Contact customer support immediately if any parts are missing or damaged.
3.2 Frame Assembly
- Begin by assembling the base frame using the provided connectors and screws. Ensure all connections are tight.
- Attach the vertical support posts to the base frame.
- Connect the top frame sections to the vertical posts, forming the main structure.

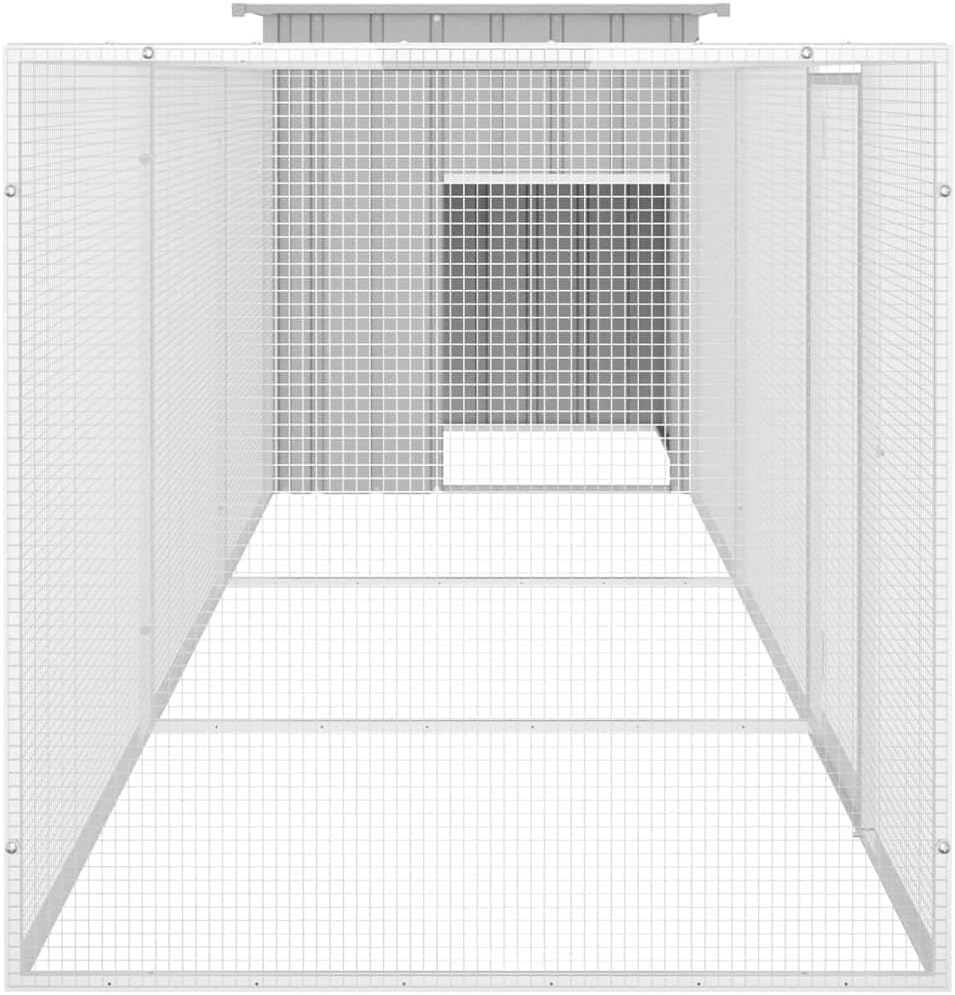

Image 3.1: Internal structure of the cage during assembly.
3.3 Mesh Panel Installation
- Carefully unroll and attach the galvanized steel mesh panels to the assembled frame using the designated clips or fasteners. Start from one end and work your way around.
- Ensure the mesh is taut and securely fastened to prevent gaps that animals could escape through or predators could exploit.
3.4 Gate and Roof Installation
- Install the access gate (18.3" x 29.3") according to the instructions, ensuring it opens and closes smoothly and latches securely.
- Attach the roof panels, ensuring they are properly aligned and secured to provide adequate shelter and prevent water accumulation.

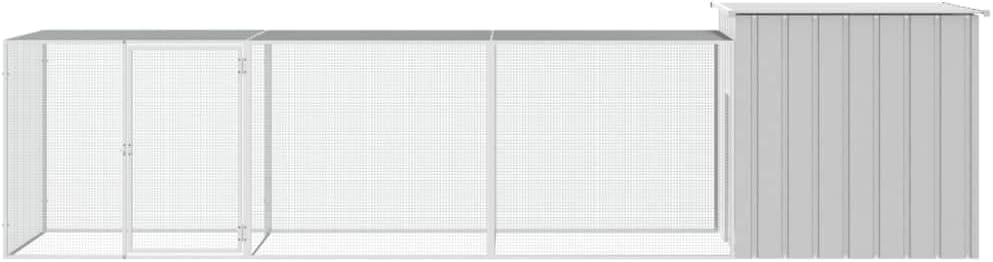

Image 3.2: Fully assembled vidaXL Chicken Cage.
4. Operating Instructions
4.1 Placement of Animals
Once fully assembled and secured, the cage is ready for use. Gently introduce your poultry or small animals into the enclosure. Ensure they have access to food, water, and any necessary shelter within the cage.
4.2 Using the Access Gate
The cage is equipped with a hinged gate for convenient access. To open, unlatch the locking mechanism and swing the gate open. To close, swing the gate shut and ensure the latch is securely engaged to prevent animals from escaping or predators from entering.
4.3 Extension Capability
This chicken cage is designed to be extendable. If you require additional space for a growing flock, compatible cage extensions (39.4" x 35.4" x 35.4" W x D x H) can be purchased separately and integrated into the existing structure following their specific assembly instructions.
5. Maintenance
5.1 Regular Cleaning
To maintain a hygienic environment for your animals, regularly clean the cage. Remove droppings, old bedding, and any food debris. The galvanized steel construction can be wiped down with a damp cloth and mild, animal-safe cleaning solution.
5.2 Inspection
Periodically inspect the entire cage for signs of wear, corrosion, or damage. Check all connections, screws, and clips to ensure they remain tight and secure. Pay close attention to the mesh for any breaks or weak points that could compromise security.
5.3 Rust Prevention
While the cage is made of galvanized steel for corrosion resistance, prolonged exposure to harsh weather conditions can still lead to wear. Address any signs of rust promptly by cleaning the affected area and applying a rust-inhibiting paint or coating suitable for animal enclosures.
6. Troubleshooting
6.1 Instability Issues
If the cage feels unstable after assembly, re-check all screw connections and ensure they are tightened securely. Verify that the cage is placed on a completely level surface. Uneven ground can cause the structure to wobble.
6.2 Gaps in Mesh
If you notice any gaps in the mesh panels, ensure they are properly stretched and attached to the frame. Use additional zip ties or wire clips if necessary to close any small openings that could allow escape or entry.
6.3 Gate Malfunction
If the gate does not open or close smoothly, check the hinges for obstructions or damage. Ensure the latch mechanism is aligned correctly and lubricate if necessary with an animal-safe lubricant.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | 3106461 |
| Brand | vidaXL |
| Material | Galvanized Steel |
| Overall Dimensions (L x W x H) | 157.5" x 35.8" x 39.4" (400 cm x 91 cm x 100 cm) |
| Gate Dimensions (W x H) | 18.3" x 29.3" |
| Item Weight | 55.4 pounds (25.2 Kilograms) |
| Color | Gray |
| Special Feature | Ventilated, Extendable |
Image 7.1: Dimensional diagram of the vidaXL Chicken Cage.
8. Warranty and Support
8.1 Product Warranty
All products sold by vidaXL are covered by a legal guarantee of at least two years. Please retain your proof of purchase for warranty claims.
8.2 Customer Support
For further assistance, missing parts, or warranty inquiries, please contact vidaXL customer support. You can find more information and contact details by visiting the official vidaXL Store.
