Introduction
Thank you for choosing Ledvion LED String Lights. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your 45-meter gold LED string lights with E27 bulbs. Please read this manual thoroughly before use and retain it for future reference.
These professional-grade LED string lights are designed to create an inviting ambiance in your garden, on your balcony, or within your home. With an IP65 rating, they are waterproof and suitable for year-round outdoor and indoor use.
Safety Instructions
- Always disconnect the power supply before installation, maintenance, or cleaning.
- Ensure the product is installed by a qualified electrician if you are unsure about electrical connections.
- Do not exceed the maximum connectable units (up to 45 units).
- Do not modify the product in any way. Unauthorized modifications may lead to electric shock, fire, or product damage.
- Keep away from flammable materials.
- Ensure all connections are secure and waterproof, especially for outdoor use (IP65 rating).
- Do not look directly into the LED light source when illuminated, as it may cause eye strain.
- Handle bulbs with care to prevent breakage.
Package Contents
Verify that all components are present:
- 1x Ledvion 45M LED String Light cable
- 45x E27 LED Gold Bulbs
- 1x 3-meter power cable with plug
Setup Instructions
- Unpacking: Carefully remove all components from the packaging. Inspect for any damage.
- Bulb Installation: Screw each E27 LED bulb into the lamp sockets along the string light cable. Ensure they are securely tightened to maintain the IP65 waterproof rating.
- Placement: Determine the desired location for your string lights. The IP65 rating allows for both indoor and outdoor use.
- Mounting: Secure the string light cable using appropriate fasteners (not included) to prevent sagging and ensure stability. Avoid placing undue stress on the cable or bulb sockets.
- Connecting to Power: Connect the 3-meter power cable to the string light. Plug the power cable into a standard 230V electrical outlet. Ensure the outlet is suitable for outdoor use if applicable.
- Extension (Optional): The string lights can be connected to up to 45 additional units. Use the provided cable connectors for extension. If not extending, use the cable termination cap to seal the end.
Close-up of an illuminated E27 LED bulb from the Ledvion string lights, nestled in green foliage. Ensure bulbs are securely screwed into sockets.

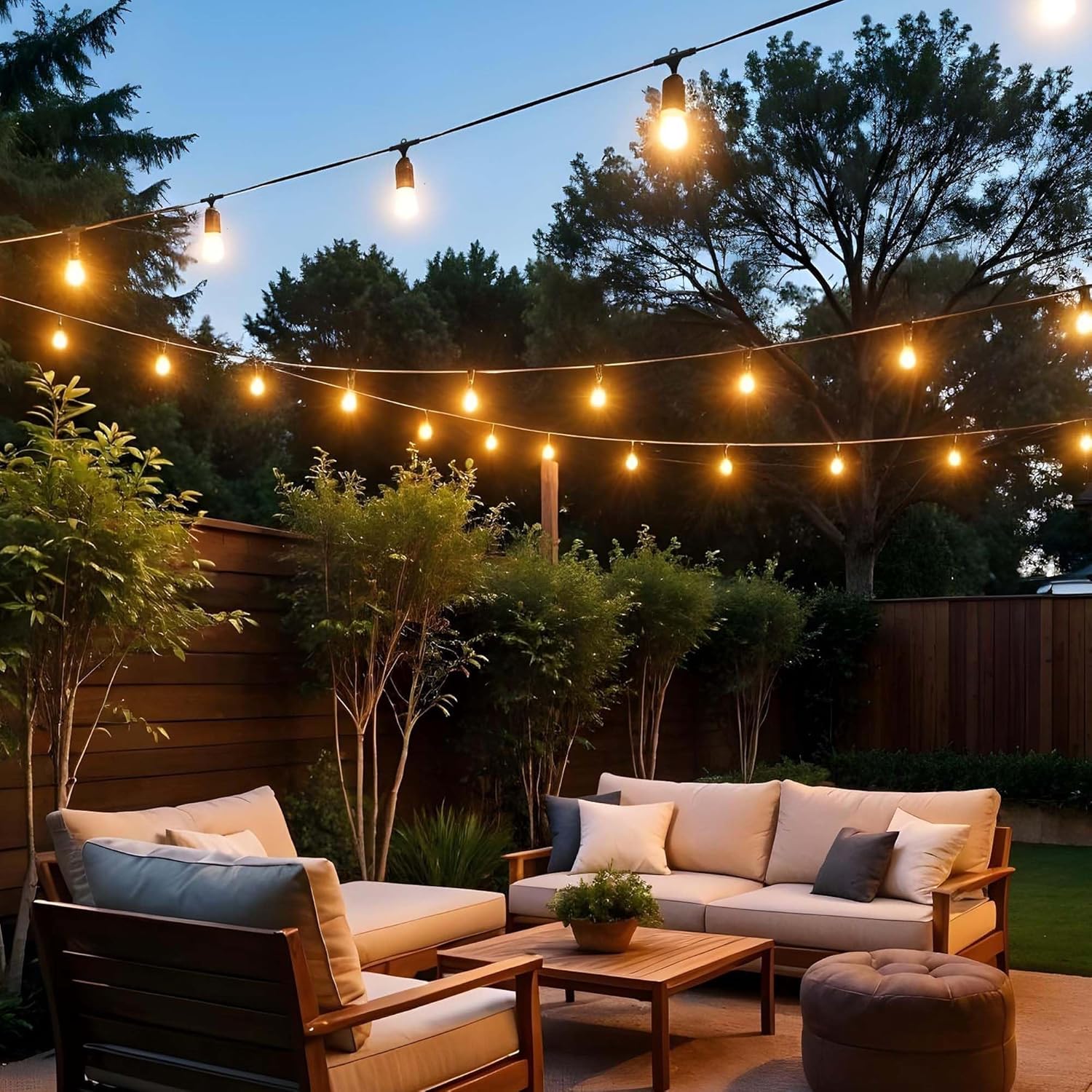

Ledvion LED string lights illuminating an outdoor patio area with seating, demonstrating typical outdoor placement.

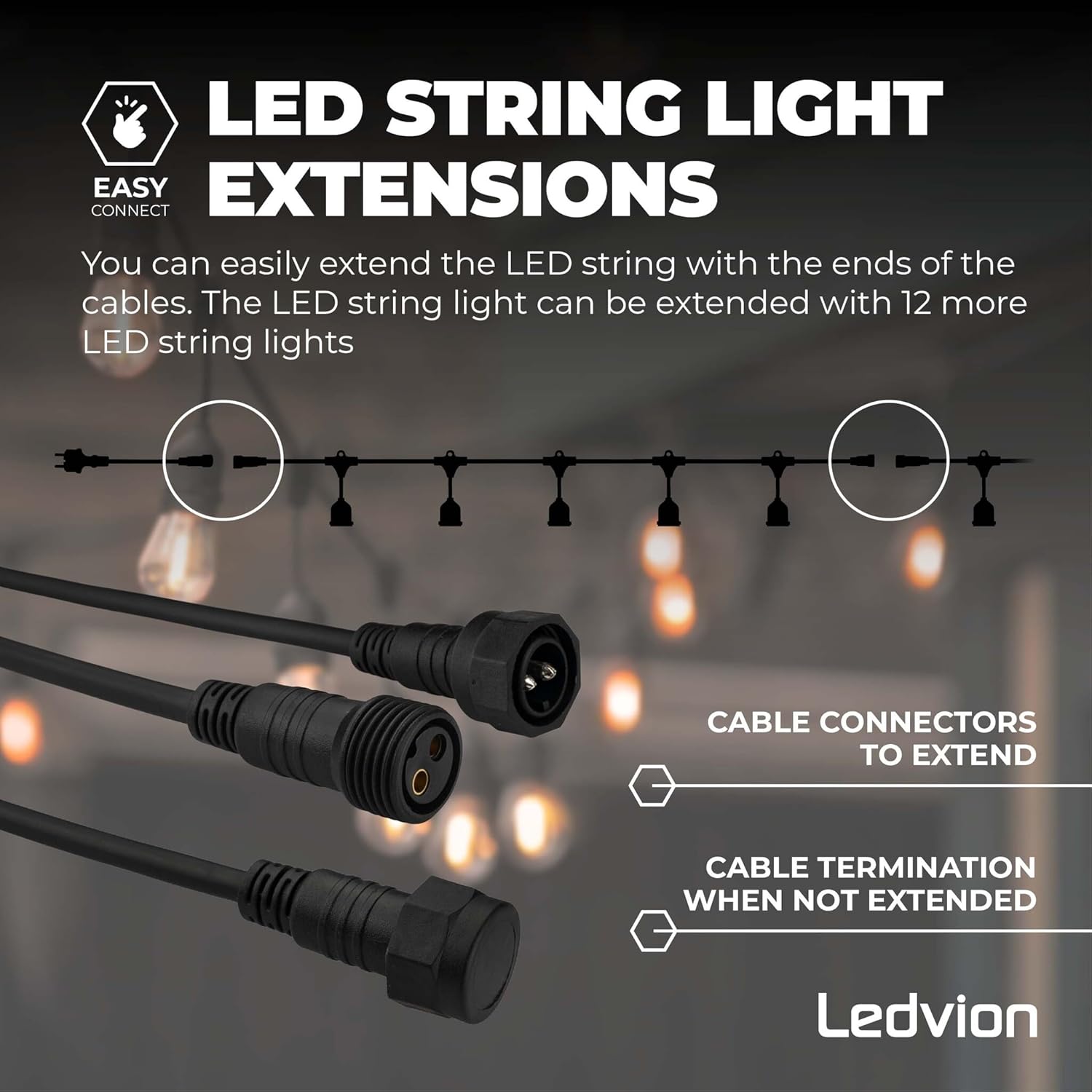

Diagram illustrating the 'Easy Connect' feature for extending Ledvion LED string lights using cable connectors. A cable termination cap is used when not extending.
Operating Instructions
Once properly installed and connected to a power source, the Ledvion LED string lights will illuminate when the power is switched on at the outlet. There are no additional controls on the string lights themselves.
- Power On/Off: Use the wall switch or unplug the power cable to turn the lights on or off.
- Ambiance: The 2100K color temperature provides a warm, golden light suitable for creating an inviting atmosphere.
Maintenance
- Cleaning: Disconnect from power before cleaning. Wipe the cable and bulbs with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Bulb Replacement: If a bulb needs replacement, ensure the power is off and the string is unplugged. Carefully unscrew the old bulb and screw in a new E27 LED bulb (1W, 2100K recommended). Ensure the new bulb is securely tightened to maintain the IP65 rating.
- Inspection: Periodically inspect the cable and connections for any signs of wear, damage, or loose connections. Address any issues promptly.
- Storage: If storing the string lights for an extended period, clean them thoroughly, coil the cable neatly, and store in a dry, cool place away from direct sunlight.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power supply. Loose connection. Faulty bulb. | Check if the power cable is securely plugged into a working outlet. Ensure all cable connections are tight. Inspect individual bulbs for damage and replace if necessary. |
| Some bulbs are not working. | Loose bulb. Faulty bulb. | Tighten the affected bulb(s). Replace the faulty bulb(s) with new E27 LED bulbs. |
| Lights flicker. | Unstable power supply. Loose connection. Incompatible dimmer (if used). | Ensure the power supply is stable. Check all connections for tightness. This product is not specified as dimmable; avoid using with incompatible dimmers. |
| Water ingress (for outdoor use). | Bulbs not tightened sufficiently. Damaged cable/socket. | Ensure all bulbs are securely tightened into their sockets. Inspect the cable and sockets for any cracks or damage. If damaged, discontinue use and replace the affected section or unit. |
Product Specifications
| Feature | Detail |
|---|---|
| Model Number | LVO10049-45m-Gold |
| Brand | Ledvion |
| Length | 45 meters |
| Number of Bulbs | 45 |
| Bulb Type | E27 LED |
| Total Wattage | 45 Watts (1W per bulb) |
| Color Temperature | 2100 Kelvin (Warm Gold) |
| Voltage | 230 Volts |
| IP Rating | IP65 (Dustproof and jet-water resistant) |
| Material | Rubber, Polyvinyl Chloride |
| Usage | Indoor/Outdoor |
| Connectable Units | Up to 45 units |
| Product Dimensions (L x W x H) | 84 x 36 x 28 cm (packaging); 6.5 kg |

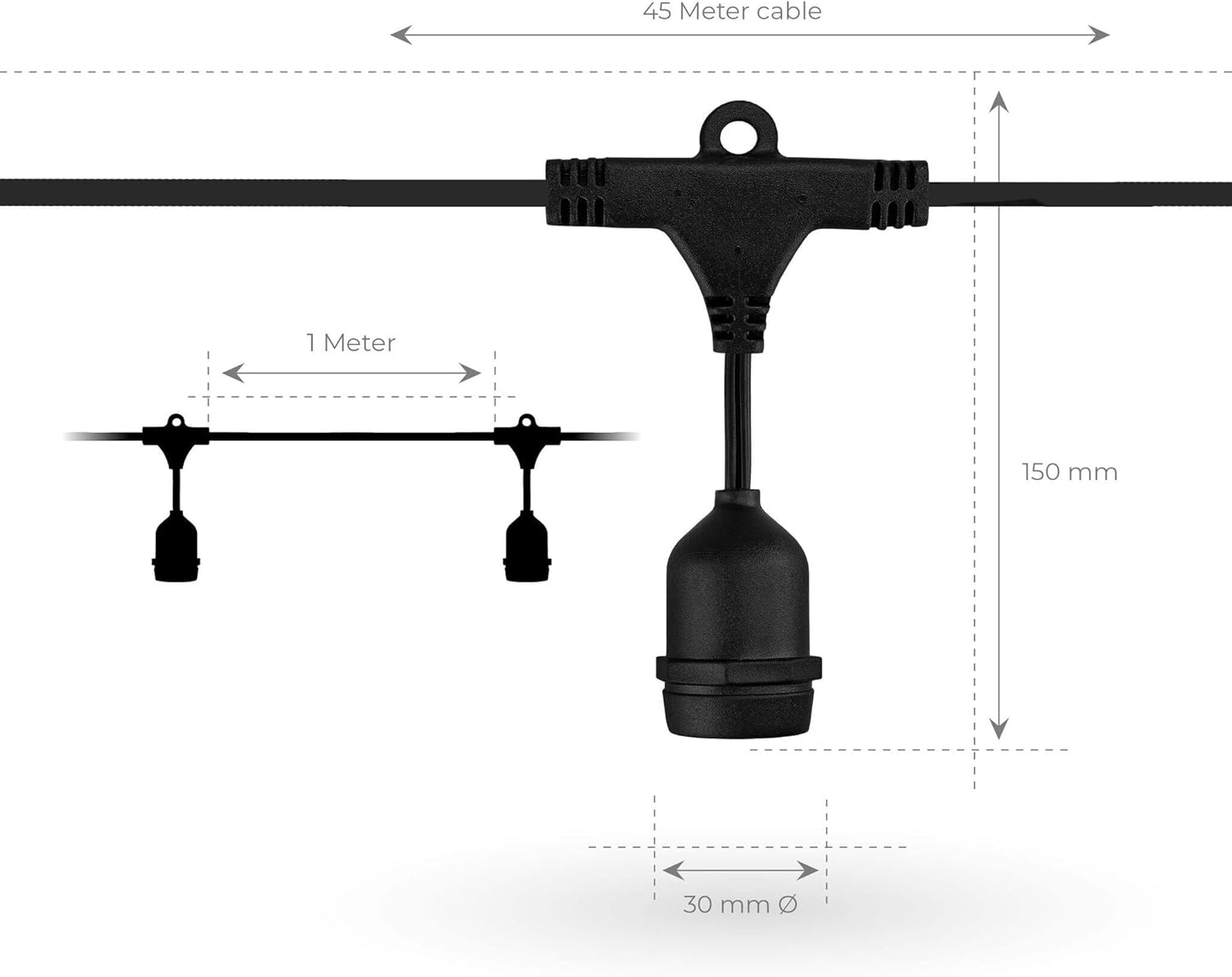

Technical diagram showing the dimensions of the Ledvion LED string light cable and bulb holder.
Technical information sheet providing detailed specifications and energy parameters.
Warranty Information
This Ledvion LED String Light product comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and material faults under normal use conditions.
Image confirming the 2-year warranty for Ledvion LED string lights and illustrating wattage calculation.
The warranty does not cover:
- Damage caused by improper installation or misuse.
- Damage caused by unauthorized modifications or repairs.
- Damage due to natural disasters or accidents.
- Normal wear and tear.
Please retain your proof of purchase for warranty claims.
Customer Support
For technical assistance, warranty claims, or any questions regarding your Ledvion LED String Lights, please contact your retailer or visit the official Ledvion website for support information.
Manufacturer: Ledvion
Product ASIN: B0CHZ58MTD
