1. Introduction
Thank you for choosing the TecTake 6x4m Garden Gazebo. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new gazebo. Please read these instructions carefully before use and retain them for future reference.
This robust and versatile gazebo is designed to provide shelter for various outdoor activities, including garden parties, receptions, and general outdoor relaxation. Its durable steel frame and waterproof polyethylene cover ensure reliability in diverse conditions.
Image: The TecTake 6x4m Garden Gazebo, showcasing its full assembly with side panels and arched windows.
2. Important Safety Warnings
WARNING: This pavilion offers no protection in case of storms or very bad weather conditions. In such cases, you should not use the pavilion or leave it outdoors. Otherwise, the pavilion could be damaged.
- Always ensure the gazebo is securely anchored to the ground using all provided stakes and tension ropes.
- Do not use the gazebo during strong winds, heavy rain, hail, or snow. Disassemble and store it in adverse weather conditions.
- Keep all flame and heat sources away from the gazebo fabric.
- Ensure proper ventilation if using heating appliances inside the gazebo.
- Regularly inspect all components for wear, damage, or loose connections. Do not use if any part is compromised.
- Assembly should be performed by at least two adults to ensure safety and ease.
3. Package Contents
Before beginning assembly, please verify that all components listed below are present and undamaged:
- Pavilion structure (steel poles and connectors)
- Roof tarp
- 4 side panels (with windows and zippers)
- 4 tension ropes
- 20 thick ground stakes
- 16 thin ground stakes
- Assembly instructions manual

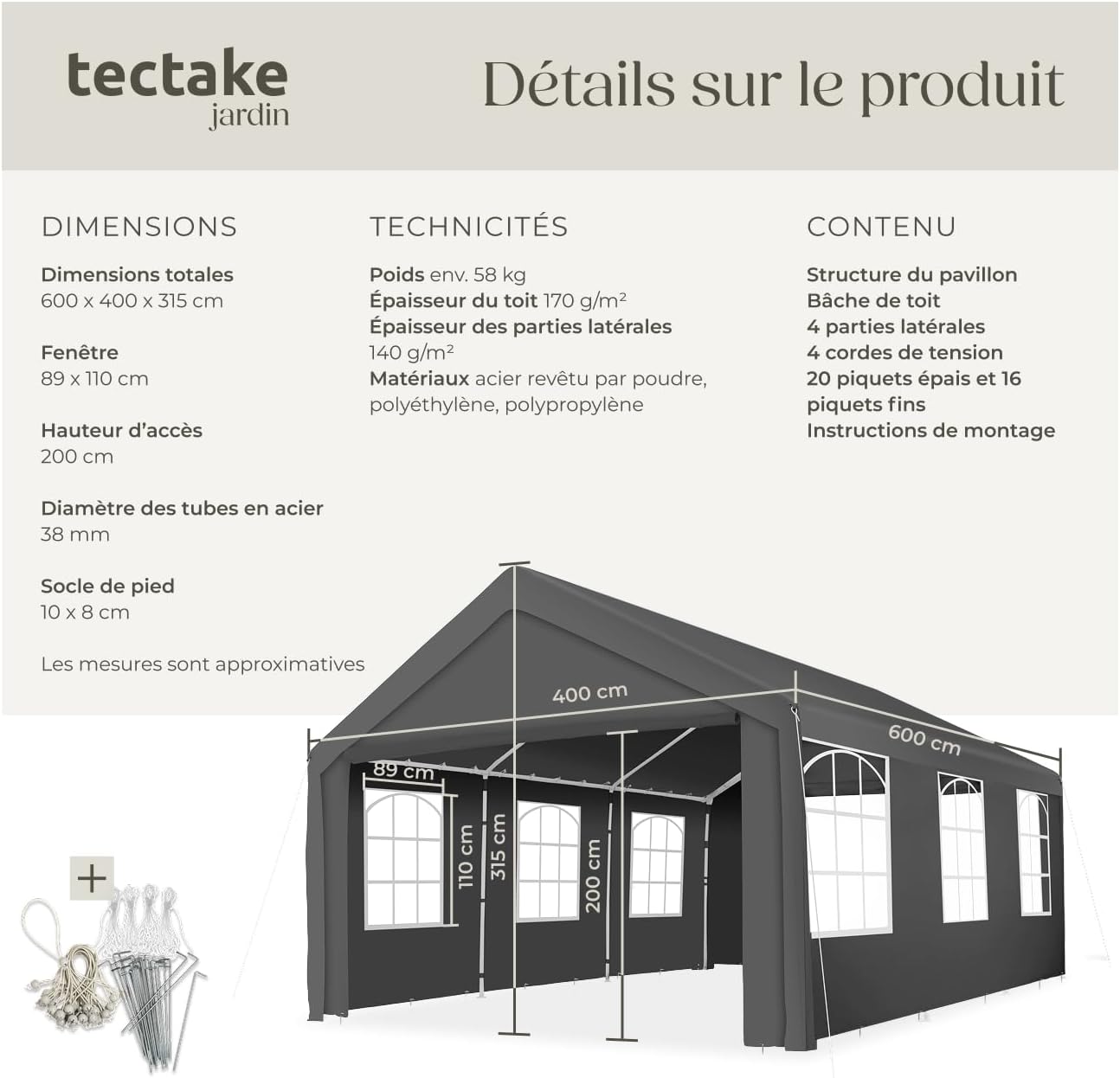

Image: Detailed diagram illustrating the dimensions and listing the components included in the TecTake Garden Gazebo package.
4. Setup and Assembly
The TecTake Garden Gazebo features an easy-to-assemble interlocking system. For optimal safety and efficiency, assembly is recommended with two people.
Assembly Steps:
- Prepare the Area: Choose a flat, level surface for assembly, clear of any sharp objects or debris.
- Assemble the Roof Frame: Connect the steel poles according to the provided diagram to form the roof structure. The interlocking system allows for quick and secure connections.
- Attach the Roof Tarp: Drape the roof tarp over the assembled roof frame. Ensure it is centered and all corners are aligned.
- Install the Legs: Attach the vertical leg poles to the roof frame. Lift one side of the frame and insert the legs, then repeat for the other side.
- Secure Side Panels: The side panels are modular and can be attached or removed as needed. Use the adhesive bands (hook-and-loop fasteners) to secure them to the frame. The large windows provide ample light.
- Anchor the Gazebo: Once the main structure is standing, secure the gazebo to the ground using the provided thick and thin stakes. Utilize all tension ropes for additional stability, especially in breezy conditions.
Image: Close-up views of the gazebo's assembly features, including how side panels attach, the design of the ground stakes, the zipper mechanism for openings, and the robust frame joint system.
5. Operating Guidelines
Your TecTake Garden Gazebo is designed for flexible use and protection from the elements.
Usage:
- Modular Design: The removable side panels allow you to transform the gazebo from a fully enclosed space to an open canopy, adapting to your needs and weather conditions.
- Light and Ventilation: The large windows ensure ideal luminosity inside, while zippered openings on the sides facilitate easy access and ventilation.
- Weather Protection: The 100% waterproof polyethylene fabric with welded seams provides effective protection against rain. The material also offers UV protection.
- Stability: Ensure the gazebo is always properly anchored, especially when in use, to maintain stability.
Image: People enjoying an event inside the TecTake Garden Gazebo, illustrating its spacious interior and the effect of its large windows.
Image: Visual representation of the gazebo's resistance to both rain and sun, highlighting its waterproof and UV-protective qualities.
6. Care and Maintenance
Proper care will extend the lifespan of your TecTake Garden Gazebo.
- Cleaning: Clean the polyethylene fabric with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners, as these can damage the material. Rinse thoroughly and allow to air dry completely before storage.
- Storage: When not in use for extended periods or during severe weather, disassemble the gazebo and store all components in a dry, cool place, away from direct sunlight. Ensure the fabric is completely dry to prevent mold and mildew.
- Inspection: Periodically check all frame connections, fabric integrity, and anchoring points. Tighten any loose connections and repair or replace damaged parts promptly.
7. Troubleshooting
Here are solutions to common issues you might encounter:
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo is unstable or sways in light wind. | Insufficient anchoring; loose connections. | Ensure all ground stakes are fully inserted and tension ropes are taut. Check all frame connections are secure. |
| Water pooling on the roof. | Improper roof tarp tension or frame assembly. | Re-adjust the roof tarp to ensure it is taut and properly stretched over the frame. Verify the frame is assembled correctly. |
| Side panels do not close properly. | Misalignment or debris in zippers/fasteners. | Check for any obstructions in the zippers. Ensure the side panels are correctly aligned and attached to the frame. |
| Damaged fabric (tears, holes). | Wear and tear; improper handling; severe weather. | For small tears, use a repair kit. For significant damage, contact TecTake customer support for replacement parts. Avoid using in severe weather. |
8. Product Specifications
| Feature | Detail |
|---|---|
| Model Number | 404929 |
| Total Dimensions (L x W x H) | 600 x 400 x 315 cm (approx. 6L x 4W x 3.15H meters) |
| Weight | Approx. 58 kg |
| Roof Material | Polyethylene (PE), 170 g/m² thickness |
| Side Panel Material | Polyethylene (PE), 140 g/m² thickness |
| Frame Material | Powder-coated steel |
| Steel Tube Diameter | 38 mm |
| Access Height | 200 cm |
| Window Dimensions | 89 x 110 cm |
| Color | Grey |
| Water Resistance Level | Waterproof |
| UV Protection | Yes |
| Recommended Use | Party, Reception, Garden Shelter |
9. Warranty and Support
This product is subject to a return policy of 30 days from the date of purchase, allowing for refund or replacement in case of defects or issues not caused by misuse or improper handling.
For any questions, missing parts, or support needs regarding your TecTake Garden Gazebo, please contact TecTake customer service. You can find contact information on the official TecTake website or through your purchase platform.
Please have your model number (404929) and purchase details ready when contacting support.
