1. Introduction
Thank you for choosing the LEKATO CP-206 Isolated Guitar Pedal Power Supply. This device is designed to provide clean, stable, and isolated power to your guitar effects pedals, ensuring optimal performance and minimizing unwanted noise. Please read this manual thoroughly before use to ensure proper operation and longevity of your unit.
2. Safety Instructions
- Ensure the power supply is connected to a grounded power outlet.
- Do not expose the unit to water, moisture, or extreme temperatures.
- Avoid dropping or subjecting the unit to strong impacts.
- Do not attempt to disassemble or modify the unit. Refer all servicing to qualified personnel.
- Use only the provided power adapter to prevent damage.
- Ensure correct voltage and current matching for each pedal to avoid damage to the pedal or power supply.
3. Package Contents
Verify that all items are present in the package:
- 1x LEKATO CP-206 Guitar Pedal Power Supply
- 1x Power Adapter (100~240V)
- 1x Polarity Reversal Cable
- 1x 3.5mm Conversion Cable
- 12x Power Cables
- 1x User Manual

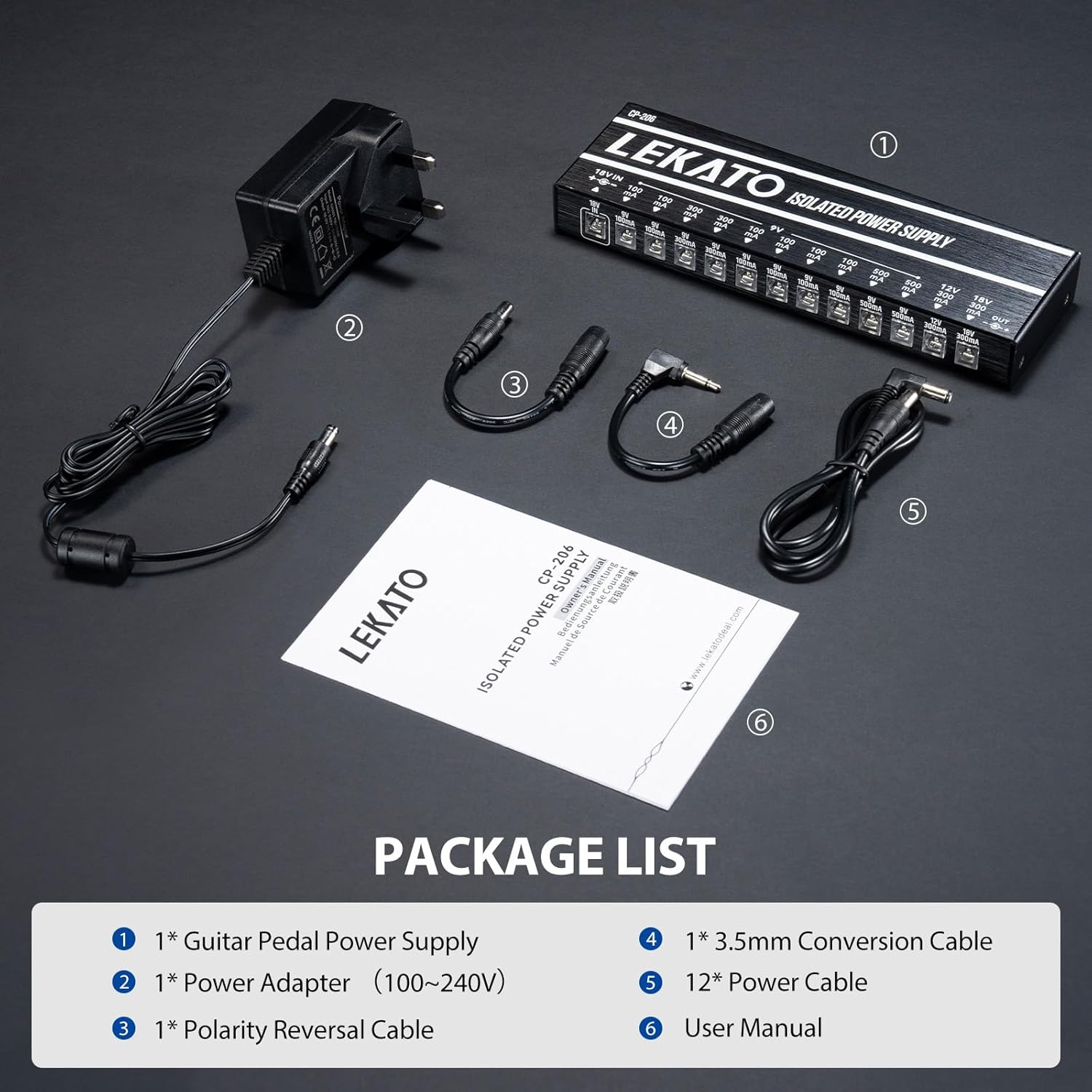

Image: Package contents of the LEKATO CP-206 power supply.
4. Product Features
- 12 Isolated DC Outputs: Provides clean and stable power to individual pedals, preventing ground loops and noise.
- Versatile Output Options: Includes 6x 9V 100mA, 2x 9V 300mA, 2x 9V 500mA, and 1x 12V/18V 300mA outputs to accommodate various pedal requirements.
- Short Circuit Protection: Each output circuit features independent overload protection. If one output experiences a short circuit, other outputs remain operational.
- Low Noise Design: Engineered to minimize power supply noise, ensuring a clear audio signal for your effects.
- LED Indicators: Each output is equipped with an LED indicator to show its operational status. A blue light indicates normal operation.
- Durable Construction: Made from high-quality aluminum alloy for enhanced durability and stability.
- Compact and Portable: Lightweight and small form factor, ideal for pedalboards and easy transport.
Image: LEKATO CP-206 showcasing true isolated power supply with 12 outputs.
5. Setup
- Connect the Power Adapter: Plug the included power adapter into the 18V IN port on the LEKATO CP-206 unit. Then, plug the adapter into a suitable wall outlet.
- Connect Pedals: Use the provided power cables to connect your guitar effects pedals to the appropriate DC output jacks on the CP-206. Ensure that the voltage (9V, 12V, or 18V) and current (mA) requirements of your pedal match the output specifications.
- Polarity: The standard polarity for most guitar pedals is center-negative. The LEKATO CP-206 outputs are center-negative. If a pedal requires center-positive polarity, use the included polarity reversal cable.
- 12V/18V Output: The dedicated 12V/18V output can be switched between these two voltages using the toggle switch located next to the output jack. Ensure the correct voltage is selected for your pedal.
- Secure the Unit: The compact design allows for easy mounting on most pedalboards.
Image: Detailed view of the 12 output specifications on the LEKATO CP-206.
6. Operating Instructions
- Power On: Once all pedals are connected and the power adapter is plugged in, the unit will power on automatically.
- LED Indicators: A blue LED light above each output jack indicates that the output is functioning normally and providing power.
- Short Circuit Indication: If an output experiences a short circuit, its corresponding blue LED will turn off, while other outputs will continue to function normally. This helps in quickly identifying and isolating faulty pedals.
- Power Off: Disconnect the power adapter from the wall outlet to power off the unit.
Image: Blue LED indicators for circuit status on the LEKATO CP-206.
7. Maintenance
- Cleaning: Use a soft, dry cloth to clean the unit. Do not use liquid cleaners or solvents.
- Storage: Store the unit in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
- Cable Management: Keep power cables organized to prevent tangling and damage.
8. Troubleshooting
- No Power to Pedals:
- Ensure the power adapter is securely connected to both the unit and the wall outlet.
- Check if the blue LED for the specific output is lit. If not, the pedal might be short-circuited or the cable is faulty.
- Verify that the pedal's power requirements (voltage and current) match the output.
- Excessive Noise:
- While the unit is designed for low noise, ensure all audio cables are properly shielded and connected.
- Test pedals individually to identify if a specific pedal is introducing noise.
- Ensure no ground loops are present in your overall setup.
- Output LED is Off:
- This indicates a short circuit on that specific output. Disconnect the pedal and cable from that output. The LED should relight.
- Inspect the pedal and cable for damage. Replace faulty components.
Image: Short circuit protection in action on the LEKATO CP-206.
9. Specifications
| Feature | Specification |
|---|---|
| Model | CP-206 |
| Material | Aluminum Alloy |
| Input Voltage | 18V DC |
| Output Configuration | 6 x 9V 100mA 2 x 9V 300mA 2 x 9V 500mA 1 x 12V/18V 300mA (switchable) |
| Output Polarity | Center Negative (standard) |
| Protection | Independent Short Circuit Protection for each output |
| Indicators | Blue LED for each output |
| Dimensions (L x W x H) | 21.3 x 11.3 x 6.1 cm (approx. 8.39 x 4.45 x 2.4 inches) |
| Weight | Approx. 703g (24.8 oz) |
Image: Dimensions and weight of the LEKATO CP-206, illustrating its compact design.
10. Warranty and Support
Warranty: The LEKATO CP-206 comes with a 1-year warranty from the date of purchase, covering manufacturing defects. This warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Support: For technical assistance, troubleshooting, or warranty claims, please contact LEKATO customer support through the retailer where the product was purchased or visit the official LEKATO website for contact information. Please have your purchase receipt and product model number (CP-206) ready when contacting support.
