LIONELO Leonie Plus 3-in-1 Baby Bed User Manual

Introduction

The Lionelo Leonie Plus is a versatile 3-in-1 baby bed designed to provide comfort and safety for your child from birth up to 9 kg. It functions as a co-sleeper, a standalone crib, and a cradle, adapting to your family's needs. This manual provides essential information for safe assembly, operation, and maintenance of your Leonie Plus baby bed.

Important Safety Warnings

Please read and understand all instructions before assembling and using the product. Failure to follow these warnings and instructions could result in serious injury or death.

• WARNING: The bed is not suitable for children who can sit, kneel, or pull themselves up. Discontinue use when your child reaches this developmental stage or exceeds the maximum weight of 9 kg.
• Always ensure the product is assembled correctly and all locking mechanisms are engaged before placing a child in it.
• The child bed can only be used with standard adult beds when in co-sleeping mode. Ensure a secure and stable connection using the provided fastening straps.
• Never use the product if any parts are broken, torn, or missing. Contact the manufacturer for replacement parts if needed.
• Do not place additional mattresses, pillows, or soft bedding inside the bed, as this can pose a suffocation hazard. Use only the mattress provided by the manufacturer.
• Keep all packaging materials away from children to avoid suffocation.

Setup and Assembly

The Leonie Plus baby bed is designed for straightforward assembly. Follow these steps to set up your bed:

1. Unpack Components: Carefully remove all parts from the packaging. Verify that all components listed in the packing list (refer to your physical manual) are present and undamaged.
2. Assemble Frame: Connect the frame components according to the diagrams. Ensure all joints click securely into place. The stable steel construction provides a sturdy base.
3. Attach Bed Unit: Securely attach the main bed unit to the assembled frame.
4. Insert Mattress: Place the T25 foam mattress into the bed unit. This mattress is designed to provide proper spinal support and thermal insulation.
5. Adjust Height: The bed features a 6-level height adjustment mechanism. Use the adjustment buttons on the side to set the desired height, ensuring it aligns with your adult bed if using co-sleeping mode.


   Image: The Leonie Plus bed demonstrating its 6-level height adjustment feature.

6. Co-sleeping Attachment (Optional): If using as a co-sleeper, lower one side panel and use the provided fastening straps to securely attach the baby bed to your adult bed. Ensure there are no gaps between the two beds.

Image: The Leonie Plus highlighting its 3-in-1 functionality and 9 kg weight limit.

Operating Instructions

The Leonie Plus offers multiple modes for your convenience:

1. Co-sleeping Mode

To use as a co-sleeper, lower one side panel of the baby bed. Adjust the height to match your adult bed. Securely fasten the baby bed to your adult bed using the provided straps. This allows for close proximity to your baby, which is especially convenient for nighttime feedings.

2. Freestanding Bed Mode

When the side panel is raised and locked, the Leonie Plus functions as a standalone crib. This mode is ideal for use in any room, providing a safe and comfortable sleeping environment for your baby.

3. Cradle Function

The Leonie Plus can be easily converted into a cradle with a locking function. This feature allows for gentle rocking to soothe your baby.

Image: Demonstrating the simple mechanism for activating the cradle function.

Mobility and Storage

The bed is equipped with 4 rubberized PU wheels with integrated brakes, allowing for silent and scratch-free movement across floors. Engage the brakes when the bed is stationary to ensure stability.

Image: Close-up of the rubber wheels with integrated brakes for easy movement and stability.

A large, spacious accessory basket is located beneath the bed, providing convenient storage for essential baby items.

Image: The spacious accessory basket located at the base of the Leonie Plus bed.

Maintenance and Care

Proper maintenance ensures the longevity and hygiene of your Leonie Plus baby bed:

• Cleaning the Fabric: The cover material is easy to clean. It is recommended to hand-wash the cover and mattress cover.

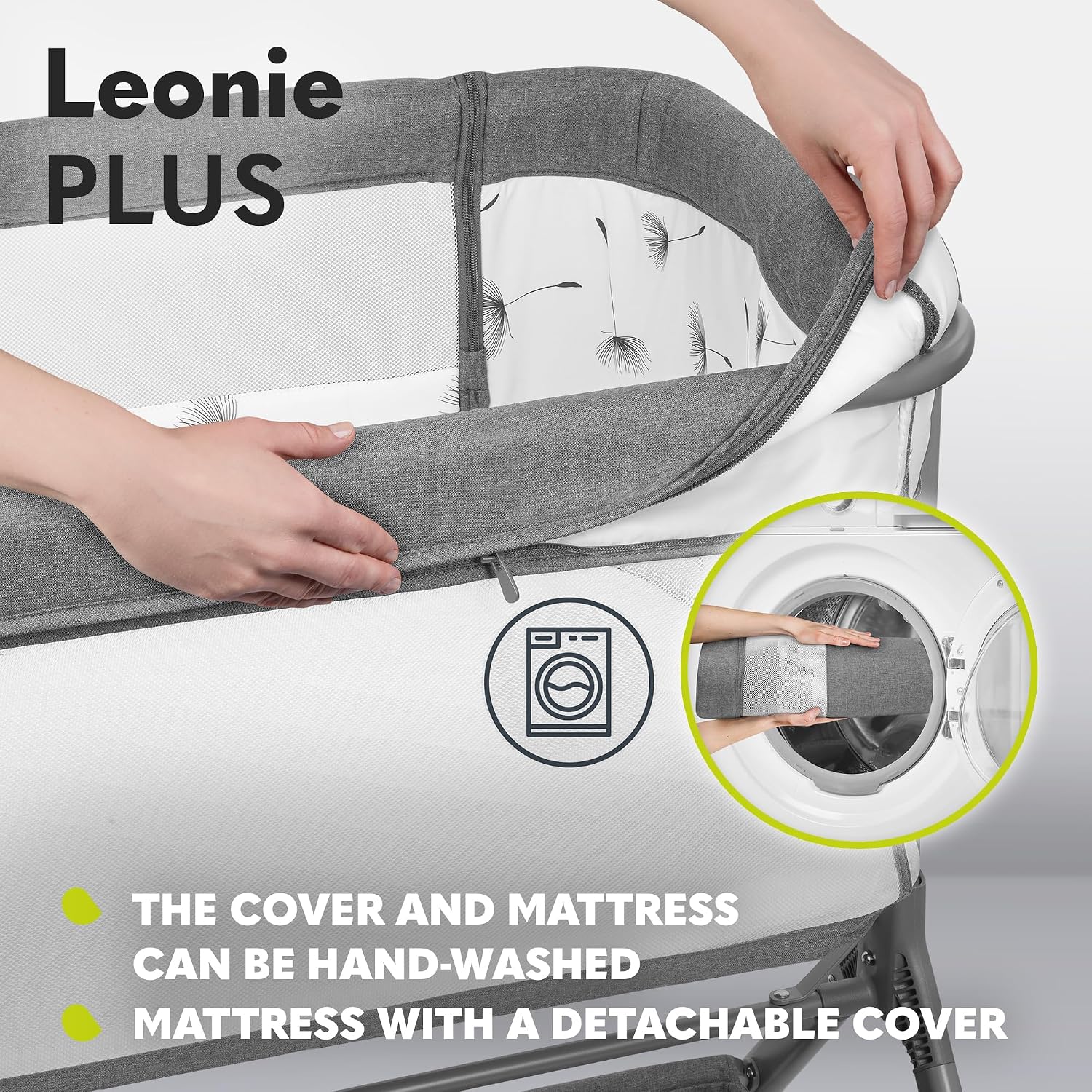

  Image: Illustration of the detachable cover and mattress, indicating they can be hand-washed.

• Frame Cleaning: Wipe the aluminum frame with a damp cloth and mild soap. Dry thoroughly.
• Mattress Care: The T25 foam mattress is resistant to deformation. Its cover is detachable for cleaning. Ensure the mattress is completely dry before reinserting it into the bed.
• Regular Checks: Periodically inspect all parts for wear and tear, especially the fastening straps, wheels, and locking mechanisms.

Troubleshooting

If you encounter any issues with your Leonie Plus baby bed, consider the following:

• Difficulty Adjusting Height: Ensure no fabric or foreign objects are obstructing the adjustment mechanism. Apply gentle, even pressure when adjusting.
• Bed Not Stable: Verify that all frame connections are securely locked and the wheels' brakes are engaged if the bed is stationary. If used as a co-sleeper, ensure the fastening straps are taut and the bed is flush against the adult bed.
• Cradle Function Not Smooth: Check for any obstructions around the rocking mechanism. Ensure the locking function is fully disengaged if you intend to rock the bed.
• Wheels Not Rolling Smoothly: Check for debris or hair caught in the wheels. Clean them if necessary. Ensure brakes are disengaged.

For persistent issues or concerns not addressed here, please contact Lionelo customer support.

Specifications

Image: Detailed dimensions of the Leonie Plus baby bed and mattress.

Warranty and Support

For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official Lionelo website. For technical support, replacement parts, or any other inquiries, please contact Lionelo customer service through their official channels.

You can typically find contact information on the manufacturer's website or on the product packaging.
