1. Introduction
The Bark Begone Automatic Bark Controller is an innovative device designed to help manage and reduce excessive barking in dogs. Utilizing ultrasonic technology, this device provides a safe and effective solution for both indoor and outdoor environments. It is waterproof, rechargeable, and features adjustable modes to suit various dog sizes and barking behaviors.
For optimal results, it is recommended to first train your dog with a handheld Bark Begone trainer before deploying the automatic controller.
2. Safety Information
- This device is safe for small, medium, and large dogs.
- Always ensure the device is placed in a location where it can effectively detect your dog's barking without causing distress to other animals or humans.
- It is crucial to first train your dog with a handheld Bark Begone device to establish a sound/barking connection before using the automatic controller. This helps your dog associate the ultrasonic sound with their barking.
- Keep the device in a dry place when not in use or during charging.
3. Product Features
- Waterproof Design: The shell is made of IPX4 waterproof material, suitable for various weather conditions when used outdoors.
- Effective Range: Operates effectively up to 35 feet (approximately 10.6 meters) to address outdoor barking issues.
- Rechargeable Battery: Conveniently rechargeable via computer, car charger, mobile power bank, or USB adapter.
- Adjustable Modes: Features three adjustable ultrasonic modes (15KHz, 20KHz, 30KHz) to cater to different dog sizes, ages, and barking sensitivities.
Image: Key features of the Bark Begone Automatic Bark Controller, including its rechargeable battery, waterproof design, adjustable modes, and effective range.
4. Package Contents
- 1 x Bark Begone Automatic Bark Controller Unit
- 1 x USB Charging Cable
- 1 x User Manual
5. Setup and Placement
- Initial Charge: Before first use, fully charge the device using the provided USB cable. The charging indicator will show when charging is complete.
- Placement: Position the Bark Begone Automatic Bark Controller in an area where your dog frequently barks. It can be placed indoors or outdoors. Ensure the front of the device, where the microphone and speaker are located, faces the area where barking occurs.
- Sensitivity Adjustment: The device features a sensitivity dial. Start with a medium setting and adjust as needed. Higher sensitivity will detect quieter barks or barks from a greater distance.
- Test Bark: After placement, you can test the device by making a loud barking sound near it. The device should emit an ultrasonic sound (inaudible to most humans) and the indicator light may flash.
Image: Rear view of the device, illustrating the sensitivity dial and USB charging port for setup.
Image: The automatic bark controller paired with a handheld trainer, highlighting the recommended training progression.
6. Operating Instructions
The Bark Begone Automatic Bark Controller operates by detecting dog barking and emitting a high-frequency ultrasonic sound that is unpleasant but harmless to dogs, effectively deterring them from continued barking.
- Power On/Off: Locate the power switch or dial on the device. Turn it to the 'ON' position to activate the device. Turn to 'OFF' when not in use or for charging.
- Select Frequency Mode: The device typically has a dial or switch to select between different ultrasonic frequencies (e.g., 15KHz, 20KHz, 30KHz). Experiment with different frequencies to find the most effective one for your dog. Younger dogs or those with more sensitive hearing may respond better to higher frequencies.
- Automatic Operation: Once powered on and a frequency is selected, the device will automatically detect barking within its effective range. Upon detection, it will emit a burst of ultrasonic sound.
- Monitoring: Observe your dog's reaction. If your dog continues to bark, try adjusting the sensitivity or changing the frequency mode. Consistency is key for effective training.

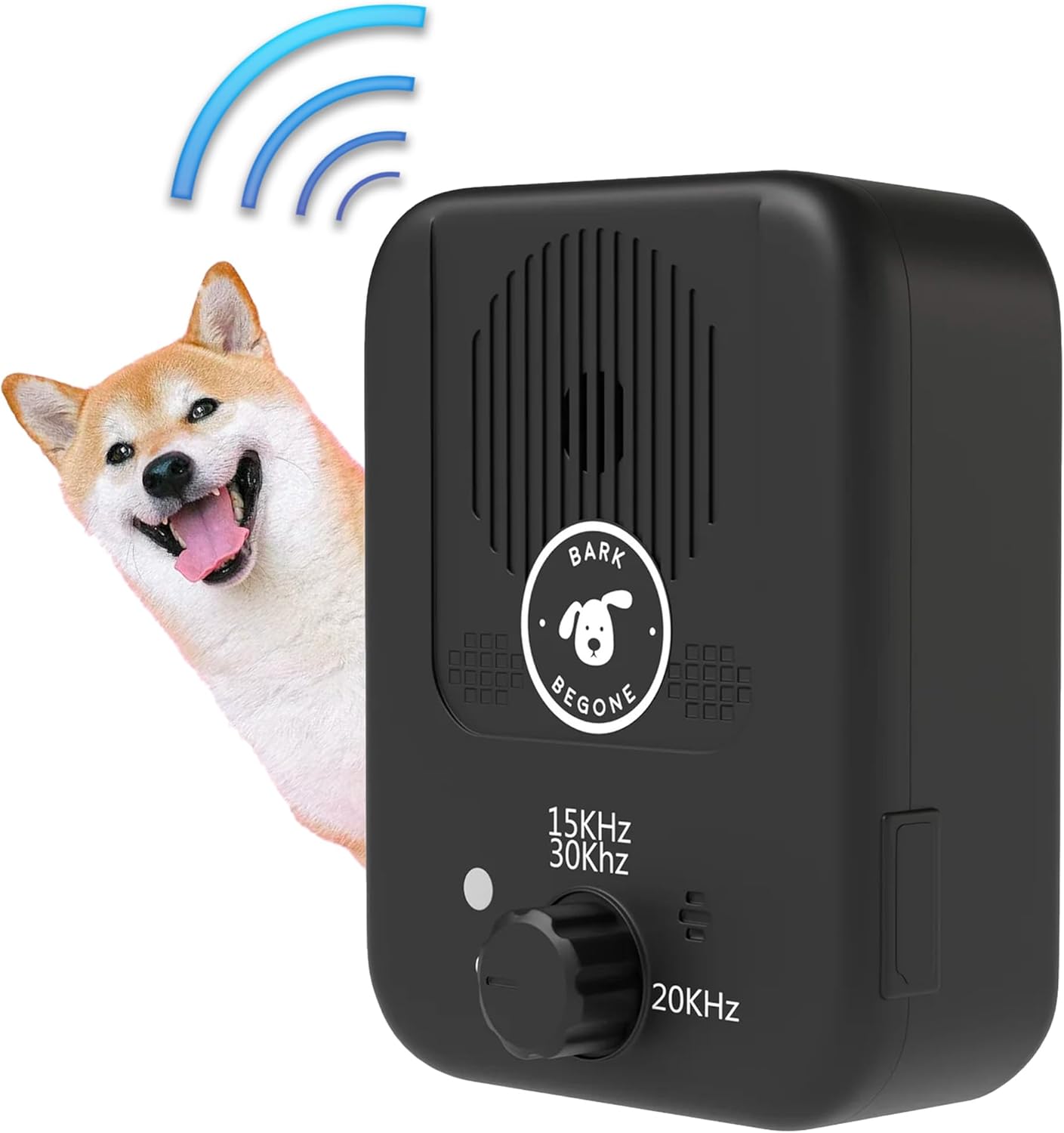

Image: Front view of the device, illustrating the frequency selection dial and power switch for operation.
7. Maintenance
- Cleaning: Wipe the device regularly with a soft, dry cloth to remove dust and debris. Do not use harsh chemicals or abrasive cleaners.
- Storage: When not in use for extended periods, store the device in a cool, dry place, away from direct sunlight and extreme temperatures.
- Charging: Recharge the device as needed. Avoid completely draining the battery frequently to prolong its lifespan.
- Environmental Care: Although waterproof (IPX4), avoid submerging the device in water.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device not activating when dog barks. | Low battery; Device is off; Sensitivity too low; Obstruction; Dog out of range. | Charge the device; Turn the device ON; Increase sensitivity; Ensure clear path to dog; Move device closer to dog. |
| Dog not responding to the device. | Dog not accustomed to ultrasonic sound; Incorrect frequency setting; Dog's hearing sensitivity varies. | Ensure prior training with a handheld Bark Begone trainer; Try different frequency modes (15KHz, 20KHz, 30KHz); Increase sensitivity. |
| Device activating without barking (false triggers). | Sensitivity too high; Other loud noises triggering the device. | Decrease sensitivity; Reposition the device away from other noise sources (e.g., loud traffic, other animals). |
| Battery not holding charge. | Faulty charging cable or adapter; Battery degradation. | Try a different USB charging cable and adapter; Contact customer support if issue persists. |
9. Specifications
| Specification | Detail |
|---|---|
| Brand Name | Bark Begone |
| Model Number | B0CHD4M2DS |
| Item Weight | 4.9 ounces (139 Grams) |
| Item Dimensions (LxWxH) | 9.78 x 3.66 x 2.36 inches |
| Batteries | 1 Lithium Ion battery (included) |
| Waterproof Rating | IPX4 |
| Effective Range | Up to 35 feet |
| Adjustable Modes | 15KHz, 20KHz, 30KHz |
| Target Audience | Dogs |
| Specific Uses for Product | Behavior Training |
| Care Instructions | Keep in a Dry Place |
10. Warranty and Support
For information regarding product warranty, returns, or technical support, please refer to the official Bark Begone website or contact their customer service directly. You can often find contact details on the product packaging or through the brand's online store.
