Shark PX202BRN StainStriker Portable Carpet & Upholstery Cleaner

Introduction

The Shark PX202BRN StainStriker is a powerful, portable spot cleaner designed to tackle tough stains and odors on various surfaces throughout your home and vehicle. Its dual-activated cleaning technology combines two unique solutions to deliver exceptional cleaning performance without the need for pre-mixing. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your StainStriker to ensure optimal results.

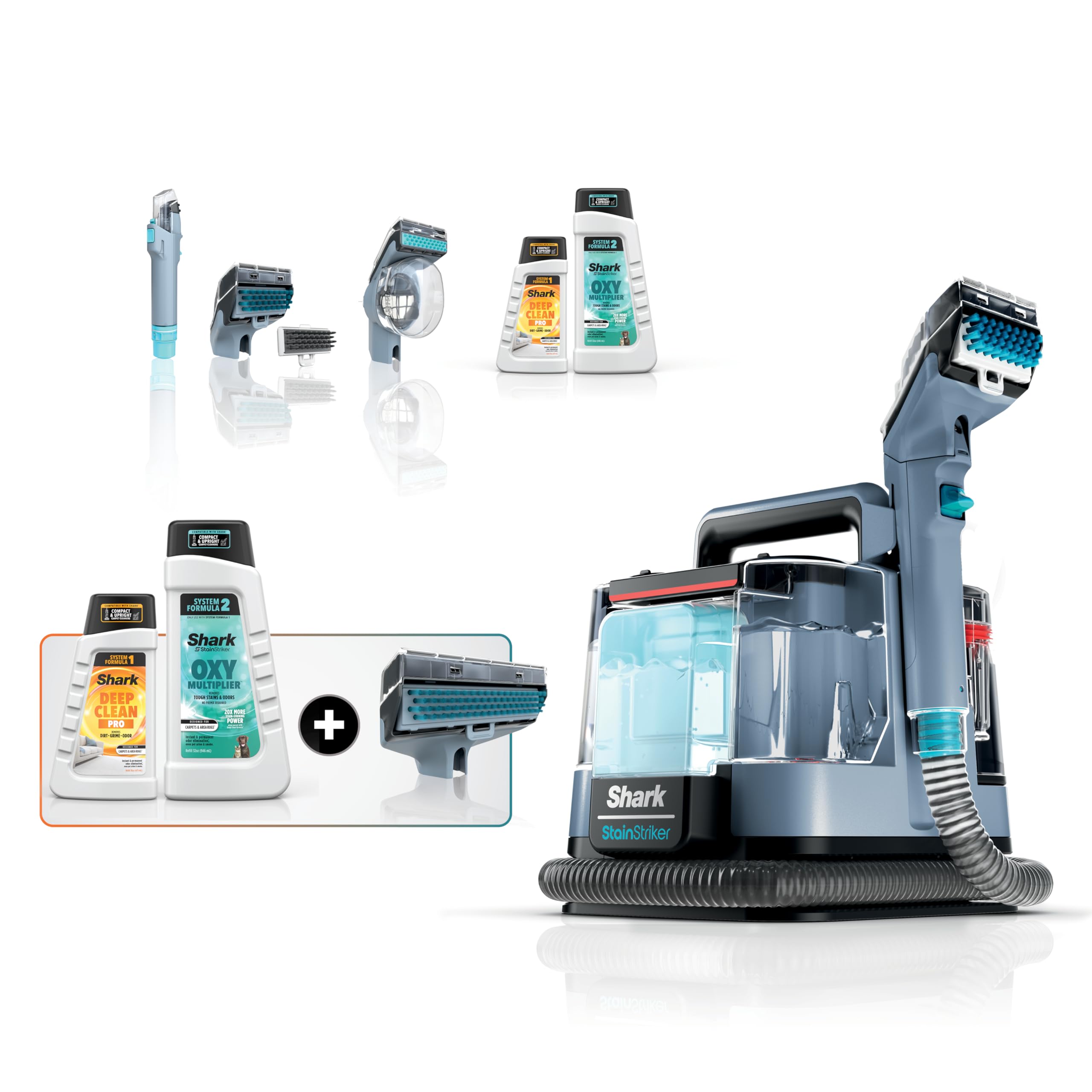

Figure 1: Main unit of the Shark PX202BRN StainStriker.

Key Features

• Strongest Suction: Effectively pulls out liquid and dirt embedded deep within carpets and upholstery.
• Dual-Activated StainStriker Technology: Two unique cleaning solutions mix and activate inside the handheld tool, unleashing the power of OXY for 20X more stain-striking power without pre-treatment.
• Portable Design: Lightweight and easy to maneuver, allowing for convenient spot cleaning anywhere in your home or car.
• Versatile Cleaning: Ideal for carpets, area rugs, couches, upholstery, stairs, furniture, and car interiors.
• Odor Elimination: Instantly and permanently removes tough odors, including pet urine and smoke.

Components & Attachments

Your Shark StainStriker comes with several components and specialized attachments to enhance your cleaning experience:

• Main Unit: Houses the clean water tank, dirty water tank, and solution reservoirs.
• Clean Water Tank: For filling with hot tap water and Deep Clean Pro solution.
• OXY Multiplier Reservoir: A separate compartment for the concentrated OXY Multiplier solution.
• Dirty Water Tank: Collects extracted dirty water and debris.
• Integrated Crevice Tool: A versatile tool attached to the hose, featuring a reversible brush for gentle or aggressive scrubbing, perfect for hard-to-reach areas.
• Pet Mess Extractor Tool: Designed to contain larger messes and pet hair within the attachment itself, preventing them from traveling through the hose.
• Hair Trapper Tool: Features a larger suction area and a filter to trap pet hair, preventing clogs in the machine.

Setup

1. Fill Clean Water Tank: Remove the clean water tank from the main unit. Fill it with hot tap water up to the indicated line. Add the appropriate amount of Shark Deep Clean Pro solution as per the instructions on the solution bottle.
2. Fill OXY Multiplier Reservoir: Fill the separate OXY Multiplier reservoir with the concentrated Shark OXY Multiplier solution.
3. Attach Hose and Tool: Unwind the hose from the main unit. Select the desired cleaning attachment (e.g., Integrated Crevice Tool, Pet Mess Extractor) and securely attach it to the end of the hose.
4. Plug In: Plug the power cord into a grounded electrical outlet.

Operating Instructions

1. Power On: Press the power button located on the top of the main unit.
2. Pre-Treat (Optional): For heavily soiled areas, you may spray a small amount of solution directly onto the stain using the spray trigger on the handheld tool and allow it to sit for a few minutes.
3. Spray & Scrub: Hold the handheld tool over the stained area. Press the spray trigger to dispense the cleaning solution while simultaneously scrubbing the area with the brush attachment.
4. Extract: Release the spray trigger and tilt the handheld tool to engage the suction. Slowly pull the tool across the treated area to extract the dirty solution. Repeat until the area is clean and as dry as possible.
5. Rinse (Optional): For a thorough rinse, fill the clean water tank with only hot tap water (no solution). Repeat the spray and extract steps with plain water.

Maintenance & Cleaning

1. Empty Dirty Water Tank: After each use, remove the dirty water tank from the main unit. Empty the contents into a sink or toilet. Rinse the tank thoroughly with clean water.
2. Clean Attachments: Detach all cleaning tools from the hose. Rinse them under running water to remove any debris. For tools with removable brush heads, separate them for easier cleaning.
3. Clean Hose (Rinse & Go Feature): Attach the hose cleaning tool to the main unit. This feature sends clean water through the hose to flush out any remaining solution or debris.
4. Store: Once all components are clean and dry, wrap the hose and power cord neatly around their designated storage areas on the main unit. Store the attachments in the provided accessory bag or on the unit itself.

Troubleshooting

• No Suction: Ensure the dirty water tank is correctly seated and sealed. Check for any clogs in the hose or attachment.
• No Spray: Verify that the clean water tank and OXY Multiplier reservoir are filled and properly installed. Check for any blockages in the spray nozzle.
• Machine Not Turning On: Confirm the power cord is securely plugged into a working outlet.
• Streaking: This may indicate too much solution was used or the area was not thoroughly extracted. Rinse the area with plain water and extract again.

Specifications

Warranty & Support

For warranty information and customer support, please refer to the documentation included with your product or visit the official Shark website. Keep your purchase receipt as proof of purchase for any warranty claims.
