Pepisky Remote Control User Manual

1. Product Overview

The Pepisky Remote Control is designed to provide precise and reliable control for your fishing bait boat models D18B, D16B, D18E, and D16E. It features an intuitive LCD display and a robust signal for effective operation over long distances.

Image: Front view of the Pepisky Remote Control, showcasing its ergonomic design and central LCD screen.

Key Features:

• LCD Display: Provides real-time information including boat distance, resolution, positioning points, battery life, and light status.
• Extended Range: Offers a strong signal with a remote control range of 400-500 meters.
• Compatibility: Specifically designed for Pepisky fishing bait boat models D18B, D16B, D18E, and D16E.
• Durable Construction: Made from high-quality plastic for longevity.

2. Package Contents

Please verify that all items are present in your package:

• 1 x Pepisky Remote Control Unit

Note: 4 AA batteries are required for operation and are not included in the package. The fishing bait boat is also not included.

3. Specifications

Image: The remote control with its dimensions indicated: 15.5cm / 6.1in width and 16.5cm / 6.5in height.

4. Setup

4.1 Battery Installation

The remote control requires 4 AA batteries for operation. Follow these steps to install them:

1. Locate the battery compartment on the back of the remote control.
2. Slide the battery compartment cover downwards or outwards to open it.
3. Insert 4 AA batteries, ensuring the correct polarity (+ and -) as indicated inside the compartment.
4. Close the battery compartment cover securely.

Image: Rear view of the remote control, highlighting the battery compartment cover.

4.2 Initial Pairing (if applicable)

Typically, the remote control is pre-paired with compatible Pepisky bait boats. If pairing is required, ensure both the remote control and the bait boat are powered off. Turn on the bait boat first, then the remote control. The devices should automatically connect. Refer to your bait boat's manual for specific pairing instructions if automatic connection does not occur.

5. Operating Instructions

Familiarize yourself with the controls and display of your remote control for optimal operation of your fishing bait boat.

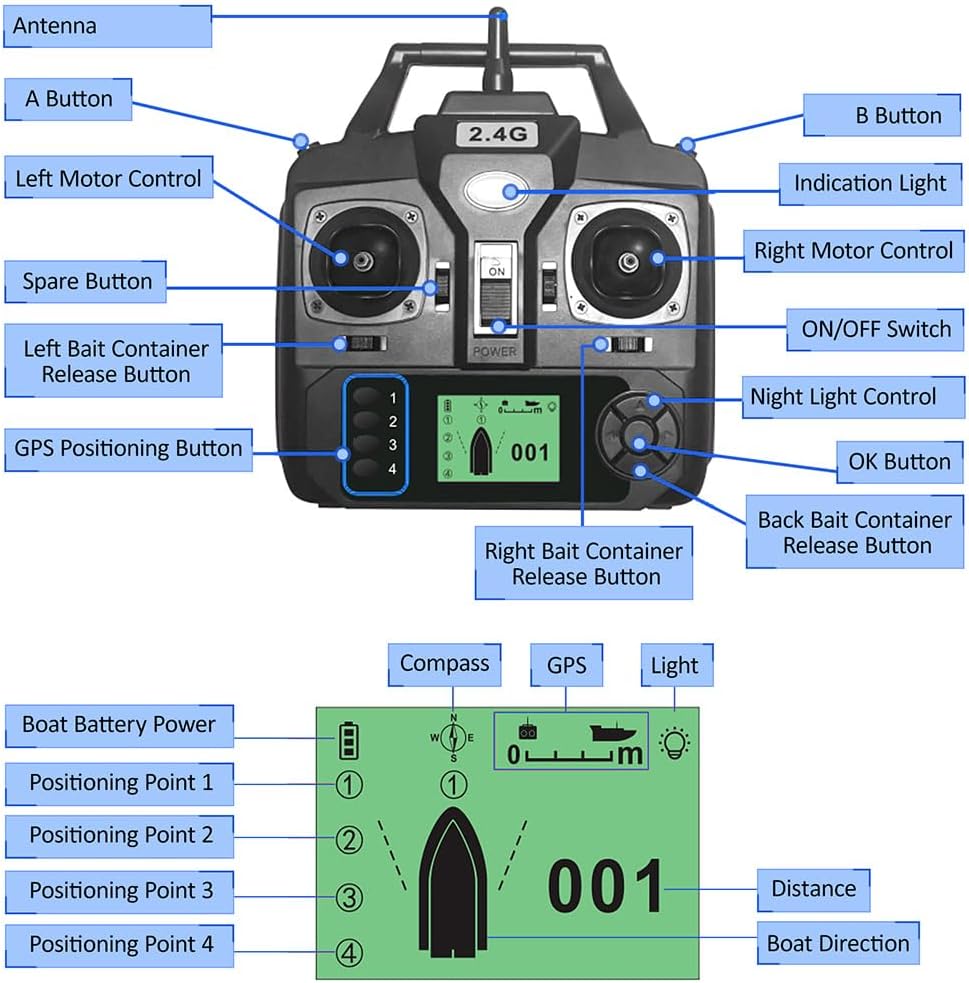

Image: Detailed diagram of the remote control, labeling all buttons, joysticks, and display elements for easy identification.

5.1 Control Layout:

• Antenna: For signal transmission.
• A Button / B Button: Auxiliary function buttons (specific use may vary by boat model).
• Left Motor Control: Left joystick for controlling the left motor (forward/backward, turning).
• Right Motor Control: Right joystick for controlling the right motor (forward/backward, turning).
• Indication Light: Shows power and connection status.
• ON/OFF Switch: Power switch for the remote control.
• Night Light Control: Button to activate/deactivate the boat's night lights.
• OK Button: Confirmation button for menu selections or actions.
• Left Bait Container Release Button: Releases bait from the left container.
• Right Bait Container Release Button: Releases bait from the right container.
• Back Bait Container Release Button: Releases bait from the rear container (if applicable).
• GPS Positioning Button: Activates GPS positioning functions.
• Spare Button: Unassigned button for future functions or specific boat models.

5.2 LCD Display Information:

• Boat Battery Power: Displays the current battery level of the bait boat.
• Positioning Point 1-4: Indicates saved GPS positioning points.
• Compass: Shows the boat's current heading.
• GPS: Indicates GPS signal strength/status.
• Light: Shows the status of the boat's lights.
• Distance: Displays the distance of the boat from the remote control.
• Boat Direction: Visual representation of the boat's orientation.

5.3 Basic Operation:

1. Power On: Slide the ON/OFF switch to the 'ON' position. The indication light will illuminate.
2. Movement: Use the Left and Right Motor Control joysticks to steer the boat. Push both forward to move straight, pull back to reverse. Push one forward and the other back to turn.
3. Bait Release: Press the corresponding Left, Right, or Back Bait Container Release Button to deploy bait.
4. Night Lights: Press the Night Light Control button to turn the boat's lights on or off.
5. GPS Positioning: Press the GPS Positioning Button to access or set GPS waypoints. Refer to your boat's specific GPS functions for detailed usage.

6. Maintenance

Proper maintenance will ensure the longevity and optimal performance of your remote control.

• Cleaning: Wipe the remote control with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the remote control in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: Remove batteries if the remote control will not be used for an extended period to prevent leakage.
• Avoid Water: This remote control is not waterproof. Avoid exposure to water or high humidity.

7. Troubleshooting

If you encounter issues with your remote control, try the following solutions:

8. Warranty and Support

For information regarding warranty coverage and customer support, please refer to the documentation provided with your purchase or contact the seller directly. Keep your proof of purchase for any warranty claims.
