POPSTORE 5L40E 5 Speed Aluminum Spool Valve Body

Instruction Manual

1. Product Overview

The POPSTORE 5L40E 5 Speed Aluminum Spool Valve Body is a high-quality replacement component designed for specific automatic transmissions. This valve body is crucial for the proper functioning of your vehicle's transmission, managing hydraulic pressure and fluid flow to enable smooth gear changes.

Top view of the POPSTORE 5L40E 5 Speed Aluminum Spool Valve Body

Figure 1: Top view of the POPSTORE 5L40E 5 Speed Aluminum Spool Valve Body, showing its intricate design and various components.

Key Features:

  • Part Number: 5L40E, ensuring direct compatibility.
  • Material: Constructed from high-quality aluminum for durability and reliable performance.
  • Condition: Refurbished to meet stringent quality standards.
  • Design: Features 4 ports and a 2-inch inlet, designed for precise hydraulic control.

2. Compatibility

This 5L40E transmission valve body is compatible with a range of vehicle models. Please verify your vehicle's make, model, and year against the list below to ensure proper fitment. The OEM part number is 5L40E.

Angled view of the 5L40E valve body

Figure 2: Angled view of the 5L40E valve body, highlighting its robust aluminum construction.

Compatible Vehicles:

  • BMW:
    • 3 SERIES (2000-2007): 1.8L, 1.9L, 2.0L, 2.5L, 2.8L, 2.9L, 3.0L
    • 5 SERIES (2000-2011): 2.2L, 2.5L, 2.8L, 2.9L, 3.0L, V8 4.4L
    • X3 (2003-2010): 2.5L, 2.9L, 3.0L
    • X5 (2000-2006): 2.9L, 3.0L
    • Z3 ROADSTER (2000-2002): 2.5L, 2.8L, 3.0L, 3.2L
  • CADILLAC:
    • CTS (2001-2007): 2.6L, 2.8L, 3.2L, 3.6L
    • SRX (2004-2009): 3.6L
    • STS (2005-2009): 2.8L V6, 3.6L
  • HOLDEN:
    • ADVENTRA (2004-2006): 3.6L
    • COMMODORE (2004-2009): 3.6L
  • LAND ROVER:
    • RANGE ROVER (2001-2006): 2.9L
  • PONTIAC:
    • G8 (2008-2009): 3.6L
    • SOLSTICE (2005-2009): 2.0L, 2.4L
  • SATURN:
    • SKY/SKY REDLINE (2007-2009): 2.0L, 2.4L

3. Specifications

Detailed specifications for the POPSTORE 5L40E Valve Body are provided below:

Dimensions of the 5L40E valve body

Figure 3: Dimensions of the 5L40E valve body, showing approximate length, width, and height.

SpecificationValue
Part Number5L40E
MaterialAluminum
Exterior FinishAluminum
Inlet Connection Size2 Inches
Inlet Connection TypeFlange
Outlet Connection TypeFlange
Number of Ports4
Valve TypeSolenoid Valve
Item Weight11.97 pounds
Package Dimensions15.75 x 12 x 8 inches
UPC754003634990

4. Installation (Setup)

The installation of a transmission valve body is a complex procedure that requires specialized knowledge and tools. It is highly recommended that installation be performed by a qualified automotive technician to ensure correct fitment and function, and to prevent damage to the component or vehicle.

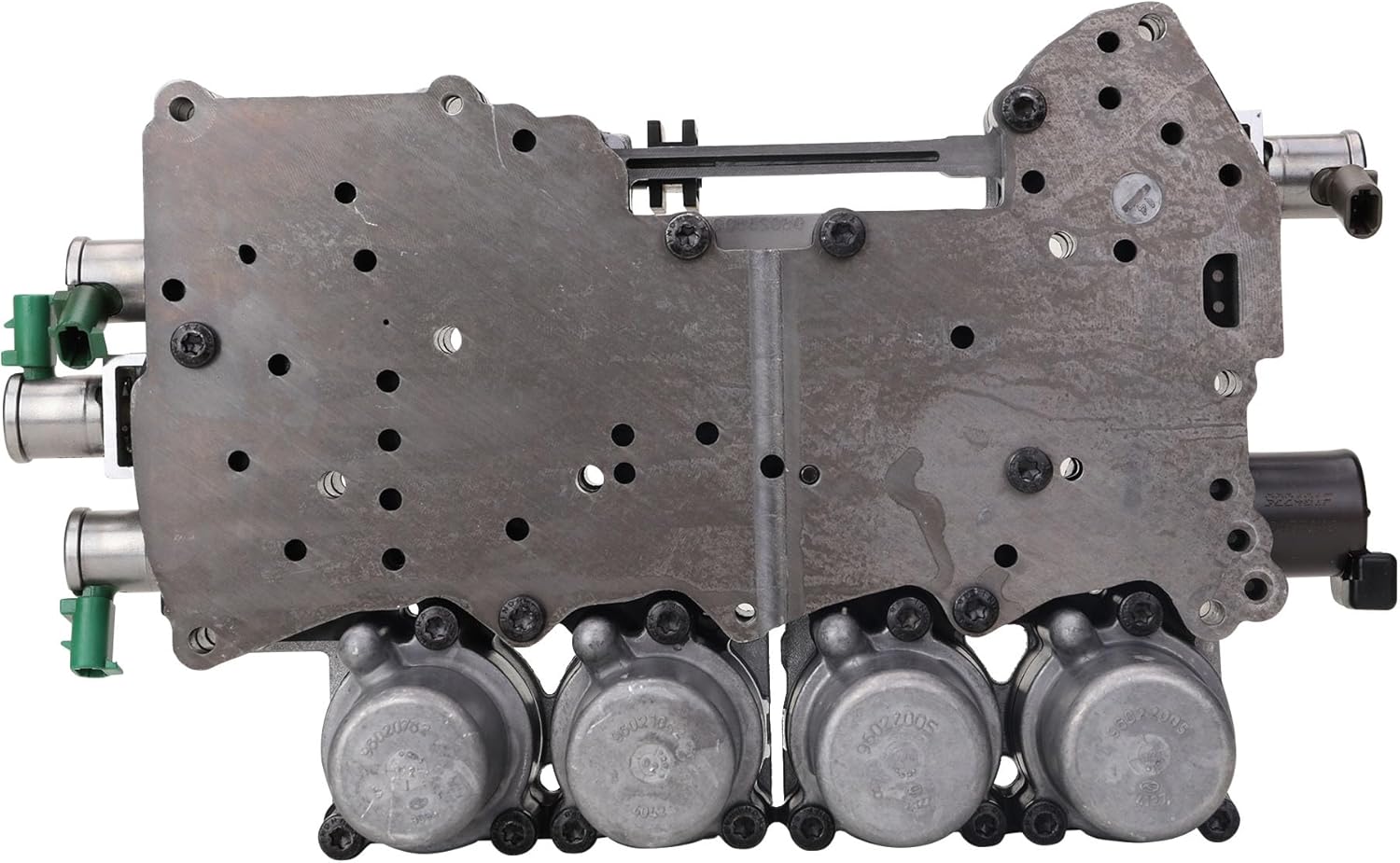

Underside view of the 5L40E valve body with mounting plate

Figure 4: Underside view of the 5L40E valve body, showing the mounting plate and solenoid connections.

General Guidelines for Professional Installation:

  • Safety First: Ensure the vehicle is properly secured and cooled before beginning work. Disconnect the battery.
  • Fluid Drainage: Drain the transmission fluid and remove the transmission pan.
  • Component Removal: Carefully disconnect electrical connectors and mounting bolts to remove the old valve body.
  • New Component Installation: Install the new POPSTORE 5L40E valve body, ensuring all connections are secure and bolts are torqued to manufacturer specifications.
  • Fluid Refill: Refill the transmission with the correct type and amount of transmission fluid.
  • System Check: Perform diagnostic checks and test drives to confirm proper operation.

Refer to your vehicle's specific service manual for detailed, step-by-step instructions relevant to your make and model.

5. Operation

The 5L40E valve body is an integral part of the automatic transmission system. Its primary function is to direct hydraulic fluid (transmission fluid) to various clutches and bands within the transmission, enabling the vehicle to shift gears smoothly and efficiently. The solenoids on the valve body are electronically controlled to regulate fluid pressure and flow, responding to signals from the vehicle's engine control unit (ECU) and transmission control unit (TCU).

Close-up of green electrical connectors on the valve body

Figure 5: Close-up view of the green electrical connectors on the valve body, which connect to the vehicle's wiring harness.

Proper operation of the valve body ensures optimal gear engagement, fuel efficiency, and overall vehicle performance. Any issues with the valve body can lead to rough shifting, delayed engagement, or complete transmission failure.

6. Maintenance

While the valve body itself typically does not require routine maintenance, its longevity and performance are directly tied to the overall health of your transmission. Regular transmission maintenance is crucial.

Close-up of the four solenoid caps on the valve body

Figure 6: Close-up view of the four solenoid caps on the valve body, which house critical components for fluid control.

Recommended Maintenance Practices:

  • Transmission Fluid Checks: Regularly check your transmission fluid level and condition. Refer to your vehicle's owner's manual for recommended intervals and fluid type.
  • Fluid Changes: Adhere to the manufacturer's recommended schedule for transmission fluid and filter changes. Contaminated or low fluid can severely impact valve body function.
  • Professional Inspections: Have your transmission inspected by a qualified technician periodically, especially if you notice any unusual shifting behavior or noises.
  • Avoid Overheating: Ensure your transmission cooling system is functioning correctly, as excessive heat can damage internal components, including the valve body.

7. Troubleshooting

If you experience issues with your transmission after installing the valve body, or if you suspect a valve body malfunction, consider the following common symptoms and steps. Always consult a professional automotive technician for diagnosis and repair.

Close-up of additional solenoids and connections on the valve body

Figure 7: Close-up view of additional solenoids and connections on the valve body, showing the complexity of the hydraulic control system.

Common Symptoms of Valve Body Issues:

  • Harsh or Delayed Shifting: Gears engage roughly or with a noticeable delay.
  • Slipping Gears: The transmission feels like it's slipping out of gear or failing to engage properly.
  • No Reverse or Drive: Complete loss of specific gears.
  • Check Engine Light: Transmission-related fault codes may be stored in the vehicle's ECU/TCU.
  • Unusual Noises: Clunking, grinding, or whining sounds from the transmission.

Troubleshooting Steps (for Professionals):

  • Diagnostic Scan: Use an OBD-II scanner to retrieve any stored diagnostic trouble codes (DTCs).
  • Fluid Inspection: Check transmission fluid level and condition (color, smell, presence of debris).
  • Pressure Tests: Perform hydraulic pressure tests to identify issues with fluid flow or pressure regulation.
  • Solenoid Testing: Test individual solenoids for proper electrical function and resistance.

Do not attempt complex repairs without proper training and equipment. Incorrect diagnosis or repair can lead to further damage.

8. Warranty and Support

POPSTORE is committed to providing high-quality auto parts and excellent after-sales service. This product is tested and designed for durability and dependability.

Customer Support:

If you are unsure about compatibility, installation, or encounter any issues with your POPSTORE 5L40E Valve Body, please do not hesitate to contact us. Our customer support team is available to assist you and help resolve any problems you may have.

For assistance, please refer to the contact information provided with your purchase or visit the official POPSTORE website.

Your satisfaction is our priority, and we are dedicated to ensuring a positive experience with our products.
