Domi 10'x10' Hardtop Gazebo Instruction Manual

1. Product Overview

The Domi 10'x10' Hardtop Gazebo is designed to provide a spacious and versatile outdoor shelter for various activities. It features a durable aluminum frame with a galvanized steel double roof, offering protection from the elements. The gazebo includes detachable curtains and netting for privacy and insect protection.

Image: Assembled Domi 10'x10' Hardtop Gazebo on a patio, showcasing its design and functionality.

2. Safety Information

It is crucial to prioritize safety during assembly and use of the gazebo. Please read and understand all instructions before beginning assembly.

• Assembly Personnel: It is recommended to have at least 2-3 people for assembly to ensure safety and ease of installation.
• Weather Conditions: While the gazebo is designed to withstand certain weather conditions, users should exercise caution during extreme weather. Follow local weather guidelines for outdoor structures.
• Anchoring: Securely anchor the gazebo to the ground using appropriate stakes or bolts through the pre-drilled base plates on each post. Stakes are not included.
• Sharp Edges: Be aware of potential sharp edges on metal components during assembly. Wear appropriate protective gloves.
• Weight Capacity: The built-in hook has a maximum capacity of 25 lbs. Do not exceed this weight.

3. Setup and Assembly

Assembly of the Domi Hardtop Gazebo requires patience and careful attention to the instructions. It is highly recommended to have multiple people assist with the process.

3.1 Preparation

• Unpacking: Carefully unpack all components. It is advisable to lay out and catalog all parts, bolts, and screws by their codes before starting assembly. This can take several hours.
• Tools: A cordless drill with appropriate bits will significantly speed up assembly compared to using only the provided wrench.
• Location: Choose a level and stable surface for installation. Ensure adequate space around the gazebo for assembly.

3.2 Assembly Steps

1. Follow the provided manual sequentially. Do not skip steps or attempt shortcuts, as this can lead to misalignment.
2. Pay close attention to the orientation of parts, especially brackets and frame sections, to avoid assembling them backward.
3. When attaching roof panels, ensure squareness of the frame. Even slight misalignment can prevent panels from fitting correctly. Using painter's tape can help hold smaller panels in place during bolt threading.
4. Securely fasten all bolts and screws.
5. Once the frame is assembled, attach the roof panels, ensuring proper overlap for water drainage.
6. Install the mosquito netting and privacy curtains.
7. Anchor the gazebo to the ground using the pre-drilled holes in the base plates of the posts.

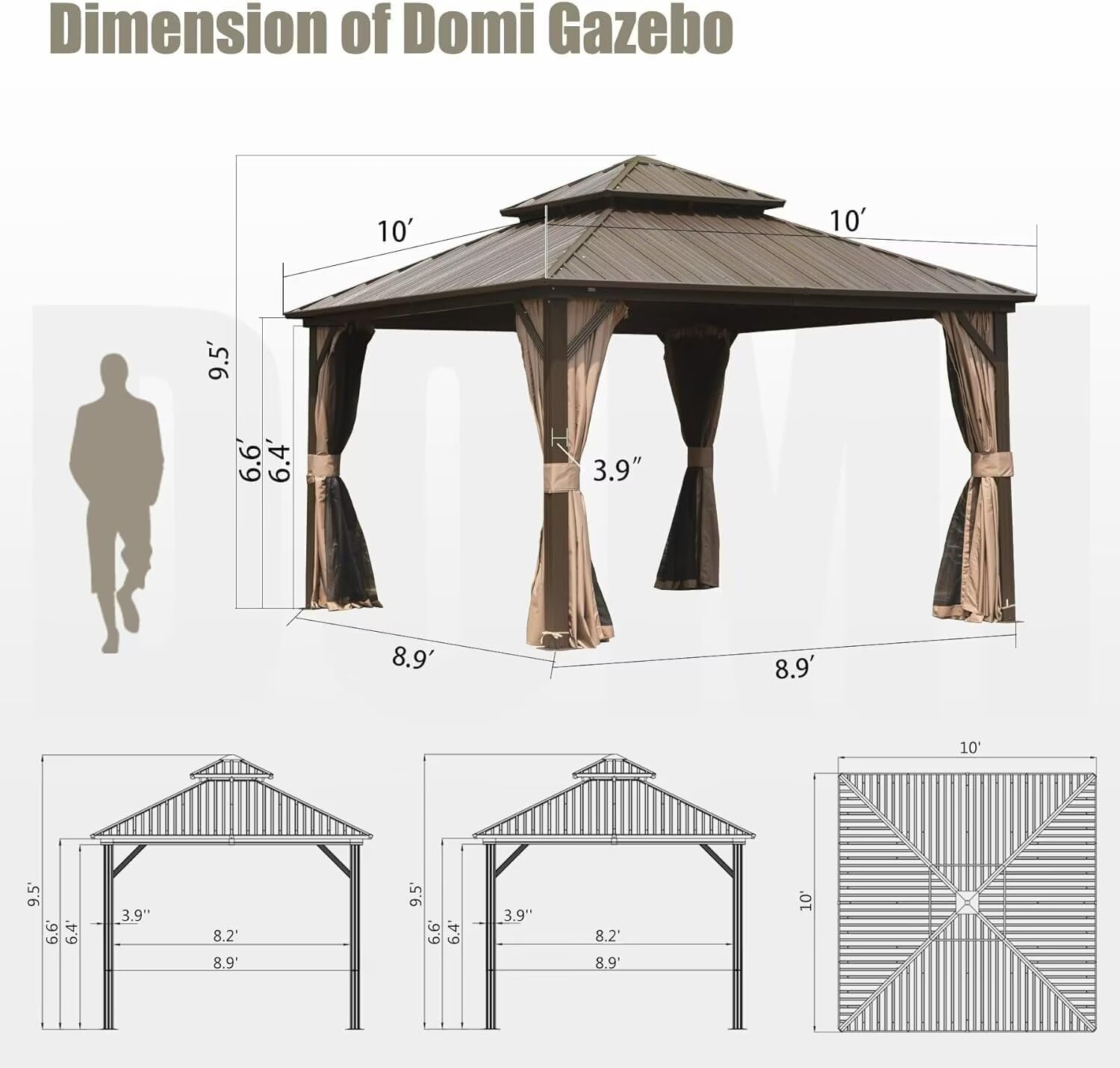

Image: Dimensional diagram of the Domi Gazebo, illustrating key measurements for planning and assembly.

Image: Stable anchoring stands with pre-drilled holes for securing the gazebo to the ground.

4. Operating Instructions

The Domi Hardtop Gazebo is designed for year-round use, offering comfort and protection.

4.1 Roof System

• Double-Layered Roof: The double-layered galvanized steel roof enhances air circulation, helping to regulate temperature inside the gazebo.
• Sloped Design: The sloped roof design facilitates efficient drainage of rain and snow, preventing accumulation and reducing the risk of damage.
• UV Protection: The hardtop roof provides effective blocking of most sunlight and UV rays, creating a cool and shaded area.

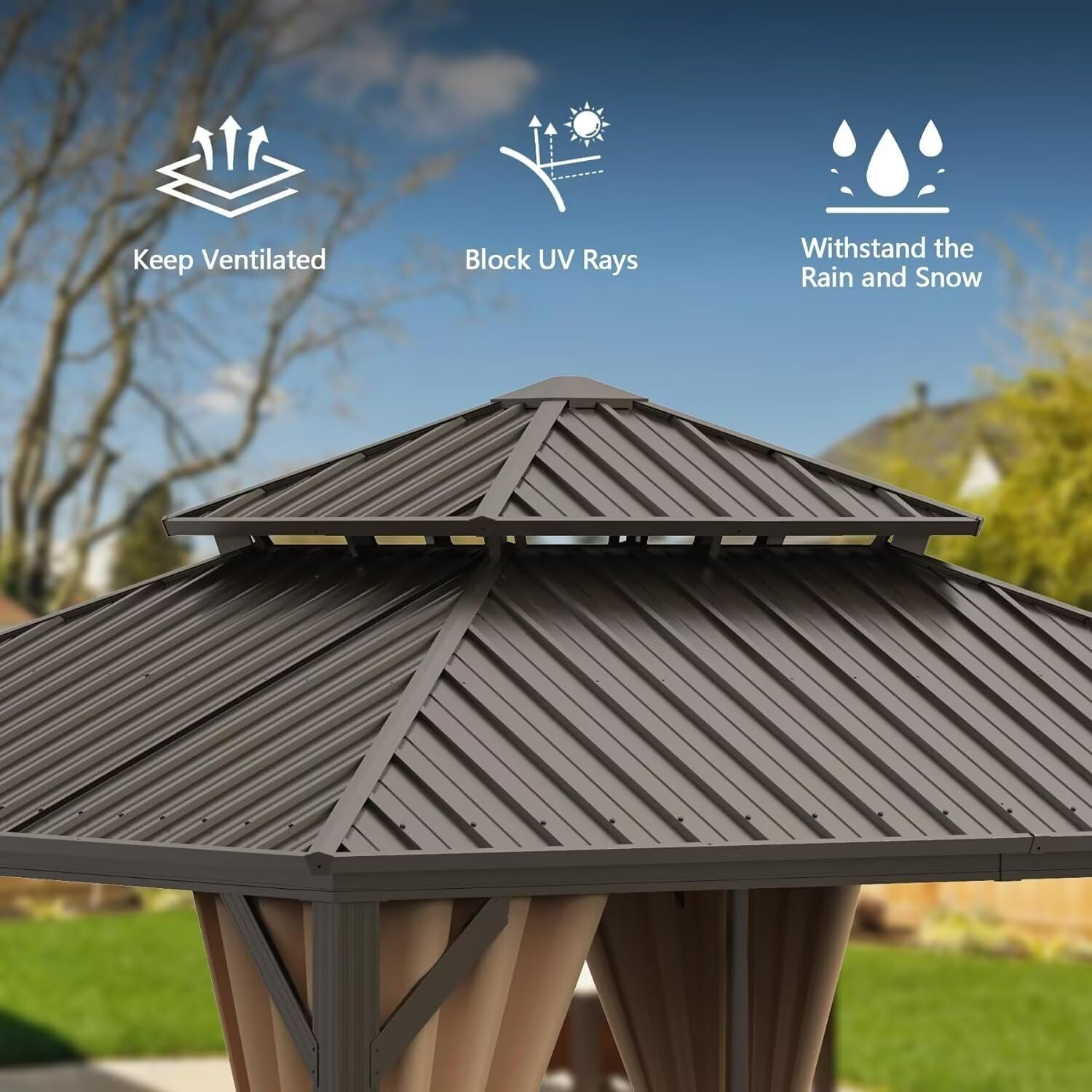

Image: The double-layered roof design promotes ventilation, blocks UV rays, and withstands rain and snow.

Image: The sloped drainage system ensures water runs off quickly, preventing accumulation.

Image: The gazebo provides shade in sunny weather and is sturdy enough to withstand heavy rain and snow.

4.2 Curtains and Netting

• Mosquito Netting: The included netting features double-sided zippers for easy access and maintains good ventilation while keeping insects out.
• Privacy Curtains: The privacy curtains offer a safe and comfortable enclosed space, providing privacy and helping to retain warmth.
• Both the netting and curtains are detachable for seasonal use or cleaning.

Image: Detachable curtains and netting offer premium ventilation, insect protection, and privacy.

4.3 Integrated Hook

• A built-in hook is located in the center of the roof structure. This hook can be used to hang lighting fixtures or small fans.
• Ensure that any item hung from the hook does not exceed the maximum weight capacity of 25 lbs.

Image: The built-in hook provides a convenient point for hanging lights or other decorative items.

5. Maintenance

Proper maintenance will extend the lifespan and appearance of your Domi Hardtop Gazebo.

• Frame: The powder-coated alloy steel frame is resistant to fading, rust, and corrosion. Clean the frame periodically with a mild soap and water solution. Rinse thoroughly and dry.
• Roof Panels: Inspect the galvanized steel roof panels regularly for any debris accumulation, especially after strong winds or heavy snowfall. Clear any debris to maintain proper drainage.
• Curtains and Netting: The fabric curtains and netting can be detached and cleaned according to their care labels. Store them in a dry place during off-seasons or extreme weather to prolong their life.
• Anchoring: Periodically check the anchoring points to ensure the gazebo remains securely fastened to the ground. Tighten any loose bolts or stakes.

Image: High-quality alloy steel frame with thicken metal painting for durability and resistance to elements.

6. Troubleshooting

This section addresses common issues that may arise during assembly or use.

• Parts Not Fitting: If parts do not align or fit together, re-check the assembly steps for correct orientation. Ensure the frame is square and level. Disassemble and reassemble the problematic section carefully.
• Unclear Instructions: If any instruction step is unclear, review the preceding and following steps. Patience is key; follow the manual's sequence precisely.
• Damaged or Missing Parts: In the event of damaged or missing components upon delivery, contact customer service immediately with your order details and photos of the damage.
• Water Accumulation on Roof: Ensure the roof panels are correctly installed with proper overlap and that the sloped design is maintained. Clear any debris that might obstruct water flow.

7. Specifications

8. Warranty and Support

While specific warranty details are not provided in this manual, Domi Outdoor Living is known for responsive customer service. If you encounter any issues with your gazebo, particularly regarding damaged or missing parts, please contact the seller or manufacturer directly.

When contacting support, be prepared to provide:

• Your purchase order number.
• The model number of your gazebo (10'x10' Hardtop Gazebo).
• A detailed description of the issue.
• Photographs of any damaged parts.

This information will help expedite the support process.
