1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Haier Trendy Dual Split Air Conditioner. Please read this manual thoroughly before using the appliance and keep it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your unit.
2. Safety Information
Always observe the following safety precautions to reduce the risk of electric shock, fire, injury, or damage to the product.
- Professional Installation: Installation, maintenance, and repair of this air conditioner must be performed by qualified service personnel. Incorrect installation can lead to electric shock, fire, or water leakage.
- Power Supply: Ensure the power supply matches the specifications of the unit. Do not use extension cords or multi-outlet adapters.
- Refrigerant: This unit uses R32 refrigerant. Do not attempt to handle or release refrigerant. Contact a qualified technician for any refrigerant-related issues.
- Electrical Safety: Do not operate the unit with wet hands. Disconnect power before cleaning or performing any maintenance.
- Obstruction: Do not block the air inlet or outlet of the indoor or outdoor units.
- Children and Pets: Keep children and pets away from the unit during operation and maintenance.
3. Product Overview
The Haier Trendy Dual Split Air Conditioner system provides efficient cooling and heating for multiple rooms. This system includes:
- One Outdoor Unit: Model H2U18TAAOUT (TRENDY MULTISPLIT)
- Two Indoor Units: Model HAS12TABIN (12000 BTU/h each) with WiFi remote control
Key features include A++/A+ energy efficiency, R32 refrigerant, and Wi-Fi connectivity for smart control.

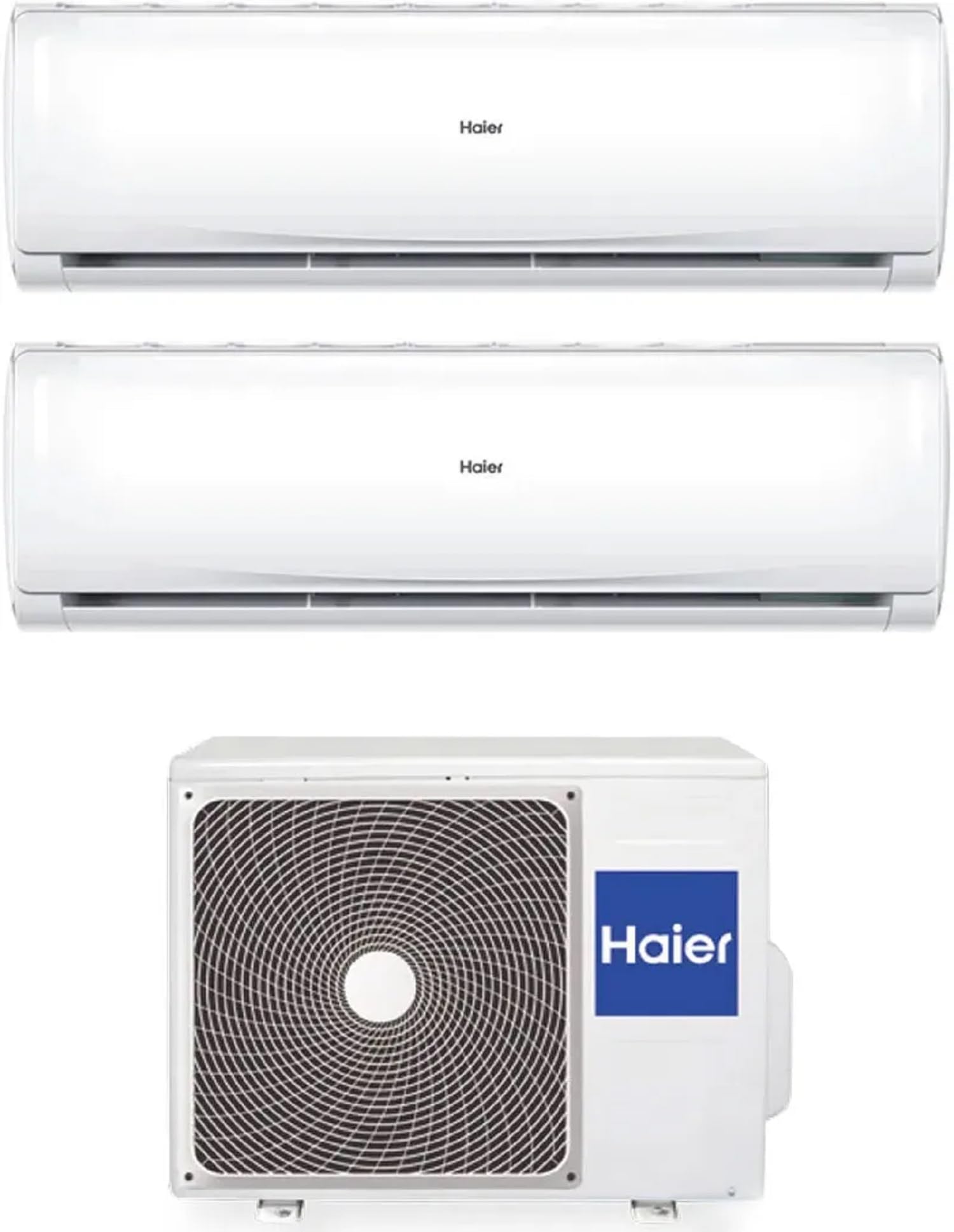

Figure 1: Haier Trendy Dual Split Air Conditioner system. This image shows the complete Haier Trendy Dual Split Air Conditioner system, including one outdoor unit and two indoor units, ready for installation.
4. Setup and Installation
Installation of the Haier Trendy Dual Split Air Conditioner requires specialized knowledge and tools. It is mandatory to have the unit installed by a certified HVAC professional to ensure proper functioning, safety, and warranty validity.
4.1 Site Selection
- Indoor Units: Choose a location where air can circulate freely, away from direct sunlight or heat sources. Ensure the wall is strong enough to support the unit.
- Outdoor Unit: Select a well-ventilated area, free from obstructions, and with sufficient space for maintenance. Avoid locations near bedrooms due to potential operating noise.
4.2 Electrical Connections
All electrical wiring must comply with local and national electrical codes. A dedicated circuit breaker is required for the outdoor unit. Ensure proper grounding.
4.3 Refrigerant Piping
The refrigerant lines connect the indoor units to the outdoor unit. These connections must be leak-free and properly insulated. Only qualified technicians should handle refrigerant piping.
5. Operating Instructions
Your Haier Trendy Air Conditioner can be controlled via the included wireless remote control or through the Wi-Fi app.
5.1 Remote Control Functions
The remote control allows you to select operating modes, adjust temperature, fan speed, and set timers. Refer to the separate remote control manual for detailed button descriptions.
- POWER Button: Turns the unit ON/OFF.
- MODE Button: Cycles through operating modes:
- COOL: For cooling the room.
- HEAT: For heating the room.
- FAN: Circulates air without cooling or heating.
- DRY: Dehumidifies the room.
- AUTO: Automatically selects mode based on room temperature.
- TEMP ▲/▼ Buttons: Adjusts the desired temperature.
- FAN Button: Adjusts fan speed (Auto, Low, Med, High).
- SWING Button: Controls the louver direction.
- TIMER Button: Sets ON/OFF timers.
5.2 Wi-Fi Connectivity
The Haier Trendy units are equipped with Wi-Fi for smart control via a smartphone application. Download the official Haier Smart Air app from your device's app store. Follow the in-app instructions to connect your air conditioner to your home Wi-Fi network. This allows for remote control and scheduling functionalities.
6. Maintenance
Regular maintenance ensures the efficiency and longevity of your air conditioner. Always disconnect the power supply before performing any maintenance.
6.1 Air Filter Cleaning (Indoor Unit)
Clean the air filters every two weeks or more frequently if the unit is used often or in dusty environments. Clogged filters reduce efficiency and airflow.
- Open the front panel of the indoor unit.
- Remove the air filters.
- Wash the filters with lukewarm water and a mild detergent. Rinse thoroughly.
- Allow filters to dry completely in a shaded area before reinstalling. Do not expose to direct sunlight.
- Reinstall the filters and close the front panel.
6.2 Outdoor Unit Cleaning
Periodically check the outdoor unit for debris, leaves, or dirt that may obstruct airflow. Gently clean the coils with a soft brush or vacuum cleaner. Do not use high-pressure water, as it can damage the fins.
6.3 Professional Servicing
It is recommended to have your air conditioner professionally serviced at least once a year by a qualified technician. This includes checking refrigerant levels, electrical connections, and overall system performance.
7. Troubleshooting
Before contacting service, check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not start | No power, remote control batteries low, timer set. | Check power supply, replace remote batteries, cancel timer. |
| Insufficient cooling/heating | Dirty air filters, blocked outdoor unit, wrong mode, temperature setting. | Clean filters, clear obstructions, select correct mode, adjust temperature. |
| Water leakage from indoor unit | Clogged drain pipe, improper installation. | Clean drain pipe. If issue persists, contact a professional. |
| Unusual noise | Loose parts, foreign objects, compressor noise (normal). | Check for loose parts. If noise is abnormal, contact service. |
| Wi-Fi connection issues | Router issues, incorrect password, unit too far from router. | Restart router, re-enter password, ensure good signal strength. |
If the problem persists after trying these solutions, please contact Haier customer support or a qualified service technician.
8. Specifications
Below are the general specifications for the Haier Trendy Dual Split Air Conditioner system:
| Feature | Detail |
|---|---|
| Brand | Haier |
| Model Name | Trendy |
| Outdoor Unit Model | H2U18TAAOUT |
| Indoor Unit Model | HAS12TABIN (x2) |
| Cooling Capacity | 5 Kilowatt (Total for outdoor unit, supporting 2x 12000 BTU indoor units) |
| Heating Feature | Yes |
| Refrigerant | R-32 |
| Seasonal Energy Efficiency Ratio (SEER) | 6.5 |
| Energy Class (Cooling/Heating) | A++/A+ |
| Noise Level (Outdoor Unit) | 55 Decibels |
| Power Source | Wired |
| Form Factor | Mini-split |
| Connectivity | Wi-Fi Inverter |
9. Warranty and Support
For warranty information, please refer to the warranty card included with your product or visit the official Haier website. Keep your purchase receipt as proof of purchase.
For technical support, service requests, or inquiries, please contact Haier customer service through their official channels. Contact details can typically be found on the Haier website or in the product packaging.
