1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your ebm-papst K3G250-AI27-05 Axial Cabinet Fan. Please read this manual thoroughly before using the product and retain it for future reference. This fan is designed for ventilation and heat dissipation in various industrial and electronic applications.
2. Safety Information
Important Safety Instructions:
- Always disconnect power before installation, maintenance, or cleaning.
- Ensure proper grounding to prevent electrical shock.
- Do not operate the fan with damaged wiring or if the housing is compromised.
- Keep fingers and other objects away from rotating blades.
- Install the fan in a location with adequate ventilation and away from flammable materials.
- This product is intended for professional installation and use. If you are unsure about any aspect of installation or operation, consult a qualified electrician or technician.
- Ensure the power supply voltage and frequency match the fan's specifications (220-240VAC, 50/60Hz).
3. Package Contents
Verify that all items are present and undamaged upon opening the package. If any components are missing or damaged, contact your supplier immediately.
- 1 x ebm-papst K3G250-AI27-05 Axial Cabinet Fan
- 1 x User Manual (this document)
4. Setup and Installation
Proper installation is crucial for the fan's performance and longevity. Follow these steps carefully.
- Mounting: Securely mount the fan to a stable surface within the cabinet or enclosure using appropriate fasteners. Ensure there is sufficient clearance for airflow on both intake and exhaust sides.
- Electrical Connection:
- Ensure the power supply is disconnected before making any electrical connections.
- Connect the fan's power connector (SATA/Molex type) to a compatible power source.
- Verify that the voltage (220-240VAC) and frequency (50/60Hz) of the power supply match the fan's requirements.
- Ensure all connections are tight and secure to prevent loose contacts and potential hazards.
- Airflow Direction: Observe the arrows on the fan housing, if present, to ensure correct airflow direction for your application. Typically, axial fans are designed to draw air from one side and expel it from the other.
- Final Check: Before restoring power, double-check all connections and mounting points. Ensure no wires are obstructing the fan blades.

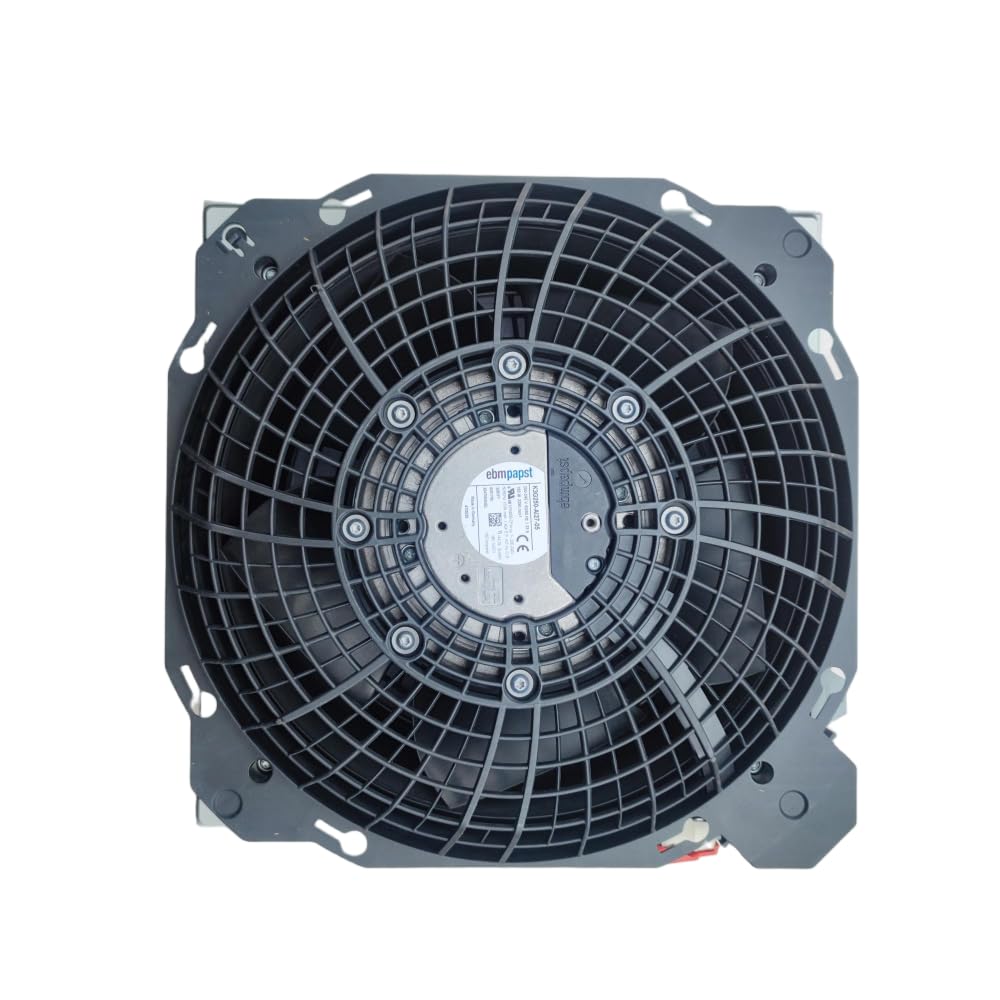

Figure 1: ebm-papst K3G250-AI27-05 Axial Cabinet Fan. This image shows the overall design of the fan, including its housing and blades, ready for installation.
5. Operating Instructions
Once installed and connected, the fan operates automatically when power is supplied.
- Power On: Apply power to the circuit the fan is connected to. The fan should start rotating immediately.
- Verification: Observe the fan to ensure it is rotating smoothly and quietly. Check for proper airflow in the intended direction.
- Power Off: Disconnect power from the circuit to stop the fan.
The fan is designed for continuous operation within its specified parameters. Avoid frequent power cycling if not necessary for your application.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your fan.
- Cleaning: Periodically inspect the fan blades and housing for dust and debris accumulation. Disconnect power before cleaning. Use a soft brush or compressed air to gently remove dust. Do not use liquids or abrasive cleaners.
- Inspection: Regularly check for any signs of wear, such as unusual noises, vibrations, or visible damage to the blades or wiring.
- Lubrication: This fan is designed with maintenance-free bearings. No additional lubrication is required.
- Environmental Conditions: Ensure the operating environment remains within the specified temperature and humidity ranges to prevent premature wear.
7. Troubleshooting
If you encounter issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power supply; Incorrect wiring; Damaged fan motor | Check power connection and source; Verify wiring according to installation instructions; If motor is damaged, replace the fan. |
| Unusual noise or vibration | Loose mounting; Obstruction in fan blades; Worn bearings | Tighten mounting screws; Disconnect power and remove any obstructions; If bearings are worn, replace the fan. |
| Reduced airflow | Dust accumulation on blades/grille; Obstruction in airflow path | Disconnect power and clean fan blades and grille; Remove any obstructions from the intake or exhaust. |
| Overheating | Insufficient ventilation; Fan operating outside specified parameters | Ensure adequate space for airflow; Verify operating conditions match specifications. |
If the problem persists after attempting these solutions, contact customer support.
8. Specifications
| Parameter | Value |
|---|---|
| Model | K3G250-AI27-05 |
| Brand | ebm-papst |
| Type | Axial Cabinet Fan |
| Motor | M3G055-CF |
| Nominal Voltage | 220-240VAC |
| Frequency | 50/60Hz |
| Current Draw | 1.33A |
| Power | 165W |
| Speed | 3290 RPM |
| Insulation Class | B |
| Power Connector Type | SATA/Molex |
| Cooling Method | Air |
| Material | Copper |
| Noise Level | 165 Decibels (Note: This value seems unusually high for a fan and might be a data entry error. Please refer to official ebm-papst documentation for precise noise levels.) |
| UPC | 761241577118 |
9. Warranty and Support
For warranty information and technical support, please contact your point of purchase or the official ebm-papst distributor in your region. Keep your purchase receipt as proof of purchase.
For further assistance, you may also refer to the official ebm-papst website for product documentation and contact details.
