YORKING Under Bed Storage Containers with Wheels (Model S Black) - Instruction Manual

1. Introduction

This instruction manual provides essential information for the assembly, operation, and maintenance of your YORKING Under Bed Storage Containers with Wheels, Model S Black. Please read this manual thoroughly before use to ensure proper functionality and longevity of the product.

2. Product Overview

The YORKING Under Bed Storage Containers are designed to offer an efficient and organized solution for storing various items under beds, sofas, or other furniture. Each container features a robust metal frame, Oxford cloth storage bags, a transparent PVC dust cover, and 360-degree rotating wheels, two of which are lockable for stability.

Key Features:

• Integrated Design: Elevated structure to protect stored items from dust and dirt.
• Durable Construction: Entirely metal frame with a spray-painted finish for rust and moisture resistance.
• Protective Cover: Transparent PVC dust cover with Oxford cloth bags to keep contents clean and visible.
• Mobility and Stability: Four 360-degree rotating wheels, with two equipped with braking devices for secure placement.
• Versatile Storage: Suitable for clothes, shoes, bedding, blankets, snacks, toys, and books.

Image 2.1: Two YORKING under bed storage containers, one filled with folded clothes and the other with shoes, demonstrating typical use.

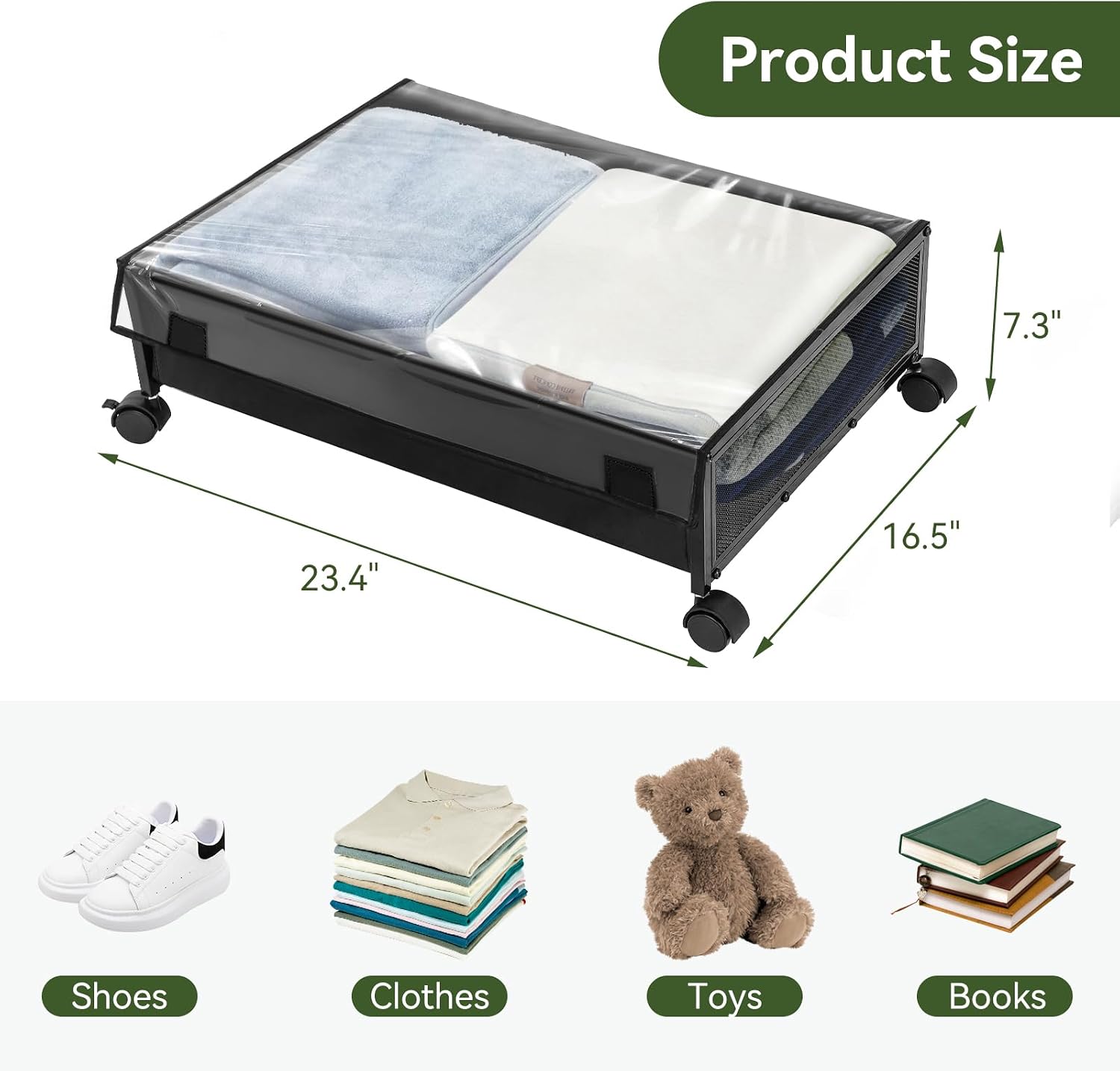

Image 2.2: Product dimensions and examples of suitable items for storage.

3. Setup and Assembly

Assembly of the YORKING Under Bed Storage Containers is designed to be straightforward and requires no additional tools beyond what is provided. The process primarily involves connecting the frame components and attaching the wheels.

Package Contents:

• Storage Cart Side Panels (Mesh) x 2
• Long Metal Bars x 6
• Short Metal Bars x 6
• Non-woven Fabric Cover x 1
• Wheels x 4
• Screws x 12
• Small Wrench x 1

Image 3.1: All components included in the package for assembly.

Assembly Steps:

1. Prepare Metal Bars: Connect the short metal bars (labeled 3) into the long metal bars (labeled 2) to create six extended support bars. Ensure they are securely joined.
2. Assemble Base Frame: Attach two mesh side panels (labeled 1) to the base of the frame using 4 screws (labeled 6) for each panel. Use the provided small wrench to tighten the screws.
3. Insert into Cover: Carefully slide the partially assembled metal frame into the non-woven fabric cover (labeled 4). Ensure the fabric cover is correctly oriented.
4. Complete Frame: Attach the remaining two mesh side panels (labeled 1) to the other side of the frame using 2 screws (labeled 6) for each panel. Tighten all screws.
5. Attach Wheels: Securely attach the four wheels (labeled 5) to the designated points on the bottom of the storage cart. Push firmly until they click into place. No tools are typically required for wheel attachment.

Image 3.2: Visual guide for product assembly.

4. Operating Instructions

Using the Storage Container:

• Loading Items: Open the transparent PVC dust cover. Place items such as clothes, shoes, bedding, or toys into the Oxford cloth storage bags within the container. The clear window allows for easy identification of contents.
• Closing the Cover: Once loaded, secure the transparent PVC dust cover to protect contents from dust and maintain cleanliness.
• Moving the Container: The 360-degree rotating wheels allow for easy movement of the container in any direction. Simply push or pull the cart to slide it under your bed, sofa, or other furniture.
• Locking the Wheels: To secure the container in a stationary position, push down the knob on top of the two lockable wheels. This will engage the brake, preventing unintended movement. To unlock, lift the knob.

Image 4.1: Container under a bed, highlighting capacity, dust cover, and lockable wheels.

Image 4.2: Versatile application of the storage containers in different rooms.

5. Maintenance

Regular maintenance helps preserve the appearance and functionality of your storage containers.

• Cleaning the Frame: Wipe the metal frame with a damp cloth and mild detergent if necessary. Dry thoroughly to prevent rust.
• Cleaning the Fabric Cover: The Oxford cloth bags and PVC dust cover can be wiped clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Wheel Maintenance: Periodically check the wheels for any accumulated dust or debris that might hinder smooth rotation. Clean as needed.
• Storage: When not in use, store the containers in a dry environment to prevent moisture damage.

6. Troubleshooting

Common Issues and Solutions:

• Wheels not rolling smoothly:
      a. Check for debris (hair, lint) caught in the wheels. Clean as necessary.
      b. Ensure the wheel brakes are not engaged.
• Container not stable/moving unintentionally:
      a. Verify that the braking devices on the wheels are fully engaged by pushing down the knobs.
• Dust cover not sealing properly:
      a. Ensure the cover is correctly aligned and secured over the frame.

7. Specifications

8. Support

For any questions, concerns, or assistance regarding your YORKING Under Bed Storage Containers, please contact our customer service. We are committed to responding within 24 hours to ensure your satisfaction.

Contact Information: Please refer to your purchase documentation or the retailer's website for specific contact details.
