1. Introduction
Thank you for choosing the LocoLee LED Light Kit for your Lego Yavin 4 Rebel Base 75365 building set. This lighting kit is designed to enhance your model with dynamic and creative lighting effects, bringing it to life. This manual provides essential information for safe installation, operation, and maintenance of your light kit. Please read it carefully before beginning installation.
2. Safety Information
- This product contains small parts and is not suitable for children under 3 years old. Keep all components out of reach of small children to prevent choking hazards.
- Handle LED wires and components with care. Do not pull or bend wires excessively, as this may cause damage.
- Ensure the power source (battery box or USB power bank) is appropriate for the light kit (5 Volts). Using an incorrect voltage may damage the lights.
- Do not immerse the light kit or its components in water. The product is not water resistant.
- If you encounter any issues during installation or operation, refer to the troubleshooting section or contact customer support.
3. Package Contents
Your LocoLee LED Light Kit package should contain the following items:
- LED Light Strips and Individual LEDs
- Connecting Cables (various lengths)
- Expansion Boards
- Battery Box (for power supply)
- USB Power Cable
- User Manual
Image: Contents of the LocoLee LED Light Kit, showing various LED components, connecting cables, and power supply options.
4. Setup and Installation
Installation of the LocoLee LED Light Kit requires careful handling and may involve disassembling certain parts of your Lego Yavin 4 Rebel Base 75365 model. Follow the detailed step-by-step instructions provided in the included user manual. For visual guidance, comprehensive video installation instructions are available online. Please refer to the website or QR code provided in your physical manual for access to these resources.
General Installation Tips:
- Preparation: Ensure your Lego model is clean and stable. Have all light kit components organized.
- Disassembly: Carefully disassemble only the necessary sections of your Lego model as indicated in the instructions to integrate the lights.
- Wire Management: Route wires neatly between Lego bricks to conceal them and prevent damage. Avoid pinching wires.
- Connection: Connect LEDs to expansion boards and then to the power source. Ensure all connections are secure.
- Testing: Test the lights periodically during installation to ensure they are working correctly before fully reassembling the model.
Image: Overview of LED light kit components, including different types of lights, connecting cables, and expansion boards.
Image: Visual representation of the installation guide, highlighting key steps for integrating the light kit.
5. Operating Instructions
Once the LocoLee LED Light Kit is fully installed and connected to a power source, operating it is straightforward:
- Power On: If using the battery box, ensure batteries are correctly inserted and switch the power button to the 'ON' position. If using a USB power cable, connect it to a compatible 5V USB power source (e.g., USB wall adapter, power bank).
- Enjoy: The lights will illuminate your Lego Yavin 4 Rebel Base 75365 model, creating a vibrant display.
- Power Off: To turn off the lights, switch the battery box to 'OFF' or disconnect the USB power cable.

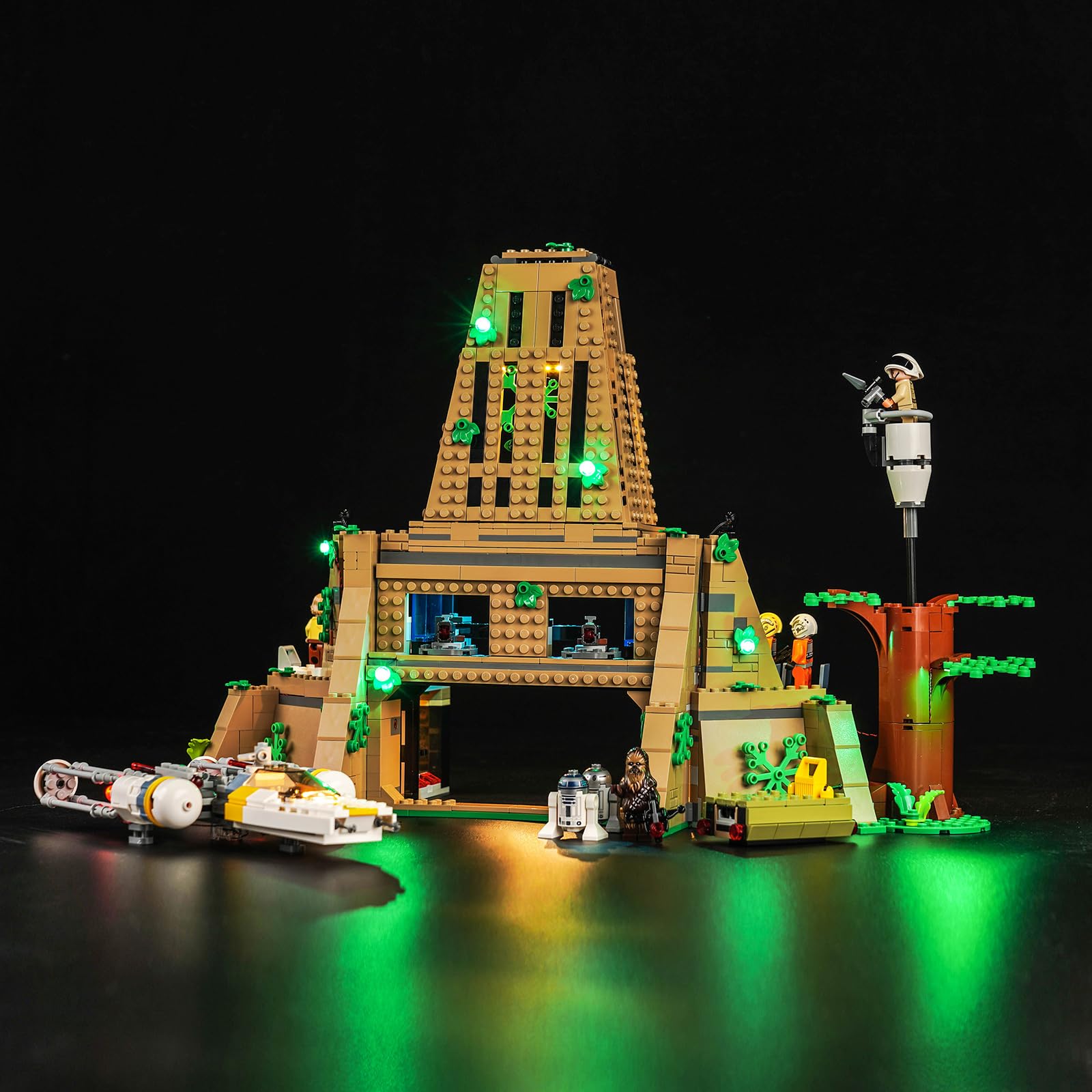

Image: The Lego Yavin 4 Rebel Base 75365 model fully illuminated by the LocoLee LED Light Kit, showcasing the enhanced visual appeal.
6. Maintenance
To ensure the longevity and optimal performance of your LocoLee LED Light Kit, follow these maintenance guidelines:
- Cleaning: Gently dust the illuminated model and light components with a soft, dry cloth. Avoid using liquid cleaners directly on the lights or wires.
- Battery Replacement: If using a battery box, replace batteries when lights dim or stop working. Always use fresh batteries of the specified type.
- Storage: If storing the model for an extended period, disconnect the power source (remove batteries or unplug USB cable) to prevent battery leakage or unnecessary power drain.
- Handling: Avoid dropping or subjecting the model to strong impacts, as this can damage the delicate wiring and LED components.
7. Troubleshooting
If you encounter issues with your LocoLee LED Light Kit, try the following troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power, loose connection, faulty component. | Check battery box switch/USB connection. Ensure batteries are fresh. Verify all cable connections are secure. Inspect wires for damage. |
| Some lights are not working. | Loose connection, damaged LED/wire. | Check connections to the specific non-working lights and their expansion board. Carefully inspect the wire for breaks. |
| Lights are flickering. | Unstable power, loose connection. | Ensure power source is stable. Check all connections for tightness. Replace batteries if they are low. |
| Lights are dim. | Low batteries, insufficient power. | Replace batteries with fresh ones. If using USB, ensure the power source provides sufficient current. |
If these steps do not resolve the issue, please contact LocoLee customer support for further assistance.
8. Specifications
- Brand: LocoLee
- Model Compatibility: Lego Yavin 4 Rebel Base 75365
- Light Source Type: LED
- Number of Light Sources: 10
- Power Source: Battery Powered (or USB via included cable)
- Voltage: 5 Volts
- Material: ABS Plastic, Copper lines
- Recommended Uses: Decoration
- Indoor/Outdoor Usage: Indoor
- Water Resistance Level: Not Water Resistant
- Item Weight: 4.2 ounces
- Product Dimensions: 6.1 x 4.13 x 1.18 inches (packaging/kit dimensions)
9. Warranty and Support
LocoLee is committed to providing high-quality products and excellent customer service. Our lighting sets are made of high-quality copper lines and ABS material and have passed rigorous quality checks.
If you have any difficulties with the product or its installation, please do not hesitate to contact our professional and perfect after-sales service team. You can typically find contact information (such as an email address) on the product packaging or the official LocoLee website.
