TRIUMPHKEY Reversible L-Shaped Corner Desk 110 x 80cm with Shelves User Manual

1. Introduction

Thank you for choosing the TRIUMPHKEY Reversible L-Shaped Corner Desk. This manual provides detailed instructions for assembly, operation, and maintenance to ensure safe and efficient use of your new desk. Please read this manual thoroughly before beginning assembly and retain it for future reference.

2. Safety Information

Warning: Please follow the detailed instructions carefully during assembly. Ensure that the weight on the desk does not exceed 100 kg (220 lbs) to guarantee stability.

• Keep all small parts and packaging materials away from children and pets to prevent choking hazards.
• Assemble the desk on a soft, clean surface to prevent scratches.
• Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten if necessary.
• Do not stand or sit on the desk.
• Distribute weight evenly across the desk surface and shelves.
• Avoid placing hot items directly on the desk surface without protection.

3. Package Contents

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Desk Panels (L-shaped top, shelf panels)
• Steel Frame Components (Legs, support bars, X-brace)
• Assembly Hardware (Screws, bolts, adjustable feet)
• Assembly Tools (Hex key/Allen wrench)
• Instruction Manual

4. Assembly Instructions

Follow these steps carefully to assemble your TRIUMPHKEY L-Shaped Corner Desk. The design is reversible, allowing you to configure the shelf unit on either the left or right side.

Step 1: Assemble the Shelf Unit Frame

Begin by connecting the vertical and horizontal bars of the shelf unit frame using the provided screws. Ensure all connections are finger-tight before fully securing.

Image: Illustration of the shelf unit frame assembly, showing the metal bars being connected.

Step 2: Attach Shelf Panels

Once the shelf frame is stable, attach the wooden shelf panels to the frame. The shelves are adjustable, allowing you to customize their height. Secure them with the designated screws.

Image: Close-up of the shelf unit with wooden panels attached, highlighting the adjustable shelf positions.

Step 3: Assemble the Main Desk Frame

Assemble the main desk frame, including the legs and support bars. Pay attention to the orientation for the reversible design. The X-brace should be installed for enhanced stability.

Image: Detail of the X-brace reinforcement on the desk frame, indicating structural stability.

Step 4: Connect Desk Sections and Attach Tabletop

Connect the shelf unit to the main desk frame. Then, carefully place the L-shaped tabletop onto the assembled frame. Ensure all pre-drilled holes align and secure the tabletop using the remaining screws.

Image: Diagram illustrating the reversible design, showing how the shelf unit can be configured on either the left or right side of the L-shaped desk.

Step 5: Final Adjustments

Tighten all screws firmly. Adjust the leveling feet at the bottom of the desk legs to ensure the desk is stable and level on your floor.

Image: Close-up of the adjustable leveling feet, demonstrating how to stabilize the desk on uneven surfaces.

5. Operating Instructions & Features

Your TRIUMPHKEY L-Shaped Corner Desk is designed for versatility and functionality in various settings.

5.1 Reversible L-Shape Design

The desk features a reversible design, allowing the integrated shelf unit to be positioned on either the left or right side. This flexibility enables optimal placement in different room layouts and personal preferences.

Image: An overview of the TRIUMPHKEY L-Shaped Corner Desk, showcasing its design with a monitor, laptop, and accessories, illustrating its use in a home office environment.

5.2 Integrated Storage Shelves

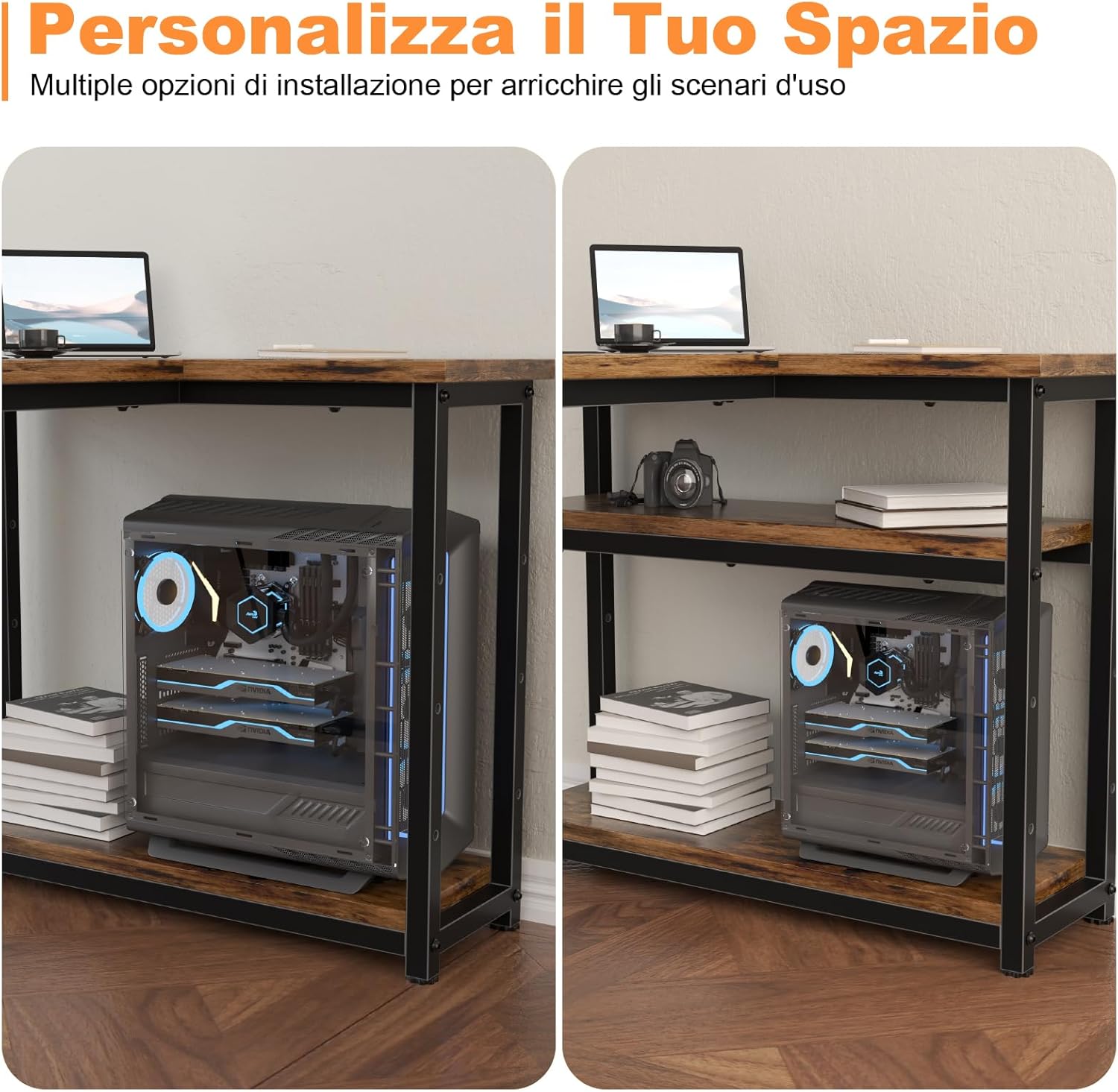

The desk includes two open storage shelves. These shelves provide convenient space for books, files, office supplies, or even a computer tower. The middle shelf can be removed to accommodate larger items.

Image: A close-up of the desk's shelf unit, demonstrating how a computer tower can be placed on the lower shelf, with books and other items on the upper shelf.

5.3 Durable and Easy-to-Clean Surface

The desk surface is designed to be waterproof and easy to clean, making it suitable for daily use and resistant to minor spills.

Image: A close-up of the desk surface with water droplets, demonstrating its waterproof and easy-to-clean properties.

5.4 Sturdy Steel Frame

The desk is constructed with a robust steel frame and an X-brace design, ensuring maximum durability and stability for your workspace.

6. Maintenance

• Cleaning: Wipe the desk surface with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Re-tighten if any looseness is detected.
• Protection: Use coasters for drinks and protective pads under hot items to prevent damage to the tabletop.

7. Troubleshooting

• Desk Wobbles: Check that all screws are securely tightened. Adjust the leveling feet at the bottom of the desk legs to compensate for uneven floor surfaces.
• Parts Don't Fit: Double-check the assembly instructions and ensure you are using the correct parts for each step. Sometimes, parts may appear similar but have subtle differences in orientation or size.
• Missing Parts: If you discover any missing components, please refer to the 'Package Contents' section and contact customer support for assistance.

8. Specifications

Note: Dimensions and weight are approximate and may vary slightly.

9. Warranty and Support

For warranty information, product support, or to order replacement parts, please contact TRIUMPHKEY customer service through the retailer where you purchased the product. Please have your purchase receipt and product model number (0067) available when contacting support.
