TRIUMPHKEY Reversible L-Shape Desk User Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your TRIUMPHKEY Reversible L-Shape Desk. Please read this manual thoroughly before beginning assembly to ensure proper setup and safe use.

Safety Information

• Ensure all parts are present and undamaged before assembly.
• Assemble the desk on a soft, clean surface to prevent scratches.
• Do not overtighten screws during assembly.
• Keep small parts away from children.
• Do not exceed the maximum weight capacity of 100 kg (70 kg for main surface, 15 kg for shelves).
• Regularly check all fasteners to ensure they remain tight.

Package Contents

Before assembly, verify that all components are included. Refer to the parts list provided in your physical assembly guide. Typical components include:

• Desk panels (main L-shape, shelf panels)
• Metal frame components (legs, crossbars)
• Assembly hardware (screws, bolts, nuts, Allen wrench)
• Adjustable feet

Setup and Assembly

The TRIUMPHKEY Reversible L-Shape Desk is designed for flexible installation, allowing you to configure the storage shelves on either the left or right side to best suit your space.

Step 1: Unpacking and Preparation

Carefully unpack all components from the box. Lay them out on a clean, flat, and soft surface to prevent damage. Identify all parts according to the included parts list.

Step 2: Assembling the Main Desk Frame

Begin by connecting the main desk panels and the metal frame components. Follow the numbered instructions in your physical assembly guide. Ensure all connections are secure but do not fully tighten screws until the entire frame is assembled.

Step 3: Configuring the Reversible Shelves

This desk features reversible shelves that can be installed on either the left or right side of the L-shape. Decide which orientation best fits your room layout before proceeding.

Image: The L-shaped desk demonstrating its reversible design, allowing the shelf unit to be positioned on either the left or right side of the main desk surface.

Attach the shelf frame to the main desk frame according to your chosen orientation (left or right).

Step 4: Installing and Adjusting Shelves

The storage shelves are adjustable and can be customized to fit your needs, including accommodating a PC tower or other items.

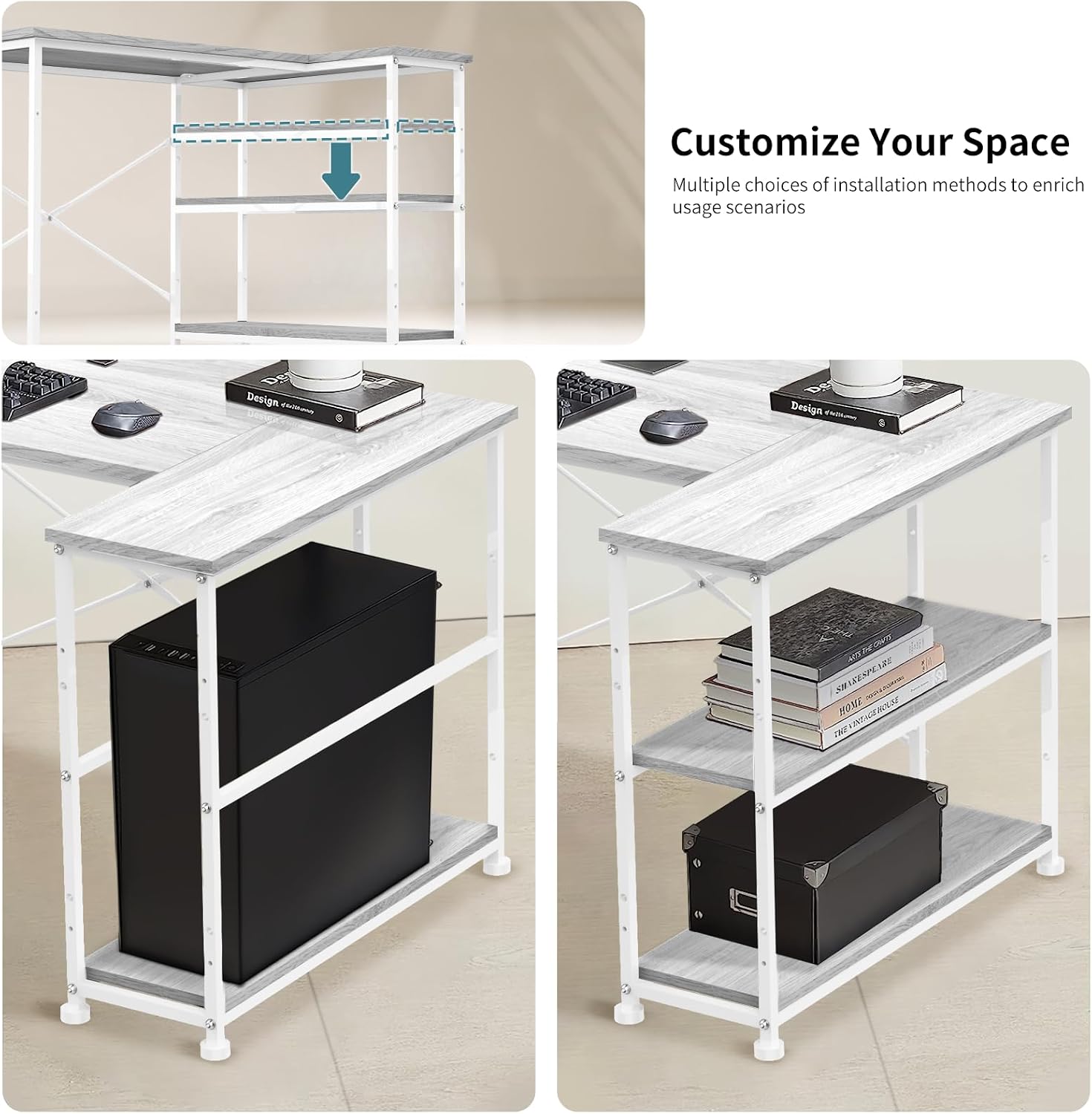

Image: A detailed view of the desk's storage shelves, highlighting their adjustable nature and the ability to remove or reposition them to create space for items like a computer tower.

Insert the shelf panels into the designated slots. You can adjust their height by selecting different pre-drilled holes in the frame. The shelves can also be removed entirely if desired.

Image: Schematic diagrams showing the two primary configurations for the reversible shelves: attached to the left or right side of the desk.

Step 5: Final Tightening and Leveling

Once all components are assembled and in their desired positions, fully tighten all screws and fasteners. Ensure the desk is stable. The desk legs are equipped with adjustable feet (2cm adjustment) to compensate for uneven floors. Adjust these feet until the desk is level and does not wobble.

Image: An overview of the desk, pointing out features such as the 70kg load capacity, inter-changeable shelves, double X crossbar design for stability, and height-adjustable legs.

Operating Instructions

Your TRIUMPHKEY L-Shape Desk is designed for versatile use in various environments such as home offices, studies, or living rooms.

• Work Surface: Utilize the spacious L-shaped desktop for your computer, monitor, keyboard, and other office essentials.
• Storage Shelves: Use the two open storage compartments to organize books, documents, office supplies, or to house a PC tower. Remember that these shelves are removable and their position can be changed.
• Weight Distribution: Distribute weight evenly across the desk surface and shelves to maintain stability and prevent damage.

Maintenance

• Cleaning: The desk surface is made of high-quality chipboard, which is waterproof and easy to clean. Wipe the surface with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Fastener Check: Periodically check all screws and bolts to ensure they remain tight. Retighten as necessary to maintain the desk's stability.
• Avoid Excessive Moisture: While the surface is water-resistant, prolonged exposure to moisture should be avoided. Wipe up spills immediately.
• Protect from Heat: Do not place hot items directly on the desk surface without a protective coaster.

Troubleshooting

Desk is Wobbly

• Ensure all assembly screws are fully tightened.
• Adjust the leveling feet at the bottom of each leg to compensate for uneven flooring.
• Verify that the X-shaped crossbars are correctly installed and secured, as they contribute significantly to stability.

Missing or Damaged Parts

• If you find any parts missing or damaged upon unboxing, please contact customer support immediately with your purchase details.

Difficulty with Assembly

• Review the assembly instructions carefully.
• Ensure you are using the correct hardware for each step.
• Do not fully tighten all screws until the entire unit is assembled, then tighten them progressively.

Specifications

Image: A diagram illustrating the precise dimensions of the TRIUMPHKEY L-Shape Desk, including overall length (110cm), width (50-80cm), height (75cm), and shelf dimensions. It also indicates the load capacities for different sections.

Warranty and Support

For any questions, concerns, or assistance with your TRIUMPHKEY Reversible L-Shape Desk, please contact our customer support. While specific warranty details are typically provided with your purchase documentation, we are committed to providing support for assembly and product inquiries.

Please have your model number (0067) and purchase information ready when contacting support.
