QNZK Queen Lift Up Storage Bed Frame Instruction Manual

1. Safety Information

Please read all instructions carefully before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Weight Limit: Do not exceed the maximum weight capacity of 700 pounds for the Queen size bed frame.
• Assembly: Ensure all components are securely fastened during assembly. Improper assembly can lead to instability or collapse.
• Hydraulic System: The hydraulic pistons require the weight of a mattress to operate correctly. Be cautious when operating the lift mechanism, especially without a mattress, as it may lift forcefully. Keep hands and fingers clear of moving parts.
• Children and Pets: Keep children and pets away from the bed frame during assembly and when operating the lift mechanism.
• Dust Cover: The black dust-proof cover is designed to protect stored items. Ensure it is properly placed to prevent items from interfering with the lift mechanism.

2. Product Overview

The QNZK Queen Lift Up Storage Bed Frame features a modern wingback headboard and a hydraulic lift system for convenient under-bed storage. Designed for comfort and functionality, it eliminates the need for a box spring.

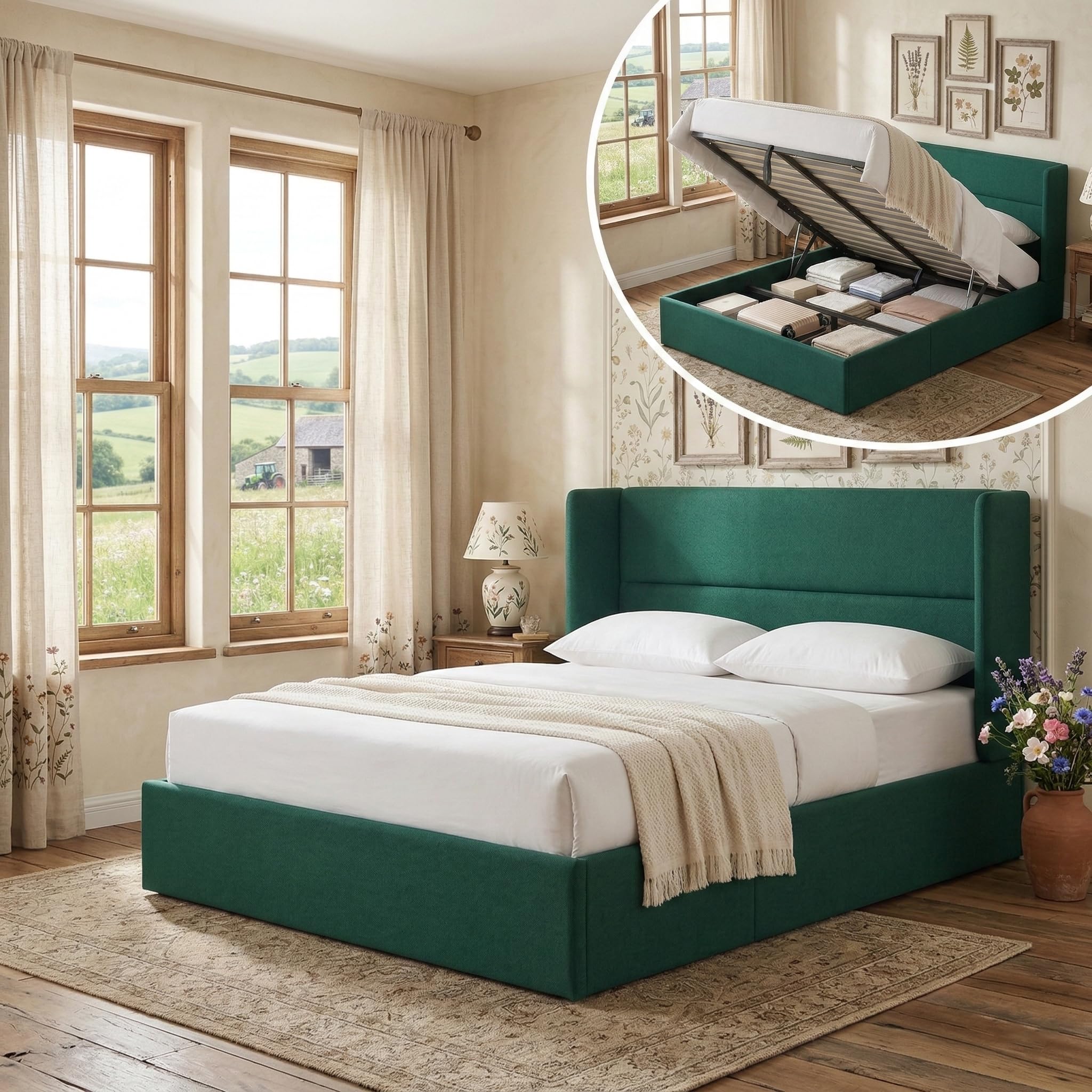

Image: The QNZK Queen Lift Up Storage Bed Frame in green, showcasing the wingback headboard and the mattress lifted to reveal the spacious under-bed storage compartment.

Image: A detailed view of the under-bed storage compartment, demonstrating its capacity to hold suitcases, blankets, and storage boxes, with the mattress lifted by the hydraulic system.

3. Package Contents

All necessary parts and tools for assembly are efficiently packed into a single box. Please verify all components are present before beginning assembly.

Image: An exploded diagram showing all individual components of the bed frame, including the headboard, side rails, slats, and hydraulic mechanism, laid out for assembly.

4. Setup: Assembly Instructions

Assembly is designed to be straightforward. We recommend two people for faster and easier setup. A detailed instruction manual and all required tools are included in the box.

Assembly Steps Overview:

1. Unpack all components and lay them out on a clean, soft surface to prevent scratches.
2. Attach the side rails to the headboard and footboard using the provided hardware.
3. Install the central support beam and legs.
4. Secure the hydraulic lifting mechanism to the frame.
5. Attach the wooden slats to the frame using the Velcro tapes for silent installation.
6. Place the black dust-proof cover at the bottom of the storage area.
7. Ensure all connections are tight and stable before placing your mattress.

Play video

Video: An instructional video demonstrating the assembly process of the QNZK lift-up upholstered bed frame, including attaching components and installing the hydraulic system.

Image: A visual guide illustrating key assembly points and connections for the bed frame structure.

5. Operating Instructions

Using the Lift-Up Storage

The bed frame features a smooth hydraulic system for easy access to the under-bed storage. For optimal operation, ensure a mattress is placed on the frame.

1. To lift the bed, grasp the strap handle located at the foot of the bed.
2. Gently pull upwards. The hydraulic pistons will assist in lifting the mattress platform.
3. The platform will remain in the open position, providing full access to the storage compartment.
4. To close, firmly push the mattress platform downwards until it latches securely. The hydraulic system will offer resistance, requiring some effort to close completely.

Play video

Video: A demonstration of the hydraulic lift-up storage feature, showing how to effortlessly open and close the bed platform to access the storage space underneath.

Image: A visual representation of the hydraulic support system, highlighting its mechanism for smooth and safe lifting of the bed platform.

6. Maintenance

Fabric Care

The bed frame is upholstered in breathable linen fabric. To maintain its appearance:

• Spot Cleaning: For minor spills, gently blot with a clean, damp cloth. Use a mild fabric cleaner if necessary, testing on an inconspicuous area first.
• Vacuuming: Regularly vacuum the upholstered surfaces using a soft brush attachment to remove dust and debris.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading.

General Cleaning

• Wipe down the frame's non-fabric surfaces with a soft, dry cloth.
• Periodically check all bolts and screws to ensure they remain tight. Retighten if necessary.

7. Troubleshooting

Hydraulic System Issues

• Bed Lifts Too Forcefully or Does Not Stay Down: This indicates that the mattress placed on the frame may be too light. The hydraulic pistons are designed to work with the weight of a standard mattress. Ensure your mattress meets the recommended weight for proper operation.
• Bed is Difficult to Lift: If the bed is hard to lift, your mattress might be too heavy for the hydraulic system, or the pistons may not be fully engaged. Ensure the pistons are correctly installed and consider the mattress weight.

Noise Issues

• Squeaking: The bed frame is designed with EVA soundproof pads and Velcro for slats to minimize noise. If squeaking occurs, check all bolts and connections for tightness. Ensure slats are properly seated and the Velcro is intact.

8. Specifications

Image: A diagram illustrating the key dimensions of the Queen Lift Up Storage Bed Frame, including length, width, height, and storage depth.

9. Warranty Information

This QNZK bed frame comes with a Limited Warranty. For specific details regarding coverage and duration, please refer to the warranty card included in your package or contact customer support.

10. Customer Support

Should you have any questions, concerns, or require assistance with your QNZK Queen Lift Up Storage Bed Frame, our professional 24/7 customer support team is ready to assist you.

Please refer to your purchase documentation for contact information or visit the QNZK brand store on Amazon for support options.
