Introduction
This manual provides essential information for the installation, operation, and maintenance of your Toiumops Headlight Washer Nozzle. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product. Retain this manual for future reference.
Product Overview

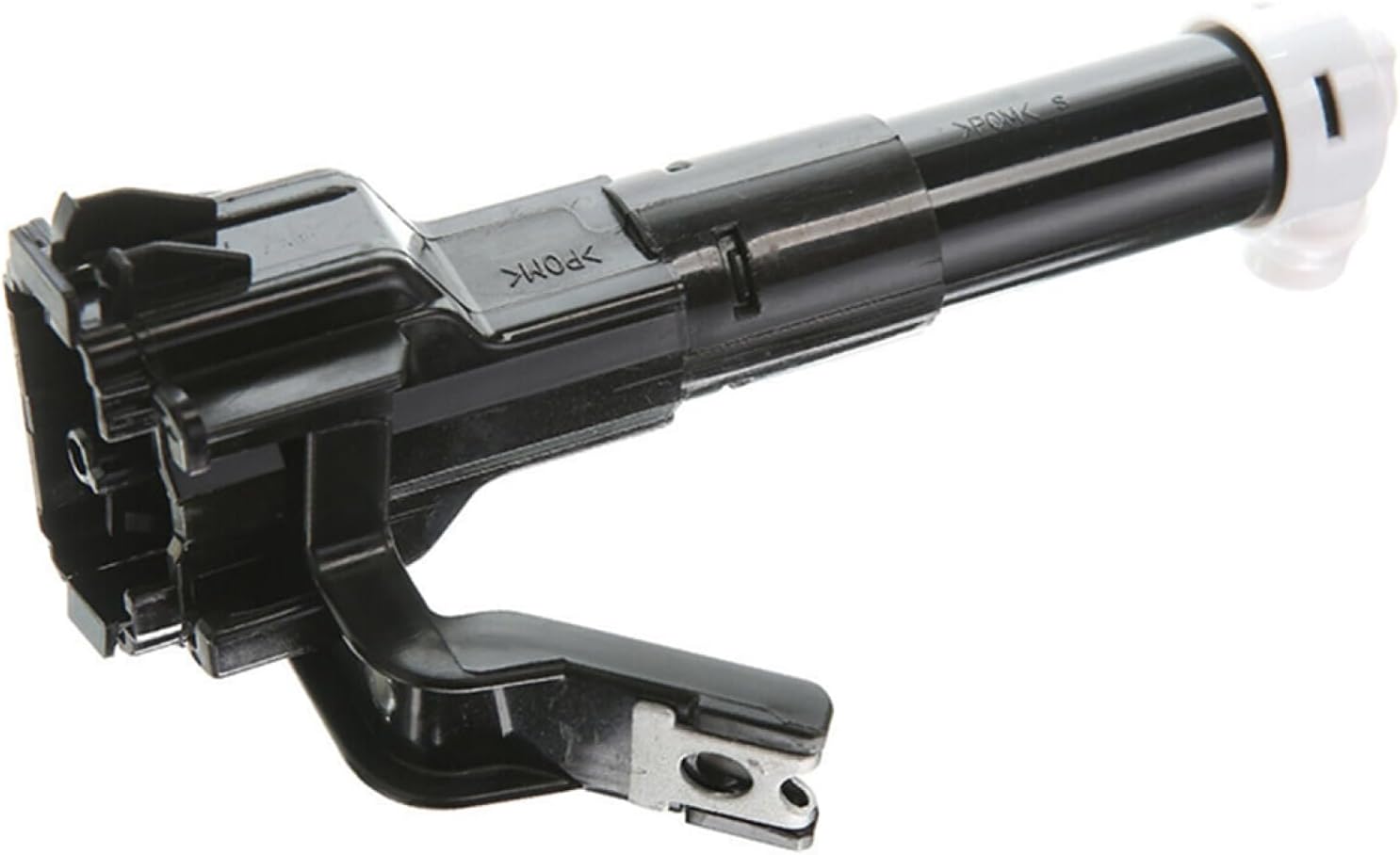

The Toiumops Headlight Washer Nozzle is designed to effectively clean your vehicle's headlights using a high-pressure water column. This helps remove dirt and debris from the lampshade, ensuring clear visibility for the driver and enhancing driving safety.
Key Features:
- Reference OE Numbers: 85207-60060 (Left), 85208-60060 (Right).
- Material: Constructed from high-quality ABS and metal for durability, anti-corrosion properties, and stable performance.
- Function: Sprays washer fluid onto the headlight to clean the surface.
Compatibility
This headlight washer nozzle is compatible with the following vehicle model:
- Toyota Land Cruiser 200 (Years: 2012-2015)
Note: Please verify the OE number (85207-60060 or 85208-60060) against your existing part or vehicle specifications before purchasing to ensure proper fitment.
Parts List
The package typically includes:
- 2 x Headlight Washer Nozzles (one for front left, one for front right)
Installation
This headlight washer nozzle is designed as a direct replacement for the original part. While installation is generally straightforward, professional installation is recommended if you are unfamiliar with automotive repairs.
General Installation Steps (Consult Vehicle Service Manual for Specifics):
- Preparation: Ensure the vehicle is turned off and cool. Gather necessary tools (e.g., trim removal tools, wrenches).
- Access: Depending on your vehicle model, you may need to remove or partially detach the front bumper or fender liner to access the headlight washer assembly.
- Disconnect Old Nozzle: Carefully disconnect the water hose and electrical connector (if present) from the old headlight washer nozzle.
- Remove Old Nozzle: Unclip or unbolt the old nozzle from its mounting position.
- Install New Nozzle: Position the new Toiumops headlight washer nozzle (OE numbers 85207-60060 for left, 85208-60060 for right) into the mounting location. Ensure it clicks securely into place or is properly bolted.
- Reconnect: Reconnect the water hose and any electrical connectors to the new nozzle. Ensure connections are secure to prevent leaks.
- Test: Before reassembling the bumper or liner, test the headlight washer system to ensure the new nozzle sprays correctly and there are no leaks.
- Reassemble: Reattach any removed components (bumper, fender liner) in reverse order of removal.
Operation
The headlight washer system typically operates in conjunction with the windshield washer system or via a dedicated control, depending on your vehicle's specific configuration. When activated, the nozzle extends and sprays a high-pressure stream of washer fluid onto the headlight lens to clear away dirt and debris.
Refer to your Toyota Land Cruiser 200 owner's manual for specific instructions on how to activate the headlight washer system.
Maintenance
Regular maintenance helps ensure the optimal performance and longevity of your headlight washer nozzle:
- Fluid Level: Regularly check and refill the windshield washer fluid reservoir with an appropriate washer fluid, especially in cold weather conditions to prevent freezing.
- Nozzle Cleaning: Periodically inspect the nozzle for any blockages from dirt, wax, or debris. Gently clear any obstructions using a fine needle or compressed air if necessary.
- System Check: Test the headlight washer system regularly to ensure proper function and spray pattern.
- Winter Care: In freezing temperatures, ensure you are using a winter-grade washer fluid to prevent the system from freezing and causing damage.
Troubleshooting
If you encounter issues with your headlight washer nozzle, consider the following common troubleshooting steps:
- No Spray or Weak Spray:
- Check the washer fluid reservoir level.
- Inspect the nozzle for clogs (refer to Maintenance section).
- Check for kinks or disconnections in the water hose leading to the nozzle.
- Ensure the washer pump is functioning (you might hear a hum when activated).
- Leaks:
- Inspect all hose connections to the nozzle and pump for looseness or damage.
- Check the nozzle body for cracks or damage.
- Nozzle Not Extending/Retracting:
- This could indicate an issue with the nozzle's internal mechanism or the activation system. Professional diagnosis may be required.
If these steps do not resolve the issue, it is recommended to consult a qualified automotive technician.
Specifications
| Attribute | Detail |
|---|---|
| Item Type | Headlight Washer Nozzle |
| Installation Position | Front Left or Right |
| Function | Cleaning Headlights |
| Color | As pictured (typically black with white accents) |
| Reference OE Number | 85207-60060 (Left), 85208-60060 (Right) |
| Material | High-quality ABS and Metal |
| Compatible Vehicle | Toyota Land Cruiser 200 (2012-2015) |
Warranty Information
Specific warranty details for this Toiumops product are not provided within this manual. For information regarding warranty coverage, terms, and conditions, please refer to the product packaging or contact the retailer or manufacturer directly.
Customer Support
If you have any questions, concerns, or require assistance with your Toiumops Headlight Washer Nozzle, please do not hesitate to contact our customer support team. We are committed to providing a pleasant shopping experience and resolving any issues you may encounter.
Contact information is typically found on the product packaging or the retailer's website.
