1. Introduction
Thank you for choosing the Vente-unique Kayla 60cm Wall-Mounted Bathroom Vanity. This manual provides essential information for the safe assembly, installation, operation, and maintenance of your new bathroom furniture. Please read all instructions carefully before beginning assembly or installation and retain this manual for future reference.
Product Overview
The Kayla bathroom vanity is a wall-mounted unit designed for modern bathrooms. It features a natural light finish, two soft-close drawers for convenient storage, and a durable ceramic basin. Its compact design is ideal for optimizing space while providing essential functionality.
Package Contents
Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact Vente-unique customer support.
- 1 x Kayla Vanity Cabinet (Natural Light Finish)
- 1 x Ceramic Single Basin
- 2 x Soft-Close Drawers (pre-assembled or requiring minor assembly)
- Assembly Hardware Kit (screws, dowels, brackets, etc.)
- Installation Hardware Kit (wall mounting brackets, screws)
Note: Faucet and drain assembly are not included and must be purchased separately.
2. Safety Instructions
- Always follow local building and plumbing codes during installation.
- Ensure the wall structure is capable of supporting the weight of the vanity and basin, especially when filled.
- Use appropriate safety gear, such as gloves and eye protection, during assembly and installation.
- Keep small parts and packaging materials away from children to prevent choking hazards.
- Do not overtighten screws, as this may damage the material.
- If you are unsure about any part of the assembly or installation, consult a qualified professional.
3. Assembly Instructions
This section details the assembly of the vanity cabinet and drawers. It is recommended to assemble the unit in the room where it will be installed.
Step 3.1: Prepare the Cabinet
Unpack all components and lay them out on a clean, soft surface to prevent scratches. Identify the side panels, bottom panel, and back panel of the cabinet.
Step 3.2: Assemble the Cabinet Frame
Attach the side panels to the bottom panel using the provided hardware (dowels and cam locks/screws). Ensure all connections are secure. Then, attach the back panel to complete the cabinet frame.
Image: The assembled vanity cabinet frame, showing the structure before the basin and drawers are added.
Step 3.3: Install Drawer Slides
Mount the drawer slides to the interior sides of the cabinet using the designated screws. Ensure they are level and aligned correctly for smooth drawer operation.
Step 3.4: Assemble and Install Drawers
If drawers are not pre-assembled, follow the separate instructions for drawer assembly. Once assembled, carefully insert the drawers onto the installed slides. The Kayla vanity features soft-close drawers for quiet and gentle closing.
Image: The vanity cabinet with both drawers fully extended, showcasing the storage space and soft-close mechanism.
4. Installation Instructions
This section covers mounting the vanity to the wall and installing the basin.
Step 4.1: Mark Wall Mounting Points
Determine the desired height for your vanity. Using a level, mark the positions for the wall mounting brackets on the wall. Ensure these marks are accurate and correspond to the pre-drilled holes on the back of the vanity cabinet.
Step 4.2: Install Wall Brackets
Drill pilot holes at the marked locations. Insert appropriate wall anchors (not always included, depending on wall type) and securely fasten the wall mounting brackets to the wall using screws. Verify that the brackets are firmly attached and level.
Step 4.3: Mount the Vanity Cabinet
With assistance, carefully lift the vanity cabinet and align its mounting points with the wall brackets. Secure the cabinet to the brackets according to the hardware instructions. Double-check that the vanity is level and stable.
Step 4.4: Install the Ceramic Basin
Place the ceramic basin onto the top of the vanity cabinet. Ensure the drain hole aligns with the cabinet's plumbing access. Apply a bead of silicone sealant around the edges where the basin meets the cabinet and the wall to create a watertight seal. Allow the sealant to cure as per manufacturer's instructions.
Image: The ceramic single basin, ready for installation onto the vanity cabinet.
Image: The fully assembled and installed vanity with the basin and a faucet in place.
Step 4.5: Connect Plumbing
Connect the faucet and drain assembly to the water supply lines and the main drainpipe. Ensure all connections are tight and leak-free. Test for leaks by running water through the faucet.
5. Operating Instructions
Drawer Usage
The Kayla vanity is equipped with two soft-close drawers. To open, gently pull the drawer handle. To close, push the drawer until the soft-close mechanism engages, allowing it to close smoothly and quietly. Avoid forcing the drawers shut.
Basin Use
The ceramic basin is designed for daily washing and hygiene. Ensure the drain is properly installed and sealed to prevent water leakage. Avoid placing excessively heavy objects on the basin or vanity top.
6. Maintenance and Care
Cleaning the Cabinet
Wipe the cabinet surfaces with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner. Avoid harsh chemicals, abrasive pads, or solvents, as these can damage the natural light laminate finish. Dry immediately with a clean cloth.
Cleaning the Ceramic Basin
Clean the ceramic basin regularly with a non-abrasive bathroom cleaner and a soft sponge or cloth. Rinse thoroughly with water after cleaning. Avoid using abrasive cleaners or steel wool, which can scratch the ceramic surface.
General Care
- Immediately wipe up any spills to prevent water damage to the cabinet.
- Periodically check all screws and connections for tightness and re-tighten if necessary.
- Do not expose the vanity to excessive moisture or direct sunlight for prolonged periods.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drawers do not close smoothly or are misaligned. | Drawer slides are not properly aligned or secured. Obstruction in the drawer path. | Check the alignment and tightness of the drawer slides. Remove any obstructions. Adjust drawer front if necessary (refer to hinge adjustment instructions if applicable). |
| Water leaks from the basin or plumbing connections. | Loose plumbing connections. Insufficient sealant around the basin. | Tighten all plumbing connections. Reapply silicone sealant around the basin if the existing seal is compromised. Consult a plumber if leaks persist. |
| Vanity feels unstable or wobbly. | Wall mounting brackets are not securely fastened or the cabinet is not properly attached. | Ensure wall brackets are firmly anchored to a suitable wall structure. Verify the cabinet is securely attached to the brackets. Re-tighten all cabinet assembly screws. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Vente-unique |
| Model | Kayla |
| Color | Natural Light |
| Material | MDF (Medium-Density Fiberboard), Wood-derived panels, Ceramic |
| Finish | Laminated |
| Dimensions (L x D x H) | 60 cm x 45 cm x 47 cm |
| Weight | Approximately 33.5 kg |
| Storage Type | 2 Soft-Close Drawers |
| Mounting Type | Wall-mounted |
| Recommended Use | Bathroom |
| Special Feature | Soft-close sliding drawers |
Basin Dimensions

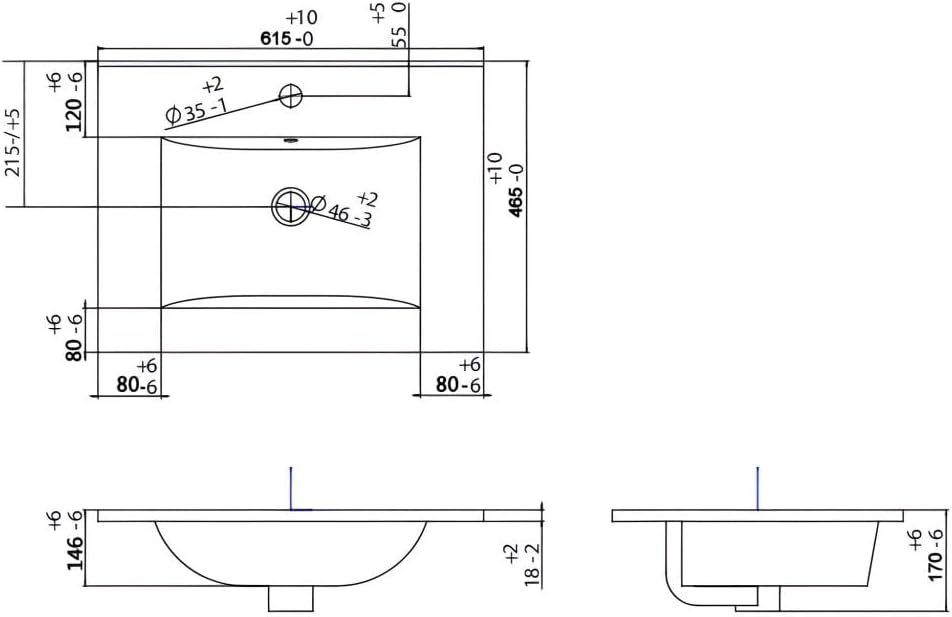

Image: Detailed technical drawing of the basin, including measurements for length, width, depth, and faucet hole diameter.
9. Warranty and Support
Warranty Information
This product is sold by VENTE-UNIQUE and is subject to their return policy, which typically includes 30-day returns and legal guarantees. For specific warranty details and terms, please refer to the purchase documentation or contact Vente-unique directly.
Customer Support
For any questions, assistance with assembly, or to report missing/damaged parts, please contact Vente-unique customer support. Their specialized support team is available to help you.
Contact information can typically be found on your purchase invoice or on the Vente-unique website.
