Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your RealTruck Extang Endure ALX Hard Folding Truck Bed Tonneau Cover. Designed for durability and ease of use, this tonneau cover offers robust protection for your truck bed and its contents.

Please read all instructions carefully before beginning installation or operation to ensure proper function and safety.

Safety Information

Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

• Always ensure the tonneau cover is properly secured before driving.
• Do not drive with the tonneau cover in a partially open or unsecured position.
• Do not exceed the weight limit of 500 pounds evenly distributed on the cover.
• Exercise caution when opening and closing the cover to avoid pinching or injury.

What's in the Box

• Tonneau Cover Assembly
• Applicable Hardware
• Installation Guide

Setup and Installation

The RealTruck Extang Endure ALX Tonneau Cover is designed for straightforward installation. Ensure your truck bed rails are clean and free of debris before starting.

Tools Required

• T27 Torx Wrench (included)
• T20 Torx Wrench (included)
• 2.5mm Allen Wrench (included)
• Utility Knife (if trimming bed rail caps is necessary)
• Tape Measure
• Pliers

1. Unpacking and Initial Placement

Carefully remove the fully assembled tonneau cover from its packaging. Place the folded cover assembly onto the truck bed rails near the cab, ensuring the buckles are facing towards the cab.

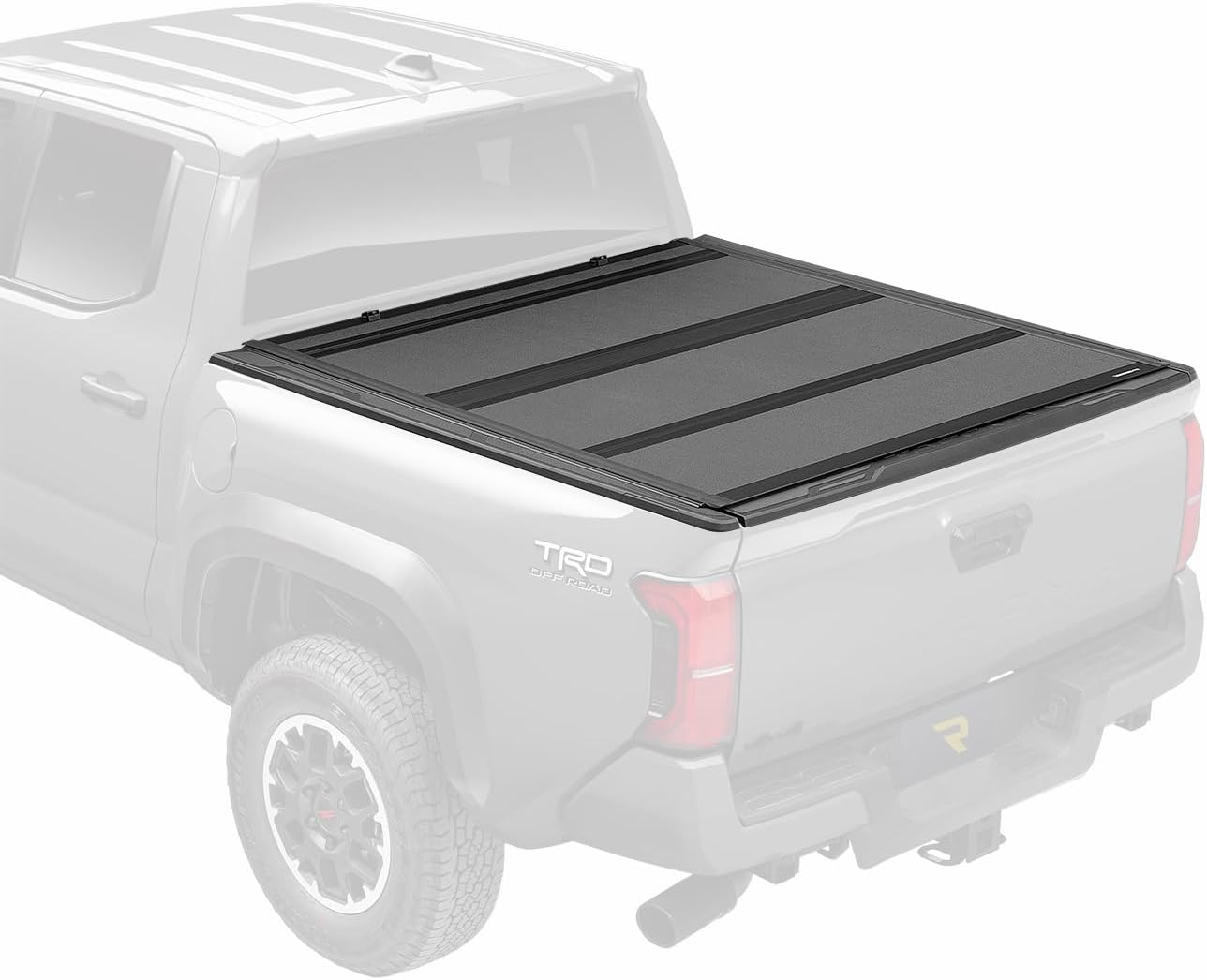

Figure 1: Extang Endure ALX Tonneau Cover positioned on a truck bed.

Unbuckle the retaining straps and carefully unfold the cover towards the tailgate. Remove any foam blocks or packing materials.

2. Positioning and Alignment

Adjust the cover's position so it is evenly spaced from side to side between the bed rails. Verify the front and rear positioning.

• At the tailgate, lift the cover slightly to confirm that the two rearmost fin seals make contact across the top of the tailgate. Adjust the cover's fore/aft position as needed.
• At the front of the cover, lift the corner to ensure the rubber seal is compressed against the top of the bulkhead. Adjust as needed.

Figure 2: Tonneau cover fully extended and aligned on the truck bed.

3. Installing Front Clamps

Carefully fold the bed cover panels forward until they are stacked behind the cab, ensuring not to shift the cover's alignment.

Locate the front clamp mechanism underneath the cover. Rotate the clamp down and slide it out towards the bed rail. Ensure the hook of the clamp is positioned under the metal bed rail flange. Hand-tighten the clamp until the hook makes direct contact with the metal flange, then tighten an additional two turns. Do not overtighten or use power tools.

If your truck has plastic caps over the bed rails, ensure the plastic does not extend past the sheet metal. If it does, carefully trim the plastic with a utility knife to expose the lower edge of the sheet metal for proper clamp contact.

4. Installing Rear Striker Brackets

Close the bed cover and open the tailgate. Secure the striker bracket to the bottom of the metal bed rail so that the bracket's hoop is aligned with and engages the latch assembly on the underside of the cover. Use the provided T27 Torx wrench to tighten the attaching screws while maintaining alignment. Do not overtighten.

The latch assembly comes partially tightened from the factory. Use the provided T20 Torx wrench to loosen the latch mechanism, allowing it to slide side-to-side for proper alignment with the striker bracket. Once aligned, hand-tighten the front screw on both the driver and passenger side latches. Do not use power tools.

5. Final Adjustments and Tether Straps

With the tailgate open, loosen the two striker bracket screws slightly using the T27 Torx wrench. Move the striker bracket downward to pull the cover down, firmly meeting the bed cap and tailgate cap. Ensure both sides are level and uniform. Re-tighten the screws using the T27 Torx wrench.

The cover features two tether straps pre-installed over the bow at the front of the cover assembly. Each has a clamp fitted to the end. Install the tether clamp to the bed side rail as far forward as possible. Hand-tighten the knob on the clamp.

Figure 3: Tonneau cover secured in the open position with tether straps.

Important: Do not drive with the cover unsecured or in a partially open position without properly securing the tether straps.

Operating Instructions

Opening the Tonneau Cover

1. Lower the tailgate.
2. Reach inside and twist the actuator knob to release the latch.
3. Lift the rear of the cover and fold it forward towards the cab.
4. To drive with the cover in the open position, secure the built-in retaining straps to the bulkhead buckle on both sides and pull the straps tight.

Figure 4: Tonneau cover demonstrating open and closed positions.

Closing the Tonneau Cover

1. If secured, unbuckle the retaining straps.
2. Fold the cover rearward towards the tailgate. The cover will automatically latch closed regardless of whether the tailgate is open or closed.
3. Raise the tailgate to fully secure the truck bed.

Maintenance

• Regularly inspect all clamps, latches, and hardware for tightness. Re-tighten as necessary, especially after the first week of driving and periodically thereafter.
• Keep the cover's surface clean using mild soap and water. Avoid abrasive cleaners or solvents.
• Inspect weather seals for wear and tear. Replace if damaged to maintain water resistance.

Troubleshooting

• Cover difficult to close/latch: Adjust the striker bracket slightly upward.
• Gap between seal and bed cap: Adjust the striker bracket slightly downward.
• Water leakage: Check all weather seals for proper seating and damage. Ensure drain hoses are clear and properly routed. Verify all clamps are securely tightened.

Specifications

• Brand: RealTruck
• Model: Endure ALX (80702)
• Style: Folding
• Exterior Finish: Aluminum
• Material: Aluminum, Hard Polymer Corners, Powder Coat Finish
• Lock Type: Tailgate
• Weight Limit: 500 Pounds (evenly distributed)
• Item Weight: 68 pounds
• Product Dimensions: 76 x 24 x 10 inches
• Automotive Fit Type: Vehicle Specific Fit (Fits 2021-2026 Ford F-150 incl. Raptor and Lightning 5' 7" Bed (67.1"))

Warranty and Support

RealTruck backs the Endure ALX with a limited 5-year warranty. For warranty claims or customer support, please refer to the contact information provided with your purchase or visit the official RealTruck website.
