1. Introduction
This manual provides detailed instructions for the safe and efficient operation of your DATOUBOSS 2000W 24V Pure Sine Wave Power Inverter. This device is designed to convert 24V DC battery power into 230V AC household power, suitable for a wide range of electronic devices and appliances. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.
Figure 1: DATOUBOSS 2000W 24V Pure Sine Wave Power Inverter with accessories.
2. Key Features
- Pure Sine Wave Output: Provides clean power, ideal for sensitive electronics, with higher motor capacity and conversion efficiency (>90%) compared to modified sine wave inverters.
- Robust Construction: The inverter casing is made from aluminum alloy, offering excellent resistance to external impacts and pressure, ensuring enhanced durability.
- Intelligent Cooling: Features a smart fan control system that activates when the load exceeds 40% of the rated capacity, or based on internal temperature, minimizing noise during light loads.
- LCD Display & Remote Control: An external remote control simplifies operation, while the integrated LED display provides real-time information on inverter status, ensuring easy monitoring.
- Comprehensive Protection: Built-in safety mechanisms protect against low voltage, overload, short circuit, over-temperature, and reverse polarity.
- Versatile Applications: Suitable for a wide range of devices including household appliances, laptops, TVs, and ideal for use in RVs, trucks, camping, and off-grid solar power systems.

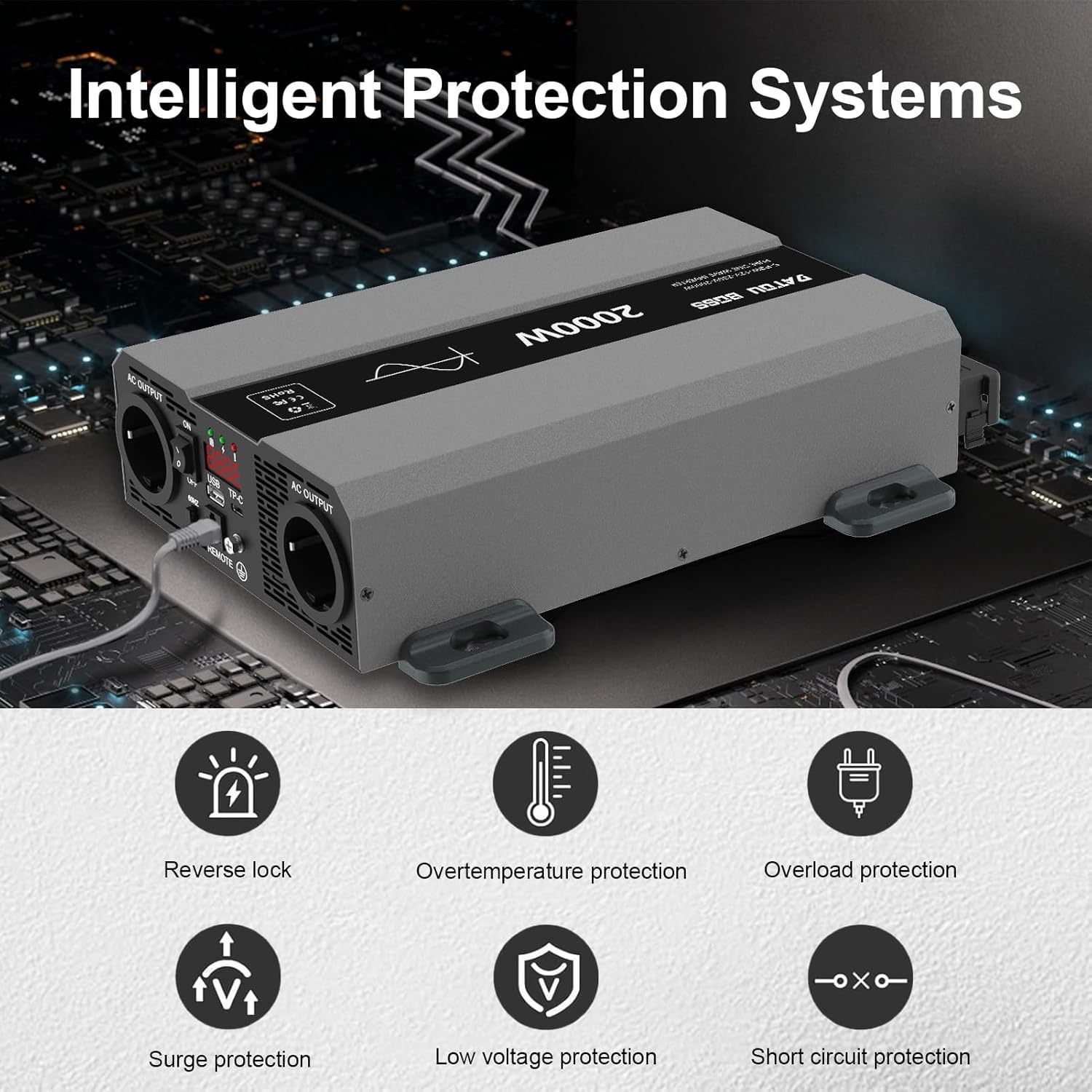

Figure 2: Intelligent Protection Systems for the inverter.
3. Package Contents
Please verify that all items are present and undamaged upon opening the package:
- DATOUBOSS 2000W 24V Pure Sine Wave Power Inverter
- DC Input Cables (Red for Positive, Black for Negative)
- Remote Control Unit with Cable
- User Manual (This document)
4. Port Introduction
Familiarize yourself with the various ports and indicators on your inverter:
Figure 3: Inverter Port Layout and Functions.
- Negative Terminal: Connects to the negative (-) terminal of your 24V battery.
- Positive Terminal: Connects to the positive (+) terminal of your 24V battery.
- Intelligent Cooling Fan: Automatically activates to dissipate heat.
- AC Output (x2): Standard 230V AC outlets for connecting appliances.
- Type-C Port: For charging compatible USB-C devices.
- Ground Terminal: For proper grounding to ensure safety.
- Remote Switch Connection: Port for connecting the external remote control unit.
- USB Interface: Standard USB-A port for charging USB devices.
- Frequency Adjustment: Allows selection of output frequency (e.g., 50Hz/60Hz).
- NO/OFF Switch: Main power switch for the inverter.
- LED Display: Shows real-time operational data.
- LED Light: Indicates power status or fault conditions.
5. Setup and Installation
Follow these steps for safe and correct installation:
- Choose a Location: Select a cool, dry, and well-ventilated area for the inverter. Avoid direct sunlight, heat sources, and moisture. Ensure sufficient space around the inverter for airflow.
- Mounting: Securely mount the inverter using appropriate hardware. The inverter can be mounted horizontally or vertically.
- Grounding: Connect the inverter's ground terminal to a reliable earth ground point using a suitable gauge wire. This is crucial for safety.
- Battery Connection:
- Ensure the inverter's power switch is in the "OFF" position.
- Connect the RED cable to the inverter's Positive (+) terminal and then to the battery's Positive (+) terminal.
- Connect the BLACK cable to the inverter's Negative (-) terminal and then to the battery's Negative (-) terminal.
- Ensure all connections are tight and secure to prevent loose connections and sparking.
- Remote Control Connection: Plug the remote control cable into the designated remote switch connection port on the inverter.
- Initial Power-Up: After all connections are secure, switch the inverter's power switch to "ON". The LED display should illuminate, indicating the inverter is ready.
Figure 4: Example of connecting the inverter for solar power applications.
6. Operating Instructions
Operating your DATOUBOSS inverter is straightforward:
- Power On: Ensure the inverter is properly connected to a 24V DC power source. Press the ON/OFF switch on the inverter or the remote control to turn it on. The LED display will show the output voltage and other relevant information.
- Connect Appliances: Plug your AC appliances into the 230V AC output sockets on the inverter. Ensure the total power consumption of your appliances does not exceed the inverter's rated continuous power (2000W).
- USB/Type-C Charging: Connect your USB or Type-C compatible devices to the respective ports for charging.
- Monitoring: Regularly check the LED display for input voltage, output voltage, and any error codes. The intelligent cooling fan will activate automatically when needed.
- Power Off: Before disconnecting any appliances or the inverter from the battery, switch the inverter OFF using the ON/OFF switch.
Figure 5: The inverter is widely compatible with various electronic devices.
Figure 6: Pure Sine Wave output and diverse applications of the inverter.
7. Maintenance
Regular maintenance ensures the longevity and reliable operation of your inverter:
- Cleanliness: Keep the inverter clean and free from dust and debris. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
- Ventilation: Ensure the cooling vents are not obstructed. Periodically check for any blockages.
- Connections: Periodically inspect all cable connections (battery and AC output) to ensure they are tight and free from corrosion.
- Storage: If storing the inverter for an extended period, disconnect it from the battery and store it in a cool, dry place.
8. Troubleshooting
Refer to the table below for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Inverter not turning on. | Low battery voltage, loose connections, faulty fuse. | Check battery voltage (must be >21V for 24V system). Ensure all cables are securely connected. Check and replace fuses if necessary. |
| No AC output. | Overload, short circuit, over-temperature, low battery. | Reduce connected load. Check for short circuits in appliances/cables. Allow inverter to cool down. Recharge battery. |
| Audible alarm/fault indicator. | Overload, over-temperature, low/high input voltage. | Refer to the LED display for specific error codes. Address the underlying issue (e.g., reduce load, improve ventilation, check battery). |
| Fans running constantly/loudly. | High internal temperature, heavy load. | Ensure adequate ventilation. Reduce load if possible. This is normal behavior under heavy load or high ambient temperatures. |
If the problem persists after attempting these solutions, please contact customer support.
9. Specifications
| Feature | Specification |
|---|---|
| Brand | DATOUBOSS |
| Model Number | 24V 2000W |
| Electrical Power | 2000 Watts |
| Input Voltage | 24V DC |
| Output Voltage | 230V AC |
| Output Waveform | Pure Sine Wave |
| Conversion Efficiency | > 90% |
| Product Dimensions | 42.5 x 28 x 17 cm |
| Item Weight | 4.3 Kilograms |
| ASIN | B0CG9KCTP9 |
10. Warranty and Support
DATOUBOSS products are manufactured to high quality standards. For warranty information and technical support, please refer to the documentation included with your purchase or contact your retailer. Keep your purchase receipt as proof of purchase for warranty claims.
For further assistance, you may visit the official DATOUBOSS website or contact their customer service directly. Details are typically provided on the product packaging or a separate warranty card.
