Afterglow PD-F180072 Rectangular TerraFab Propane Fire Pit Table User Manual

1. Important Safety Information

Read and understand all instructions and warnings before assembling, operating, or servicing this fire pit. Failure to follow these instructions may result in property damage, bodily injury, or death.

• Outdoor Use Only: This fire pit is designed for outdoor use only. Do not use indoors or in any enclosed area.
• Clearance: Maintain proper clearance from combustible materials. Ensure at least 3 feet (0.9 meters) from the top and sides to any combustible surfaces.
• Fuel Type: Use only Liquefied Petroleum Gas (LP Gas) as fuel. Do not use natural gas or any other fuel.
• Ventilation: Ensure adequate ventilation around the fire pit. Do not obstruct ventilation openings.
• Gas Cylinder: Always place the gas cylinder into the designated cylinder holder. Ensure the regulator is properly connected.
• Children and Pets: Keep children and pets away from the fire pit, especially during operation.
• Hot Surfaces: The fire pit surfaces become hot during use. Avoid direct contact.
• Relocation and Storage: Take necessary precautions when relocating or storing the fire pit when not in use. Allow the unit to cool completely before moving or covering.
• Lava Rocks: Ensure lava rocks are dry before first use to prevent cracking or popping.
• Leak Test: Perform a leak test on all gas connections before initial use and after any gas cylinder change.

2. Product Overview

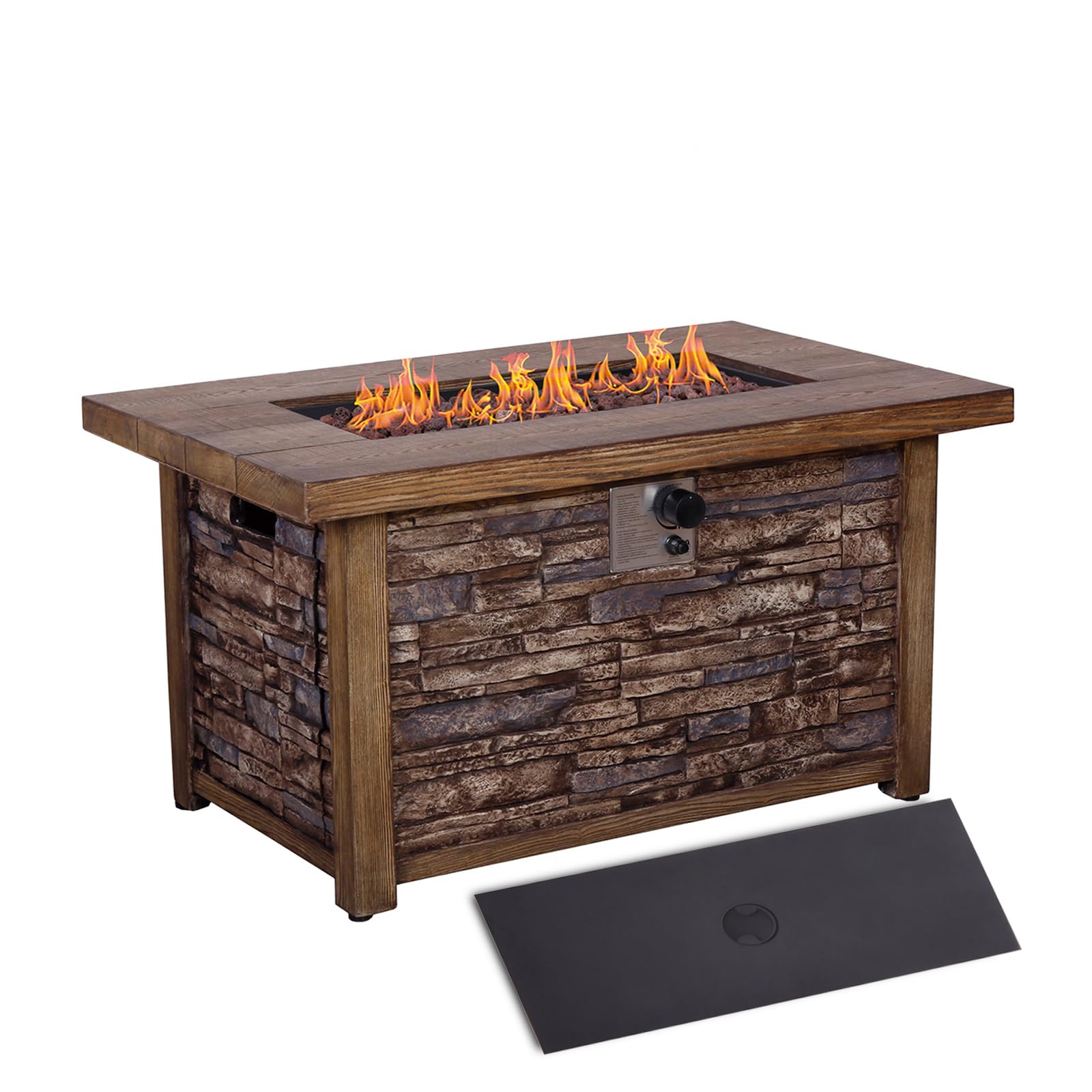

The Afterglow PD-F180072 is a rectangular TerraFab propane fire pit table designed for outdoor use, providing both warmth and a functional surface.

Key Features:

• Heat Output: 50,000 BTU for ample warmth.
• Material: Durable TerraFab construction designed to withstand outdoor elements.
• Design: Rectangular shape with a woodgrain tabletop and stacked travertine stripe effect on the base.
• Multi-functional: Can be used as a fire pit or a coffee table when the lid is in place.
• Ignition: Features a pulse ignition system for easy starting.
• Weather Protection: Includes a weather-resistant cover.

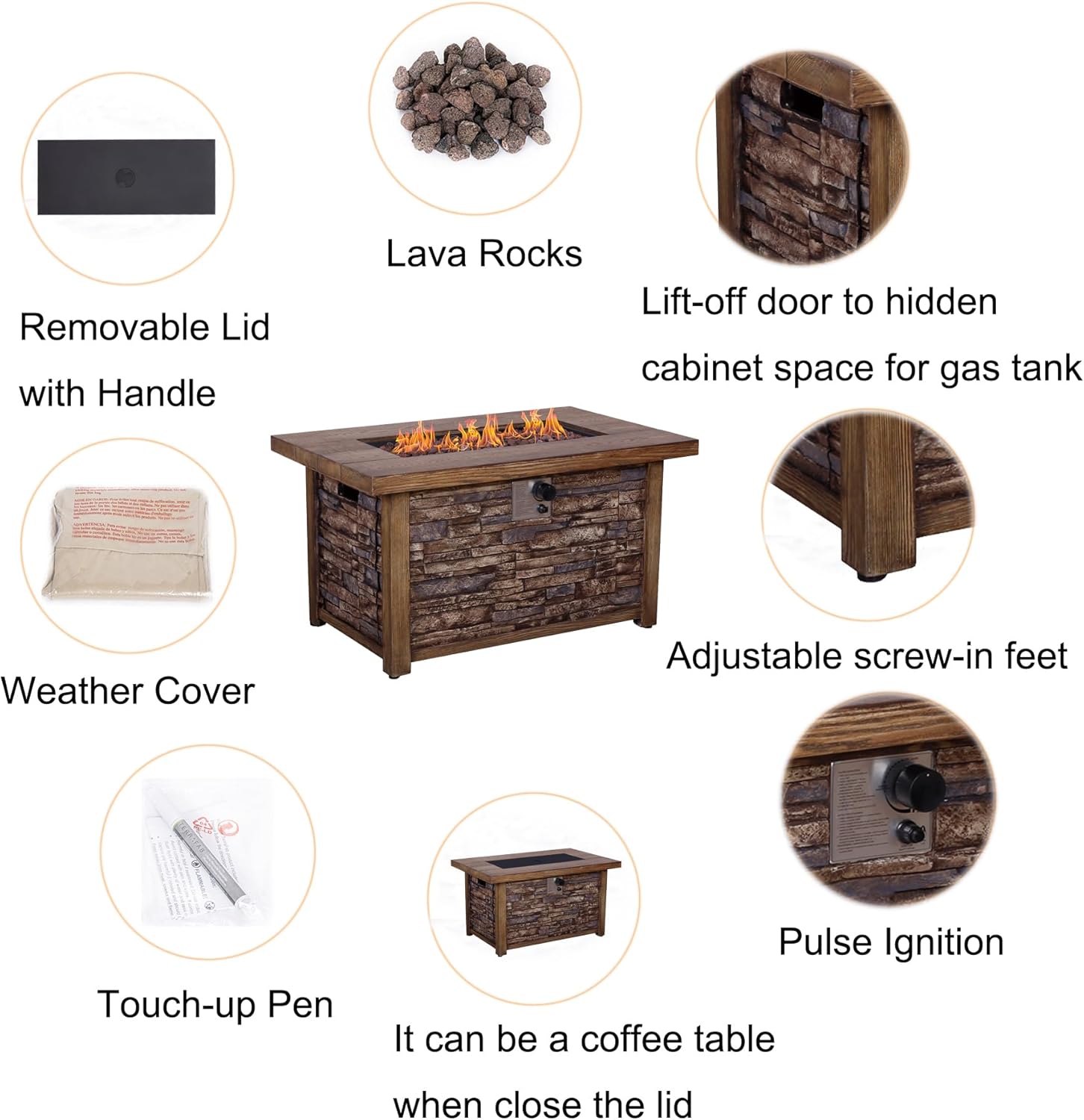

Components:

• • Removable Lid with Handle
• • Lava Rocks
• • Lift-off door to hidden cabinet space for gas tank
• • Adjustable screw-in feet
• • Pulse Ignition System
• • Weather Cover
• • Touch-up Pen

3. Setup and Assembly

Follow these steps to set up your Afterglow fire pit table. Ensure all components are present and undamaged before beginning.

1. Unpacking: Carefully remove all contents from the packaging.
2. Placement: Position the fire pit table on a flat, stable, non-combustible surface outdoors, ensuring adequate clearance from all combustible materials.
3. Gas Cylinder Installation:
   • Open the lift-off door to access the hidden cabinet space.
   • Place the LP gas cylinder (not included) into the cylinder holder.
   • Connect the regulator hose to the gas cylinder valve. Ensure a tight and secure connection.
   • Perform a leak test on all gas connections using a soapy water solution. Bubbles indicate a leak. Do not proceed if a leak is detected.
4. Lava Rock Placement: Carefully place the provided lava rocks into the burner pan. Do not cover the igniter or burner holes.
5. Adjustable Feet: Adjust the screw-in feet to level the fire pit table on uneven surfaces.

For a visual guide on gas cylinder installation and regulator connection, please refer to the video below:

4. Operating Instructions

Follow these steps to safely ignite and operate your fire pit table.

1. Before Ignition:
   • Ensure the gas cylinder valve is fully open.
   • Confirm the control knob on the fire pit is in the "OFF" position.

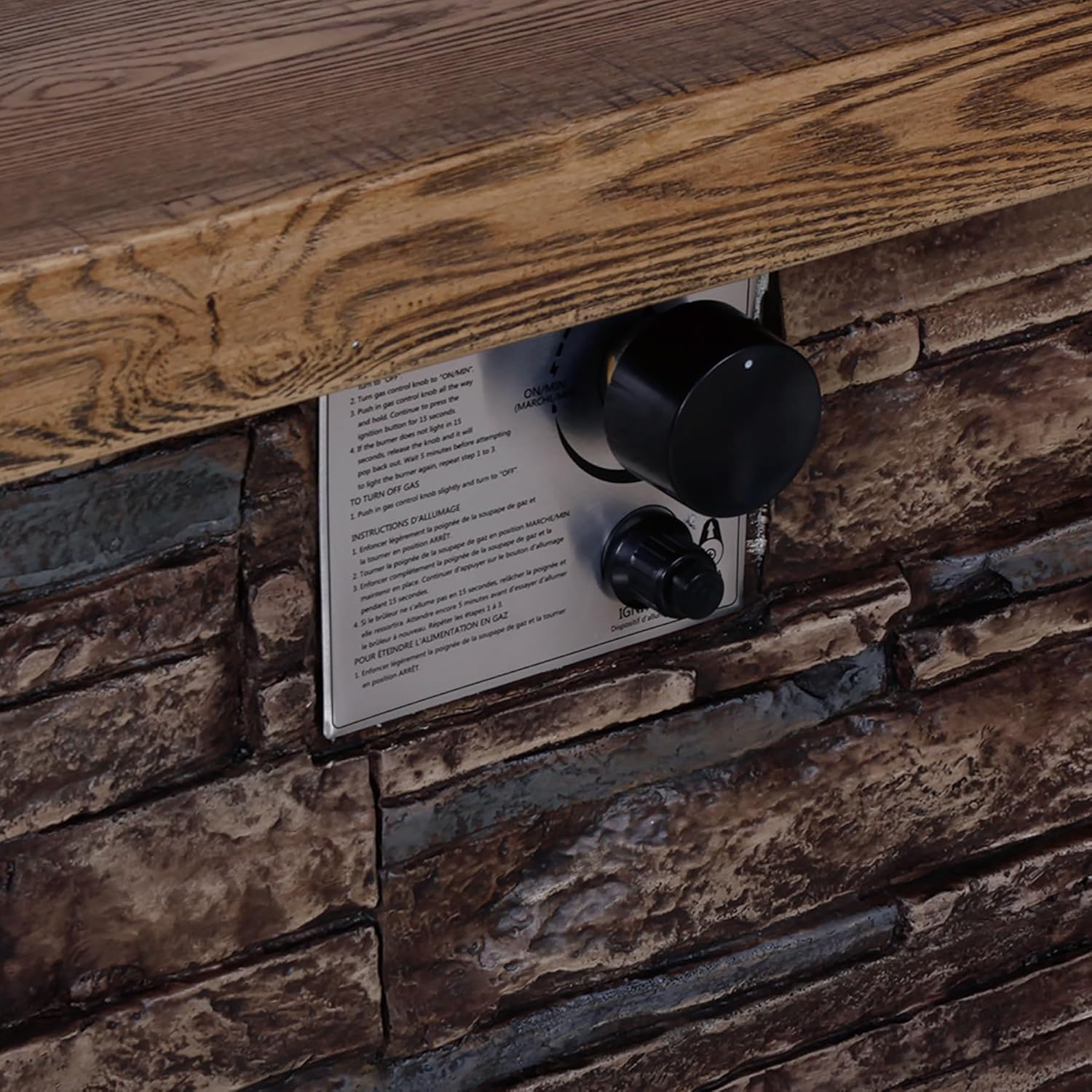

2. Ignition:
   • Push and hold the ignition button.
   • While holding the ignition button, slowly turn the control knob counter-clockwise to the "LOW" position.
   • Continue to hold the ignition button for 15-20 seconds until the flame ignites.
   • If the burner does not ignite, turn the control knob to "OFF", wait 5 minutes, and repeat the ignition process.
3. Adjusting Flame: Once ignited, release the ignition button. You can adjust the flame height by turning the control knob between "LOW" and "HIGH".
4. Shutting Down: To turn off the fire pit, turn the control knob clockwise to the "OFF" position. Close the valve on the LP gas cylinder when not in use.

The fire pit provides up to 50,000 BTU of heat per hour.

5. Maintenance and Care

Regular maintenance ensures the longevity and safe operation of your fire pit table.

• Cleaning:
  • Ensure the fire pit is completely cool before cleaning.
  • Wipe exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals.
  • Clean the burner and lava rocks periodically to remove debris.
• Weather Cover: Use the provided weather-resistant cover when the fire pit is not in use to protect it from the elements and extend its lifespan.
• Touch-up Pen: Use the included touch-up pen for minor scratches or blemishes on the TerraFab surface to maintain its appearance.
• Storage: If storing the fire pit for an extended period, disconnect the gas cylinder and store it in a well-ventilated outdoor area. Cover the fire pit with its weather cover.

6. Troubleshooting

If you encounter issues with your fire pit, refer to the following common troubleshooting steps:

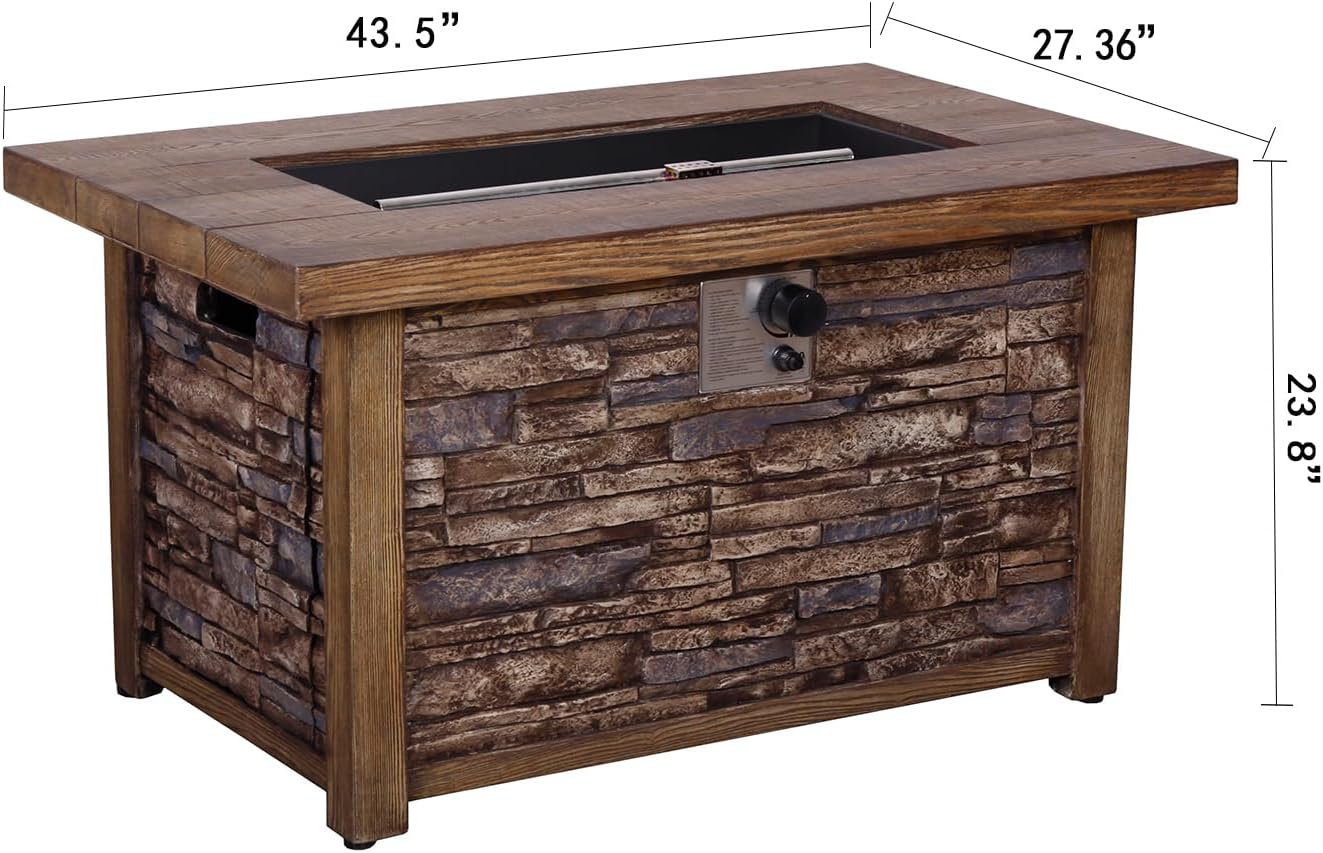

7. Specifications

Detailed specifications for the Afterglow PD-F180072 fire pit table.

8. Warranty and Support

For warranty information, returns, or customer support, please refer to the details below.

• Returns: This product is eligible for 30-day easy returns. Please refer to the retailer's return policy for specific instructions.
• Customer Support: For any questions, technical assistance, or warranty claims, please contact Afterglow Shop customer support.
