Introduction
This manual provides instructions for the ETT Eco Tech Time ELS-11588-22L women's solar radio-controlled watch. This timepiece combines a sporty design with advanced solar and radio-controlled technology, ensuring accurate timekeeping without the need for battery replacement. Please read these instructions carefully to ensure proper use and maintenance of your watch.

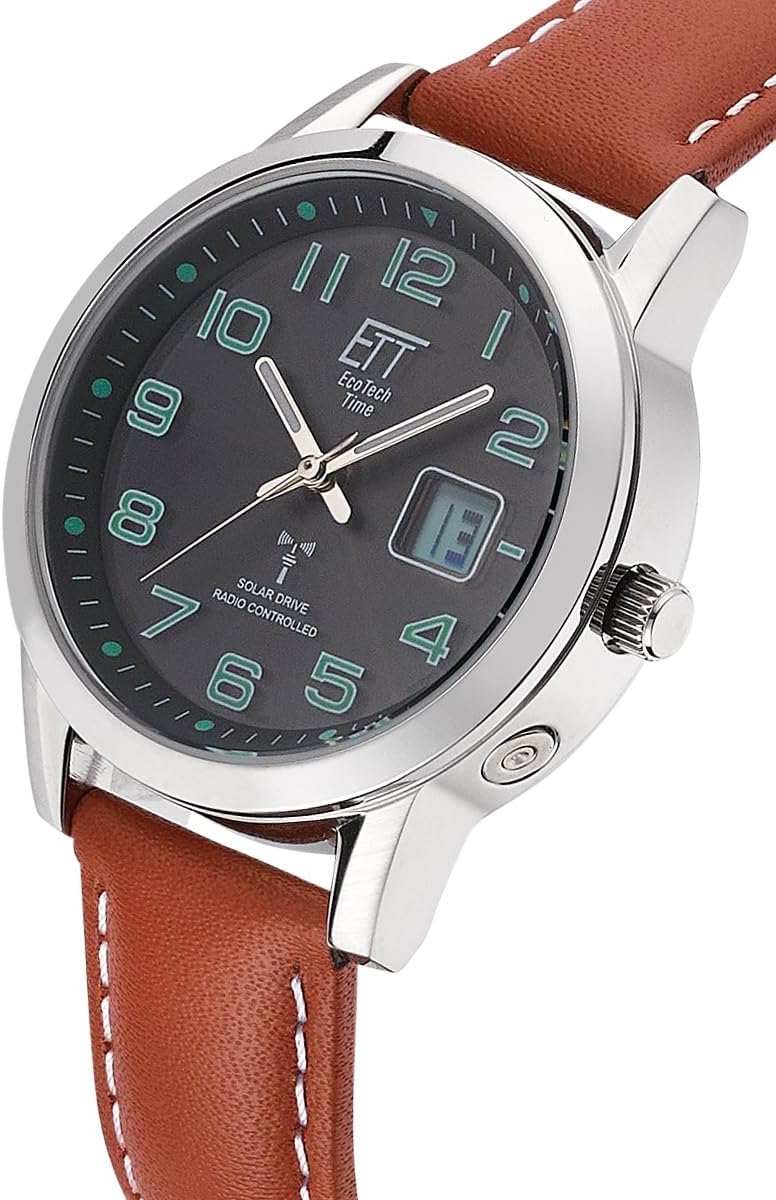

Image: The ETT Eco Tech Time ELS-11588-22L watch, featuring a silver-colored stainless steel case, a dark dial with luminous green numerals, and a brown leather strap. The watch face displays both analog hands and a digital date window.
Setup
Initial Charging
Before initial use, it is recommended to fully charge your rechargeable solar watch. A complete charge of the energy cell/battery can take up to 48 hours in direct sunlight or under direct artificial light.
Image: A diagram illustrating the initial setup process for an ETT solar watch. It shows a watch icon and a battery icon, with text indicating the recommendation to fully charge the watch for up to 48 hours in sunlight or artificial light before proceeding with time setting.
The watch is powered by Solar Drive technology. Sunlight or artificial light penetrates the transparent dial and charges an internal battery, which then powers the watch. This eliminates the need for frequent battery replacements.
Image: A diagram illustrating the "Solar Drive Technologie". It shows light entering the watch dial, a silicon solar cell converting light into energy, and the energy being stored in a small rechargeable battery. Key benefits highlighted are "From Light comes Time", "Power reserve of 90 to 180 days", "No more battery changes thanks to solar energy!", and "Environmentally friendly and powerful technology for people and the environment".
Time Synchronization
After initial charging, you can proceed with setting the time via signal reception or, if necessary, via basic settings according to the operating instructions. The watch features radio-controlled technology, ensuring precise timekeeping by receiving the DCF 77 signal from Mainflingen, Germany.
Image: A map illustrating the "Funk Technologie" (Radio Technology) signal range. It shows a 1,000 km radius from Mainflingen, Germany, covering major European cities like London, Paris, Rome, Berlin, Oslo, and Stockholm. The text indicates "Always the radio-precise time", "Automatic changeover for summer and winter time", "Signal range 1,000 km from Mainflingen (near Frankfurt a. M.)", and "Comfortable additional functions, depending on the movement".
The radio signal ensures automatic time adjustment for daylight saving and standard time changes.
Operating Instructions
Basic Time Display
The watch displays time using analog hands (hours, minutes, seconds). The luminous hands ensure readability in low-light conditions.
Digital Date Display
A digital display window on the dial shows the current date. This feature is part of the perpetual calendar, which automatically adjusts for different month lengths and leap years.
Image: A close-up view of the ETT Eco Tech Time watch dial. It clearly shows the analog hour, minute, and second hands, along with the luminous green numerals. A small digital display window is visible, indicating the date. The brand logo and "SOLAR DRIVE RADIO CONTROLLED" text are also visible on the dial.
Special Functions
- Perpetual Calendar: Automatically adjusts for varying month lengths and leap years, ensuring the correct date is always displayed.
- Radio-Controlled Automatic Time Change: The watch automatically adjusts for daylight saving time (summer and winter time) changes.
- Luminous Hands: Hands are treated with a luminous material for visibility in the dark.
- Low Energy Display: Indicates when the watch's power reserve is low, prompting exposure to light for charging.
- Sleep Function: To conserve energy, the watch may enter a sleep mode when stored in darkness for an extended period. It will reactivate and synchronize when exposed to light.
- Overload Protection: Protects the internal battery from overcharging.
Maintenance
Charging
To maintain optimal performance and ensure a long lifespan for the energy cell, regularly expose your watch to light. Avoid prolonged storage in complete darkness. For best results, store the watch in a location with access to light, such as a windowsill.
Water Resistance
This watch is water-resistant up to 5 bar (50 meters). This means it is suitable for everyday use and can withstand splashes, rain, and brief immersion in water. It is not suitable for swimming, diving, or showering with hot water, as temperature changes and steam can compromise the seals.
Cleaning
Clean the watch case and strap with a soft, damp cloth. For the leather strap, avoid excessive moisture and harsh cleaning agents to prevent damage.
Image: A close-up view of the watch's brown leather strap with white stitching and a silver-colored tang buckle. The buckle features the ETT logo.
Troubleshooting
If your watch is not functioning correctly, consider the following:
- Watch not running or hands not moving: Ensure the watch has been sufficiently charged by exposing it to strong light for several hours. The low energy display might indicate a need for charging.
- Incorrect time display: Place the watch near a window overnight to allow it to receive the radio signal for automatic synchronization. Ensure there are no strong electromagnetic interferences nearby.
- Digital date display issues: If the date is incorrect, ensure the watch has successfully synchronized with the radio signal. The perpetual calendar should correct the date automatically.
If problems persist after following these steps, please contact customer support.
Specifications
| Brand Name | ETT Eco Tech Time |
| Model Number | ELS-11588-22L |
| Display Type | Analog |
| Movement | Solar Drive, TD2134D, DCF 77 radio signal reception |
| Accuracy | +/- 1 second/1 million years (radio-controlled) |
| Case Material | Stainless Steel |
| Case Diameter | 34 Millimeters |
| Case Thickness | 11 Millimeters |
| Band Material Type | Leather |
| Band Width | 16 Millimeters |
| Band Color | Brown |
| Dial Color | Black |
| Dial Window Material Type | Mineral Glass |
| Water Resistance Depth | 50 Meters (5 bar) |
| Special Features | Glow-in-the-dark, Calendar, Solar-powered, Radio-controlled, Low energy display, Sleep function, Overload protection |
| Clasp Type | Tang Buckle |
Warranty and Support
Your ETT Eco Tech Time watch comes with a manufacturer's warranty and dedicated customer support.
Image: A graphic titled "Qualitäts-Garantie" (Quality Guarantee). It lists: "Deutsche Herstellergarantie - 2 Jahre -" (German Manufacturer's Warranty - 2 Years -), "Deutscher Liefer- und Kundenservice" (German Delivery and Customer Service), "Qualitätskontrolle nach deutschen und EU-Standards" (Quality Control according to German and EU Standards), "Zertifizierte Produktionsstätten" (Certified Production Facilities), and "20 Jahre Erfahrung" (20 Years of Experience).
- Manufacturer's Warranty: A 2-year German manufacturer's warranty covers defects in materials and workmanship.
- Customer Service: Access to German delivery and customer service for any inquiries or support needs.
- Quality Standards: Products undergo quality control according to German and EU standards, manufactured in certified production facilities.
For warranty claims or technical assistance, please refer to the contact information provided with your purchase or visit the official ETT Eco Tech Time website.
