Product Overview
The Feit Electric TAPE192/COB/LED Seamless Tape Light is a versatile and energy-efficient lighting solution designed to enhance any space. Measuring 16 feet in length, this flexible strip features embedded COB LEDs that provide a uniform, uninterrupted 3000K Bright White light at 2950 lumens, eliminating dark spots. It can be used for ambient, task, or accent lighting in various indoor and outdoor settings.
Figure 1: Feit Electric 16ft LED Tape Light product packaging.
Key Features:
- Seamless Illumination: COB LEDs provide even, uninterrupted light without dark spots, ideal for visible applications.
- High Brightness: Emits up to 2950 lumens of 3000K Bright White light.
- Dimmable & Remote Controlled: Adjust brightness with the included remote control, offering high, medium, and low presets. Compatible with wall dimmer switches.
- Flexible Installation: Ultra-thin and flexible design allows for easy placement in tight spaces, around corners, and can be cut to size.
- Versatile Power Options: Can be plugged in or hardwired directly into your home electrical system.
- Extendable: Link up to two lights together for greater area coverage (additional light strips sold separately).
- Long Lifespan: Rated for 25,000 hours (approximately 22.8 years of typical use).
- Energy Efficient: Consumes only 36 watts of electricity.
- Timer Function: Set convenient timers for 1 or 6 hours via the remote.
Package Contents
Please verify that all components are present before beginning installation.
- 16ft LED Tape Light (TAPE192/COB/LED)
- Remote Control
- Power Supply
- Mounting Clips
- Corner Adapters
- Screws and Wall Anchors

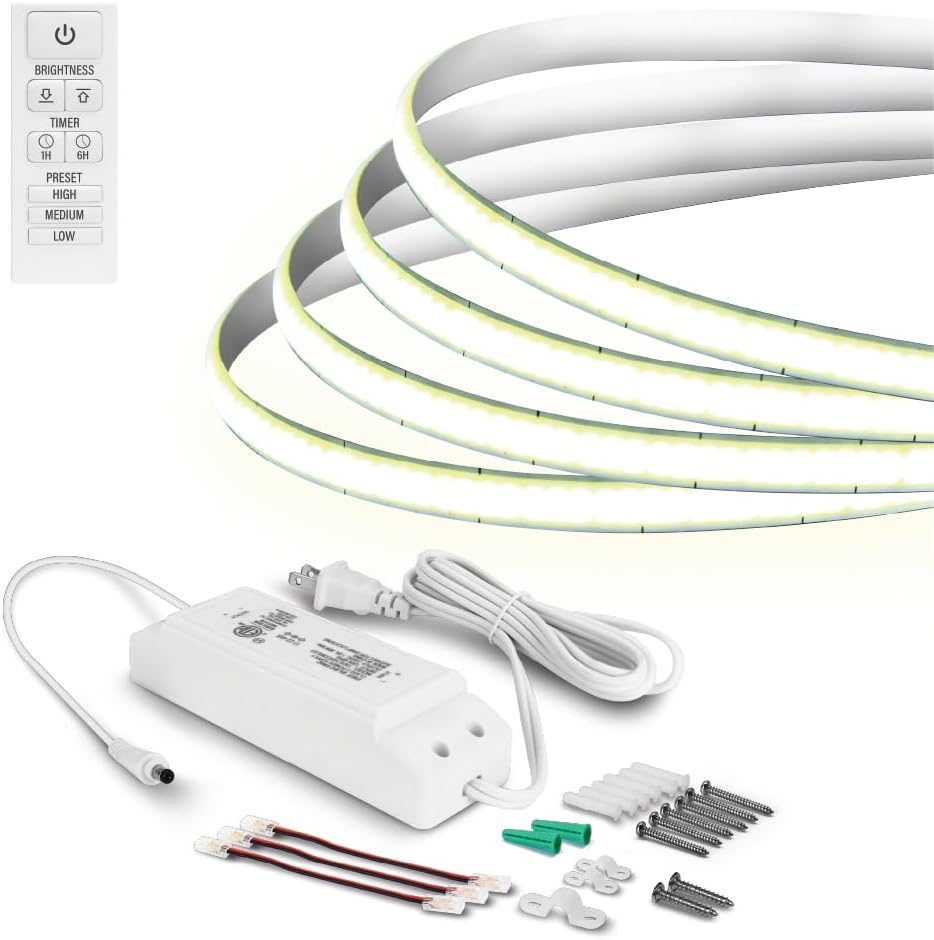

Figure 2: Included components of the Feit Electric LED Tape Light kit.
Setup and Installation
The Feit Electric LED Tape Light offers flexible installation options to suit your needs. Ensure power is off before any hardwiring.
1. Planning Your Installation:
- Determine the desired length and path for your tape light.
- The tape light can be cut at designated marks to fit smaller spaces. Look for the scissor icon on the strip.
- Use corner adapters for clean turns around edges.
- For longer runs, you can link up to two 16ft tape lights together.
Figure 3: Flexible installation options including hardwire, plug-in, cuttable, linkable, and fitting around corners.
2. Mounting the Tape Light:
- Clean the surface where the tape light will be installed to ensure proper adhesion.
- Peel off the adhesive backing from the tape light and firmly press it onto the desired surface.
- For added security, use the provided mounting clips and screws at regular intervals, especially on vertical or uneven surfaces.
3. Power Connection:
Choose between plug-in or direct wire installation:
- Plug-in: Connect the power supply to the tape light and plug the power supply into a standard electrical outlet.
- Direct Wire: For a more permanent installation, the tape light can be hardwired. This should be performed by a qualified electrician to ensure safety and compliance with local electrical codes. Refer to the power supply unit for wiring diagrams and specifications.
Figure 4: Dimensions of the power supply and tape light for planning installation.
Operating Instructions
The Feit Electric LED Tape Light can be controlled using the included remote or integrated into a smart home system for advanced features.
Using the Remote Control:
- Power On/Off: Press the ON or OFF button.
- Brightness Adjustment: Use the Brightness Up or Brightness Down buttons to adjust light intensity.
- Presets: Select HIGH, MEDIUM, or LOW for quick brightness settings.
- Timer: Set the light to turn off automatically after 1 hour (1H) or 6 hours (6H).
Smart Features (if connected to Wi-Fi):
For enhanced control, including color changing (if applicable to your model), scheduling, and voice control, connect your Feit Electric Smart LED Strip Light to your home Wi-Fi network via the Feit Electric app. This allows for:
- Remote Access: Control your lights from anywhere using your smartphone.
- Scheduling: Set custom schedules for lights to turn on/off automatically.
- Voice Control: Integrate with voice assistants (e.g., Amazon Alexa, Google Assistant) for hands-free operation.
Video 1: This video demonstrates the key features of the Feit Electric Smart LED Strip Light, including color changing capabilities, dimming, scheduling, voice control, flexibility for bending and trimming, extendability, and various application examples in kitchens, bedrooms, and outdoor spaces. It also highlights its weather resistance, long lifespan, and energy efficiency.
Figure 5: Example of LED Tape Light used as TV backlight and under furniture.
Figure 6: Example of LED Tape Light providing ambient lighting in a kitchen and living room.
Figure 7: Example of LED Tape Light installed under kitchen cabinets.
Figure 8: Example of LED Tape Light installed vertically along a wall.
Figure 9: Example of LED Tape Light used for outdoor patio lighting.
Maintenance
The Feit Electric LED Tape Light requires minimal maintenance. Follow these guidelines to ensure optimal performance and longevity:
- Cleaning: Ensure the light is unplugged or power is off before cleaning. Gently wipe the tape light with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners or solvents.
- Inspection: Periodically check the tape light and connections for any signs of damage, wear, or loose connections.
- Storage: If storing the tape light for an extended period, ensure it is clean, dry, and stored in a cool, dry place away from direct sunlight.
Troubleshooting
If you experience issues with your Feit Electric LED Tape Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power, loose connection, remote battery dead. | Check power outlet, ensure all connections are secure. Replace remote battery. |
| Light flickers or is dim. | Insufficient power, faulty connection, incompatible dimmer. | Ensure power supply is adequate. Check connections. If using a wall dimmer, ensure it is LED compatible. |
| Remote control not working. | Battery dead, remote out of range, obstruction. | Replace remote battery. Ensure remote is within range and pointed at the receiver. Remove any obstructions. |
| Power supply buzzing. | Electrical interference, power supply issue. | Ensure proper ventilation around the power supply. If buzzing persists, contact customer support. |
If the problem persists after trying these solutions, please contact Feit Electric Customer Support.
Product Specifications
| Attribute | Detail |
|---|---|
| Model Number | TAPE192/COB/LED |
| Length | 16 feet (4.88 meters) |
| Light Color | 3000K Bright White |
| Luminous Flux | 2950 Lumens |
| Wattage | 36 watts |
| Voltage | 24V DC (via included power supply) |
| Power Source | Corded Electric (Plug-in or Direct Wire) |
| Dimmable | Yes, with included remote or compatible wall dimmer |
| Lifespan | 25,000 hours |
| Indoor/Outdoor Usage | Indoor (Water Resistant) |
| Material | Plastic |
| Item Weight | 0.9 Pounds (approx. 14.4 ounces) |
Warranty and Support
Manufacturer's Warranty:
This Feit Electric LED Tape Light is covered by a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
The warranty does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modification.
Customer Support:
For technical assistance, troubleshooting, or warranty claims, please contact Feit Electric Customer Support. Have your model number (TAPE192/COB/LED) and proof of purchase ready when contacting support.
Visit the official Feit Electric website for the most up-to-date contact information and additional resources: www.feit.com
