Micro Traders 12 Pin ISO Radio Connector Wiring Harness User Manual

Introduction

This manual provides instructions for the Micro Traders 12 Pin ISO Radio Connector Wiring Harness. This product is designed to facilitate the connection of an audio main unit to an original car line plug, enabling a non-destructive installation process for compatible car radio systems.

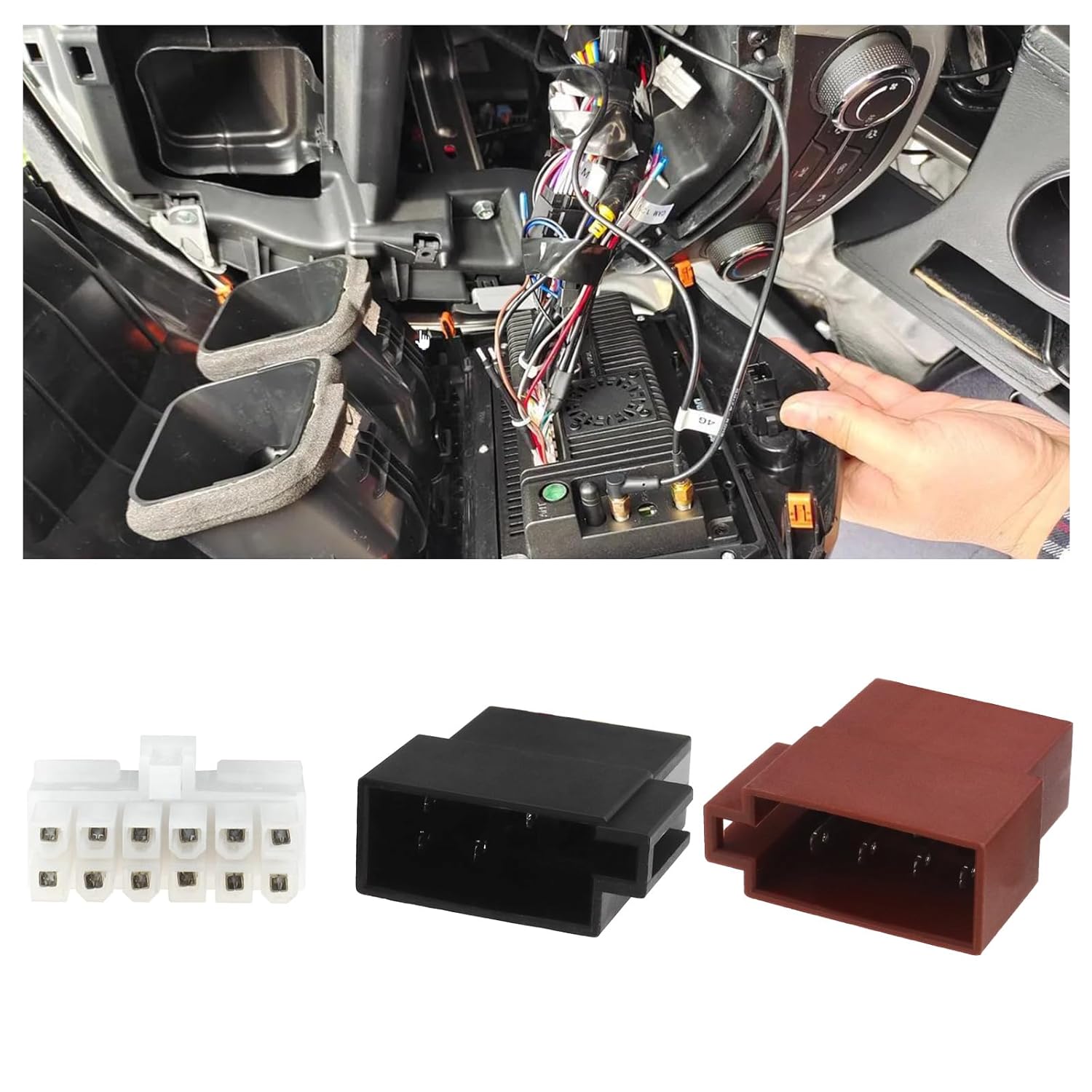

Image: The 12 Pin ISO Radio Connector Wiring Harness, illustrating its application within a car dashboard and its complete form.

Compatibility

This wiring harness is compatible with the following DEH series models:

• DEH Series: 343R, 345R, 424R, 425R, 433R, 434R, 435R, 443R, 524R, 525R, 624R, 645R, 6026ZH

Please confirm your specific device model before purchasing and installation to ensure compatibility.

Setup and Installation

The Micro Traders 12 Pin ISO Radio Connector Wiring Harness is designed for plug-and-play installation, eliminating the need for complex wiring. Follow these steps for a non-destructive setup:

1. Preparation: Ensure your vehicle's audio main unit and the original car line plug are accessible. Turn off the vehicle's ignition and disconnect the battery to prevent electrical issues during installation.
2. Identify Connectors: Locate the corresponding ports on your audio main unit and the vehicle's wiring harness. The ISO connector on this product is designed to match standard car radio connections.
3. Connect the Harness: Plug one end of the 12 Pin ISO Radio Connector Wiring Harness into your audio main unit. Then, connect the other end of the harness to the original car line plug. Ensure all connections are secure and fully seated.
4. Verify Connection: Once connected, gently tug on the harness to confirm it is firmly in place.
5. Restore Power: Reconnect your vehicle's battery and turn on the ignition. Test the audio system to ensure proper functionality.

Image: Overview of the 12 Pin ISO Radio Connector Wiring Harness, showing its full length and connector types.

Image: Detailed view of the white 12-pin connector, showing individual pin receptacles.

Image: Detailed view of the black and brown connectors, highlighting their pin configurations.

Operating Principles

This wiring harness acts as an intermediary adapter, translating the pin configuration between your car's original wiring and the aftermarket audio main unit. It ensures that power, ground, speaker outputs, and other essential signals are correctly routed without requiring modification to the vehicle's factory wiring. Once connected, the audio system operates as intended, receiving power and transmitting audio signals through this harness.

Maintenance

The 12 Pin ISO Radio Connector Wiring Harness requires minimal maintenance. To ensure longevity and reliable performance:

• Keep Dry: Avoid exposing the harness to excessive moisture or liquids.
• Secure Connections: Periodically check that all connections remain secure and free from corrosion.
• Avoid Stress: Do not pull or strain the wires excessively, especially at the connector points.

Troubleshooting

If you encounter issues after installing the wiring harness, consider the following:

• No Power to Radio:
  • Ensure all connections are fully seated and secure.
  • Check vehicle fuses related to the audio system.
  • Verify that the harness is correctly matched to your specific radio and vehicle model. In some rare cases, pin assignments might vary slightly, requiring professional assistance to re-pin the connector if necessary.
• No Audio Output:
  • Confirm speaker wires are correctly connected and not shorted.
  • Check the audio settings on your head unit.
• Intermittent Functionality:
  • Inspect for loose connections or damaged wires within the harness.
  • Ensure the harness is not pinched or stressed by other components in the dashboard.

Specifications

Image: The wiring harness displayed with its total length of 18cm.

Warranty and Support

For specific warranty information or technical support, please refer to the product packaging or contact Micro Traders directly through their official channels. Keep your purchase receipt as proof of purchase.
