Valeo BE20
Valeo BE20 DuraBeam Windshield Wiper Blade Instruction Manual
Model: BE20
Product Overview
The Valeo DuraBeam wiper blade is a high-performance beam-style blade engineered for long-lasting durability and effective all-season wiping. It incorporates advanced OEM technology and innovative design to ensure clear visibility in various weather conditions.
Image: The Valeo BE20 DuraBeam wiper blade, showcasing its sleek beam design and integrated adapter.
What's in the Box
- One (1) Valeo BE20 DuraBeam 20" Windshield Wiper Blade
Setup and Installation
Proper installation is crucial for optimal performance and safety. Ensure your vehicle's ignition is off and the wiper arms are in the service position before beginning.
Pre-Installation Check
- Verify that the Valeo BE20 blade is the correct size for your vehicle. Refer to your vehicle's owner's manual or a fitment guide.
- Inspect the new blade for any visible damage before installation.
Installation Steps
- Remove Old Wiper Blade:
Lift the wiper arm away from the windshield. Locate the release tab or button on the old wiper blade's adapter. Press or lift the tab and slide the old blade off the wiper arm hook. Carefully lower the wiper arm onto the windshield (or place a towel under it) to prevent it from snapping back and damaging the glass.
- Attach New Wiper Blade:
The Valeo BE20 DuraBeam blade comes with a pre-installed hook adapter for quick and easy installation. Align the hook of the wiper arm with the adapter on the new blade. Slide the blade onto the hook until it clicks securely into place. Gently pull on the blade to ensure it is firmly attached.
Image: Close-up view of the Valeo BE20 DuraBeam wiper blade's pre-installed hook adapter, ready for attachment to the wiper arm.
- Test Wiper Blades:
Carefully lower the wiper arm back onto the windshield. Turn on your vehicle's ignition and activate the windshield wipers to ensure they operate smoothly and clear the windshield effectively. Check for any streaks or missed spots.
Operating Instructions
The Valeo BE20 DuraBeam wiper blade is designed for all-season performance. For optimal operation, use your vehicle's standard wiper controls.
- Activate wipers as needed for rain, snow, or windshield cleaning.
- Ensure the windshield is wet when operating wipers to prevent damage to the blade or glass.
- The patented 3D spoiler design helps control wind force, enhancing high-speed wiping performance.
Maintenance
Regular maintenance extends the life and effectiveness of your wiper blades.
- Clean Blades Regularly:
Wipe the rubber edge of the blade with a damp cloth or a mild glass cleaner to remove dirt, grime, and road film. This helps prevent streaking.
- Inspect for Damage:
Periodically check the rubber element for cracks, tears, or hardening. Replace blades if any damage is observed.
- Wear Indicator:
The Valeo DuraBeam features an innovative wear indicator. This indicator changes color from black to yellow over time, signaling when the blade is worn and needs replacement. Monitor this indicator for timely replacement.

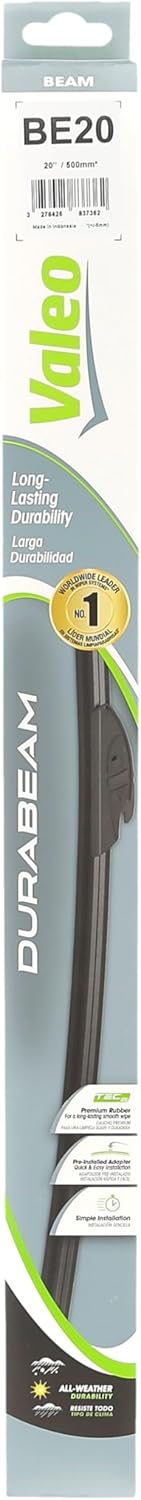

Image: Packaging for the Valeo BE20 DuraBeam wiper blade, highlighting key features including the wear indicator.
- Winter Care:
In freezing conditions, lift wiper blades off the windshield to prevent them from freezing to the glass. Do not use wipers to clear heavy ice or snow; clear it manually first.
Troubleshooting
If you experience issues with your Valeo BE20 DuraBeam wiper blade, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Streaking or Smearing | Dirty blade, worn rubber, windshield contamination. | Clean the blade with a damp cloth. Clean the windshield thoroughly. If problem persists, blade may be worn; check wear indicator. |
| Chattering or Skipping | Blade angle incorrect, bent wiper arm, dry windshield, worn blade. | Ensure windshield is wet. Check if wiper arm is bent (consult a professional if needed). Replace blade if worn. |
| Unswept Areas | Improper installation, bent wiper arm, incorrect blade size. | Re-check installation to ensure blade is securely attached. Verify correct blade size for your vehicle. Inspect wiper arm for damage. |
Specifications
| Feature | Detail |
|---|---|
| Model | BE20 |
| Blade Type | Beam Style |
| Length | 20 Inches (500mm) |
| Material | Tec2 Synthetic Rubber Formulation with Coating |
| Adapter Type | Pre-installed Hook Adapter (Pinch Tab mounting type) |
| Special Features | Patented 3D Spoiler Design, Innovative Wear Indicator |
| Item Weight | Approximately 5.7 ounces |
| Manufacturer | Valeo |
Warranty and Support
For information regarding product warranty, returns, or technical support, please refer to the official Valeo website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
