1. Product Overview
The LEDMO 200W and 300W Parking Lot Light is engineered to provide bright and efficient lighting for extensive outdoor areas such as parking lots, streets, and commercial spaces. Its advanced LED technology ensures high-quality illumination while minimizing energy consumption. The robust design is built for durability and reliable performance in various environmental conditions.
- Powerful Illumination: Delivers high lumen output for enhanced visibility and safety.
- Wide Coverage: Features a broad beam angle to effectively illuminate large spaces.
- Durable and Weatherproof: IP65 waterproof rated construction ensures long-lasting performance.
- Energy-efficient Design: Reduces electricity costs through advanced LED technology.
- Easy Installation: Designed for straightforward setup on poles or walls.

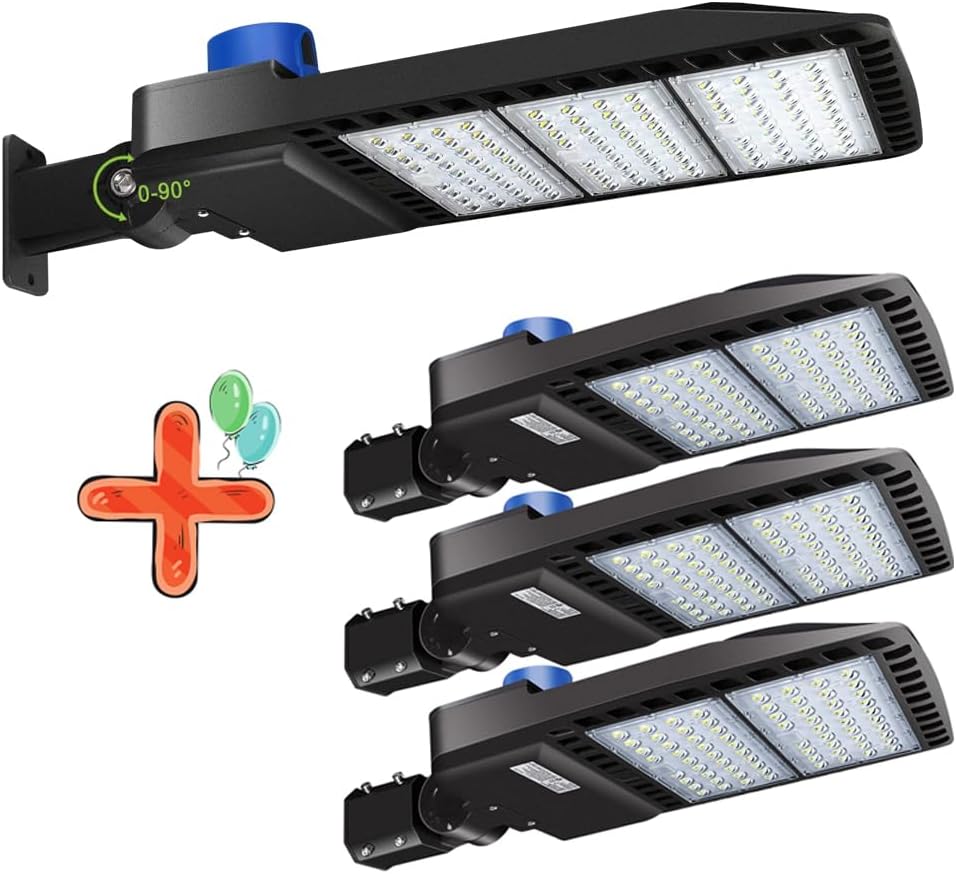

Figure 1.1: Overview of the LEDMO Parking Lot Light.
2. Setup and Installation
Before beginning installation, ensure all power is disconnected at the circuit breaker. It is recommended that installation be performed by a qualified electrician.
2.1 Included Components
The package includes the LEDMO Parking Lot Light, mounting hardware, and this instruction manual.
2.2 Mounting Options
The light supports both straight pole and spoke pole mounting. The adjustable bracket allows for precise aiming of the light.
Figure 2.1: Adjustable lighting angle and mounting options for the LEDMO light. The light can be adjusted from 0-90 degrees and is suitable for straight or spoke pole mounting.
2.3 Installation Steps
- Securely attach the mounting bracket to the pole or wall using the provided hardware. Ensure the mounting surface is stable and can support the weight of the fixture.
- Connect the electrical wiring according to local electrical codes. Ensure proper grounding.
- Mount the light fixture onto the secured bracket.
- Adjust the lighting angle as needed for optimal coverage. The fixture allows for angle adjustments to direct light precisely.
- Restore power and test the light's functionality.
3. Operating Instructions
The LEDMO Parking Lot Light is designed for automatic operation, featuring a built-in photocell sensor for dusk-to-dawn functionality.
3.1 Automatic Operation
The integrated photocell sensor automatically turns the light ON at night and OFF during the daytime, providing energy-efficient operation without manual intervention.
Figure 3.1: The light automatically turns on at night and off during the day, contributing to energy savings compared to traditional lighting.
3.2 Power Management
The light incorporates an advanced power management system with a high-quality intelligent chip, strong endurance lighting, protection circuitry, and leakage-proof configuration for reliable and safe operation.
Figure 3.2: Internal components illustrating the advanced power management system, including intelligent chip, endurance lighting, protection circuit, and leakage-proof design.
4. Maintenance
The LEDMO Parking Lot Light is designed for minimal maintenance due to its durable and weatherproof construction.
4.1 Cleaning
Periodically clean the surface of the light fixture and the photocell sensor with a soft, damp cloth to remove dust, dirt, or debris. This ensures optimal light output and proper sensor function. Do not use abrasive cleaners or solvents.
Figure 4.1: The light features IP66 waterproofing, making it suitable for outdoor use and easy to clean with water.
4.2 Inspections
Regularly inspect the mounting hardware and electrical connections for any signs of wear, corrosion, or loosening. Tighten any loose fasteners as needed. Ensure the photocell is not obstructed by foliage or other objects.
5. Troubleshooting
If you encounter issues with your LEDMO Parking Lot Light, refer to the following common troubleshooting steps:
- Light does not turn ON:
- Check the power supply to ensure it is connected and active.
- Verify that the circuit breaker is not tripped.
- Ensure the photocell sensor is not covered or obstructed, which would prevent it from detecting darkness.
- Confirm all wiring connections are secure.
- Light flickers or is dim:
- Check for loose wiring connections.
- Ensure the power supply is stable and within the specified voltage range.
- If the issue persists, contact customer support.
- Light stays ON during the day:
- Inspect the photocell sensor for any dirt, debris, or obstructions that might be blocking sunlight.
- Ensure there are no external light sources (e.g., another bright light) directly illuminating the photocell, tricking it into thinking it's dark.
6. Specifications
Key technical specifications for the LEDMO Parking Lot Light:
| Feature | Specification |
|---|---|
| Brand | ledmo |
| Model | 200W and 300W Parking Lot Light (B0CF47DWCD) |
| Color | Black |
| Light Fixture Form | Floodlight |
| Specific Uses | Parking Lot, Street Lighting |
| Indoor/Outdoor Usage | Outdoor |
| Power Source | Corded Electric |
| Installation Type | Pole Mount, Wall Mount |
| Special Feature | Waterproof (IP65/IP66 rated) |
| Finish Type | Powder Coated |
| Lighting Method | LED |
| Wattage | 300 watts (also available in 200W) |
| Unit Count | 1.0 Count |
7. Warranty and Support
7.1 Return Policy
This product is subject to a 30-day return policy from the date of purchase. Please refer to your retailer's specific return guidelines for detailed information.
7.2 Customer Support
For technical assistance, warranty claims, or any questions regarding your LEDMO Parking Lot Light, please contact the seller or LEDMO customer support through the platform where the product was purchased. Please have your purchase details and product model number ready when contacting support.
