Introduction
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Bosch MyMoment TKA3M131 Filter Coffee Machine. Please read this manual thoroughly before first use and keep it for future reference.
The Bosch MyMoment TKA3M131 is designed to brew filter coffee with ease, featuring a 1.25-liter glass carafe suitable for 10 to 15 cups. Key features include a 60-minute keep-warm function, a drip-stop system, a swivel filter holder, and an EasyDescale3 descaling program.
Image: Bosch MyMoment TKA3M131 Filter Coffee Machine, white model with a full glass carafe of coffee.
Setup
1. Unpacking and Initial Cleaning
- Remove all packaging materials and stickers from the appliance.
- Clean the glass carafe, lid, and swivel filter holder with warm soapy water. Rinse thoroughly and dry.
- Perform a preliminary rinse cycle: Fill the water tank with cold water to the MAX mark, place an empty paper filter in the filter holder, and run a brewing cycle without coffee grounds. Discard the water.
2. Positioning the Coffee Machine
- Place the coffee machine on a stable, level, and heat-resistant surface.
- Ensure adequate ventilation around the appliance.
- Keep the machine away from heat sources and direct sunlight.
Image: Dimensions of the Bosch MyMoment TKA3M131 coffee machine, showing height (347mm), width (231mm), and depth (295mm).
Operating Instructions
1. Preparing to Brew Coffee
- Fill the Water Tank: Remove the transparent water tank from the side of the machine. Fill it with fresh, cold water up to the desired number of cups indicated on the tank. Reinsert the water tank securely.
- Insert Filter and Coffee Grounds: Swivel the filter holder out. Place a standard paper filter (size 1x4) into the filter holder. Add the desired amount of ground coffee into the filter. For optimal taste, use approximately 6-8 grams of coffee per cup. Swivel the filter holder back into place.
- Place Carafe: Ensure the glass carafe with its lid is correctly placed on the warming plate.
Image: A hand filling the removable water tank of the coffee machine under a tap.

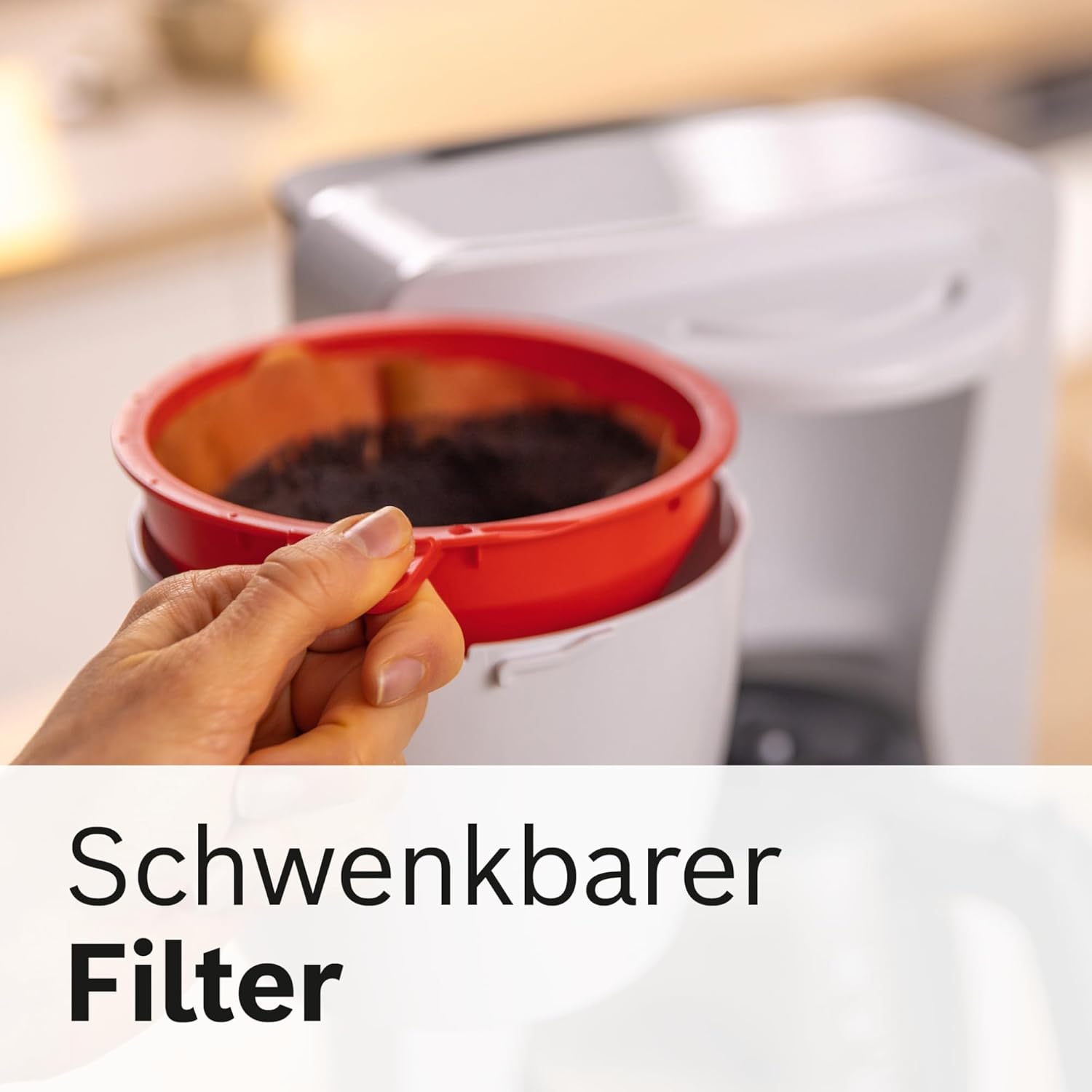

Image: A hand removing the red swivel filter holder with a paper filter and coffee grounds.
2. Brewing Coffee
- Start Brewing: Plug the machine into a suitable power outlet. Press the ON/OFF switch to start the brewing process. The indicator light will illuminate.
- Aroma+ Function: To intensify the coffee aroma and strength, press the 'Aroma+' button before or during brewing. The corresponding indicator light will illuminate.
- Drip-Stop System: The integrated drip-stop system prevents coffee from dripping onto the warming plate when the carafe is removed during brewing.
- Keep-Warm Function: After brewing, the warming plate will automatically keep the coffee warm. The default keep-warm time is 60 minutes. You can adjust this to 20, 40, or 60 minutes using the dedicated button.
- Automatic Shut-off: The machine will automatically switch off after the selected keep-warm duration to save energy.
Image: Close-up of the control panel showing the illuminated Aroma+ button.
Image: A close-up view of the drip-stop mechanism located beneath the filter holder.
Image: Text overlay indicating 'Warmhalten für 20, 40 oder 60 Minuten' (Keep warm for 20, 40 or 60 minutes) over a coffee machine with a full carafe.
Image: A hand pouring freshly brewed coffee from the glass carafe into a mug.
Maintenance
1. Daily Cleaning
- After each use, unplug the machine and allow it to cool down.
- Remove the used paper filter and discard coffee grounds.
- Wash the glass carafe, lid, and swivel filter holder with warm soapy water. These parts are generally dishwasher-safe, but refer to the specific care instructions for your model.
- Wipe the exterior of the machine with a damp cloth. Do not immerse the machine in water.
2. Descaling (EasyDescale3)
Regular descaling is crucial for maintaining optimal performance and extending the lifespan of your coffee machine. The EasyDescale3 function simplifies this process.
- The machine will indicate when descaling is necessary (e.g., via an illuminated descaling indicator).
- Prepare a descaling solution according to the descaling agent manufacturer's instructions. Bosch recommends using specific descaling tablets for best results.
- Fill the water tank with the descaling solution.
- Place the empty glass carafe with its lid on the warming plate.
- Press the descaling button (often indicated by three dots or a specific symbol) to start the descaling program. Follow any further instructions provided by the machine or the descaling agent.
- After the descaling cycle is complete, run at least two full brewing cycles with fresh, cold water to rinse the machine thoroughly. Discard the rinse water.
Image: Close-up of the control panel showing the descaling button and an inset image of Bosch descaling tablets.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Coffee does not brew. | Machine not plugged in; power switch off; water tank empty; carafe not correctly placed. | Check power connection; turn on power switch; fill water tank; ensure carafe is correctly positioned. |
| Coffee is too weak or too strong. | Incorrect coffee-to-water ratio; coffee grind too coarse/fine; Aroma+ function not used/used. | Adjust coffee amount; use appropriate grind size; activate/deactivate Aroma+ function as desired. |
| Water leaks from the machine. | Water tank not properly seated; filter holder not closed; carafe overflowing. | Ensure water tank is securely in place; close filter holder completely; do not overfill water tank. |
| Descaling indicator remains on. | Descaling cycle not completed or not rinsed properly. | Perform a full descaling cycle followed by at least two rinse cycles with fresh water. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Bosch |
| Model Number | TKA3M131 |
| Capacity | 1.25 Liters (approx. 10-15 cups) |
| Power | 1200 Watts |
| Voltage | 230 Volts |
| Material | Plastic |
| Dimensions (L x W x H) | 29.5 x 23.1 x 34.7 cm |
| Weight | 2.4 Kilograms |
| Automatic Shut-off | Yes (Adjustable: 20, 40, or 60 minutes) |
| Special Features | Aroma+, EasyDescale3, Swivel Filter Holder, Removable Water Tank, Drip-Stop System |
Warranty and Support
Your Bosch MyMoment TKA3M131 coffee machine comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including the warranty period and coverage details.
For technical support, spare parts, or service inquiries, please contact Bosch customer service. You can find contact information on the official Bosch website or in the documentation provided with your appliance. The manufacturer's general address is Carl-Wery-Straße 34, 81739 Munich, Germany.
