MOZA ES Formula Wheel Mod Instruction Manual

Introduction

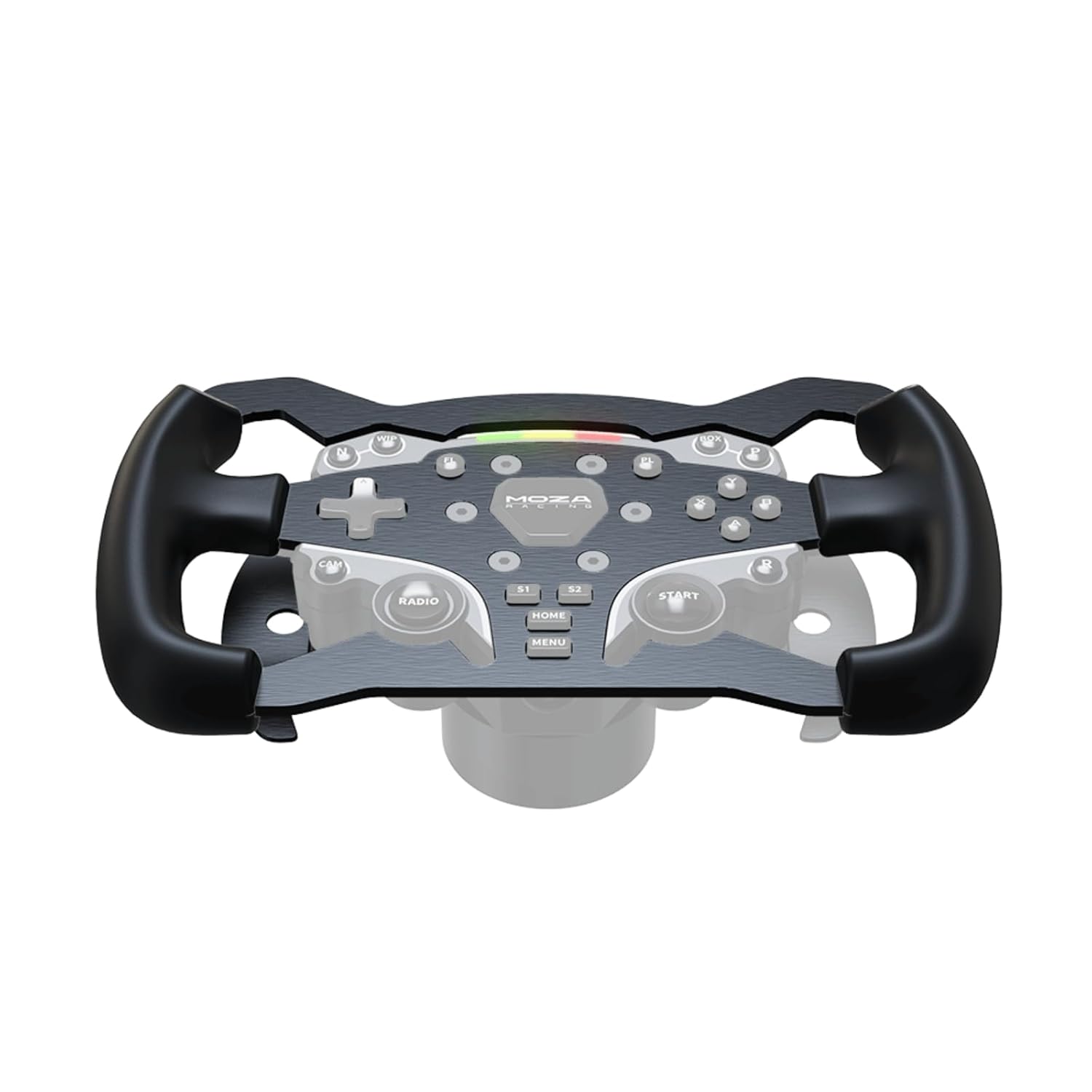

The MOZA ES Formula Wheel Mod is an accessory designed to enhance the MOZA ES wheel, transforming its functionality and ergonomics for a formula-style racing experience. This mod features a 280mm diameter, an aviation-grade aluminum body, and rubber grips for improved handling and durability.

This manual provides essential information for the proper installation, operation, and maintenance of your MOZA ES Formula Wheel Mod.

Package Contents

• MOZA ES Formula Wheel Mod (280mm)
• Mounting Hardware (screws, if applicable)

Setup

Follow these steps to properly install the MOZA ES Formula Wheel Mod onto your MOZA ES wheel base.

1. Preparation: Ensure your MOZA ES wheel base is powered off and disconnected from your computer. Place the wheel base on a stable surface.
2. Remove Original Wheel Rim (if applicable): If your MOZA ES wheel currently has a removable rim, carefully detach it according to the MOZA ES wheel's original instructions. This typically involves unscrewing retaining bolts or disengaging a quick-release mechanism.
3. Attach Formula Wheel Mod: Align the MOZA ES Formula Wheel Mod with the mounting points on the MOZA ES wheel's hub. Ensure the connectors (if any) are properly seated.
4. Secure the Mod: Use the provided mounting hardware (e.g., screws) to firmly attach the Formula Wheel Mod to the wheel hub. Tighten screws evenly to ensure a secure fit without over-tightening.
5. Connect to PC: Reconnect your MOZA ES wheel base to your computer and power it on.

Operating Instructions

After successful installation, follow these steps to operate your MOZA ES Formula Wheel Mod:

1. Software Recognition: Launch the MOZA Pit House software on your PC. The software should automatically detect the MOZA ES wheel with the newly attached Formula Wheel Mod. Ensure your MOZA Pit House software is updated to the latest version.
2. Calibration: The wheel may perform an automatic calibration upon startup. If manual calibration is required, follow the prompts within the MOZA Pit House software.
3. Button Mapping: Utilize the MOZA Pit House software to customize the functions of the various buttons and switches on the Formula Wheel Mod. You can assign specific in-game actions to each control.
4. Game Configuration: Within your racing simulation game, ensure the MOZA ES wheel is selected as the primary controller. Adjust in-game force feedback and control settings as desired.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your MOZA ES Formula Wheel Mod.

• Cleaning: Use a soft, dry, lint-free cloth to clean the surface of the wheel mod. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish and rubber grips.
• Storage: When not in use, store the wheel mod in a clean, dry environment away from direct sunlight and extreme temperatures.
• Inspection: Periodically inspect the mounting hardware for tightness and the grips for any signs of wear or damage.

Troubleshooting

If you encounter issues with your MOZA ES Formula Wheel Mod, refer to the following common troubleshooting steps:

• Mod Not Recognized:
  • Ensure the MOZA ES wheel base is properly connected to your PC and powered on.
  • Verify that the Formula Wheel Mod is securely attached to the MOZA ES wheel hub.
  • Update your MOZA Pit House software and wheel base firmware to the latest versions.
  • Try connecting the wheel base to a different USB port on your PC.
• Buttons Not Responding:
  • Check the button assignments within the MOZA Pit House software.
  • Ensure the wheel is properly calibrated.
  • Test the buttons in a different game or within the MOZA Pit House software's test utility.
• Physical Instability:
  • Re-check all mounting screws to ensure they are tightened appropriately.
  • Ensure the MOZA ES wheel base itself is securely mounted to your rig or desk.

For further assistance, please refer to the official MOZA Racing support resources.

Specifications

Warranty and Support

For information regarding warranty coverage, technical support, or to access additional resources, please visit the official MOZA Racing website or contact their customer service department. Keep your purchase receipt as proof of purchase for warranty claims.

MOZA Racing Official Website: www.mozaracing.com
