AVERA Electric Induction Grill PIV2B User Manual

1. Introduction

Thank you for choosing the AVERA Electric Induction Grill PIV2B. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

The AVERA PIV2B is a 2-zone vertical induction grill designed for efficient cooking in compact spaces. It features a sleek glass ceramic surface, touch controls, and multiple safety functions.

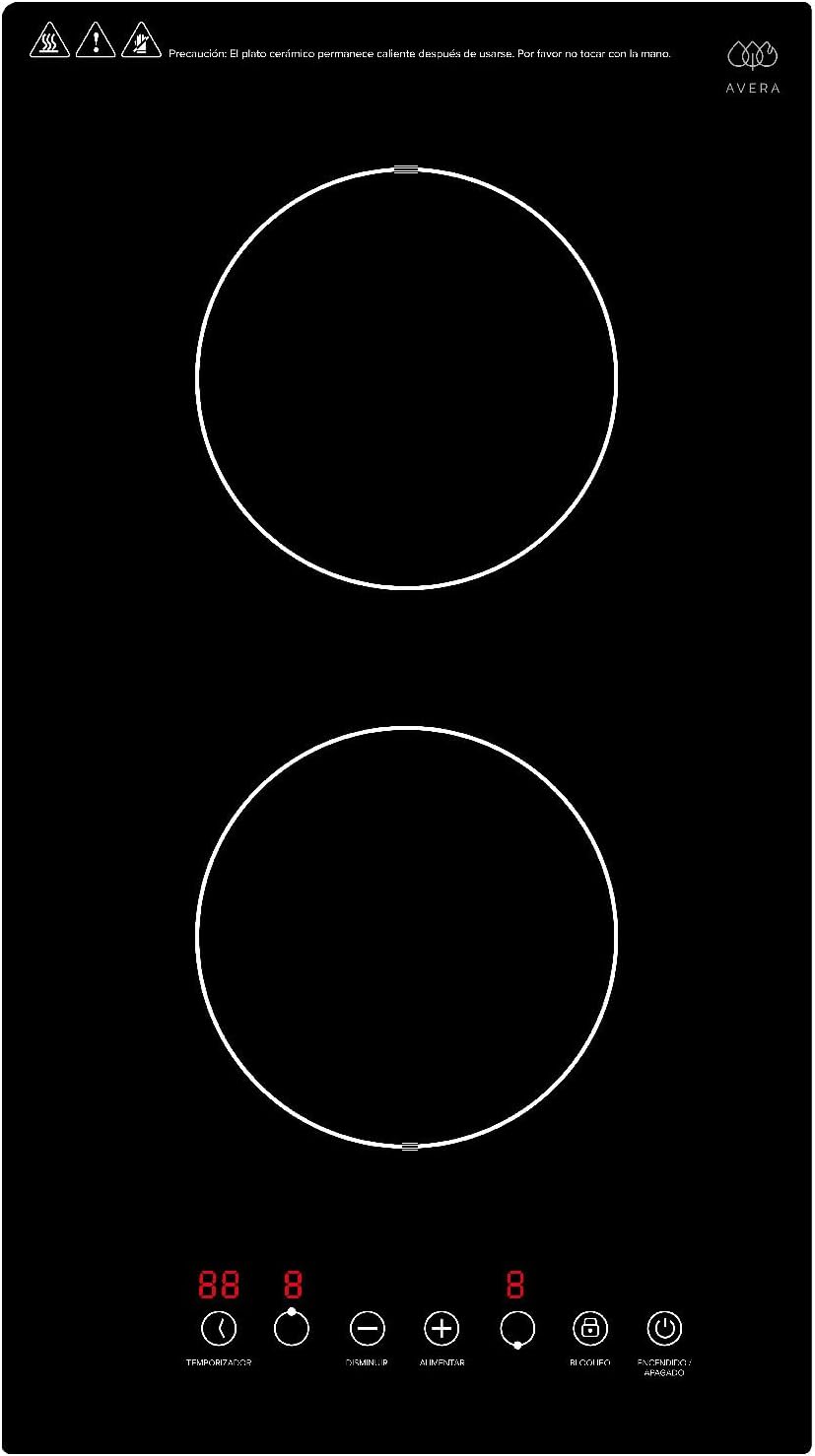

Image 1.1: The AVERA Electric Induction Grill PIV2B. This image displays the top-down view of the black glass ceramic induction grill with two circular cooking zones and a touch control panel at the bottom.

2. Important Safety Instructions

To prevent injury or damage, always follow basic safety precautions when using electrical appliances. This includes, but is not limited to, the following:

• Read all instructions carefully before operating the appliance.
• Electrical Safety: Ensure the power supply matches the appliance's requirements (127 Volts, 2000 Watts). Do not overload electrical outlets.
• Hot Surface Warning: The ceramic plate remains hot after use. Exercise extreme caution and avoid touching the hot surface with bare hands immediately after cooking.
• Suitable Cookware: Only use induction-compatible cookware made of iron or stainless steel. Refer to Section 5 for details.
• Ventilation: Ensure adequate ventilation around the appliance. Do not block air vents.
• Children and Pets: Keep children and pets away from the appliance during operation and while it is cooling down.
• Liquid Spills: Avoid spilling liquids on the control panel or cooking surface. If spills occur, disconnect power and clean thoroughly once cooled.
• Overheat Protection: The grill is equipped with overheat protection, which will automatically shut down the unit if it detects excessive temperatures.
• Button Lock: Utilize the button lock feature to prevent accidental changes to settings or activation, especially in households with children.
• Automatic Shut-off: The appliance features an auto shut-off function when not in use for a prolonged period, enhancing safety and energy saving.

Image 2.1: The induction grill's control panel, showing the warning symbols and text indicating that the ceramic plate remains hot after use and should not be touched by hand.

3. Product Features

The AVERA Electric Induction Grill PIV2B offers a range of features designed for convenience and efficiency:

• Dual Independent Cooking Zones: Two powerful burners operate independently, allowing simultaneous cooking at different heat settings.
• Touch Control Panel: An intuitive touch interface for easy operation and precise control over cooking settings.
• Integrated Timer: A timer function allows setting cooking durations up to 99 minutes, with automatic shut-off upon completion.
• Space-Saving Vertical Design: Its vertical orientation is ideal for small kitchens or limited countertop space.
• Easy to Clean: The glass ceramic surface is designed for simple and quick cleaning.
• Safety System: Includes button lock, overheat protection, and auto shut-off for enhanced user safety.

Image 3.1: Visual representation of key features including two independent burners, a safety button, a touch control panel, and a timer up to 99 minutes.

Image 3.2: Additional features highlighted, such as space-saving vertical design, easy cleaning, attractive and modern design, and a 2-year warranty.

4. Setup

Follow these steps to set up your AVERA Electric Induction Grill:

1. Unpacking: Carefully remove the grill from its packaging. Retain packaging materials for future transport or storage.
2. Placement: Place the grill on a stable, flat, heat-resistant surface. Ensure there is sufficient clearance around the appliance for proper ventilation. The vertical design allows for efficient use of countertop space.
3. Power Connection: Plug the power cord into a grounded electrical outlet that provides 127 Volts. Ensure the outlet can support a 2000 Watt appliance.
4. Initial Cleaning: Before first use, wipe the glass ceramic surface with a damp cloth to remove any dust or residue from manufacturing.

Image 4.1: The AVERA induction grill positioned vertically on a kitchen countertop, demonstrating its space-saving design.

5. Operating Instructions

The AVERA PIV2B features a user-friendly touch control panel:

1. Power On/Off: Touch the Power button (usually indicated by a universal power symbol) to turn the grill on or off.
2. Select Cooking Zone: After powering on, select the desired cooking zone by touching its corresponding indicator.
3. Adjust Heat Level: Use the + and - buttons to increase or decrease the heat intensity for the selected zone. The current heat level will be displayed.
4. Set Timer: Touch the Timer button. Use the + and - buttons to set the desired cooking time (up to 99 minutes). The timer will count down and automatically shut off the cooking zone when finished.
5. Button Lock: To activate the button lock, touch the Lock button (often indicated by a lock symbol). This prevents accidental changes to settings. To deactivate, touch and hold the lock button for a few seconds.

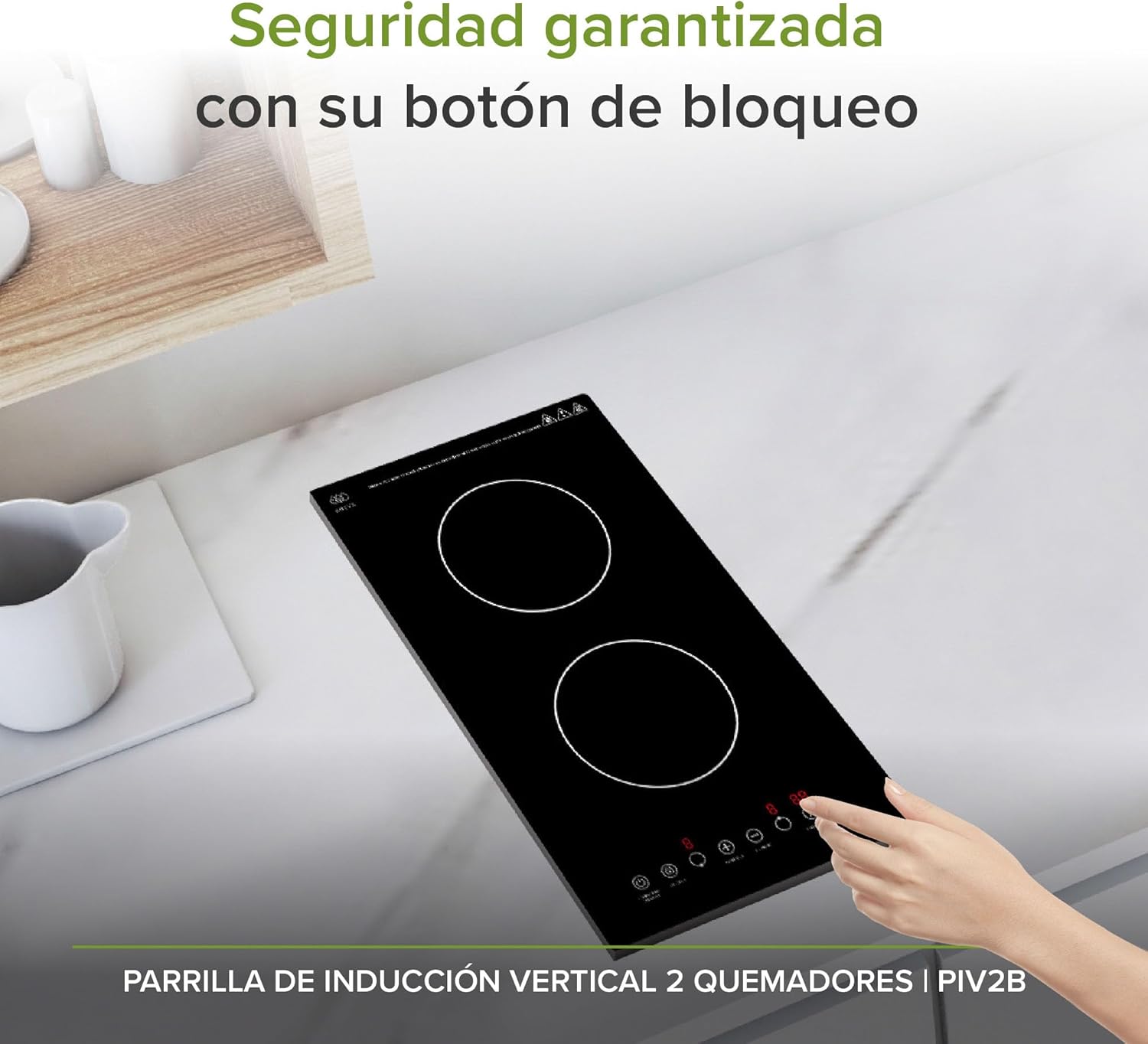

Image 5.1: A hand interacting with the touch control panel of the AVERA induction grill, demonstrating the use of the lock button for safety.

6. Compatible Cookware

Induction cooktops require specific types of cookware. For optimal performance and safety, use only pots and pans that are compatible with induction heating.

• Compatible Materials: Cookware made from cast iron, enameled iron, or magnetic stainless steel.
• Compatibility Test: To check if your cookware is compatible, hold a magnet to the bottom of the pot or pan. If the magnet sticks firmly, the cookware is suitable for induction.
• Unsuitable Materials: Cookware made from aluminum, copper, glass, ceramic, or non-magnetic stainless steel will not work on an induction cooktop.
• Flat Bottom: Ensure cookware has a flat bottom for maximum contact with the induction zone and efficient heating.

7. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your induction grill.

• Always Disconnect Power: Before cleaning, ensure the grill is turned off and unplugged from the power outlet.
• Allow to Cool: Wait until the glass ceramic surface has completely cooled down before cleaning. Remember the surface remains hot after use.
• Cleaning the Surface: Wipe the glass ceramic surface with a soft, damp cloth and a mild detergent. For stubborn stains, use a non-abrasive ceramic cooktop cleaner. Avoid abrasive sponges or harsh chemicals.
• Control Panel: Gently wipe the control panel with a soft, damp cloth. Do not allow water to seep into the controls.
• Exterior: Clean the exterior housing with a damp cloth.
• Storage: When not in use, store the grill in a clean, dry place.

8. Troubleshooting

If you encounter issues with your AVERA Electric Induction Grill, refer to the following common problems and solutions:

• Grill Does Not Turn On:
  • Check if the power cord is securely plugged into a working outlet.
  • Ensure the power outlet is supplying electricity (test with another appliance).
  • Verify that the main power button on the grill has been pressed.
• Cookware Not Heating:
  • Confirm that your cookware is induction-compatible (perform the magnet test).
  • Ensure the cookware is centered on the cooking zone.
  • The diameter of the cookware should be appropriate for the cooking zone.
• Unusual Noise During Operation (Fan Noise):
  • Induction cooktops use internal cooling fans, which may produce a noticeable sound during operation, especially at higher power settings. This is normal.
  • If the noise is excessively loud or unusual, ensure the ventilation openings are not blocked.
• Strange Noise When Both Burners at Maximum Power:
  • Some induction units may produce a distinct sound when both zones are operating at their highest power settings simultaneously. This can be due to the power management system.
  • If this noise is concerning, try reducing the power level on one or both burners slightly.
• Error Codes Displayed:
  • If an error code appears on the display, consult the specific error code section in the full manual (if available) or contact customer support. Common causes include incompatible cookware or overheating.

9. Product Specifications

Image 9.1: Diagram illustrating the dimensions of the AVERA PIV2B induction grill, showing a length of 52 cm, width of 29 cm, and height of 8 cm for the grill, and cutout dimensions for embedding.

10. Warranty and Support

AVERA is committed to providing durable products and excellent customer service.

• Warranty: The AVERA Electric Induction Grill PIV2B comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase.
• Technical Assistance: Should you require technical assistance or have any questions regarding your product, please contact AVERA customer support. Our specialists are available to provide solutions and support for your product.
