1. Introduction
Thank you for choosing the Impex AF 4301 Digital Air Fryer. This appliance uses rapid hot air circulation technology to cook your favorite foods with little to no oil, offering a healthier alternative to traditional frying. Please read this manual thoroughly before use to ensure safe and efficient operation. Keep this manual for future reference.
Image 1.1: Impex AF 4301 Digital Air Fryer, front view.
Key features of your Impex AF 4301 Air Fryer include:
- 3.5-liter capacity for family-sized meals.
- Rapid hot air circulation technology for even and quick cooking.
- Digital control panel with adjustable temperature (80-200°C) and timer (up to 30 minutes).
- 7 pre-set cooking functions.
- Detachable non-stick frying basket for easy cleaning.
- Automatic power cut-off when the basket is removed or cooking is complete.
- Cool-touch handle for safe operation.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the appliance is placed on a stable, heat-resistant surface.
- Do not block the air inlet or outlet vents during operation.
3. Product Overview
Familiarize yourself with the components of your Impex AF 4301 Digital Air Fryer.
Image 3.1: Impex AF 4301 Digital Air Fryer highlighting key features like capacity, power, timer, and temperature control.
3.1 Components
- Main Unit: Houses the heating element and fan.
- Digital Control Panel: For setting time, temperature, and selecting presets.
- Frying Basket: Detachable, non-stick basket for holding food.
- Basket Handle: Cool-touch handle for safe removal of the basket.
- Air Inlet/Outlet Vents: For proper air circulation during cooking.
Image 3.2: Close-up view of the digital control panel, showing timer and temperature controls, and various food icons for presets.
4. Setup and First Use
4.1 Unpacking
- Remove all packaging materials, stickers, and labels from the appliance.
- Remove the frying basket and any accessories from the main unit.
4.2 Cleaning Before First Use
- Wash the frying basket and any removable accessories in hot, soapy water. Rinse thoroughly and dry completely.
- Wipe the inside and outside of the main unit with a damp cloth. Do not immerse the main unit in water.
4.3 Placement
- Place the air fryer on a stable, heat-resistant, and level surface.
- Ensure there is at least 10 cm (4 inches) of free space around the back and sides of the appliance, and 10 cm (4 inches) above it, for proper air circulation.
- Do not place the appliance against a wall or other appliances.
5. Operating Instructions
5.1 Preparing for Cooking
- Plug the power cord into a grounded wall outlet. The air fryer will beep, and the digital display will illuminate briefly.
- Carefully pull the frying basket out of the air fryer using the cool-touch handle.
- Place your ingredients into the frying basket. Do not exceed the MAX fill line or overload the basket to ensure even cooking.
- Slide the frying basket back into the air fryer until it clicks into place.

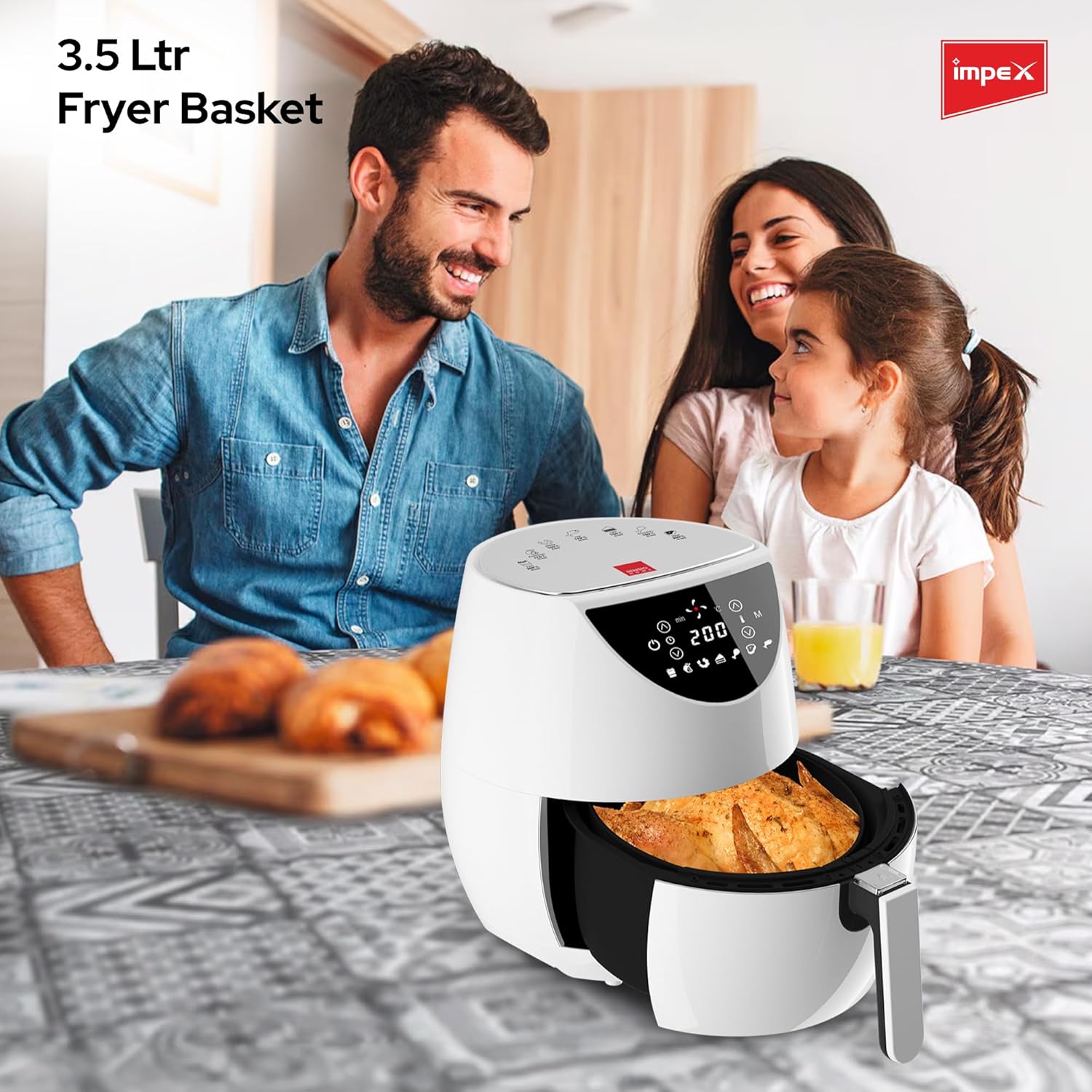

Image 5.1: The Impex AF 4301 Air Fryer with its 3.5-liter frying basket pulled out, ready for food.
5.2 Manual Cooking Settings
- Press the Power button (⏻) to turn on the display.
- Use the Temperature Up/Down buttons (∧/∨ next to °C) to adjust the cooking temperature between 80°C and 200°C.
- Use the Timer Up/Down buttons (∧/∨ next to min) to set the cooking time between 1 and 30 minutes.
- Press the Power button (⏻) again to start the cooking process. The fan icon will illuminate.
5.3 Using Pre-set Functions
The Impex AF 4301 comes with 7 pre-set cooking functions for common dishes.
- Press the Power button (⏻) to turn on the display.
- Press the 'M' (Mode) button repeatedly to cycle through the pre-set icons (e.g., fries, chicken, fish, cake, steak, shrimp, pizza). The corresponding icon will light up, and the default time and temperature for that preset will be displayed.
- You can adjust the time and temperature of a pre-set program using the respective Up/Down buttons if desired.
- Press the Power button (⏻) to start cooking.
Image 5.2: Display of various cooking presets available on the Impex AF 4301 Digital Air Fryer, including recommended times and temperatures for different food types.
5.4 During Cooking
- Some recipes may require shaking or tossing ingredients halfway through the cooking time. To do this, carefully pull out the basket, shake or toss the contents, and then slide the basket back in. The air fryer will automatically resume cooking.
- The air fryer uses cyclonic airflow for efficient cooking.
Image 5.3: Illustration of the cyclonic airflow and 1300W-1500W stainless steel heating element within the Impex AF 4301 Air Fryer.
5.5 Ending Cooking
- When the set cooking time has elapsed, the air fryer will beep and automatically shut off.
- Carefully pull out the basket and place it on a heat-resistant surface.
- Empty the contents into a serving dish. Use tongs to remove food, as the basket and food will be hot.
- Unplug the appliance from the wall outlet after use.
6. Cooking Guide (Pre-set Examples)
The following table provides general guidelines for common foods. Cooking times and temperatures may vary based on food quantity, size, and desired crispness.
| Food Item | Temperature | Time |
|---|---|---|
| Fries | 200°C | 20-25 min |
| Steak | 180°C | 10-15 min |
| Chicken Thighs | 200°C | 25-30 min |
| Bacon | 180°C | 10-15 min |
| Frozen Fish | 200°C | 20-25 min |
| Vegetables | 200°C | 18-22 min |
| Chicken Wings | 190°C | 15-20 min |
| Prawns | 180°C | 15-20 min |
| Pizza | 180°C | 15-20 min |
| Roasted Chicken | 180°C | 40-45 min |
| Cake | 160°C | 30-35 min |
7. Maintenance and Cleaning
Clean the air fryer after every use to prevent food residue buildup and ensure optimal performance.
7.1 General Cleaning
- Unplug the air fryer and allow it to cool down completely before cleaning.
- Wipe the exterior of the appliance with a damp cloth. Do not use abrasive cleaners.
7.2 Cleaning the Frying Basket
- Remove the frying basket from the main unit.
- Wash the basket in hot, soapy water using a non-abrasive sponge. The non-stick coating makes cleaning easy.
- Alternatively, the frying basket is dishwasher-safe.
- Ensure all parts are thoroughly dry before reassembling or storing.
7.3 Cleaning the Interior
- Wipe the inside of the air fryer with a damp cloth.
- For stubborn food residue, use a mild detergent and a soft brush.
- Do not use metal scouring pads or harsh abrasive cleaners, as they can damage the non-stick coating.
8. Troubleshooting
If you encounter any issues with your Impex AF 4301 Digital Air Fryer, refer to the following table for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance not plugged in. | Ensure the power cord is securely plugged into a grounded outlet. |
| Basket not inserted correctly. | Push the frying basket fully into the main unit until it clicks into place. | |
| Food is not cooked evenly. | Basket is overloaded. | Reduce the amount of food in the basket. Cook in smaller batches. |
| Food not shaken/tossed. | Shake or toss ingredients halfway through cooking for even results. | |
| White smoke coming from appliance. | Grease residue from previous use. | Clean the basket and interior thoroughly after each use. |
| Cooking fatty food. | This is normal for fatty foods. Ensure proper ventilation. | |
| Food is not crispy. | Incorrect temperature or time. | Adjust temperature and time according to the cooking guide or recipe. |
| Too much moisture in food. | Pat food dry before air frying. Lightly coat with oil for crispier results. |
9. Specifications
| Feature | Specification |
|---|---|
| Brand | Impex |
| Model | AF 4301 |
| Capacity | 3.5 Liters |
| Power / Wattage | 1500 Watts |
| Voltage | 240 Volts |
| Temperature Control | 80-200°C |
| Timer | Up to 30 minutes |
| Material | Plastic |
| Color | White |
| Product Dimensions (D x W x H) | 29 x 39.4 x 32.5 cm |
| Item Weight | 5.37 Kilograms |
| Auto Shutoff | Yes |
10. Warranty and Support
10.1 Warranty Information
The Impex AF 4301 Digital Air Fryer comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal household use. Please retain your proof of purchase for warranty claims.
The warranty does not cover:
- Damage caused by misuse, abuse, or negligence.
- Damage caused by unauthorized repairs or modifications.
- Normal wear and tear.
10.2 Customer Support
For technical assistance, warranty claims, or product inquiries, please contact Impex customer support through their official website or the retailer where the product was purchased.
