Introduction
This manual provides essential information for the proper setup, operation, and maintenance of your HOCO Y1 Pro Smart Watch. Please read this guide thoroughly before using your device to ensure optimal performance and longevity. The HOCO Y1 Pro is designed to enhance your daily life with features like Bluetooth calling, comprehensive health monitoring, and various sports modes, all presented on a vibrant 1.96-inch TFT display.
Package Contents
Verify that all items are present in your product packaging:
- HOCO Y1 Pro Smart Watch
- Charging Cable
- User Manual (this document)
Product Overview
Familiarize yourself with the key components and design of your HOCO Y1 Pro Smart Watch.
Figure 1: Front view of the HOCO Y1 Pro Smart Watch displaying an analog watch face with battery, day, time, steps, and heart rate indicators.

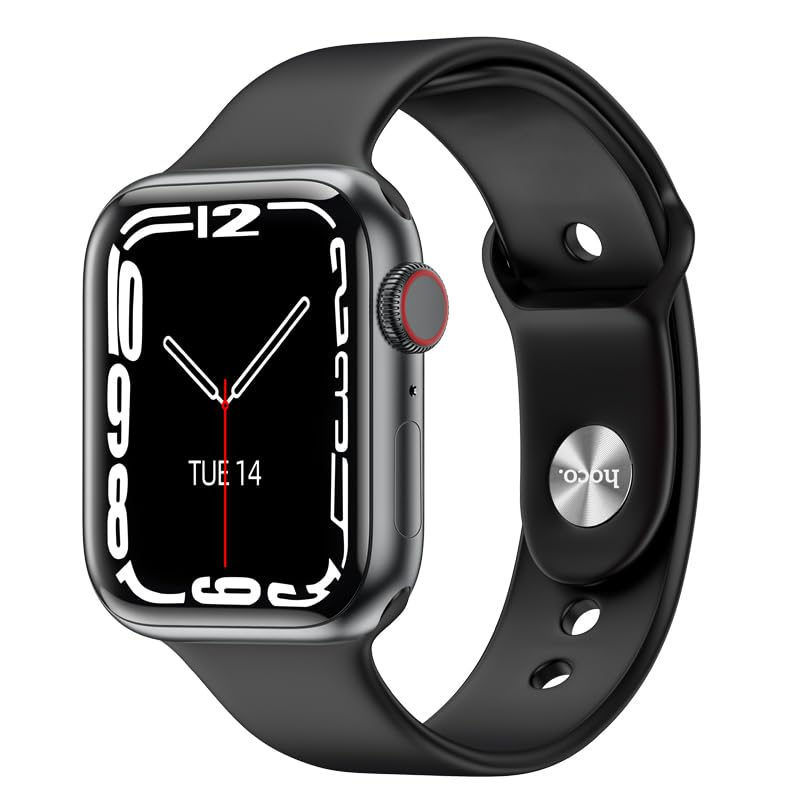

Figure 2: Angled view of the HOCO Y1 Pro Smart Watch, showing a digital time display, the side button, and the rotating crown for navigation.

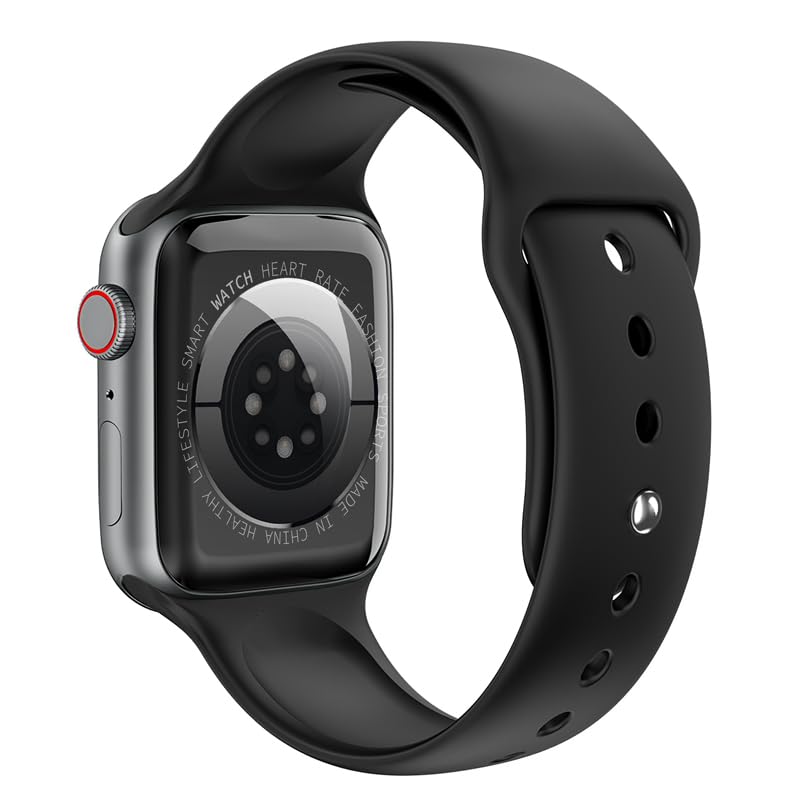

Figure 3: Rear view of the HOCO Y1 Pro Smart Watch, highlighting the optical sensors for health monitoring and product information.
Setup
1. Charging the Smart Watch
Before initial use, fully charge your HOCO Y1 Pro Smart Watch. Connect the provided charging cable to the charging port on the back of the watch and plug the other end into a standard USB power adapter (not included). The watch display will indicate charging status. A full charge typically provides 5-7 days of battery life in single Bluetooth mode or 3-4 days in dual Bluetooth mode.
2. Pairing with Your Smartphone
- Download the App: Scan the QR code in the watch interface or search for the companion app (e.g., 'WearFit Pro' or similar, refer to on-screen instructions) in your smartphone's app store (iOS or Android).
- Enable Bluetooth: Ensure Bluetooth is enabled on your smartphone.
- Open the App: Launch the companion app and follow the on-screen instructions to create an account or log in.
- Add Device: In the app, navigate to the 'Add Device' or 'Pair Device' section. The app will search for available devices.
- Select Your Watch: Select 'HOCO Y1 Pro' from the list of discovered devices. Confirm the pairing request on both your watch and smartphone.
- Complete Setup: Follow any remaining prompts in the app to complete the pairing process and synchronize data.

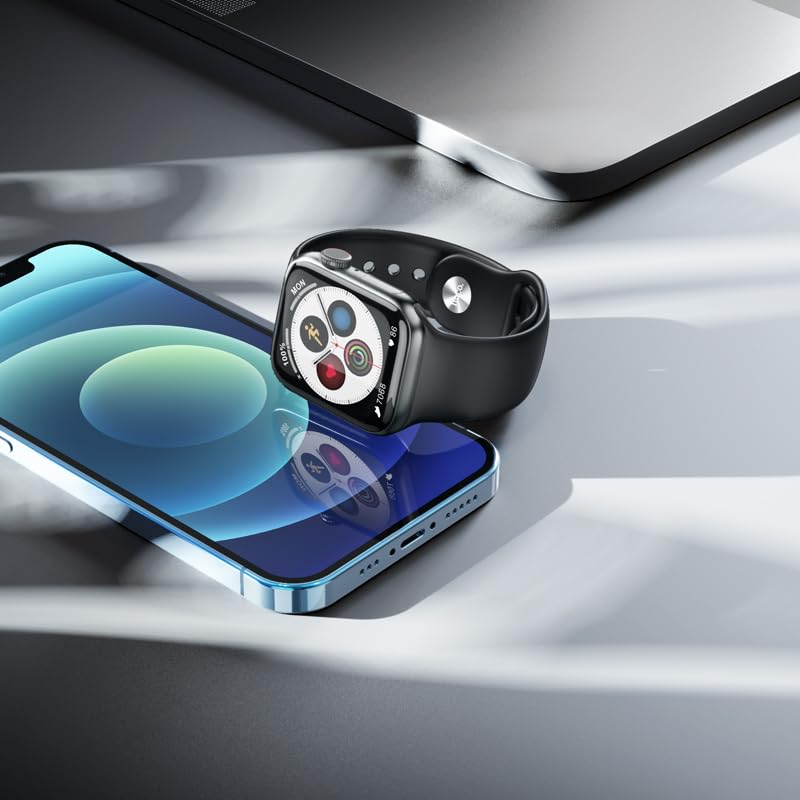

Figure 4: The HOCO Y1 Pro Smart Watch positioned beside a smartphone, illustrating the device's compatibility and connectivity.
Operating Instructions
Basic Navigation
- Touchscreen: Swipe left, right, up, or down to navigate through menus and features. Tap to select an item.
- Side Button/Crown: Press the side button to return to the home screen or wake the display. Rotate the crown to scroll through lists or zoom in/out (functionality may vary by watch face/app).
Bluetooth Calling
Once paired, your HOCO Y1 Pro supports Bluetooth calling. You can answer incoming calls, dial numbers, and view call logs directly from your watch. Ensure your watch is within Bluetooth range of your phone for this feature to function.
Sports Modes
The watch includes multiple sports modes to track various physical activities. Select your desired sport from the watch menu to monitor metrics such as steps, distance, calories burned, and heart rate during your workout.
Figure 5: The HOCO Y1 Pro Smart Watch showing an activity tracking interface, including icons for running, heart rate, steps, and calories.
Health Monitoring
The HOCO Y1 Pro features integrated sensors for health monitoring:
- Heart Rate Monitor: Continuously or on-demand measures your heart rate.
- Blood Pressure Monitor: Provides estimated blood pressure readings.
- Sleep Monitoring: Tracks your sleep patterns, including deep sleep, light sleep, and wake times.
- Exercise Pedometer: Counts your daily steps and estimates distance covered.
Note: Health monitoring features are for reference only and should not be used for medical diagnosis or treatment. Consult a medical professional for health concerns.
Notifications and Other Functions
Receive notifications for calls, messages, and app alerts directly on your watch. Additional functions include GPS track (via phone), remote music control, real-time weather updates, and a mobile phone search feature.
Maintenance
Cleaning Your Smart Watch
To maintain the appearance and functionality of your watch:
- Wipe the screen and strap regularly with a soft, dry, lint-free cloth.
- For stubborn dirt, slightly dampen the cloth with water. Avoid using harsh chemicals or abrasive materials.
- Ensure the charging contacts are clean and dry before charging.
Water Resistance (IP68)
The HOCO Y1 Pro Smart Watch is IP68 rated, meaning it is resistant to dust and can withstand immersion in water up to 1.5 meters for 30 minutes. It is suitable for daily use, including hand washing, rain, and light swimming. However, it is not recommended for hot showers, saunas, or diving, as steam and high-pressure water jets may compromise the seals.

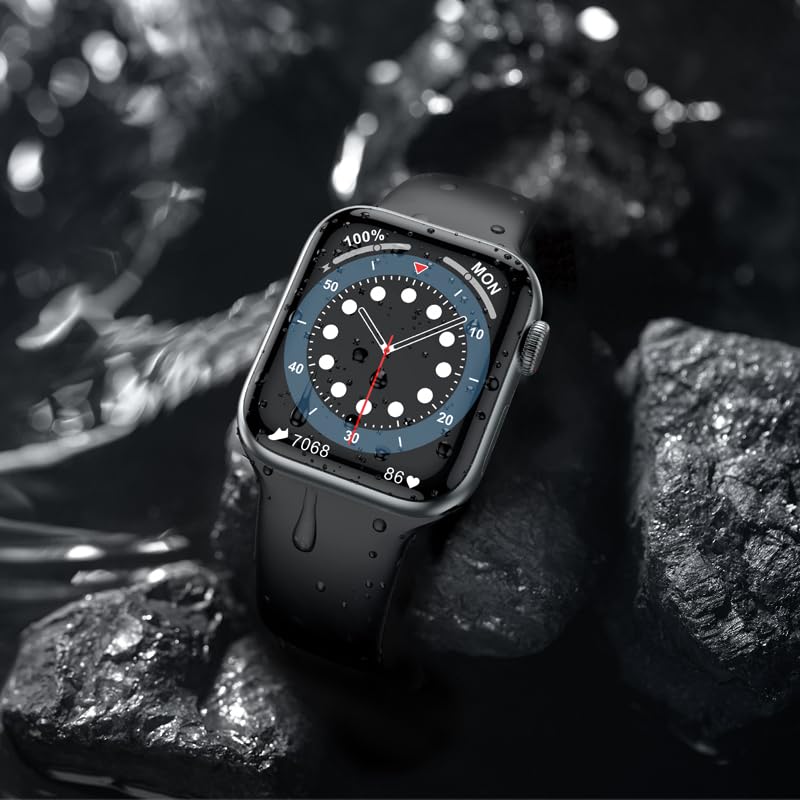

Figure 6: The HOCO Y1 Pro Smart Watch partially submerged in water, demonstrating its IP68 water resistance.
Troubleshooting
If you encounter issues with your HOCO Y1 Pro Smart Watch, refer to the following common solutions:
- Watch not turning on: Ensure the watch is fully charged. Connect it to the charger for at least 30 minutes.
- Cannot pair with smartphone:
- Ensure Bluetooth is enabled on your phone and the watch.
- Make sure the watch is within range of your phone.
- Restart both your watch and smartphone.
- Clear Bluetooth cache on your phone (if applicable) and try pairing again.
- Inaccurate health data: Ensure the watch is worn snugly on your wrist, not too tight or too loose. Clean the sensors on the back of the watch.
- Notifications not received: Check app permissions on your smartphone to ensure the companion app has access to notifications. Verify that notifications are enabled within the watch's settings and the companion app.
- Short battery life: Reduce screen brightness, disable unnecessary features, or limit continuous heart rate monitoring.
Specifications
| Feature | Specification |
|---|---|
| Brand | HOCO |
| Model | Y1 Pro |
| Display Size | 1.96 Inches |
| Display Resolution | 240 x 285 |
| Display Type | TFT LCD |
| Connectivity | Bluetooth 5.3 |
| Battery Capacity | 280 mAh |
| Battery Life (Average) | 3-7 Days (depending on usage) |
| Water Resistance | IP68 |
| Operating System | Android compatible |
| Memory Storage Capacity | 128 MB |
| Compatible Devices | Smartphone, Tablet (iOS & Android) |
| Special Features | Blood Pressure Monitor, Daily Workout Memory, Heart Rate Monitor & Sports Modes, Voice Call, Wireless Connectivity |
| Item Weight | 60g |
| Package Dimensions | 22 x 7 x 3 cm |
Warranty and Support
Warranty Information
Your HOCO Y1 Pro Smart Watch comes with a 1-Year Limited Warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
Customer Support
For further assistance, technical support, or warranty inquiries, please contact HOCO customer service through the official HOCO website or the contact information provided with your purchase. When contacting support, please have your product model (Y1 Pro) and purchase details ready.
