User Manual: Reflector Rearview Mirror

Introduction

This manual provides instructions for the installation, operation, and maintenance of your SPEDWHEL Reflector Rearview Mirror. Designed for specific electric scooter models including Kaabo Mantis King GT, Wolf Warrior GT, and Wolf King GT Pro, this rearview mirror enhances rider awareness by providing a clear view of the rear surroundings. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Package Contents

Please verify that all items listed below are present in your package:

• 2 x Reflector Rearview Mirrors (Red/Black)
• 2 x Handlebar End Adapters (Red/Silver)
• 2 x Hex Wrenches (for installation)

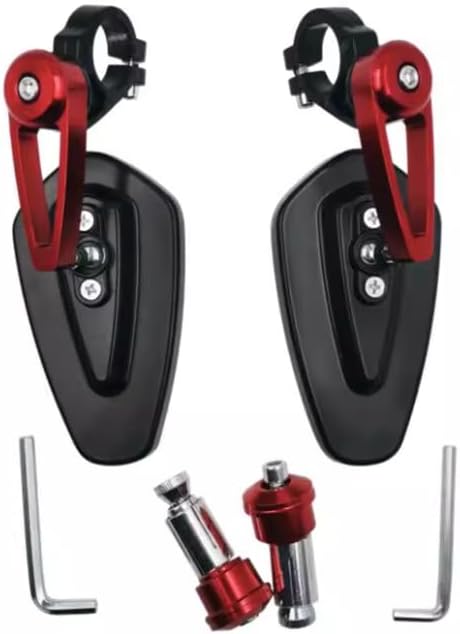

Figure 1: Package contents including two rearview mirrors, two handlebar end adapters, and two hex wrenches.

Figure 2: A closer view of the two rearview mirrors with their red adjustable arms and black mirror housings, alongside the red and silver handlebar end adapters.

Setup and Installation

Follow these steps to properly install the rearview mirrors on your electric scooter. Ensure the scooter is powered off and stable before beginning installation.

1. Prepare Handlebars: If your scooter's handlebars have existing bar-end plugs, remove them.
2. Insert Adapters: Insert the handlebar end adapters into the open ends of your scooter's handlebars. Ensure they fit snugly.
3. Attach Mirrors: Position the mirror clamps over the handlebar end adapters. Use the provided hex wrenches to tighten the screws on the mirror clamps, securing them firmly to the handlebar ends. Do not overtighten.
4. Adjust Angle: Once secured, adjust the angle of the mirror to provide the best possible rear view while seated on the scooter. The mirror arm allows for rotational adjustment.

Figure 3: An illustration showing the rearview mirror mounted on the handlebar of an electric scooter, with a highlighted inset indicating the mirror's position relative to the rider.

Figure 4: A detailed view of the two rearview mirrors, showing the mounting clamps and the included hex wrenches used for tightening the screws.

Operating Instructions

The SPEDWHEL Reflector Rearview Mirror is designed for simple operation and adjustment.

• Pre-Ride Check: Before each ride, ensure both mirrors are securely fastened and provide an unobstructed view of the area behind you.
• Adjusting View: The mirror head can be rotated and tilted to achieve the optimal viewing angle. Make adjustments while stationary to avoid distraction during operation.
• Convex Lens: The mirrors feature a convex lens, which provides a wider field of view. Objects in the mirror will appear smaller and farther away than they actually are. Exercise caution when judging distances.

Maintenance

Regular maintenance will ensure the longevity and performance of your rearview mirrors.

• Cleaning: Clean the mirror surface with a soft, damp cloth and mild soap. Avoid abrasive cleaners or materials that could scratch the mirror.
• Inspection: Periodically check all mounting screws and pivot points for tightness. Retighten if necessary using the appropriate hex wrench.
• Storage: If storing the scooter for an extended period, ensure the mirrors are clean and protected from direct impact.

Troubleshooting

If you encounter issues with your rearview mirrors, refer to the following common problems and solutions:

Specifications

Warranty and Support

Information regarding product warranty and customer support was not provided in the available data. For warranty claims, technical assistance, or further inquiries, please contact the manufacturer, SPEDWHEL, directly through their official website or authorized retailers.
