FULLJA 17-inch Dual-WiFi Digital Picture Frame User Manual

1. Introduction

This user manual provides comprehensive instructions for the setup, operation, and maintenance of your FULLJA 17-inch Dual-WiFi Digital Picture Frame. This device allows you to instantly share photos and videos with loved ones from anywhere using the VPhoto app or email, supporting both 2.4 GHz and 5 GHz Wi-Fi networks. With its large display, ample storage, and versatile features, it is designed to preserve and display your precious memories with ease.

2. Safety Information

Please read all safety instructions carefully before using the device to ensure proper operation and to prevent damage or injury. Keep this manual for future reference.

• Do not expose the device to water or excessive moisture.
• Avoid placing the device near heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Use only the power adapter supplied with the device.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the device.
• Unplug the device during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Clean only with a dry cloth.

3. Package Contents

Verify that all items are present in the package:

• 1x FULLJA 17-inch Digital Picture Frame
• 1x User Manual
• 1x Power Adapter
• 1x Bracket (for stand)
• 1x Remote Control
• 1x Micro USB Cable

Image: FULLJA Brand Logo

This image displays the official FULLJA brand logo, typically found on product packaging and documentation.

Image: FULLJA 17-inch Digital Picture Frame

This image shows the 17-inch FULLJA Digital Picture Frame in a vertical orientation, resting on a surface.

4. Product Overview

4.1. Components and Controls

Familiarize yourself with the various parts of your digital picture frame:

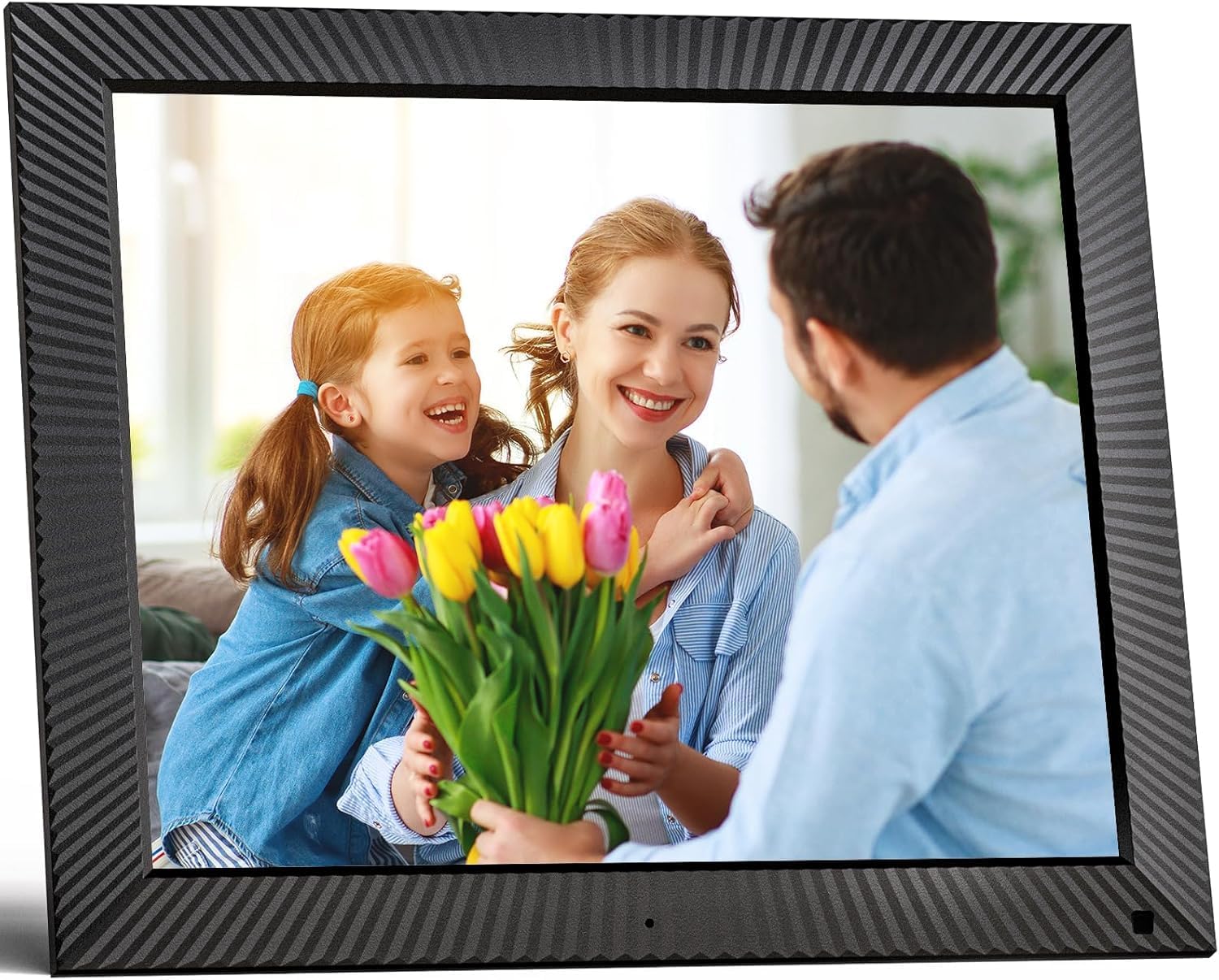

Image: Front view of the FULLJA 17-inch Digital Picture Frame

This image displays the front of the digital picture frame, showcasing its large screen with a family photo displayed. The frame has a textured black border.

Image: Features of the FULLJA 17-inch Digital Picture Frame

This image highlights key features of the 17-inch digital picture frame, including its touch screen, HD 1280x1024 pixel resolution, 4:3 aspect ratio, and remote control functionality. It shows the frame in both landscape and portrait orientations, with a view of the back panel and stand.

• Display Screen: 17-inch IPS display with 1280x1024 resolution. Touch-enabled for direct interaction.
• Power Button: Located on the back or side, used to turn the frame on/off or put it into standby.
• USB Port: For connecting USB sticks to transfer photos/videos.
• TF Card Slot: For inserting TF (MicroSD) cards (up to 64GB) to expand storage or transfer media.
• Micro USB Port: For connecting to a computer for data transfer or firmware updates.
• DC Power Input: For connecting the power adapter.
• Motion Sensor: Detects presence to automatically turn the screen on/off, saving energy.
• Built-in Speaker: For audio playback with videos or background music.
• Wall Mount Holes: VESA compatible holes on the back for wall mounting.
• Stand Bracket: Attachable bracket for desktop placement in portrait or landscape orientation.

4.2. Remote Control

The included remote control provides convenient access to various functions without touching the screen.

• Power: Turn the frame on/off.
• Menu/Settings: Access the main menu and settings.
• Navigation Buttons (Up/Down/Left/Right): Navigate through menus and options.
• OK/Enter: Confirm selections.
• Back/Exit: Go back to the previous screen or exit a menu.
• Volume +/-: Adjust audio volume.
• Play/Pause: Control media playback.
• Next/Previous: Skip to the next or previous photo/video.

5. Setup

5.1. Initial Power On

1. Unpack the digital picture frame and all accessories.
2. Attach the stand bracket to the back of the frame if you intend to place it on a desk or shelf. Ensure it is securely fastened.
3. Connect the power adapter to the DC power input port on the frame, then plug the adapter into a wall outlet.
4. The frame will automatically power on or you may need to press the power button.
5. Follow the on-screen prompts to select your language and time zone.

5.2. Connecting to Wi-Fi

A Wi-Fi connection is essential for sharing photos via the app or email.

1. From the main menu, navigate to Settings.
2. Select Wi-Fi.
3. The frame will scan for available networks. Select your desired 2.4 GHz or 5 GHz network from the list.
4. Enter your Wi-Fi password using the on-screen keyboard.
5. Tap Connect. Once connected, a Wi-Fi icon will appear on the screen.

Image: Digital Picture Frame with Wi-Fi Sharing

This image illustrates the capability of the digital picture frame to share photos and videos wirelessly via Wi-Fi. It shows the frame displaying a family photo, with a smartphone in the foreground indicating app-based sharing.

5.3. Installing the VPhoto App

The VPhoto app is available for both iOS and Android devices and is the primary method for sharing content remotely.

1. Search for "VPhoto" in the Apple App Store (for iOS) or Google Play Store (for Android).
2. Download and install the app on your smartphone or tablet.
3. Open the VPhoto app and create an account or log in.
4. To connect your frame, go to the Settings menu on your digital picture frame and find the unique binding code.
5. In the VPhoto app, select Add Device and enter the binding code displayed on your frame.
6. Once connected, you can start sending photos and videos to your frame. Up to 30 app accounts can be bound to one frame.

Image: Sharing Options for Digital Picture Frame

This image demonstrates the various ways to share content with the digital picture frame, including the free VPhoto app for iOS and Android, unlimited cloud storage with 32GB built-in, and the ability to invite multiple family members to share. It shows the frame displaying a photo and a smartphone screen with the VPhoto app interface.

6. Operating Instructions

6.1. Sending Photos and Videos

There are multiple ways to send media to your FULLJA digital picture frame:

• Via VPhoto App: Open the VPhoto app, select the photos/videos you wish to send (up to 50 at a time), choose your connected frame, and tap send.
• Via Email: Each frame has a unique email address. You can send photos and short videos as attachments to this email address. The frame will automatically receive and display them.
• Via USB Stick/TF Card: Insert a USB stick or TF card into the respective port. Navigate to the Photo Folder or Video section on the frame, select the external storage, and copy files to the internal memory if desired.

Image: Digital Picture Frame with 32GB Internal Storage

This image highlights the frame's built-in 32GB internal storage, capable of storing approximately 80,000+ photos. The main frame displays a photo of a mother and child, surrounded by smaller circular images representing the vast number of memories that can be stored.

6.2. Basic Functions

• Slideshow Playback: Photos and videos will automatically play in a slideshow. You can adjust the display interval and transition effects in the settings.
• Photo/Video Browsing: Tap the screen or use the remote to manually browse through your media.
• Volume Control: Adjust the volume for videos or background music using the touch screen controls or the remote.
• Auto Rotate: The frame automatically adjusts the display orientation (portrait or landscape) based on how it is positioned.

6.3. Advanced Functions

• Motion Sensor: Enable this feature in settings to have the frame automatically turn on when motion is detected and off when no motion is detected for a set period, saving energy.
• Auto Screen On/Off: Set specific times for the frame to automatically turn on and off daily.
• Clock & Calendar: Access the built-in clock and calendar functions from the main menu.
• Alarm: Set alarms for reminders.
• Split Screen: Display multiple photos simultaneously (check settings for layout options).
• Text Captions: Add captions to your photos via the VPhoto app.
• Music Playback: Play background music during slideshows (ensure music files are on the frame's internal storage or connected USB/TF card).

Image: Digital Picture Frame with Function Icons

This image showcases the multi-functional capabilities of the digital picture frame, including Wi-Fi connectivity, weather display, clock, calendar, photo and video playback, music, and slideshow features. Two frames are shown, one on a wall and one on a cabinet, with icons representing these functions below.

7. Maintenance

7.1. Cleaning the Frame

• Always unplug the frame before cleaning.
• Use a soft, dry, lint-free cloth to gently wipe the screen and frame.
• For stubborn smudges on the screen, lightly dampen the cloth with water or a screen-cleaning solution (specifically designed for electronics) and wipe carefully. Do not spray liquid directly onto the screen.
• Avoid using abrasive cleaners, waxes, or solvents as they may damage the surface.

7.2. Software Updates

Periodically check for software updates in the frame's settings menu to ensure optimal performance and access to new features. Updates are typically downloaded and installed over Wi-Fi.

7.3. Storage Management

While the frame has 32GB of internal storage and unlimited cloud storage, you may occasionally want to manage local files:

• Access the Photo Folder or File Manager in the settings to view, delete, or organize stored media.
• You can transfer files to/from a USB stick or TF card to manage internal storage.

8. Troubleshooting

If you encounter issues with your digital picture frame, refer to the following common problems and solutions:

9. Specifications

10. Warranty and Support

10.1. Limited Warranty

The FULLJA 17-inch Dual-WiFi Digital Picture Frame comes with a one-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by accident, misuse, abuse, neglect, unauthorized modification, or improper installation.

To make a warranty claim, please retain your proof of purchase and contact FULLJA customer support.

10.2. Customer Support

For any questions, technical assistance, or support inquiries, please contact FULLJA customer service. We offer lifetime support and aim to provide a prompt response within 24 hours.

Please refer to the contact information provided on the product packaging or the official FULLJA website for the most up-to-date support channels.
