OSRAM LED TUBE T9C EM 22: Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your OSRAM LED TUBE T9C EM 22. This ring-shaped LED tube is designed as an energy-efficient alternative to classic T9 fluorescent lamps, offering a long lifespan and daylight white light.

Key features include:

• Efficient light with good quality and 6500K daylight white color.
• High color homogeneity and flicker-free instant start.
• Long service life of up to 30,000 hours.
• Energy saving of up to 50% compared to traditional fluorescent tubes.
• RoHS compliant, free from hazardous substances like mercury, lead, cadmium, and chromium IV.
• Suitable for general lighting in ambient temperatures from -20 to +45 ℃.

2. Safety Information

Please read and understand all safety instructions before installing or operating the product. Failure to follow these instructions may result in electric shock, fire, or other hazards.

• Electrical Safety: Always disconnect power at the circuit breaker or fuse box before installation, removal, or maintenance.
• Qualified Personnel: Installation should be performed by a qualified electrician or competent person.
• Compatibility: This LED tube is designed for use with electromagnetic ballasts (KVG/VVG) and requires a starter. Do not connect directly to mains voltage without proper modification.
• Handling: Handle the lamp with care to avoid breakage. Do not apply excessive force.
• Operating Environment: Ensure the operating environment is within the specified temperature range (-20 to +45 ℃). For outdoor use, ensure the fixture is suitable for outdoor conditions.

3. Product Overview

The OSRAM LED TUBE T9C EM 22 is a circular LED lamp designed to replace traditional T9 fluorescent tubes. It features a G10Q base.

Figure 1: OSRAM LED TUBE T9C EM 22 ring-shaped LED lamp.

Dimensions

The lamp has a diameter of 31.2 cm (312 mm) and a thickness of 30 mm. The internal diameter is approximately 212 mm.

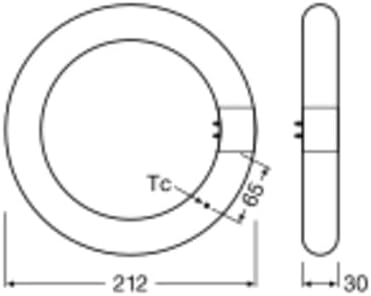

Figure 2: Technical drawing showing the dimensions of the LED tube. Outer diameter is 312mm, inner diameter is 212mm, and thickness is 30mm.

4. Setup and Installation

This LED tube is designed for easy replacement of existing T9 fluorescent lamps in fixtures with electromagnetic ballasts (KVG/VVG). It requires the use of the included LED starter.

Installation Steps:

1. Power Off: Ensure the power supply to the fixture is completely switched off at the main circuit breaker before beginning installation.
2. Remove Old Lamp: Carefully remove the existing T9 fluorescent lamp from the fixture.
3. Replace Starter: Locate the starter for the fluorescent lamp. Remove the old starter and replace it with the LED starter provided with your OSRAM LED TUBE T9C EM 22. This LED starter acts as a short-circuiting device for the ballast.
4. Install LED Tube: Insert the OSRAM LED TUBE T9C EM 22 into the lamp holders of the fixture, ensuring it is securely seated. The 4-pin connector is slightly rotatable to align the non-emissive side away from the desired light direction.
5. Power On: Restore power to the fixture. The LED tube should illuminate instantly without flickering.

Important Note: This LED tube is not designed for direct connection to mains voltage without the specific LED starter. The included starter is crucial for proper and safe operation in existing KVG/VVG fixtures. An adhesive label is provided to mark the fixture, indicating that the wiring has been modified for LED use and is no longer suitable for traditional fluorescent lamps.

Figure 3: Example of the OSRAM LED TUBE T9C EM 22 installed in a compatible fixture.

5. Operating Instructions

Once installed, the OSRAM LED TUBE T9C EM 22 operates like a standard light source. Simply switch on the power to the fixture, and the LED tube will provide instant, flicker-free illumination. There are no special operating procedures required beyond standard light switch control.

The lamp is suitable for general lighting in various applications, including household use, corridors, stairs, car parks, garages, and workshops. It can also be used for decorative purposes.

6. Maintenance

The OSRAM LED TUBE T9C EM 22 is designed for long-term, maintenance-free operation. Its lifespan is rated for up to 30,000 hours.

Cleaning:

To clean the lamp, ensure the power is off and the lamp has cooled down. Use a soft, dry, or slightly damp cloth. Do not use abrasive cleaners or solvents, as these can damage the lamp's surface.

Disposal:

At the end of its life, dispose of the LED tube according to local regulations for electronic waste. Do not dispose of with general household waste.

7. Troubleshooting

If the LED tube does not function correctly, consider the following:

• No Light:
  • Check if the power supply to the fixture is on.
  • Ensure the LED tube is correctly seated in the lamp holders.
  • Verify that the LED starter is correctly installed and functional.
  • Confirm the fixture has an electromagnetic ballast (KVG/VVG). This LED tube is not compatible with electronic ballasts (EVG) without rewiring.
• Flickering:
  • Ensure the LED tube and starter are properly installed.
  • Check for stable power supply.

If issues persist after checking these points, consult a qualified electrician.

8. Specifications

Energy Efficiency Label

Figure 4: EU Energy Label for the LED tube, indicating Energy Class E and 11 kWh/1000h consumption.

For more details, visit the EPREL database: https://eprel.ec.europa.eu/qr/1340158

9. Warranty and Support

For warranty information and customer support, please refer to the official OSRAM website or contact your local OSRAM distributor. Keep your purchase receipt as proof of purchase.
