Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of the Access Lighting 62605LEDD-SILV/ACR Float Vanity Light. Please read this manual thoroughly before beginning installation and retain it for future reference.
Safety Information
WARNING: Risk of Electric Shock.
- Always turn off the power at the main circuit breaker or fuse box before beginning installation or performing any maintenance.
- Consult a qualified electrician if you are unsure about the installation process.
- All wiring connections must be in accordance with local and national electrical codes (NEC).
- Do not install this fixture in wet locations unless specifically rated for such use. This fixture is intended for dry or damp locations.
- Ensure all connections are secure and properly insulated.
CAUTION: This fixture contains an integrated LED module. Do not attempt to replace the LED module yourself. Contact a qualified professional for service.
Package Contents
Carefully unpack your new fixture and lay out all parts on a clear area. Ensure all items listed below are present before discarding packaging materials.
- Float Vanity Light Fixture (1)
- Mounting Bracket (1)
- Mounting Screws (2)
- Wire Nuts (3)
- Instruction Manual (1)

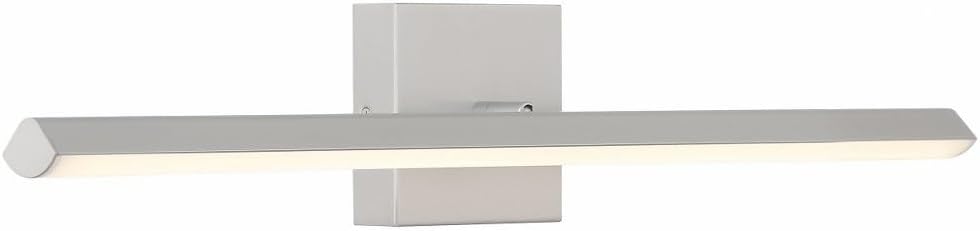

Image: The Access Lighting Float Vanity Light Fixture, silver finish, showing the integrated LED bar and the rectangular backplate.
Setup and Installation
- Prepare for Installation:
- Turn off power at the circuit breaker.
- Remove the old fixture if applicable.
- Ensure the junction box is clean and clear.
- Attach Mounting Bracket:
Secure the mounting bracket to the junction box using the provided mounting screws. Ensure the bracket is firmly attached and level.
Image: A close-up view of the vanity light's backplate, which serves as the mounting bracket, showing screw holes for attachment to a standard electrical junction box.
- Make Electrical Connections:
- Connect the fixture's black wire to the house's black (hot) wire.
- Connect the fixture's white wire to the house's white (neutral) wire.
- Connect the fixture's ground wire (bare copper or green) to the house's ground wire.
- Secure all connections with wire nuts and wrap with electrical tape for added safety.
- Mount the Fixture:
Carefully align the fixture with the mounting bracket and secure it using the provided screws. Ensure the fixture is flush against the wall and stable.
- Restore Power:
Once the fixture is securely mounted and all connections are made, restore power at the circuit breaker.
Operating Instructions
The Access Lighting Float Vanity Light is designed for simple operation. Once properly installed and power is restored, the light can be turned ON or OFF using a standard wall switch connected to the fixture's circuit.
- Ensure the wall switch is in the "OFF" position before installation.
- After installation, flip the wall switch to the "ON" position to illuminate the fixture.
Maintenance
This LED vanity light requires minimal maintenance.
- Cleaning: To clean the fixture, ensure the power is off. Use a soft, dry or slightly damp cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
- LED Module: The integrated LED module is designed for long life (up to 50,000 hours) and is not user-replaceable. If the LED module fails, contact customer support for assistance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. | Check circuit breaker or fuse. Ensure wall switch is ON. |
| Light flickers or dims. | Loose wiring connection. | Turn off power and check all wire connections. Consult an electrician if necessary. |
| Fixture is hot to the touch. | Normal operation for LED fixtures (some heat is expected). | If excessively hot or emitting smoke/smell, turn off power immediately and contact a qualified electrician. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 62605LEDD-SILV/ACR |
| Brand | Access Lighting |
| Dimensions (L x W x H) | 18.25 x 4.25 x 4.5 inches |
| Weight | 1.64 pounds |
| Material | Aluminum (Fixture Body), Glass (Shade) |
| Finish | Silver |
| Light Source | Integrated LED |
| Wattage | 9 Watts |
| Voltage | 120 Volts |
| Luminous Flux | 1000 Lumens |
| Color Temperature | 3000 Kelvin |
| CRI | 90.00 |
| Average Life | 50,000 Hours |
| Certifications | ADA Certified, UL Listed |
| Light Direction | Up/Down Light |
Warranty and Support
For warranty information or technical support, please contact Access Lighting directly. Keep your purchase receipt as proof of purchase.
Access Lighting Contact Information:
- Refer to the original packaging or the Access Lighting official website for the most current contact details.
- When contacting support, please have your model number (62605LEDD-SILV/ACR) and date of purchase available.
