CLEANmaxx Cordless Handheld and Stick Vacuum Cleaner

1. Safety Instructions

Please read all safety instructions carefully before using the appliance. Keep this instruction manual for future reference.

• Always ensure the power adapter is disconnected from the mains before cleaning or performing maintenance.
• Do not use the appliance to vacuum water or other liquids, hot ashes, or sharp objects.
• Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
• Do not operate the vacuum cleaner if the dust container is full or the filter is clogged.
• This appliance is for household use only. Do not use outdoors or on wet surfaces.
• Only use the original power adapter supplied with the appliance for charging.

2. Product Overview

The CLEANmaxx Cordless Handheld and Stick Vacuum Cleaner (Model 11052) offers versatile cleaning for various surfaces, combining powerful suction with cordless flexibility.

2.1 Key Features

• Versatile Use: Easily cleans furniture, car seats, carpets, keyboards, stairs, and more. Perfect for quick and thorough cleaning in any room and car.
• Powerful Suction: Two adjustable power levels for optimal cleaning results on different surfaces like carpets and hard floors.
• Efficient Filtration: Stainless steel and EPA 11 filter ensure reliable absorption of dust and dirt, keeping the air clean. Ideal for homes with allergy sufferers and pets.
• Easy Emptying: The 800 ml dust container empties with a single click. Bagless operation simplifies cleaning and saves on additional costs.
• Cordless and Flexible: Offers unlimited freedom of movement. The adjustable telescopic tube (up to 78 cm) allows reaching difficult areas for flexible and thorough cleaning of your home or car.

Image: The CLEANmaxx vacuum cleaner shown as a full stick vacuum and as a compact handheld unit.

2.2 Components Included

The package includes the following components:

• 1x Cordless Cyclonic Vacuum Cleaner Unit
• 1x Telescopic Tube
• 1x Floor Brush
• 1x Crevice Nozzle
• 1x Combination Nozzle
• 1x Power Adapter
• 1x Wall Mount with Fixing Material

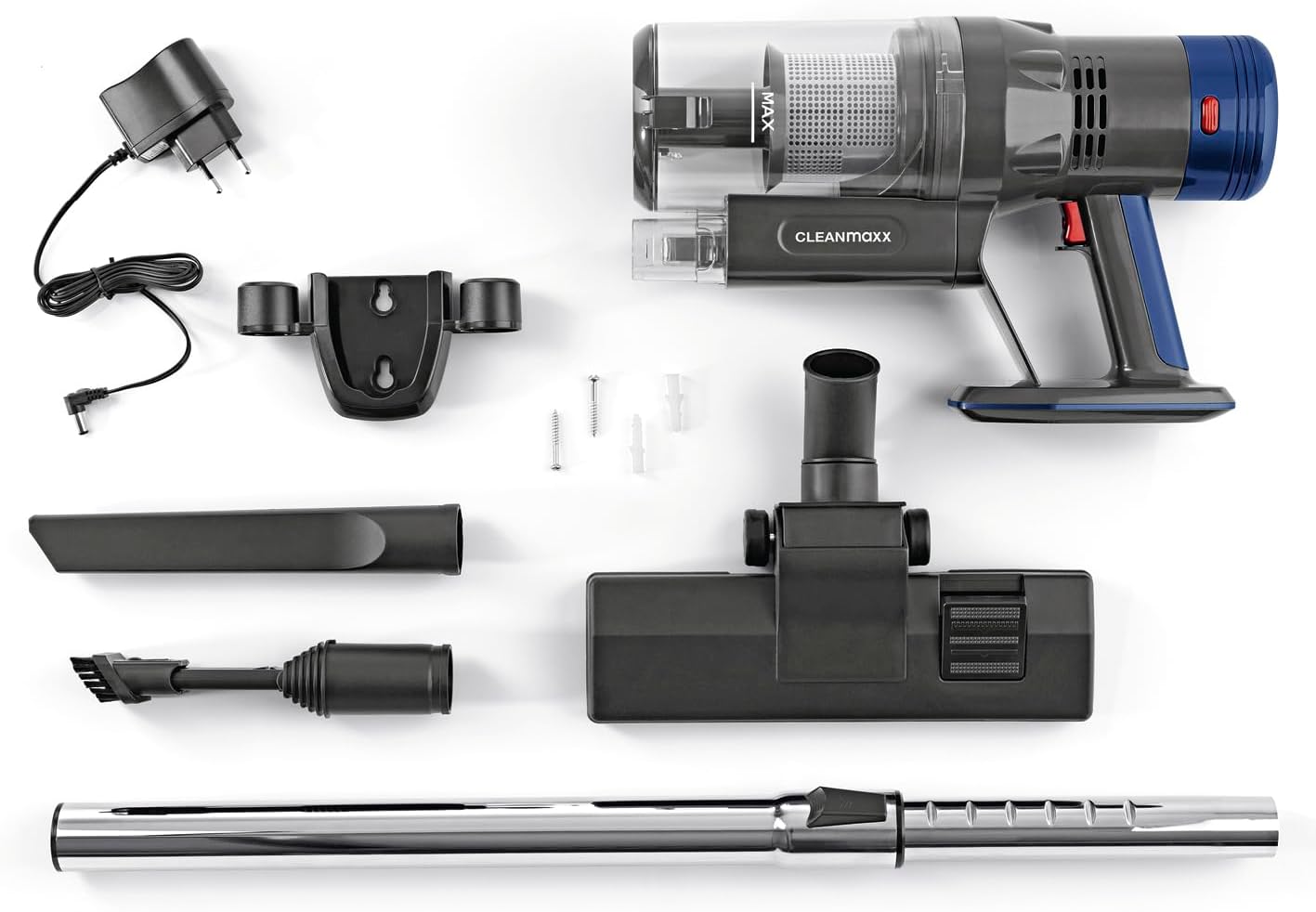

Image: A detailed view of all included accessories and the main vacuum unit.

3. Setup

Follow these steps to assemble and prepare your CLEANmaxx vacuum cleaner for first use.

1. Charging the Battery: Before first use, fully charge the vacuum cleaner's battery. Connect the power adapter to the charging port on the main unit and plug it into a wall outlet. The charging indicator will show the charging status.
2. Assembling the Stick Vacuum: Insert the telescopic tube into the main vacuum unit until it clicks into place. Then, attach the floor brush to the other end of the telescopic tube.
3. Assembling the Handheld Vacuum: For handheld use, you can directly attach the crevice nozzle or combination nozzle to the main vacuum unit.
4. Wall Mount Installation (Optional): Choose a suitable location for the wall mount. Use the provided fixing material to securely attach the wall mount to a wall. This allows for convenient storage and charging.

Image: The vacuum cleaner conveniently stored on its wall mount.

4. Operating

Your CLEANmaxx vacuum cleaner is designed for efficient and flexible cleaning.

1. Power On/Off: Press the power button on the handle to turn the vacuum cleaner on or off.
2. Adjusting Suction Power: The vacuum cleaner features two suction power levels. Press the power mode button to switch between standard and MAX suction modes, depending on the cleaning task and surface.
3. Using the Telescopic Tube: Adjust the length of the telescopic tube by pressing the release button and extending or retracting it to your desired height for comfortable floor cleaning.
4. Cleaning Different Surfaces:
   • For hard floors and carpets, use the floor brush attachment.
   • For tight spaces, corners, and edges, use the crevice nozzle.
   • For upholstery, car interiors, and delicate surfaces, use the combination nozzle.
5. Battery Runtime: The vacuum cleaner provides up to 35 minutes of runtime on a full charge, depending on the selected power level.

Image: Demonstrates the vacuum cleaner being used on a carpeted floor.

Image: Shows the handheld unit with the crevice tool cleaning a sofa.

5. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

1. Emptying the Dust Container: The 800 ml dust container should be emptied regularly, especially when the MAX line is reached. Press the release button to detach the dust container from the main unit, then open the bottom flap to empty the contents into a waste bin.
2. Cleaning the Filters: The stainless steel pre-filter and EPA 11 filter should be cleaned regularly to maintain suction power. Twist to remove the filter assembly from the dust container. Tap the filters gently to remove loose dust. For a more thorough clean, the filters can be rinsed under running water. Ensure they are completely dry before reassembling.
3. Cleaning Attachments: Wipe down the telescopic tube and attachments with a damp cloth as needed. Ensure no blockages are present in the nozzles or brushes.
4. Storage: Store the vacuum cleaner in a dry place, preferably on its wall mount, away from direct sunlight and extreme temperatures.

Image: Visual representation of the dust container, highlighting its easy emptying feature, and the wall mount for convenient storage.

6. Troubleshooting

If you encounter issues with your vacuum cleaner, refer to the following common problems and solutions:

7. Specifications

8. Warranty and Support

For information regarding warranty, repairs, or spare parts, please contact the manufacturer or your point of purchase. Keep your proof of purchase for any warranty claims.

Spare parts availability information is not provided in the product details. Please contact CLEANmaxx customer support for further assistance.
