Olideauto Wireless Rain Sensor Instruction Manual

1. Introduction

The Olideauto Wireless Rain Sensor (Model OS1003DC RS) is designed to enhance the functionality of your Olideauto OS1003DC Series Smart WiFi Automatic Window Opener. This sensor detects rainfall and automatically triggers your window opener to close the window, providing protection against rain damage and improving home automation.

2. Product Overview

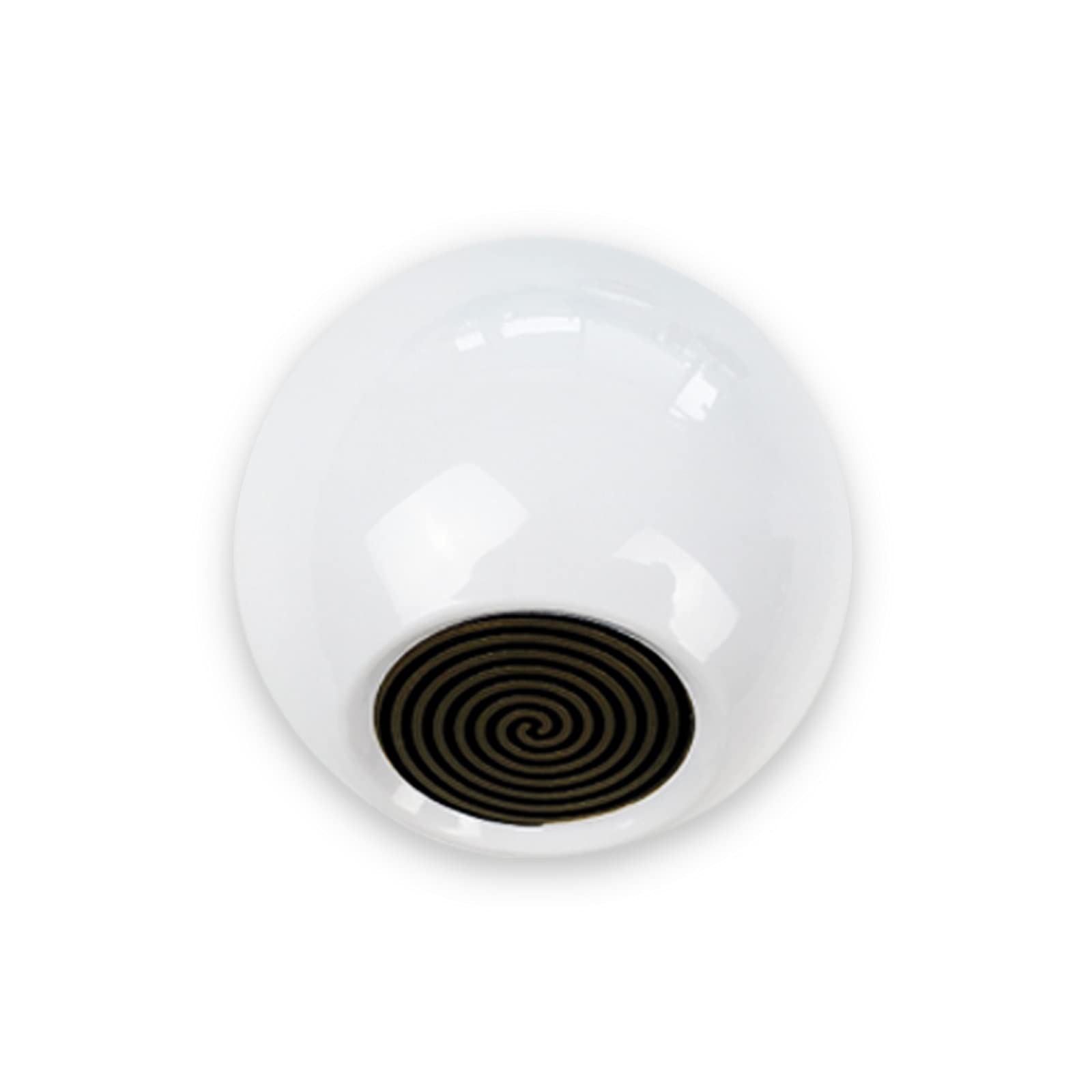

The wireless rain sensor is a compact, weather-resistant device that continuously monitors for precipitation. Upon detecting rain, it sends a signal to a compatible Olideauto OS1003DC Series automatic window opener, initiating the window closing sequence. This system ensures your indoor environment remains dry and protected without manual intervention.

Key Features:

• Automatic window closing upon rain detection.
• Wireless communication with compatible window openers.
• Designed for outdoor installation.
• Compatible with Olideauto OS1003DC Series Smart WiFi Automatic Window Openers.

This image illustrates the Olideauto Wireless Rain Sensor installed on the exterior of a window frame. It highlights its compatibility with the Olideauto OS1003DC series automatic window opener (shown in an inset) and integration with smart home platforms like Alexa, Apple HomeKit (Siri), Google Assistant, and Tuya. The image also shows a smartphone displaying the control interface for the window opener, indicating its smart functionality. The sensor's primary role is to detect rain and trigger the automatic closing of the window.

3. Safety Information

• Read all instructions carefully before installation and use.
• Ensure the sensor is installed securely in a location where it can accurately detect rain without obstruction.
• Do not attempt to disassemble or modify the sensor. This may void the warranty and pose safety risks.
• Keep the sensor away from extreme temperatures, direct sunlight for prolonged periods, and corrosive substances.
• Ensure all electrical connections for the associated window opener are properly installed and grounded according to local codes.

4. Package Contents

• Olideauto Wireless Rain Sensor (Model OS1003DC RS)
• Mounting hardware (screws, anchors) - (Typically included, verify with actual product)
• User Manual (this document)

5. Installation and Setup

Proper installation of the rain sensor is crucial for its effective operation.

5.1 Mounting the Rain Sensor

1. Choose a Location: Select an outdoor location on or near the window frame where the sensor can be exposed directly to rain without being shielded by eaves, overhangs, or other structures. Ensure it is easily accessible for maintenance.
2. Secure Mounting: Use the provided mounting hardware to securely attach the rain sensor to the chosen surface. Ensure it is level to allow for proper water drainage and detection.
3. Orientation: Position the sensor so its detection surface faces upwards, allowing rain to collect on it.

5.2 Pairing with OS1003DC Series Window Opener

Refer to the instruction manual of your Olideauto OS1003DC Series Smart WiFi Automatic Window Opener for specific pairing instructions. Generally, the process involves:

1. Ensure both the rain sensor and the window opener are powered on.
2. Activate the pairing mode on your OS1003DC Series window opener (usually by pressing a button on the opener or through its mobile application).
3. Initiate the pairing sequence on the rain sensor (if applicable, refer to sensor-specific instructions or it may pair automatically when in range of the opener in pairing mode).
4. Confirm successful pairing through the indicator lights on the devices or via the mobile application for the window opener.

Once paired, the rain sensor will communicate wirelessly with the window opener to trigger automatic closing when rain is detected.

6. Operation

The Olideauto Wireless Rain Sensor operates automatically once installed and paired with a compatible window opener.

• Rain Detection: When rain falls on the sensor's detection surface, it registers the presence of water.
• Signal Transmission: Upon detection, the sensor wirelessly transmits a signal to the paired Olideauto OS1003DC Series window opener.
• Window Closing: The window opener receives the signal and automatically initiates the closing of the window. This action helps protect your interior from water damage.
• Smart Home Integration: While the rain sensor itself is a trigger, the OS1003DC Series window opener supports integration with smart home systems like Amazon Alexa, Apple HomeKit (Siri), Google Assistant, and Tuya. This allows for voice control and advanced automation of your windows, though the rain sensor's function remains automatic.

7. Maintenance

Regular maintenance ensures optimal performance and longevity of your rain sensor.

• Cleaning: Periodically inspect the sensor's detection surface for dirt, dust, leaves, or other debris. Gently clean the surface with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Battery Check: If the sensor uses batteries (check product specifications), monitor battery life and replace them as needed to ensure continuous operation.
• Connection Check: Occasionally verify that the sensor is securely mounted and that its wireless connection to the window opener is stable.

8. Troubleshooting

If you encounter issues with your Olideauto Wireless Rain Sensor, refer to the following troubleshooting guide:

9. Specifications

10. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your original purchase or contact Olideauto customer service directly. Ensure you have your product model number (OS1003DC RS) and purchase details available when contacting support.

Olideauto Customer Service:

• Visit the official Olideauto website for contact details.
• Refer to your product packaging for specific support contacts.
