1. Introduction
This instruction manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hydro Smart HS00R-3SPDCSTI Three Speed High Performance Circulating Pump. Please read this manual thoroughly before installation and operation to ensure proper function and to prevent damage or injury.
Safety Information: Always disconnect power before performing any service or maintenance. Ensure all electrical connections comply with local codes. This pump is designed for circulating water in closed hydronic systems. Do not use for flammable liquids or in explosive atmospheres.
2. Product Overview
The Hydro Smart HS00R-3SPDCSTI is a robust three-speed circulating pump designed for high performance and energy efficiency. Its cast iron construction ensures durability, while advanced features provide reliable operation.
Key Features:
- 3 Speed Motor Technology: Allows for optimized performance and energy consumption.
- Removable Integrated Check Valve: Simplifies maintenance and prevents backflow.
- Class H Insulation: Provides enhanced motor protection and longevity.
- Prevents Thermal Siphoning: Maintains system temperature stability.
- Quiet and Low Power Consumption: Ensures efficient and unobtrusive operation.
- Built-In Motor Protection: Extends the lifespan of the pump.
Included Components:
- 1 - Hydro Smart HS00R-3SPDCSTI Three Speed High Performance Circulating Pump
- 2 - EPDM Rubber Gaskets

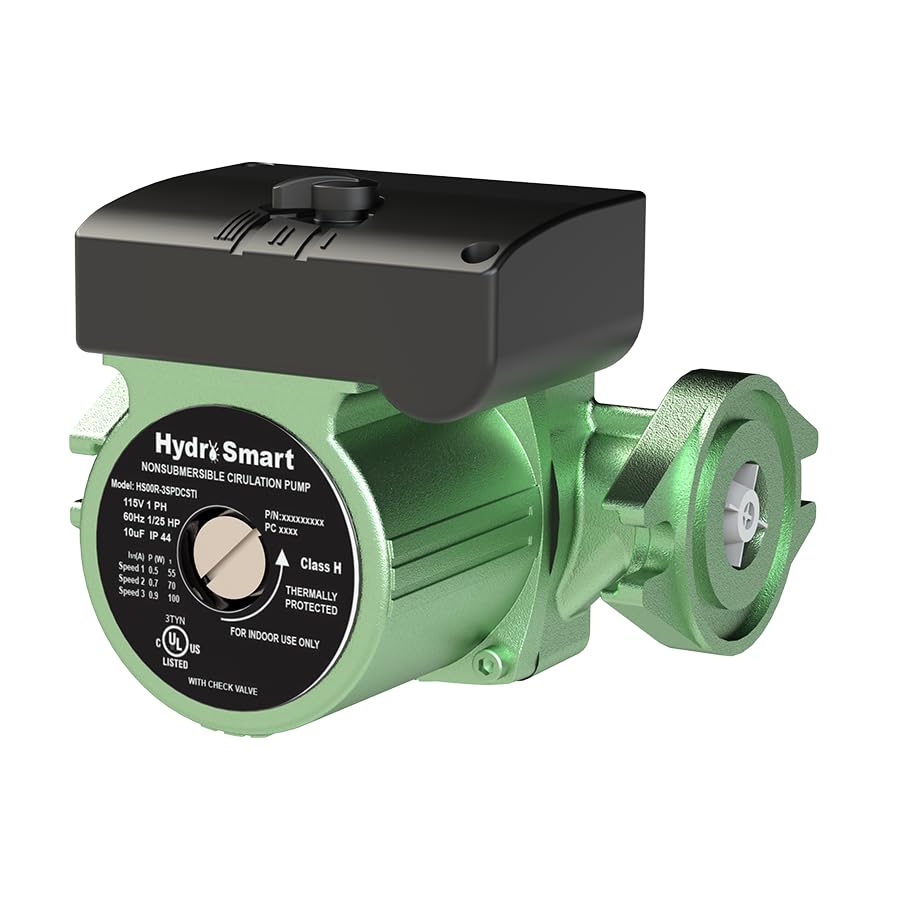

Figure 2.1: Hydro Smart HS00R-3SPDCSTI Three Speed High Performance Circulating Pump. This image shows the main unit of the circulating pump, highlighting its compact design and cast iron housing.
3. Setup and Installation
Proper installation is crucial for the pump's performance and longevity. Consult a qualified professional if you are unsure about any steps.
- Power Disconnection: Ensure the main power supply to the system is completely disconnected before beginning installation.
- Mounting Location: Install the pump in an accessible location, ensuring adequate space for maintenance and ventilation. The pump should be mounted horizontally or vertically with the motor above the pump housing.
- Piping Connections: Connect the pump to the system piping using appropriate fittings. Ensure the flow direction matches the arrow on the pump housing. Use the provided EPDM rubber gaskets to ensure a watertight seal. Do not overtighten connections.
- Electrical Connections: Connect the pump to a 115V, 60Hz power supply. All electrical wiring must conform to local electrical codes and standards. Ensure proper grounding.
- System Filling and Purging: After installation, fill the system with water and thoroughly purge all air from the system before operating the pump. Air in the system can cause noise and damage to the pump.
4. Operating Instructions
Once installed and the system is filled and purged, the pump is ready for operation.
- Power On: Restore power to the system.
- Speed Selection: The pump features a 3-speed motor. Locate the speed selector switch (typically on the motor housing) and choose the desired speed (Low, Medium, or High) based on system requirements. Higher speeds provide greater flow and head pressure.
- Monitoring: Observe the pump during initial operation for any unusual noises, leaks, or vibrations. The pump is designed for quiet operation.
- Continuous Operation: The pump is designed for continuous duty in appropriate applications.
5. Maintenance
Regular maintenance ensures optimal performance and extends the life of your circulating pump.
- Annual Inspection: Annually inspect the pump for any signs of wear, corrosion, or leaks. Check electrical connections for tightness.
- System Water Quality: Maintain good system water quality to prevent scale buildup and corrosion within the pump and piping.
- Cleaning: Keep the exterior of the pump clean and free from dust and debris to ensure proper motor cooling.
- Check Valve: The removable integrated check valve can be inspected and cleaned if necessary. Ensure power is disconnected before accessing.
- Motor Protection: The built-in motor protection system will automatically shut off the pump in case of overload or overheating. If this occurs, identify and resolve the cause before restarting.
6. Troubleshooting
Refer to the following table for common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power; tripped circuit breaker; motor protection activated; seized impeller. | Check power supply and circuit breaker. Allow motor to cool if protection activated. Inspect impeller for obstructions. |
| Low flow or no flow | Air in system; closed valves; clogged impeller; incorrect speed setting. | Purge air from system. Open all necessary valves. Inspect and clean impeller. Adjust speed setting. |
| Excessive noise or vibration | Air in system; cavitation; loose mounting; foreign object in pump. | Purge air from system. Ensure adequate system pressure. Tighten mounting bolts. Inspect pump for obstructions. |
| Leakage | Loose connections; damaged gaskets. | Tighten connections. Replace EPDM rubber gaskets if damaged. |
If the problem persists after attempting these solutions, contact Hydro Smart customer support or a qualified service technician.
7. Specifications
| Attribute | Detail |
|---|---|
| Brand | Hydro Smart |
| Model Number | HS00R-3SPDCSTI |
| Power Source | 115V, 60Hz |
| Voltage | 115 Volts (AC) |
| Material | Cast Iron |
| Style | Circulator |
| Item Weight | 3 kg 330 g |
| Package Dimensions | 19.05 x 18.42 x 15.24 cm |
| UPC | 858981002366 |
8. Warranty and Support
Hydro Smart products are manufactured to high-quality standards and are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Hydro Smart website.
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts, please contact Hydro Smart customer support. Have your model number (HS00R-3SPDCSTI) and purchase date available when contacting support.
Contact Information: Please refer to the Hydro Smart official website or product packaging for the most current customer support contact details.
