Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your DELIPOP 12 Inch LED Ceiling Light. Designed for both indoor and outdoor use, this fixture offers bright, energy-efficient lighting with an IP54 waterproof rating. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Safety Information
Always follow basic safety precautions when installing and operating electrical devices. Failure to do so may result in fire, electric shock, or serious injury.
- Ensure power is turned off at the circuit breaker before installation or maintenance.
- Consult a qualified electrician if you are unsure about any part of the installation process.
- Do not attempt to modify the light fixture.
- The IP54 rating protects against splashing water and dust. Do not submerge the fixture in water.
- Keep packaging materials away from children.
What's in the Box
Verify that all components are present before beginning installation:
- 6 x DELIPOP 12 Inch LED Ceiling Light Fixtures
- 1 x User Manual
- 1 x Installation Package (screws, wall anchors, wire connectors)

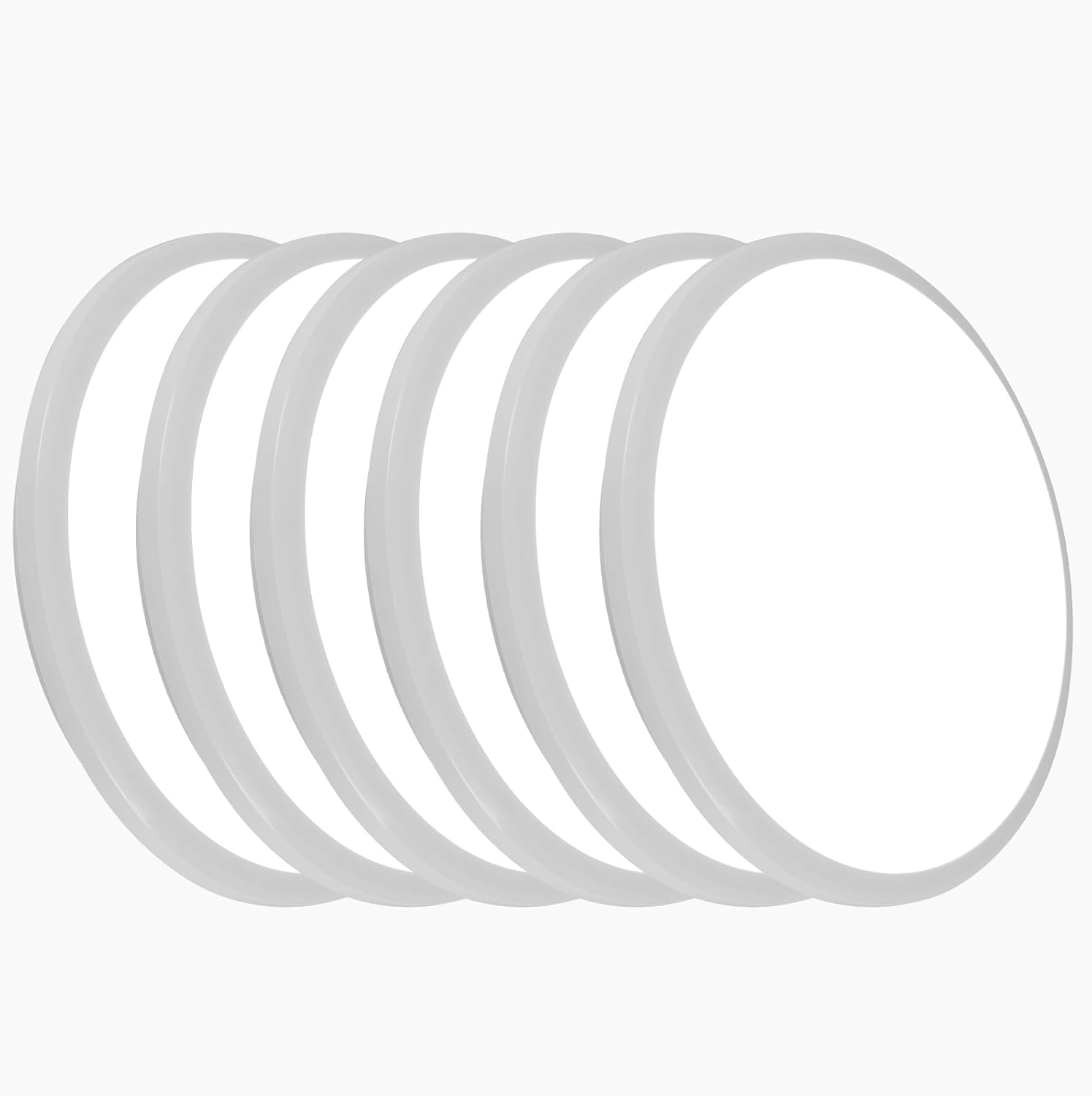

Image: Contents of the DELIPOP 6-pack ceiling light package.
Setup and Installation
The DELIPOP LED ceiling light is designed for easy installation. Follow these steps carefully:
- Prepare the Fixture: Rotate the mounting bracket from the back of the lamp body to detach it.
Image: Step 1 - Rotate and remove the mounting bracket from the light fixture.
- Mount the Base: Fix the detached mounting base to the ceiling using the provided screws and wall anchors. Ensure it is securely fastened.
Image: Step 2 - Secure the mounting base to the ceiling using screws.
- Connect Wiring: Connect the live wire (L) and the neutral wire (N) from your electrical supply to the corresponding wires on the light fixture using the provided wire connectors. Ensure connections are tight and secure.
Image: Step 3 - Connect the live (L) and neutral (N) wires using wire connectors.
- Attach Lamp Body: Align the lamp body with the mounted base and rotate it clockwise until it locks securely into place.
Image: Step 4 - Rotate the lamp body clockwise to secure it to the base.
Video: Official DELIPOP installation guide for the 12 Inch Ceiling Light.
Operating Instructions
The DELIPOP LED Ceiling Light operates via a standard wall switch (push button type). Once installed and power is restored, simply use your wall switch to turn the light on or off.
Image: The light provides bright, even, non-flickering illumination for eye protection.
Maintenance
The DELIPOP LED Ceiling Light requires minimal maintenance due to its sealed design.
- Cleaning: Ensure the power is off before cleaning. Wipe the surface of the fixture with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Sealed Design: The IP54 rating and sealed design protect the internal components from dust and insects, reducing the need for frequent internal cleaning.
Image: The sealed design prevents ingress of mosquitoes and dust, ensuring longevity and cleanliness.
Troubleshooting
If you encounter issues with your DELIPOP LED Ceiling Light, consider the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; loose wiring; faulty switch. | Check circuit breaker. Ensure all wire connections are secure. Test the wall switch. |
| Light flickers. | Loose wiring; incompatible dimmer (if applicable, though this model is non-dimmable); power fluctuations. | Check wiring connections. Ensure no dimmer is used with this non-dimmable fixture. Consult an electrician for power issues. |
| Light is dim or inconsistent. | Low voltage; internal component issue. | Verify voltage supply. If problem persists, contact customer support. |
Specifications
| Feature | Detail |
|---|---|
| Brand | DELIPOP |
| Model Name | Ceiling Light |
| Part Number | 30925783 |
| Product Dimensions | 11.8"L x 11.8"W x 1.7"H |
| Item Weight | 7.8 Pounds (for 6-pack) |
| Material | Plastic |
| Style | Modern |
| Light Source Type | LED |
| Wattage | 24 watts |
| Brightness | 2100 Lumen |
| Color Temperature | 6500 Kelvin (Cool White) |
| Color Rendering Index (CRI) | 80.00 |
| Voltage | 110 Volts (AC) |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Water Resistance Level | IP54 Waterproof |
| Lifespan | Up to 30,000 hours |
| Control Method | Push Button (via wall switch) |
| Installation Type | Semi Flush Mount |
Image: Visual representation of product dimensions and key specifications.
Warranty and Support
DELIPOP provides a 48-month warranty for this product, ensuring hassle-free replacements. Our dedicated customer support team is available to assist you with any questions or concerns within 12 hours.
For support, please refer to the contact information provided with your purchase or visit the official DELIPOP store on Amazon: DELIPOP Store.
