SMETA 10.5 cu ft Chest Freezer User Manual

1. Introduction

Thank you for choosing the SMETA 10.5 cu ft Chest Freezer. This manual provides essential information for the proper installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and retain it for future reference.

This chest freezer is designed for efficient and reliable freezing of various food items, suitable for homes, basements, garages, RVs, and commercial settings. Its compact design and large capacity make it a versatile storage solution.

Image 1.1: The SMETA 10.5 cu ft Chest Freezer, showcasing its capacity with various food items.

2. Important Safety Information

To reduce the risk of fire, electric shock, or injury when using your appliance, follow these basic precautions:

• Read all instructions before using the freezer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Ensure the freezer is properly grounded.
• Unplug the freezer before cleaning or performing any maintenance.
• Keep ventilation openings clear of obstruction.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Setup and Installation

3.1 Unpacking

1. Remove all packaging materials, including foam and adhesive tape.
2. Inspect the freezer for any damage incurred during shipping. Report any damage to the retailer immediately.
3. Clean the interior of the freezer with a damp cloth before use.

3.2 Placement

Select a suitable location for your freezer, ensuring it is on a level surface and away from direct sunlight or heat sources. Allow adequate clearance around the unit for proper ventilation.

• Clearance: Maintain at least 3.94 inches (10 cm) of space from the back and sides of the freezer to the wall for optimal air circulation.
• Leveling: The freezer is equipped with 4 wheels for easy movement. Ensure the unit is stable once positioned.

Image 3.1: Dimensions of the SMETA 10.5 cu ft Chest Freezer (44.1"W x 25"D x 33.8"H).

Image 3.2: The freezer features 4 wheels for convenient relocation.

Image 3.3: Maintain adequate clearance around the freezer for proper ventilation.

3.3 Initial Power-On

After positioning the freezer, wait at least 2-4 hours before plugging it into a power outlet. This allows the refrigerant to settle, preventing potential damage to the cooling system.

4. Operation

4.1 Temperature Control

The freezer features an adjustable thermostat located on the front of the unit. Turn the dial to set your desired temperature. The temperature range is approximately 10.4°F to -4°F ( -12°C to -20°C).

• MIN: Less cold setting.
• MAX: Coldest setting.

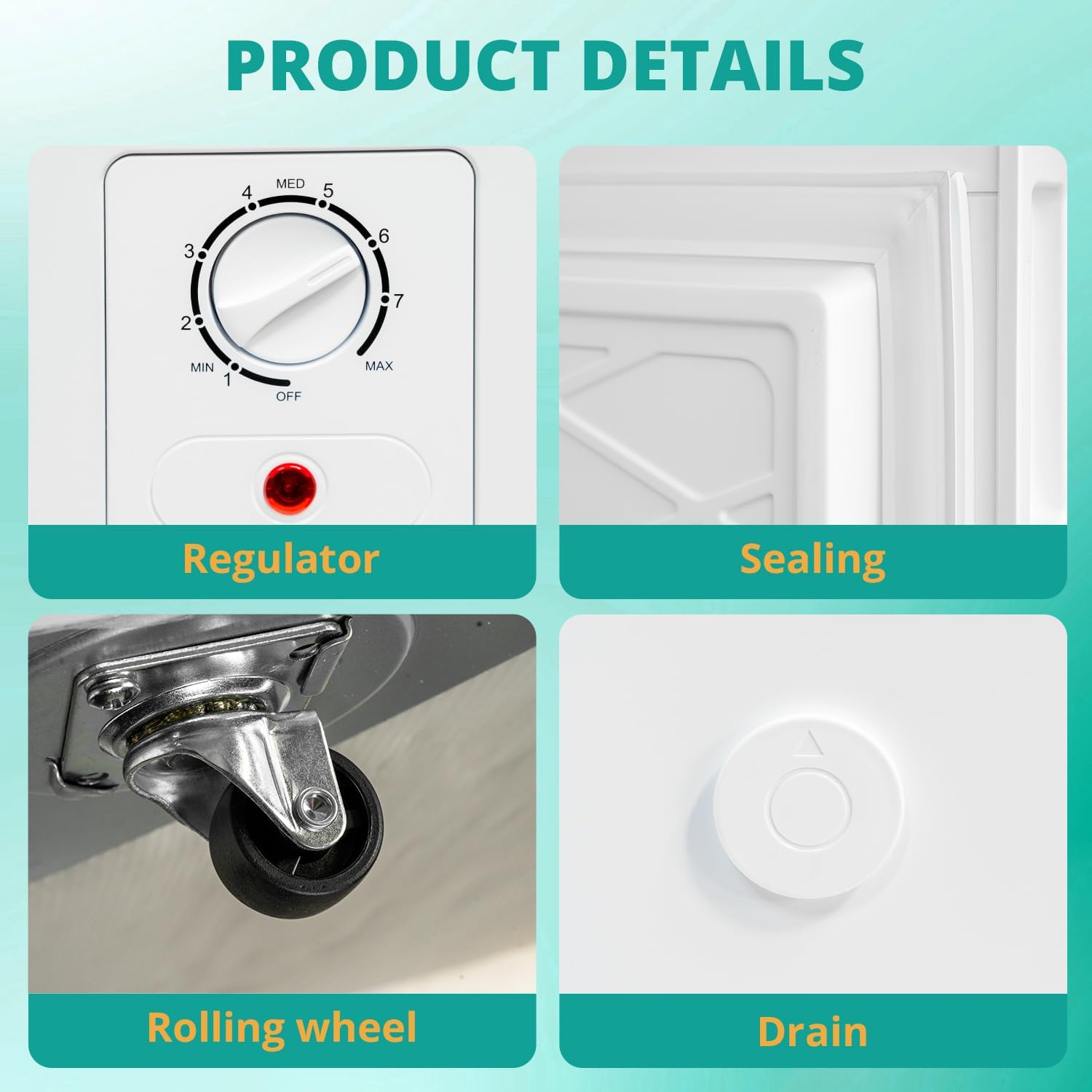

Image 4.1: The temperature regulator dial allows precise control over the freezer's internal temperature.

4.2 Top Hinge Door and Storage Basket

The freezer is designed with a top-hinged door that can remain open at angles between 45° and 90°, providing hands-free access. A removable wire storage basket is included for organizing smaller items and frequently accessed foods.

Image 4.2: The auto-hold hinges keep the door open for convenient loading and unloading.

Image 4.3: The removable wire basket facilitates organized storage and easy access to items.

Image 4.4: The wire basket helps keep smaller items readily accessible.

5. Maintenance

5.1 Defrosting

Over time, frost will accumulate inside the freezer. Defrost the unit when the frost layer becomes about 0.2 inches (5 mm) thick. To defrost:

1. Unplug the freezer from the power outlet.
2. Remove all food items and store them in another freezer or cooler.
3. Open the drain plug located at the front of the freezer to allow water to escape. Place a shallow pan or towel underneath to collect the water.
4. Leave the lid open to accelerate the defrosting process. Do not use sharp objects or heating devices to remove frost, as this can damage the freezer.
5. Once defrosted, clean the interior with a mild detergent and warm water. Dry thoroughly.
6. Close the drain plug, plug the freezer back in, and allow it to cool down before returning food items.

5.2 Cleaning

Regular cleaning helps maintain the efficiency and appearance of your freezer.

• Interior: Clean the interior surfaces and removable basket with a solution of mild detergent and warm water. Rinse and dry thoroughly. The embossed aluminum liner is designed for easy cleaning.
• Exterior: Wipe the exterior surfaces with a soft cloth and mild detergent.
• Door Seal: Clean the door gasket regularly to ensure a tight seal.

6. Troubleshooting

Before contacting customer support, please refer to the following table for common issues and their solutions:

7. Specifications

Below are the technical specifications for the SMETA 10.5 cu ft Chest Freezer (Model: SDSC-386HU):

8. Warranty & Support

8.1 Product Warranty

SMETA provides a 12-month warranty for this chest freezer from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use. Please retain your proof of purchase for warranty claims.

8.2 Customer Support

For any questions, concerns, or technical assistance regarding your SMETA chest freezer, please contact our customer support team. You can typically find contact information on the product packaging, the retailer's website, or by visiting the official SMETA brand store online.

When contacting support, please have your model number (SDSC-386HU) and purchase date available to expedite service.
