1. Introduction
The Ejoyous Air Needle Scaler is a robust pneumatic tool designed for efficient surface pre-treatment. It excels at removing various coatings and contaminants such as paint, rust, welding slag, and corrosion from metal and other durable surfaces. Equipped with 19 hardened steel needles, this scaler operates at a high frequency to deliver powerful cleaning and deburring action. Its lightweight aluminum housing and ergonomic pistol grip ensure comfortable and precise operation, making it suitable for both professional and DIY applications.
Key features include:
- Versatile surface treatment for paint, rust, and welding slag removal.
- 19 durable 3mm diameter steel needles for effective scaling and deburring.
- High performance with 3000 strokes per minute for quick material removal.
- Comfortable pistol grip design reduces hand fatigue.
- Lightweight aluminum housing combined with hardened steel needles for durability.
2. Safety Information
Always observe basic safety precautions when using this pneumatic tool to reduce the risk of injury. Failure to follow these instructions may result in serious injury.
- Personal Protective Equipment: Always wear ANSI-approved safety glasses or goggles, hearing protection, and heavy-duty work gloves. A dust mask is recommended when working in dusty environments.
- Work Area: Keep your work area clean, well-lit, and free from clutter. Ensure adequate ventilation. Do not operate the tool in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Air Supply: Ensure the air compressor is properly maintained and delivers clean, dry air at the recommended pressure. Do not exceed the maximum operating pressure. Disconnect the air supply before making any adjustments, changing accessories, or performing maintenance.
- Tool Handling: Hold the tool firmly with both hands during operation. Keep hands and body clear of the needle head. Never point the tool at yourself or others.
- Maintenance: Regularly inspect the tool for damage or wear. Do not use a damaged tool. Replace worn or damaged needles immediately.
- Children and Bystanders: Keep children and bystanders away while operating the tool.
3. Product Overview
The Ejoyous Air Needle Scaler features a robust design for effective material removal. Familiarize yourself with its components for safe and efficient operation.
Image: The Ejoyous Air Needle Scaler, highlighting its 19 durable 3mm diameter steel needles for effective scaling action.
Image: A detailed diagram illustrating the main components of the Ejoyous Air Needle Scaler, including the 19-pin derusting head, start switch, air inlet, and frequency switch.
Components:
- 19-Pin Derusting Head: The working end of the tool, equipped with 19 hardened steel needles for impact action.
- Pistol Grip: Ergonomically designed handle for comfortable and secure holding.
- Start Switch: Trigger mechanism to activate the tool.
- Air Inlet: Connection point for the air hose from the compressor.
- Frequency Switch: (If applicable, for adjusting impact frequency. Based on image, it's a general control point.)
4. Setup
Before operating the Ejoyous Air Needle Scaler, ensure proper setup for safety and optimal performance.
- Unpacking: Carefully remove the needle scaler from its packaging. Inspect for any signs of damage during shipping.
- Air Supply Connection: Connect a 3/8 inch air hose to the 1/4 inch air inlet on the tool. Ensure all connections are secure to prevent air leaks.
- Air Compressor: Connect the air hose to a suitable air compressor. The compressor should be capable of providing a continuous air supply at the recommended pressure (typically 90 PSI / 6.2 Bar) and an average air consumption of 10 CFM.
- Needle Inspection: Verify that the 19 steel needles are securely installed in the derusting head and are not bent or damaged. Replace any damaged needles before use.
- Lubrication (Initial): Apply a few drops of pneumatic tool oil into the air inlet before first use and periodically thereafter. This helps lubricate internal components and prolong tool life.
5. Operating Instructions
Follow these steps for effective and safe operation of your Ejoyous Air Needle Scaler.
- Prepare the Workpiece: Secure the workpiece to prevent movement during scaling. Clear the area of any loose debris.
- Hold the Tool: Grasp the pistol grip firmly with both hands. Maintain a stable stance.
- Activate the Tool: Press the start switch (trigger) to activate the needle scaler. The needles will begin to reciprocate rapidly.
- Apply to Surface: Gently bring the needle head into contact with the surface to be cleaned. Apply steady, even pressure. Allow the tool to do the work; excessive force is not necessary and can reduce efficiency or damage the surface/tool.
- Work Methodically: Move the tool slowly and consistently across the surface, overlapping passes to ensure complete coverage.
- Monitor Progress: Periodically check the surface to assess the removal of rust, paint, or slag. Adjust pressure and speed as needed.
- Deactivate: Release the start switch to stop the tool. Disconnect the air supply when finished or before any adjustments.
Image: A user demonstrating the comfortable pistol grip design of the Ejoyous Air Needle Scaler, highlighting its ease of handling during operation.
Applications:
The Ejoyous Air Needle Scaler is suitable for a wide range of applications:
- Metal rust removal
- Welding slag cleaning
- Paint and coating removal
- Deburring and surface preparation
- Brick cleaning
- Stone carving and texturing
Image: A before-and-after comparison showing a rusty vehicle wheel effectively cleaned and restored using the Ejoyous Air Needle Scaler.
Image: Visual examples demonstrating the wide application of the Ejoyous Air Needle Scaler across various tasks such as metal rust removal, welding slag cleaning, paint cleaning, burr repair, brick cleaning, and stone carving.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Ejoyous Air Needle Scaler.
- Disconnect Air Supply: Always disconnect the air supply before performing any maintenance or cleaning.
- Lubrication: Apply a few drops of pneumatic tool oil into the air inlet daily or before each use. This lubricates the internal motor and prevents corrosion.
- Cleaning: After each use, wipe down the tool with a clean, dry cloth. Remove any debris or residue from the needle head. Do not use harsh chemicals or solvents.
- Needle Inspection and Replacement: Regularly inspect the steel needles for wear, bending, or breakage. Worn or damaged needles will reduce efficiency and can damage the tool or workpiece. Replace the entire set of 19 needles if significant wear is observed. To replace, carefully unscrew the needle retainer and insert new needles.
- Air Filter: Ensure your air compressor's inline air filter is regularly cleaned or replaced to prevent moisture and contaminants from entering the tool.
- Storage: Store the tool in a clean, dry place away from direct sunlight and extreme temperatures.
7. Troubleshooting
If you encounter issues with your Ejoyous Air Needle Scaler, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not operate or has low power. | Insufficient air pressure or volume. Air hose kinked or blocked. Air inlet filter clogged. Lack of lubrication. | Check air compressor pressure (should be around 90 PSI). Ensure air hose is clear and properly connected. Clean or replace air inlet filter. Apply pneumatic tool oil to the air inlet. |
| Ineffective scaling or poor performance. | Worn or damaged needles. Incorrect operating pressure. Applying too much or too little pressure to the workpiece. | Inspect and replace needles if worn or bent. Verify air pressure is within recommended range. Adjust pressure applied to the workpiece for optimal results. |
| Excessive vibration or unusual noise. | Loose components. Damaged or unevenly worn needles. Internal wear. | Check all external components for tightness. Inspect and replace needles if damaged or unevenly worn. If problem persists, contact customer support. |
| Air leaks from connections. | Loose fittings. Damaged O-rings or seals. | Tighten all air hose connections. Inspect and replace any damaged O-rings or seals. |
8. Specifications
Detailed technical specifications for the Ejoyous Air Needle Scaler.

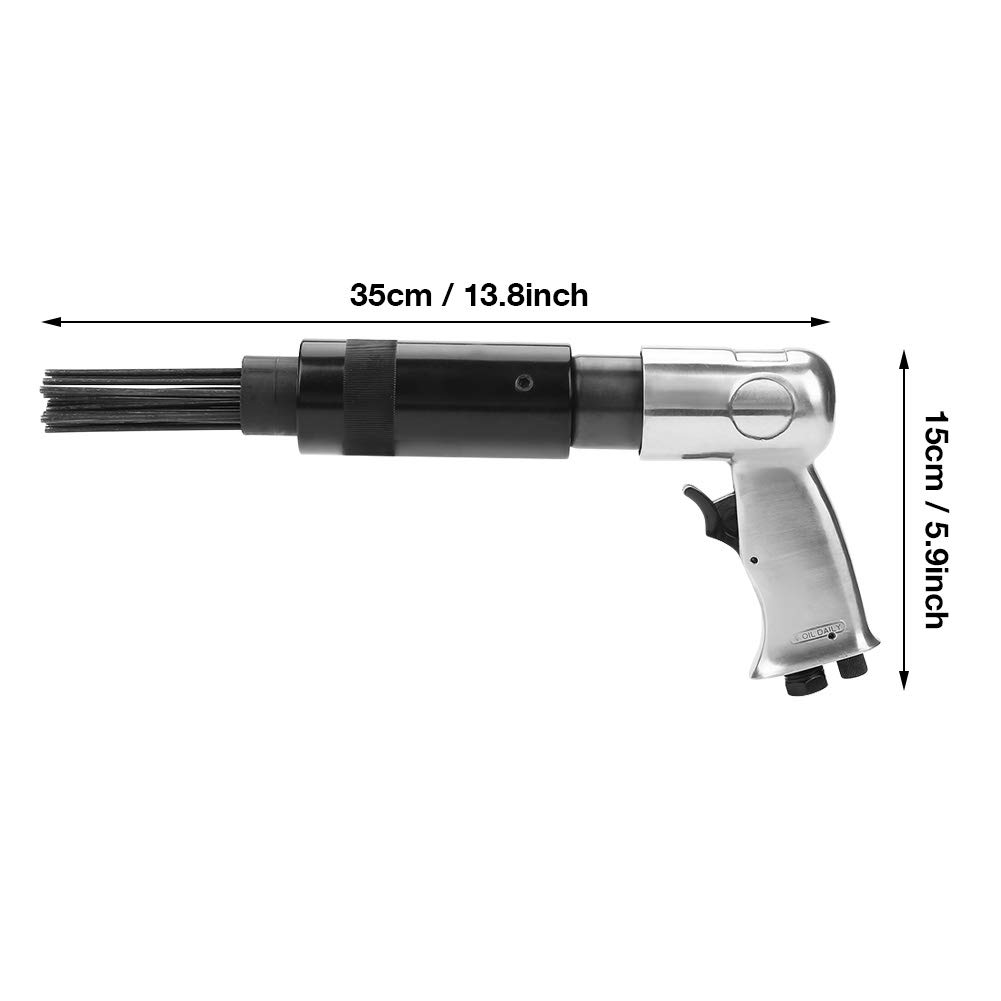

Image: The Ejoyous Air Needle Scaler with its key dimensions indicated: 35 cm (13.8 inches) in length and 15 cm (5.9 inches) in height.
- Model Number: Ejoyousbcgk3ux701
- Needle Quantity: 19
- Needle Diameter: 3 mm
- Strokes Per Minute (BPM): 3000
- Air Inlet Size: 1/4 inch
- Recommended Hose Size: 3/8 inch
- Average Air Consumption: 10 CFM
- Total Length: 35 cm (13.8 inches)
- Weight: Approximately 2.02 kg (4.45 lbs)
- Housing Material: Lightweight Aluminum
- Needle Material: Hardened Steel
- Power Source: Air (Pneumatic)
9. Warranty and Support
For warranty information or technical support regarding your Ejoyous Air Needle Scaler, please refer to the documentation included with your purchase or contact Ejoyous customer service directly. Specific warranty terms and support contact details may vary by region and purchase date.
