Permanent Outdoor LED Lights User Manual

1. Introduction

Thank you for choosing APPECK Permanent Outdoor LED Lights. These smart RGB+IC eaves lights are designed to provide vibrant and customizable lighting for your home's exterior, perfect for parties, holidays, or everyday ambiance. With 74 feet of lighting and 60 individual LEDs, you can transform your roof, garden, or patio with 54 scene modes and 16 million colors. The lights are compatible with Alexa and Google Assistant for convenient voice control, and also feature remote and app control options. This manual provides essential information for safe installation, operation, and maintenance of your new lighting system.

Figure 1: APPECK Permanent Outdoor LED Lights with remote and app control.

Figure 2: Example of outdoor festive decorations using the lights.

2. Package Contents

Please verify that all items listed below are included in your package:

• 2 x 32.8ft Permanent Outdoor Lights (Total 74ft)
• 1 x Controller
• 1 x YK-IR2401 Remote Control
• 1 Pack x Installation Clips and Screws
• 1 x Power Supply
• 1 x 10ft Extension Cord
• 1 x User Manual

3. Safety Information

Please read and understand all safety instructions before installation and use. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• WARNING: The outdoor eaves lights are IP65 waterproof, but the power adapter and controller are NOT waterproof. Ensure the adapter and controller are protected from water exposure.
• Operating temperature range is -4°F to 104°F (-20°C to 40°C). Do not operate outside this range.
• Do not cut the LED strip lights. This will damage the product and void the warranty.
• Ensure the power supply is disconnected before installation or maintenance.
• Use only the provided power supply and accessories.
• Keep out of reach of children.

Figure 3: IP65 Waterproof rating for the lights, highlighting the non-waterproof adapter and control box.

4. Setup and Installation

Follow these steps for proper installation:

Figure 4: Visual guide for installation steps.

1. Step 1: Determine Placement. Install the string lights 1-2 inches (2.5-5cm) away from the wall surface for optimal lighting effect.
2. Step 2: Prepare Surface. Use a rag or towel to clean the wall surface thoroughly before installing the light strip. Ensure the surface is dry and free of dust or debris.
3. Step 3: Apply Adhesive. Tear off the VHB gum pad on the back of each light unit.
4. Step 4: Press and Secure. Press each light unit firmly against the wall surface for more than 5 seconds to ensure proper adhesion.
5. Step 5: Use Clips for Security. The strip light comes with a pack of screw clips. Use these clips to further secure the lights, especially in areas exposed to wind or moisture.
6. Step 6: Connect Multiple Strings (Optional). You can expand the lighting length by splicing multiple 32.8ft strip lights together using the waterproof splice head at the end of each strip. Ensure connections are secure and waterproof.
7. Step 7: Use Extension Cord (Optional). A 10ft extension cord is included if you need to increase the length of the power connection.

Important Note: Our outdoor LED lights cannot be cut. Attempting to cut the lights will damage them permanently.

5. Operation

Your APPECK Permanent Outdoor LED Lights offer multiple control methods for convenience and versatility.

5.1 Control Methods

• App Control: Download the dedicated app (refer to the manual for specific app name, usually Smart Life or Tuya Smart) on your smartphone. The app allows access to 54 scene modes, 16 million colors, DIY mode for custom lighting effects, and scheduling.
• Remote Control: Use the included YK-IR2401 remote control for basic functions like turning lights on/off, changing colors, and adjusting brightness.
• Voice Control: Pair your lights with Alexa or Google Assistant for hands-free voice commands.

Figure 5: Smart APP Control and RF Remote for versatile operation.

Figure 6: Explore 54 scene modes and DIY options via the app.

Figure 7: Voice control with Alexa for convenient light management.

5.2 Scene Modes and DIY

Utilize the app to select from 54 pre-set scene modes or create your own unique lighting effects using the DIY mode. The lights also feature a Music and Mic Mode, allowing them to sync and change color according to the rhythm of music.

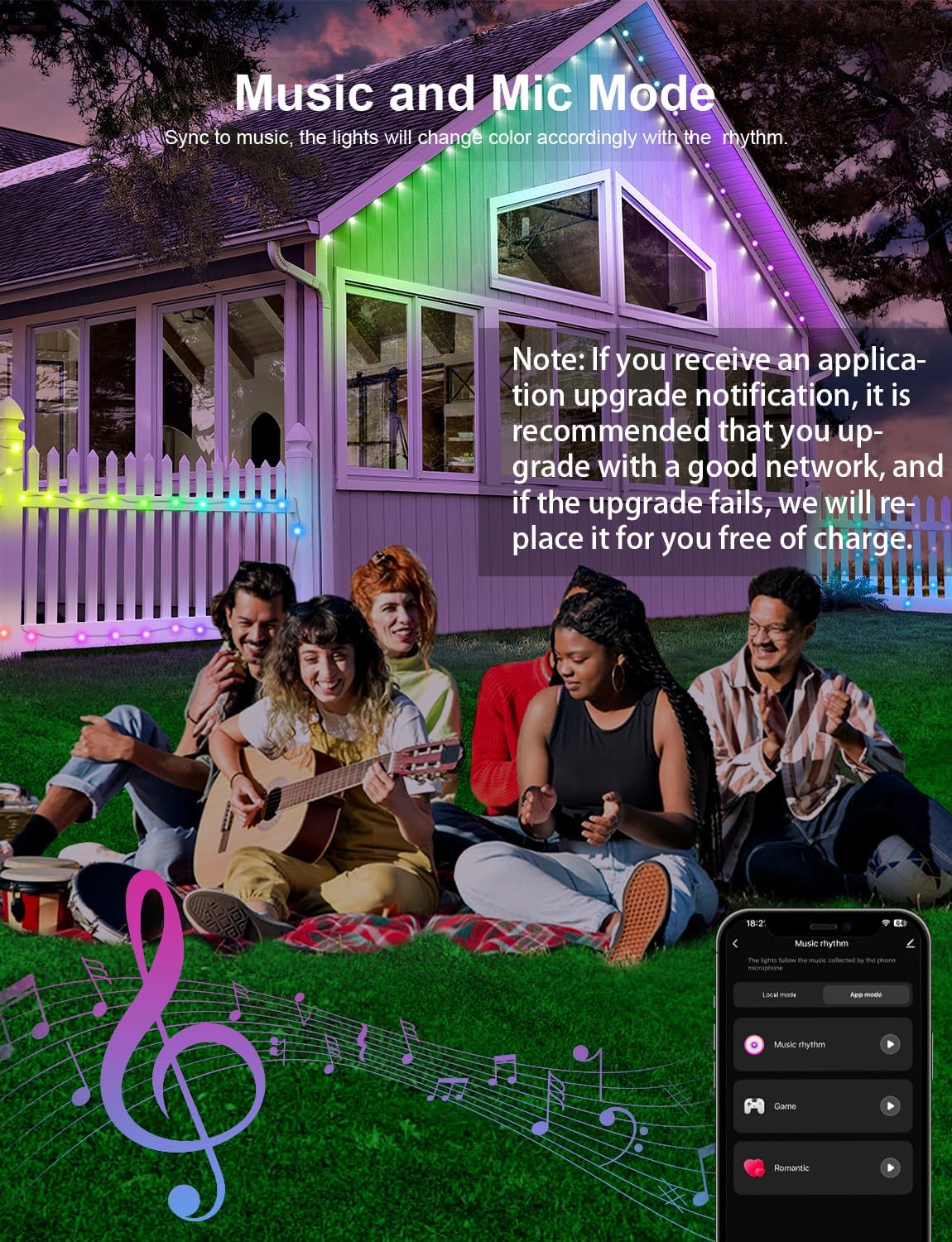

Figure 8: Music and Mic Mode allows lights to change with audio rhythm.

5.3 Official Product Video

6. Maintenance

To ensure the longevity and optimal performance of your APPECK LED lights, follow these maintenance guidelines:

• Cleaning: Periodically wipe the lights and cables with a soft, damp cloth to remove dust and debris. Ensure the power is disconnected before cleaning.
• Inspection: Regularly inspect the cables and light units for any signs of damage, wear, or loose connections. Address any issues promptly.
• Storage: If storing the lights for an extended period, ensure they are clean and dry. Store them in a cool, dry place away from direct sunlight.

The lights are designed for a long lifespan, supporting up to 20,000 hours of operation.

Figure 9: Durability features of the lights, including IP65 waterproofing and compatibility with various wall materials like wood, fiber cement, metal, and vinyl.

7. Troubleshooting

If you encounter issues with your APPECK LED lights, please refer to the following common solutions:

• Lights Not Turning On:
  • Ensure the power adapter is securely plugged into a working outlet.
  • Check all connections between the lights, controller, and power supply.
  • Verify the remote control battery is functional.
• App Connectivity Issues:
  • Ensure your Wi-Fi network is 2.4GHz.
  • Restart your Wi-Fi router and the light controller.
  • Make sure your smartphone is connected to the same 2.4GHz Wi-Fi network during setup.
• App Program Upgrade Notification: If you receive an app program upgrade notification, it is recommended to upgrade under a good network condition. If the upgrade fails, please contact customer support for a replacement set.
• Multiple Sets Not Syncing: Please note that purchasing multiple sets of products will not work together in a single physical connection. However, you can group them within the app for synchronized control.
• Lights Not Responding to Remote/Voice: Ensure there are no obstructions between the remote and the controller. For voice control, verify the lights are correctly paired with Alexa or Google Assistant and your smart speaker is online.

8. Specifications

9. Warranty and Support

For any product-related issues, technical support, or warranty inquiries, please contact APPECK customer service. Refer to the contact information provided on the product packaging or the official APPECK website. We are committed to providing a smarter and more enjoyable living experience through our innovative smart LED lights.
