GGM Gastro TWF1760 Bain Marie Instruction Manual

1. Safety Instructions

Read all instructions carefully before operating the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always connect the appliance to a properly grounded electrical outlet.
• Do not operate the appliance with a damaged cord or plug.
• Keep hands and clothing away from hot surfaces. Use heat-resistant gloves when handling hot components.
• Ensure the appliance is placed on a stable, level surface.
• Do not immerse the appliance or its electrical components in water or other liquids.
• Unplug the appliance before cleaning or servicing.
• This appliance is intended for commercial use only.

2. Product Overview

The GGM Gastro TWF1760 is a mobile Bain Marie designed for commercial food warming applications. It features a stainless steel construction, multiple GN container slots, and adjustable temperature control to keep food at optimal serving temperatures.

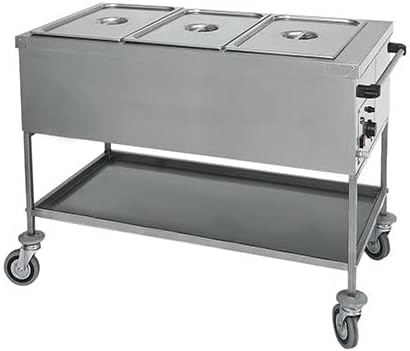

Figure 2.1: Full view of the GGM Gastro TWF1760 Bain Marie, showcasing its stainless steel construction, three GN container slots, and mobile cart design with wheels.

Figure 2.2: The Bain Marie with key dimensions indicated: Height (H) = 850mm, Width (B) = 1170mm, Depth (T) = 650mm. This image provides a clear understanding of the unit's physical size.

Figure 2.3: A chart illustrating various Gastronorm (GN) container sizes and their corresponding dimensions, such as GN 1/1, GN 1/2, GN 1/3, GN 1/4, GN 1/6, GN 1/9, GN 2/3, and GN 2/4. This helps users select appropriate containers for the Bain Marie.

3. Setup

3.1 Unpacking

• Carefully remove the Bain Marie from its packaging.
• Inspect the appliance for any shipping damage. Report any damage to the carrier immediately.
• Remove all packing materials, protective films, and accessories.

3.2 Placement

• Place the Bain Marie on a stable, level, and heat-resistant surface.
• Ensure adequate ventilation around the unit. Maintain a minimum clearance of 10 cm from walls or other equipment.
• Position the unit in an area where it is not exposed to direct sunlight or excessive heat sources.
• Lock the wheels to prevent accidental movement during operation.

3.3 Electrical Connection

• Verify that the local power supply voltage matches the specifications on the appliance's rating label.
• Plug the power cord into a dedicated, grounded electrical outlet. Do not use extension cords or adapters.

4. Operating Instructions

4.1 Filling the Water Bath

• Ensure the drain valve is closed.
• Fill the water bath with clean, potable water. Do not overfill; the water level should be approximately 2-3 cm below the top edge of the water bath, or up to the indicated maximum fill line.
• Using hot water for filling can reduce heating time.

4.2 Placing GN Containers

• Place the desired Gastronorm (GN) containers, filled with pre-cooked or hot food, into the water bath.
• Ensure the containers are properly seated and do not touch the bottom heating elements directly.
• Cover the GN containers with their respective lids to maintain temperature and moisture.

4.3 Temperature Control

Figure 4.1: A detailed view of the control panel, showing the main power switch (green illuminated), the temperature gauge, and the rotary temperature control dial. This allows precise adjustment of the water bath temperature.

• Turn the main power switch to the 'ON' position. The indicator light will illuminate.
• Rotate the temperature control dial to the desired temperature setting. The temperature gauge will show the current water bath temperature.
• Allow sufficient time for the water to heat up and reach the set temperature.
• Monitor the temperature gauge to ensure the desired holding temperature is maintained.

4.4 Shutting Down

• When finished, turn the temperature control dial to the minimum setting or 'OFF'.
• Turn the main power switch to the 'OFF' position and unplug the appliance from the electrical outlet.
• Allow the unit to cool down completely before draining the water and cleaning.

5. Maintenance and Cleaning

Regular cleaning and maintenance will extend the life of your Bain Marie and ensure hygienic operation.

5.1 Daily Cleaning

• Ensure the appliance is unplugged and completely cooled before cleaning.
• Open the drain valve to empty the water bath.
• Clean the interior and exterior surfaces with a mild detergent and a soft cloth or sponge.
• Rinse thoroughly with clean water and dry completely to prevent water spots and corrosion.
• Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can damage the stainless steel finish.

5.2 Descaling

• Depending on water hardness and usage, scale buildup may occur in the water bath.
• To descale, fill the water bath with a commercial descaling solution according to the manufacturer's instructions.
• Heat the solution for a short period (e.g., 15-30 minutes) at a moderate temperature, then turn off and unplug the unit.
• Allow the solution to work, then drain and rinse the water bath thoroughly multiple times with clean water.

5.3 Storage

• Store the clean and dry Bain Marie in a cool, dry place.
• Ensure the power cord is neatly coiled and not kinked.

6. Troubleshooting

Before contacting service, please check the following common issues and solutions:

7. Specifications

Technical specifications for the GGM Gastro TWF1760 Bain Marie:

8. Warranty and Support

For warranty information, technical support, or spare parts inquiries, please contact your authorized GGM Gastro dealer or the manufacturer directly. Keep your purchase receipt and model number (TWF1760) readily available when contacting support.

Information regarding spare parts availability is not provided in the product details. Please consult GGM Gastro for further assistance.
