Product Overview
The GGM Gastro S2K106 Service Cart is a robust and versatile solution designed for efficient transport of various items in commercial and industrial settings. Its two-tier design and durable stainless steel construction make it ideal for use in kitchens, restaurants, hotels, and other service environments.
This manual provides essential information for the safe and effective assembly, operation, maintenance, and troubleshooting of your service cart.
Image: The GGM Gastro S2K106 Service Cart, a two-tiered stainless steel trolley with wheels.
Safety Instructions
Please read all safety instructions carefully before assembling or operating the service cart. Failure to follow these instructions may result in injury or damage to the product.
- Always ensure the cart is on a stable, level surface before loading or unloading.
- Do not exceed the maximum load capacity of 40 kg per shelf or 80 kg total.
- Lock the wheels when the cart is stationary to prevent accidental movement.
- Be aware of raised edges to prevent items from sliding off, but always secure fragile items.
- Keep hands and feet clear of moving parts, especially the wheels.
- This product is designed for transporting items; do not use it as a step stool or for climbing.
- Ensure the cart is clean and dry before use, especially when transporting food items.
Components and Package Contents
Before assembly, verify that all components listed below are present in your package.
- 2 x Stainless Steel Shelves
- 4 x Vertical Support Rods
- 4 x Swivel Wheels (2 with brakes, 2 without)
- 4 x Rubber Bumpers (pre-attached to wheels or separate)
- Assembly Hardware (screws, washers, nuts - quantity as per design)
- Assembly Tool (e.g., Allen key, wrench - if required)
Image: An exploded view or individual components of the GGM Gastro S2K106 Service Cart, showing shelves, rods, and wheels.
Assembly Instructions
Follow these steps to assemble your GGM Gastro S2K106 Service Cart. It is recommended to have two people for easier assembly.
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Check against the components list.
- Attach Wheels: Securely attach the four swivel wheels to the base of the lowest shelf. Ensure the two wheels with brakes are positioned on the same side for easy access. Tighten all bolts firmly.
- Install Support Rods: Insert the four vertical support rods into the designated holes on the corners of the bottom shelf. Ensure they are fully seated and aligned.
- Place Top Shelf: Carefully lower the top shelf onto the upper ends of the support rods. Ensure all four rods align with the holes on the top shelf.
- Secure Shelves: Use the provided hardware (screws/bolts) to firmly secure both the top and bottom shelves to the support rods. Ensure all connections are tight and stable.
- Final Check: Once assembled, gently push and pull the cart to ensure all parts are securely fastened and the cart is stable. Test the wheel brakes.
Operating the Service Cart
The GGM Gastro S2K106 Service Cart is designed for straightforward operation.
- Loading: Place items evenly on the shelves, ensuring not to exceed the maximum weight capacity of 40 kg per shelf or 80 kg total. Distribute weight to maintain balance.
- Maneuvering: Use the handles to push or pull the cart. The swivel wheels allow for easy navigation in tight spaces.
- Braking: To secure the cart in a stationary position, press down on the levers of the two braked wheels until they lock. To release, lift the levers.
- Unloading: Carefully remove items from the shelves, maintaining balance.
Image: The GGM Gastro S2K106 Service Cart with its overall dimensions (1000mm length, 600mm width, 940mm height) indicated.
Maintenance and Cleaning
Regular maintenance and cleaning will extend the life of your service cart and ensure hygienic operation.
- Daily Cleaning: Wipe down all stainless steel surfaces with a damp cloth and mild detergent after each use. Rinse with clean water and dry thoroughly to prevent water spots and corrosion.
- Deep Cleaning: For stubborn stains, use a stainless steel cleaner. Always follow the cleaner's instructions and wipe in the direction of the grain.
- Wheel Maintenance: Periodically check the wheels for debris (e.g., hair, string) and remove it. Lubricate the wheel axles if they become stiff, using a food-grade lubricant if the cart is used in food service areas.
- Hardware Check: Regularly inspect all bolts and screws to ensure they remain tight. Retighten as necessary to maintain structural integrity.
- Avoid Abrasives: Do not use abrasive cleaners, steel wool, or harsh chemicals, as these can scratch or damage the stainless steel finish.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cart is wobbly or unstable. | Loose assembly bolts; uneven load distribution. | Check and tighten all assembly bolts. Redistribute load evenly on shelves. |
| Wheels are difficult to roll or squeak. | Debris in wheels; lack of lubrication. | Remove any debris from wheels. Apply a suitable lubricant to axles. |
| Wheel brakes are not holding. | Brake mechanism is dirty or worn. | Clean the brake mechanism. If worn, consider replacing the wheel. |
| Items slide off shelves. | Excessive speed; uneven surface; items not secured. | Reduce speed when moving. Ensure items are stable and consider using non-slip mats if needed. |
Technical Specifications
- Model: GGM Gastro S2K106
- Material: High-Quality Stainless Steel
- Overall Dimensions (L x W x H): 1000 mm x 600 mm x 940 mm (approx. 39.4 in x 23.6 in x 37 in)
- Number of Shelves: 2
- Maximum Load Capacity per Shelf: 40 kg (88 lbs)
- Total Load Capacity: 80 kg (176 lbs)
- Wheels: 4 Swivel Wheels (2 with brakes, 2 without) with rubber bumpers
- Features: Raised edges, lockable wheels, easy to maneuver, hygienic design
- Certifications: CE Compliant, Material conforms to European food standards

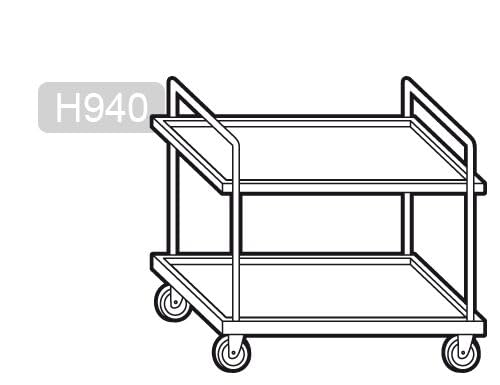

Image: A technical line drawing of the GGM Gastro S2K106 Service Cart, highlighting its height of 940mm.
Warranty and Customer Support
For information regarding warranty coverage, spare parts, or technical support, please contact GGM Gastro customer service.
GGM Gastro Contact Information:
- Website: www.ggmgastro.com
- Email: Refer to the official GGM Gastro website for specific contact email.
- Phone: Refer to the official GGM Gastro website for specific contact phone numbers.
When contacting support, please have your model number (S2K106) and purchase date available.
