CLEANmaxx Automatic Shirt Ironing Machine PRO with Trouser Attachment

1. Introduction

The CLEANmaxx Automatic Shirt Ironing Machine PRO with Trouser Attachment is an innovative appliance designed to simplify your daily garment care. This device combines drying and ironing functions, providing wrinkle-free results for shirts, blouses, and trousers without the need for traditional irons or ironing boards. Its intelligent hot air technology ensures gentle and efficient treatment for various fabric types.

This manual provides essential information for the safe and effective operation of your CLEANmaxx ironing machine. Please read it thoroughly before first use and keep it for future reference.

2. Safety Information

Always observe the following safety precautions to prevent injury or damage to the appliance:

• Ensure the appliance is placed on a stable, heat-resistant surface.
• Do not operate the appliance with wet hands or near water.
• Keep children and pets away from the appliance during operation.
• Unplug the appliance from the power outlet when not in use or before cleaning.
• Do not use the appliance if the power cord or plug is damaged.
• Only use the appliance for its intended purpose as described in this manual.
• Do not cover the air vents during operation to prevent overheating.
• Allow the appliance to cool down completely before storing.
• Always check garment care labels to ensure they are suitable for hot air drying and ironing.

3. Product Overview and Components

Your CLEANmaxx Automatic Shirt Ironing Machine PRO consists of the main unit and various attachments for optimal performance.

Figure 3.1: Main unit with shirt and trouser attachments. This image shows the complete CLEANmaxx ironing system, highlighting both the shirt dummy and the trouser attachment, ready for use.

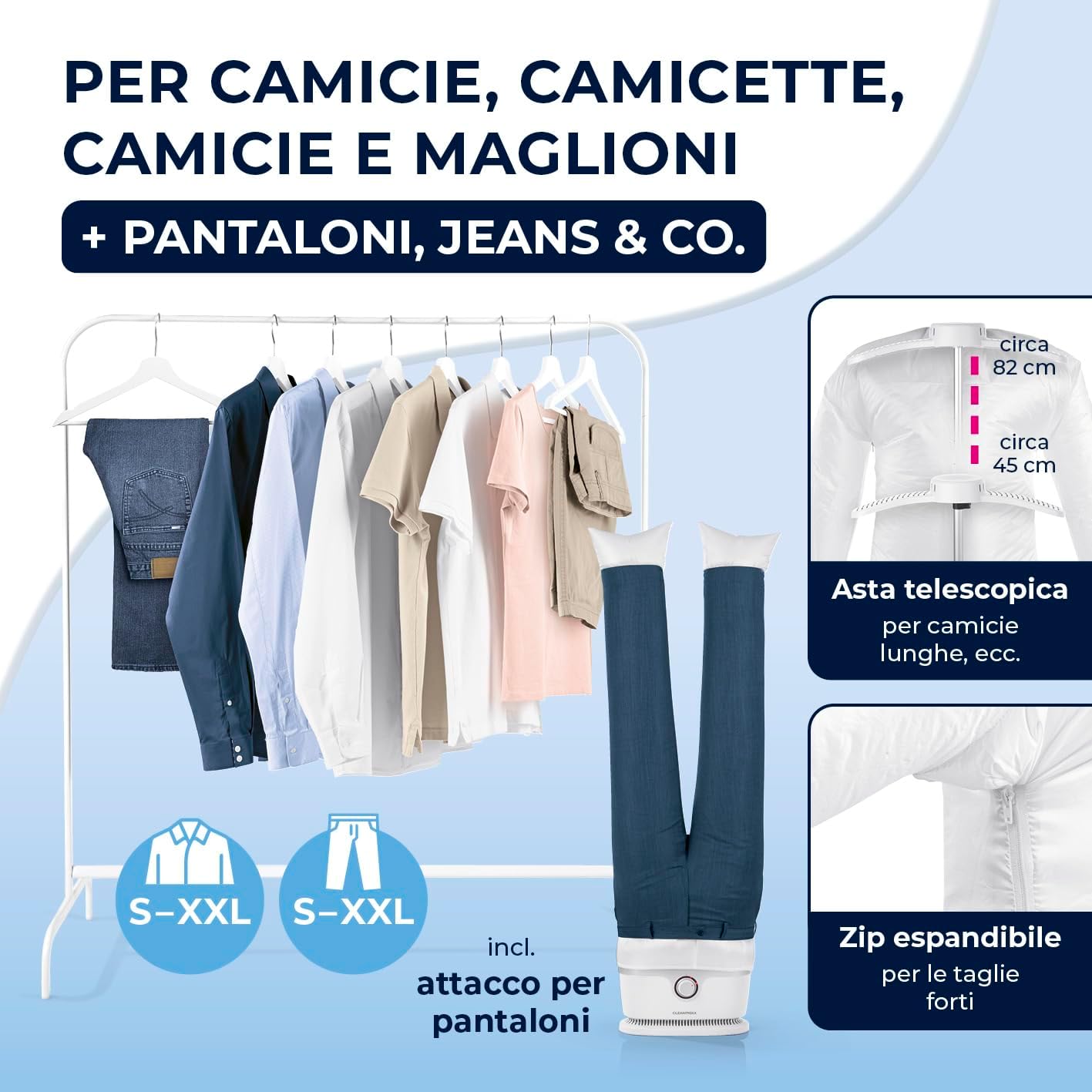

Figure 3.2: Features for various sizes and garment types. This image illustrates the telescopic rod for longer garments and the expandable zipper for larger sizes (S-XXL), demonstrating the machine's versatility.

Components:

• Main Unit: Contains the motor, heating element, and control knob.
• Shirt Dummy: Inflatable form for shirts and blouses.
• Trouser Attachment: Inflatable form for trousers and jeans.
• Telescopic Rod: Adjustable rod for accommodating longer garments.
• Expandable Zipper: Allows for use with various garment sizes (S-XXL).
• Weight Clips (5x): Used to secure the garment and ensure wrinkle-free results.

4. Setup

Follow these steps for the initial setup of your CLEANmaxx ironing machine:

1. Unpack: Carefully remove all components from the packaging.
2. Assemble Main Unit: Place the main unit on a flat, stable, and heat-resistant surface.
3. Attach Dummy:
   • For shirts/blouses: Securely attach the shirt dummy to the main unit. Ensure it is properly seated.
   • For trousers/jeans: Securely attach the trouser attachment to the main unit.
4. Connect Power: Plug the power cord into a suitable electrical outlet.

5. Operating Instructions

The CLEANmaxx ironing machine is designed for easy and efficient operation.

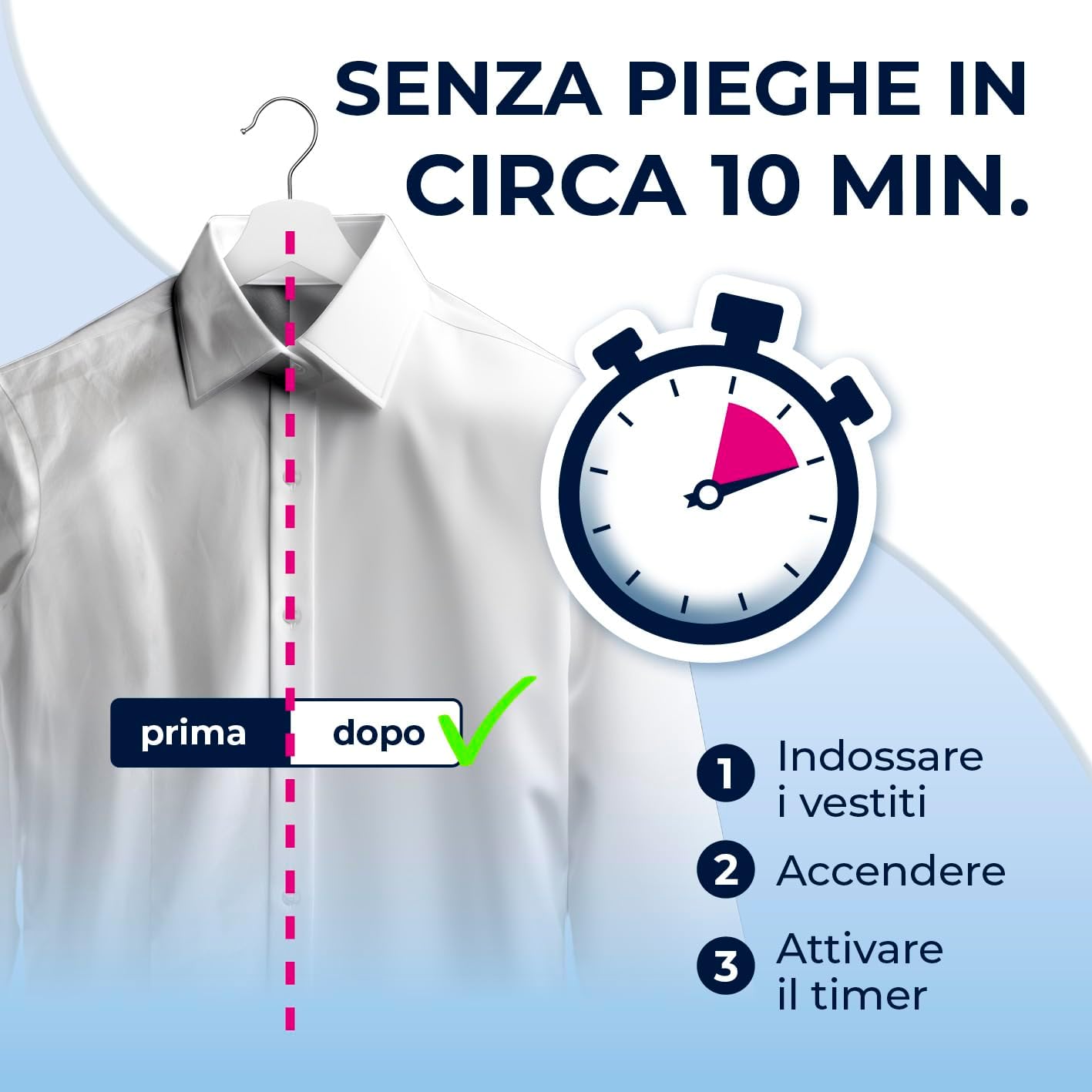

Figure 5.1: Quick and easy process for wrinkle-free garments. This image visually explains the three simple steps: put on clothes, switch on, and activate the timer, leading to a wrinkle-free result.

Figure 5.2: Compatibility with multiple fabric types. This image highlights the machine's suitability for viscose, polyester, silk, linen, cotton, and jeans, reminding users to check garment labels.

5.1. Preparing the Garment

• The appliance works best with damp, spin-dried garments. Do not use with dripping wet clothes.
• Ensure the garment is suitable for tumble drying (check care label).
• Unbutton shirts/blouses and open zippers on trousers.

5.2. Using the Shirt Dummy

1. Place the damp shirt or blouse onto the shirt dummy. Ensure it is evenly distributed and smooth.
2. For longer garments, adjust the telescopic rod to extend the dummy as needed.
3. If the garment is larger, utilize the expandable zipper to fit it comfortably.
4. Attach the 5 weight clips evenly to the bottom hem of the garment to keep it taut and prevent wrinkles.
5. Turn the control knob to set the desired operating time (5-30 minutes). The machine will start inflating the dummy and blowing hot air.
6. Once the timer finishes, the machine will automatically shut off. Carefully remove the dry and wrinkle-free garment.

5.3. Using the Trouser Attachment

1. Place the damp trousers or jeans onto the trouser attachment. Ensure the legs are smooth and evenly draped.
2. Attach the 5 weight clips evenly to the bottom hems of the trouser legs to keep them taut.
3. Turn the control knob to set the desired operating time (5-30 minutes). The machine will start inflating the attachment and blowing hot air.
4. Once the timer finishes, the machine will automatically shut off. Carefully remove the dry and wrinkle-free trousers.

6. Maintenance

Regular cleaning and proper storage will ensure the longevity of your CLEANmaxx ironing machine.

• Cleaning:
  • Always unplug the appliance and allow it to cool completely before cleaning.
  • Wipe the main unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
  • The inflatable dummies can be wiped clean with a damp cloth. Ensure they are completely dry before storage.
• Storage:
  • Store the appliance in a cool, dry place, away from direct sunlight and moisture.
  • The compact design allows for space-saving storage.

Figure 6.1: Compact storage dimensions. This image demonstrates how the CLEANmaxx unit can be stored compactly, highlighting its approximate height of 25 cm and width of 42 cm when not in use.

7. Troubleshooting

If you encounter issues with your CLEANmaxx ironing machine, refer to the following table for common problems and solutions.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact the retailer. Keep your proof of purchase for warranty claims.

Manufacturer: CLEANmaxx
