KXAITO 8007 Sport Watch User Manual

1. Introduction

Thank you for choosing the KXAITO 8007 Sport Watch. This watch combines a classic analog display with modern digital functionalities, designed for durability and versatility. It features a dual time display, chronograph, alarm, LED backlight, and is water-resistant for daily use. This manual provides detailed instructions to help you set up and operate your watch effectively.

2. Product Overview

The KXAITO 8007 Sport Watch features a robust design with multiple buttons for various functions. Familiarize yourself with the watch's components:

Figure 2.1: Front view of the KXAITO 8007 Sport Watch.

Button Functions:

• LIGHT Button (Top Left): Activates the LED backlight for visibility in low-light conditions.
• MODE Button (Bottom Left): Cycles through different modes: Time Display, Alarm Setting, Stopwatch, and Dual Time.
• START Button (Top Right): Used to start/stop the stopwatch, adjust settings in setting modes, or change 12/24 hour format.
• RESET Button (Bottom Right): Used to reset the stopwatch, select items in setting modes, or view the alarm time.

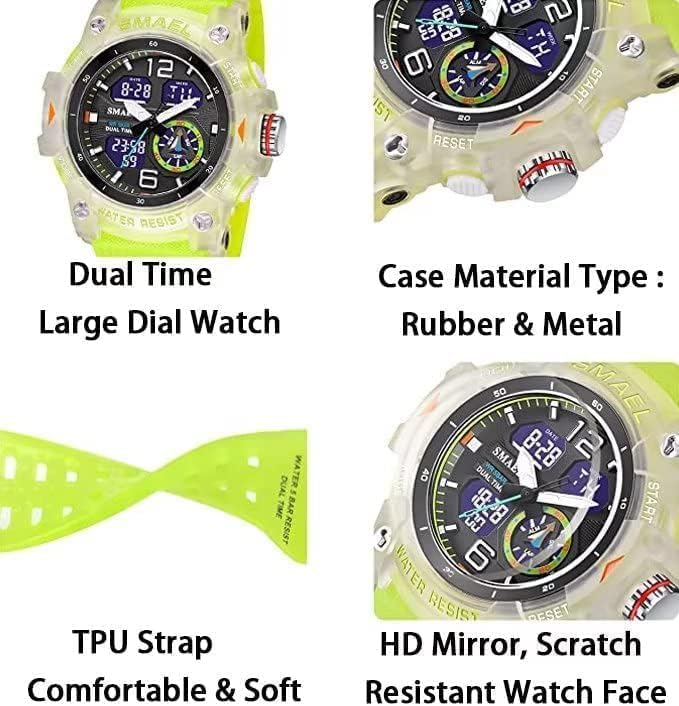

Figure 2.2: Key features and components of the watch, including dual time display and durable strap.

3. Setup

3.1. Setting Analog Time

1. Pull out the crown (the knob on the right side of the watch case) to the first position.
2. Turn the crown to adjust the analog hands to the correct time.
3. Push the crown back in to secure the time setting.

3.2. Setting Digital Time and Date

1. From the normal time display mode, press the MODE button three times to enter the time setting mode. The seconds will flash.
2. Press the RESET button to select the item you wish to set (seconds, hour, minute, month, date, day of the week).
3. Press the START button to adjust the selected value.
4. Once all settings are complete, press the MODE button to return to the normal time display.

4. Operating Instructions

4.1. LED Backlight

Press the LIGHT button (top left) to illuminate the digital display. The backlight will remain on for a few seconds.

Figure 4.1: Digital display with activated LED backlight for night visibility.

4.2. Chronograph (Stopwatch)

1. From the normal time display, press the MODE button once to enter the stopwatch mode.
2. Press the START button to begin timing.
3. Press the START button again to pause timing.
4. Press the START button to resume timing.
5. To reset the stopwatch, press the START button to pause, then press the RESET button.
6. Press the MODE button to exit stopwatch mode.

4.3. Alarm Function

1. From the normal time display, press the MODE button twice to enter the alarm setting mode. The hour digits will flash.
2. Press the START button to adjust the hour.
3. Press the RESET button to switch to minute setting. The minute digits will flash.
4. Press the START button to adjust the minutes.
5. Press the MODE button to confirm the alarm setting and exit.
6. To activate/deactivate the alarm, hold the RESET button and press the START button. An alarm icon will appear/disappear.

4.4. 12/24 Hour Format

In the normal time display mode, press the START button to toggle between 12-hour and 24-hour formats.

4.5. Dual Time Display

The watch supports a dual time display, allowing you to track two different time zones simultaneously on the digital display. To set the second time zone:

1. From the normal time display, press the MODE button four times to enter the dual time setting mode. The hour digits of the second time zone will flash.
2. Press the START button to adjust the hour.
3. Press the RESET button to switch to minute setting.
4. Press the START button to adjust the minutes.
5. Press the MODE button to confirm and exit.

5. Maintenance

5.1. Water Resistance

This watch is water-resistant up to 5 ATM (50 meters), suitable for daily use, hand washing, and splashes. It is not suitable for swimming, diving, or showering with hot water. Do not press any buttons underwater, as this can compromise the water resistance seal.

5.2. Cleaning

Wipe the watch case and strap regularly with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, followed by drying. Avoid using chemical cleaners, which can damage the watch's materials.

5.3. Battery Replacement

When the digital display dims or functions become erratic, it may be time to replace the battery. Battery replacement should ideally be performed by a qualified watch technician to ensure proper sealing and function.

6. Troubleshooting

7. Specifications

• Model Number: 8007
• Display Type: Analog - Digital
• Movement: Japanese Quartz
• Case Material: Rubber
• Dial Window Material: Acrylic
• Band Material: Thermoplastic Polyurethane (TPU)
• Case Diameter: 2.28 inches (approx. 5.8 cm)
• Case Thickness: 1.8 cm
• Band Length: 260 mm
• Water Resistance Depth: 50 Meters (5 ATM)
• Special Features: Chronograph, Dual Time Display, Shock Resistant, Alarm, LED Backlight
• Power Source: Electric operation (Battery)
• Weight: 91 grams

Figure 7.1: Detailed dimensions and material specifications of the watch.

8. Warranty and Support

For any questions or concerns regarding your KXAITO 8007 Sport Watch, please do not hesitate to contact the seller or manufacturer. We are committed to customer satisfaction and will do our best to assist you. Specific warranty details may vary; please refer to your purchase documentation or contact customer support for information on warranty claims and service.
