Sojag Korado 10 ft. x 16 ft. Wall Solarium

Product Overview

The Sojag Korado Wall Solarium provides an enclosed outdoor space, offering protection from various weather conditions and insects. This structure is designed for year-round use, featuring a durable aluminum frame and galvanized steel roof panels.

Key features include:

• Protective Coating: AkzoNobel's Interpon powder coating for scratch and corrosion resistance.
• Reinforced Construction: Extruded aluminum design for enhanced durability.
• Durable Roof: Galvanized steel panels provide maximum protection from the elements.
• Four-Season Use: Screened 3-position PVC sliding windows offer ultimate protection from the elements.
• Easy Assembly: Pre-drilled parts and illustrated instructions for straightforward setup.

Figure 1: Diagram highlighting key features of the Korado Wall Solarium Series, including protective finish, quality materials, sturdy structure, pest prevention, easy assembly, and sliding doors.

Safety Information

Adhere to all safety guidelines during assembly and use of the solarium. Failure to do so may result in injury or damage to the product.

• Assembly may require two or more people due to the size and weight of components.
• Always follow the illustrated instructions carefully provided in the full assembly manual.
• Wear appropriate safety gear, such as gloves and eye protection, when handling heavy or sharp components.
• Ensure the installation surface is level and stable to prevent structural instability.
• Do not climb on the roof or frame of the solarium.
• Regularly inspect the structure for loose fasteners or damaged parts and address them promptly.

Setup and Assembly

The Sojag Korado Wall Solarium requires assembly. Detailed, step-by-step illustrated instructions are included with the product packaging. It is recommended to have at least two people for assembly.

Pre-Assembly Checklist:

• Verify all parts are present against the parts list in the assembly manual.
• Ensure you have the necessary tools (e.g., wrenches, screwdrivers, ladder, level).
• Choose a level and stable location for installation, preferably against an existing wall.
• Clear the assembly area of any obstructions.

General Assembly Steps (Refer to detailed manual for specifics):

1. Unpack all components and organize them by part number.
2. Assemble the base frame according to the instructions.
3. Attach the vertical support posts and wall connection components.
4. Install the roof frame and then the galvanized steel roof panels.
5. Mount the PVC sliding windows and mosquito screens into their designated tracks.
6. Install the sliding doors.
7. Secure all fasteners and ensure the structure is stable and plumb.

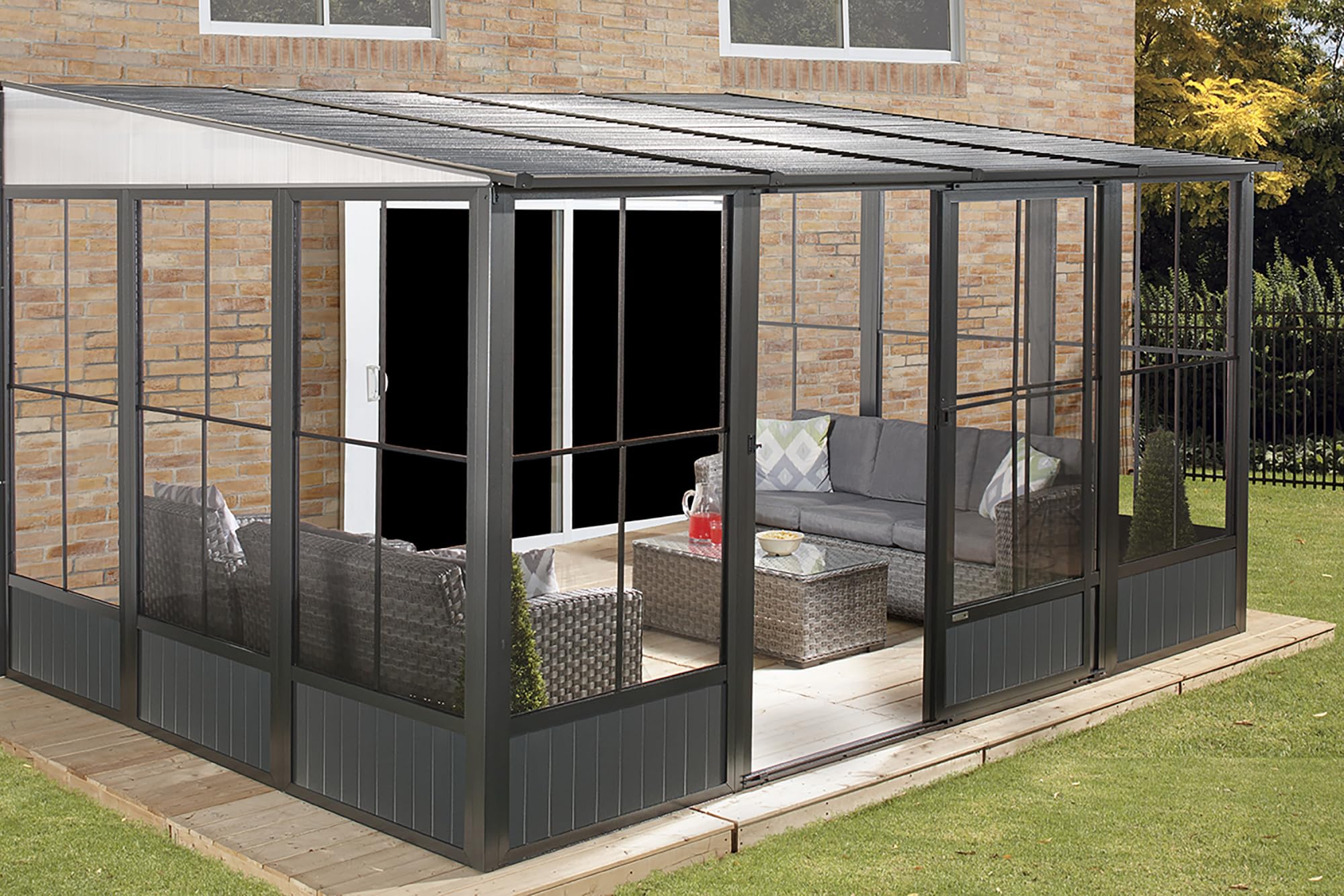

Figure 2: The Sojag Korado Wall Solarium installed on a patio against a brick house, showcasing its integration into a backyard space with an open door.

Figure 3: An angled view of the Sojag Korado Wall Solarium's structural frame, highlighting the aluminum construction and roof design before panel installation.

Operation

Sliding Doors:

The solarium features sliding doors for easy access. To open, gently slide the door along its track. Ensure the track is clear of debris for smooth operation. To close, slide the door back until it latches securely.

PVC Sliding Windows and Screens:

The 3-position PVC sliding windows offer flexibility for ventilation and protection. They can be adjusted to three positions: fully closed for maximum weather protection, partially open for ventilation, or fully open to allow maximum airflow while mosquito screens remain in place to prevent insect entry.

Figure 4: Interior view of the Sojag Korado Wall Solarium furnished with patio seating, demonstrating its use as a living space.

Figure 5: The Sojag Korado Wall Solarium with one of its sliding doors open, providing access to the exterior.

Maintenance

Regular maintenance will extend the lifespan and preserve the appearance of your Sojag Korado Wall Solarium.

• Cleaning the Frame and Panels: Clean the aluminum frame and galvanized steel panels periodically with mild soap and water. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots. Avoid abrasive cleaners or harsh chemicals.
• Window and Screen Care: Clean PVC windows with a soft cloth and a non-abrasive cleaner suitable for plastics. Gently brush or vacuum mosquito screens to remove dust and debris.
• Track Maintenance: Keep the sliding door and window tracks free of dirt, leaves, and other debris to ensure smooth operation. Lubricate tracks with a silicone-based spray if movement becomes stiff.
• Fastener Inspection: Annually inspect all bolts, screws, and connections for tightness. Tighten any loose fasteners to maintain structural integrity.
• Snow Removal: While the galvanized steel roof is durable, heavy snow accumulation should be removed to prevent excessive load on the structure. Use a soft-bristled broom or snow rake to gently clear snow.

Troubleshooting

This section addresses common issues you might encounter with your solarium.

Specifications

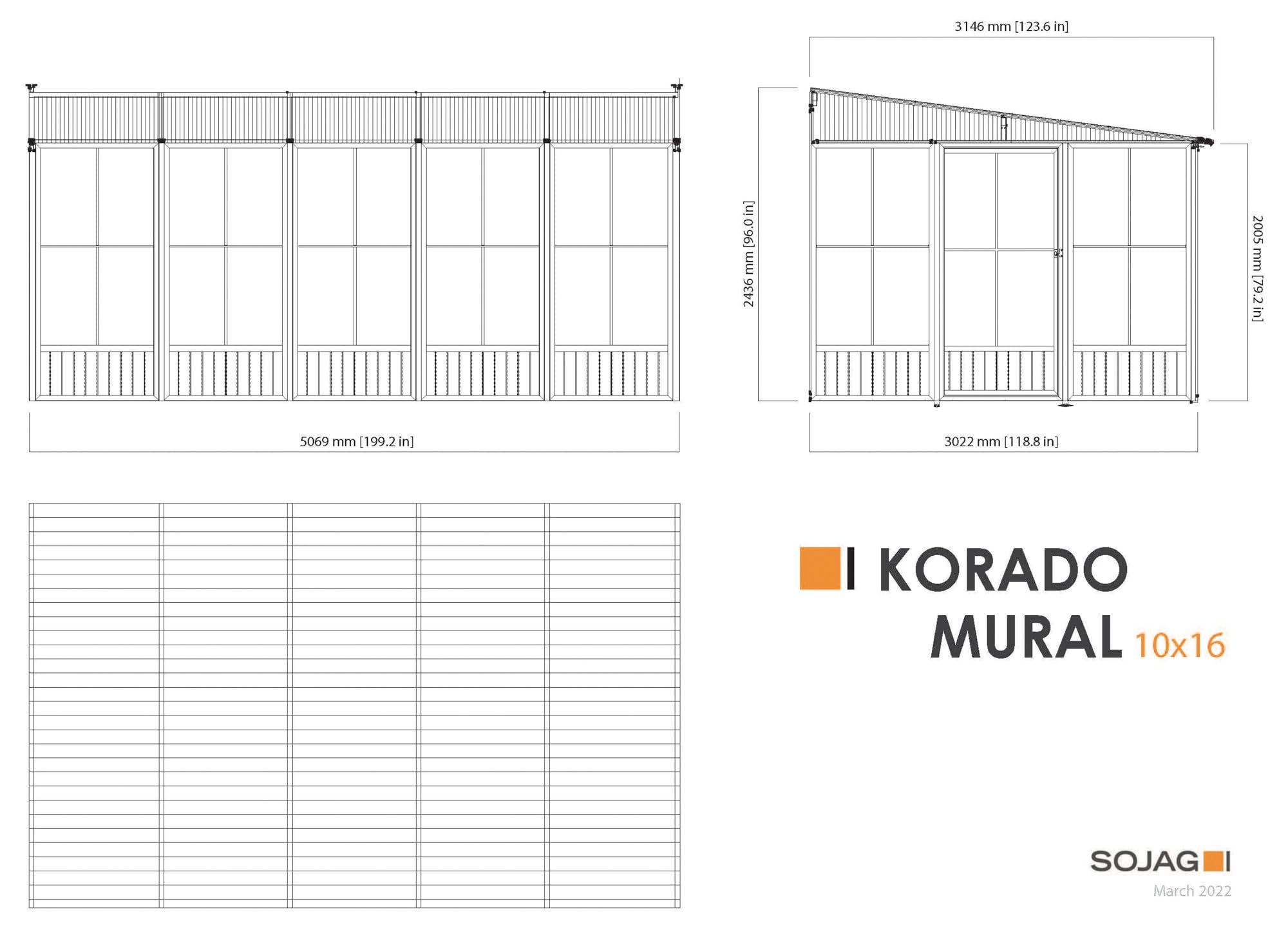

Figure 6: Technical drawing showing the dimensions of the Sojag Korado Mural 10x16 solarium in both millimeters and inches.

Warranty Information

The Sojag Korado Wall Solarium comes with a 1 Year Limited Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use and service. For specific terms, conditions, and claim procedures, please refer to the warranty documentation included with your product or contact customer support.

Customer Support

For assistance with assembly, missing parts, warranty claims, or any other inquiries regarding your Sojag Korado Wall Solarium, please contact Sojag customer support. Refer to the contact information provided in your product packaging or visit the official Sojag website for the most up-to-date support details.

When contacting support, please have your model number (440-9161540) and proof of purchase readily available.
